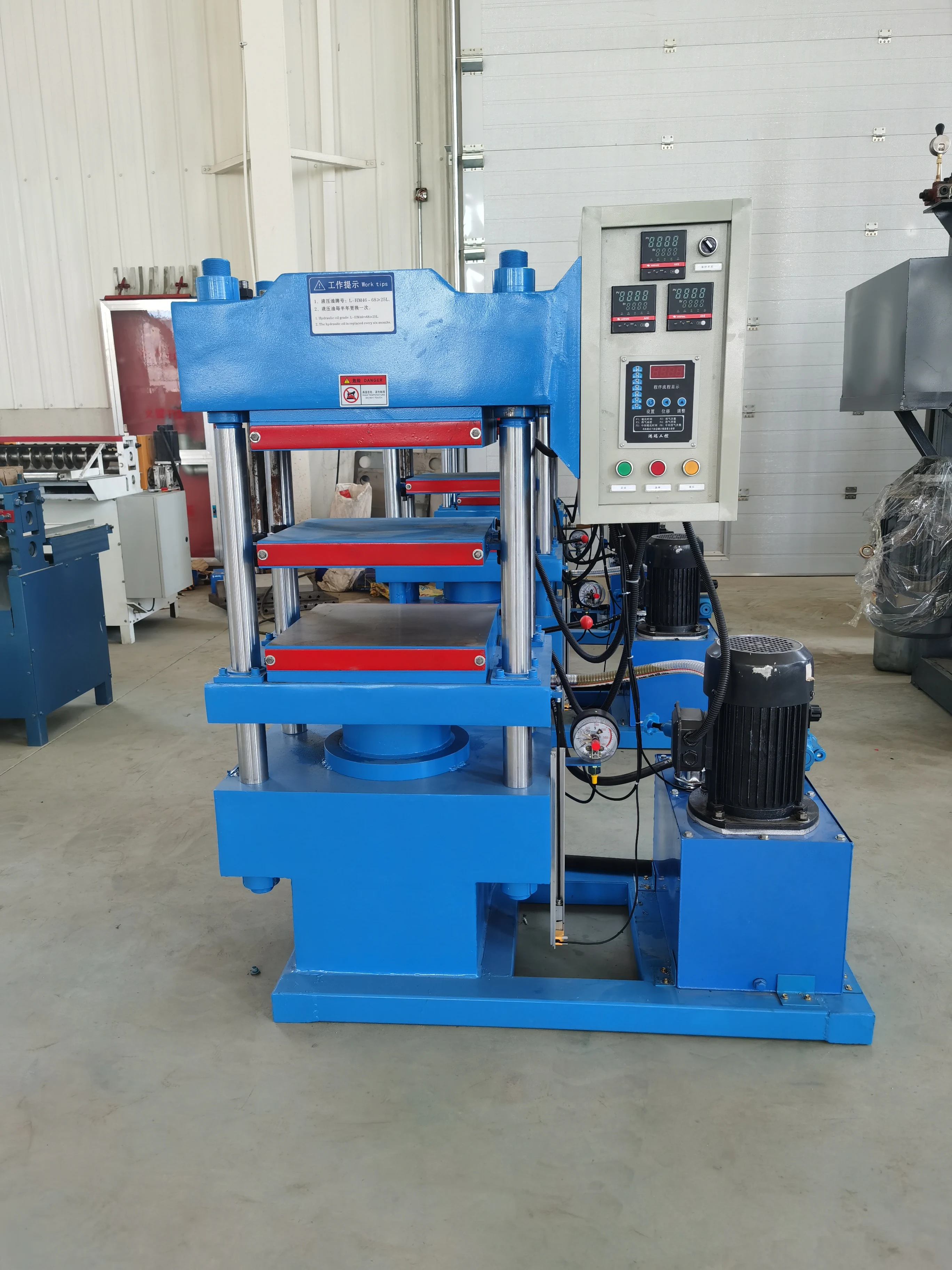

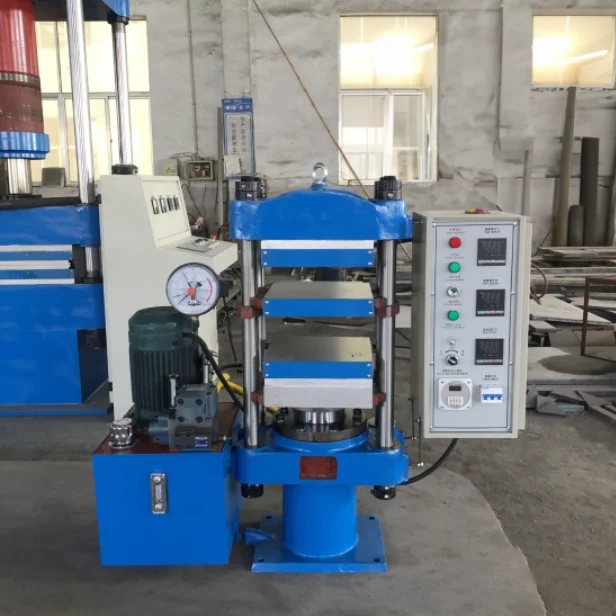

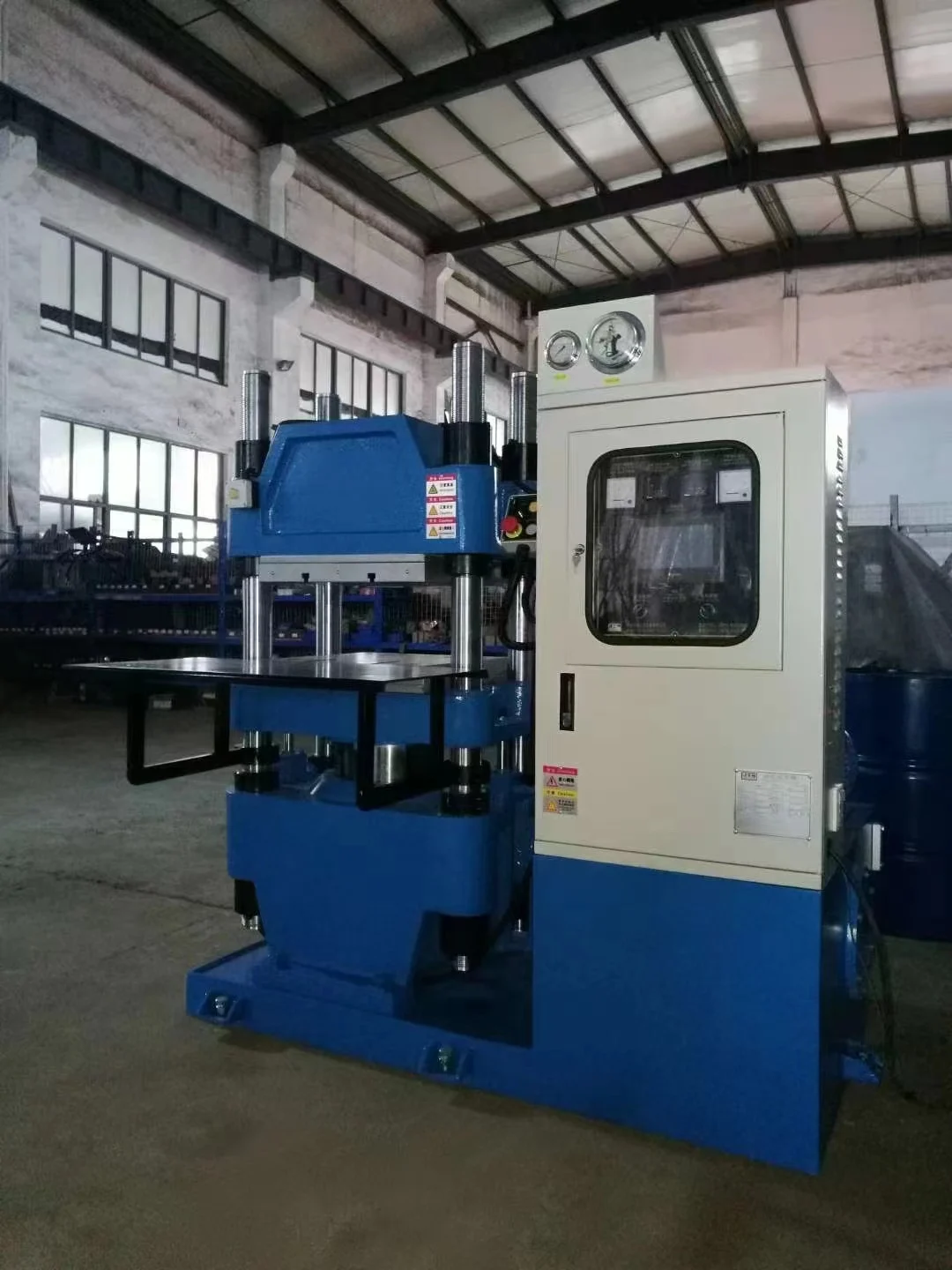

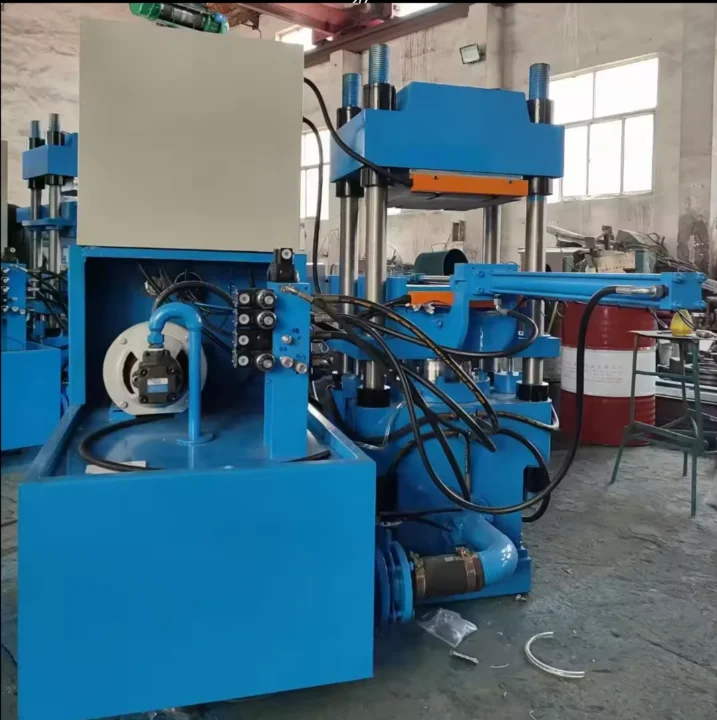

Машина для производства резиновых уплотнительного кольца конвейерная лента вулканизирующий пресс другое оборудование обработки резины/резиновый
- Категория: >>>
- Поставщик: Wuhan Mairuiduo Trading Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601272080865:
Описание и отзывы
Характеристики
Type | XLB-D/Q400×400×2E | XLB-D/Q600×600×2D | XLB-D/Q750×850×2 |
Nominal clamp mould force | 0.5 | 1.0/1.6 | 1.6 |
Specification of hot plate | 400×400 | 600×600 | 750×850 |
Number of working layer | 2 | 2 | 2 |
Piston diameter | Ф200 | Ф300/ф320 | Ф360 |
Max.stroke of piston | 250 | 350/450 | 500 |
Distance between hot plate | 125 | 150 | 150 |
Unit area pressure of hot plate | 3.1 | 3.1 | 3.1 |
Motor power | 1.5 | 2.78/4.44 | 2.5 |
weight | 1300 | 2600 | 5000 |
Overall size | 1500×750×1500 | 2000×700×1700 | 2550×960×2100 |
Close mould speed | ≥12 | ≥12 | ≥12 |
Open mould speed | ≥12 | ≥12 | ≥12 |
Parameter | Xlb-0.80MN |
Nominal Mold Clamping Force | 0.80MN（80t） |
Hot Plate Specifications | 550x550x60mm |
Number Of Working Layers | 4layers |
Number Of Hot Plates | 5pcs |
Heating Method | Electric Heating |
Heating Temperature | Adjustable Between 0-200℃ |
Temperature Control Method | Digital Display |
Pressure Per Unit Area | 26kg/Cm² |
Hot Plate Spacing | 150mm |
Plunger Stroke | 600mm |
Control Method | Automatic Control |
Number Of Cylinders | 1set |
Plunger Diameter | Ø250mm |
System Hydraulic Pressure | 16Mpa |
Structure Type | Four-Column |
Number Of Columns | 4pcs |
Push And Pull Method | Manual Push And Pull |
Number Of Slides | 4sets 4 Sets Each At The Front And Rear |
Motor Power | 2.2kw |
1. Column:
The column is made of high-quality 45# steel, which is processed and polished to enhance the overall strength and abrasion resistance of the column.
2. Upper and lower platform platforms:
They are all made of QT500-7 ductile iron. It is finished after high temperature tempering and aging treatment to eliminate internal stress and prevent deformation.
3. Plunger:
The plunger is made of QT500-7 ductile iron. The surface of the plunger is hardened and ground. The material and manufacturing process have high surface hardness and are not easy to wear, which improves the overall service life and wear resistance of the plunger.
4. Hot plate:
The hot plate is finely processed and ground after quenching and tempering, with good surface finish and strong wear resistance.
5. Seals: The cylinder seals are made of YX type high-quality polyurethane oil seals, which are resistant to oil, aging and abrasion.
6. Heat insulation board: The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa and a heat insulation coefficient of 0.031.
7. Hydraulic system: all hydraulic devices adopt national standard components in accordance with national standard requirements, easy to buy and replace, reasonable layout, and easy to maintain and repair. In addition: the hydraulic station oil tank is designed reasonably, occupies a small area, and has a small capacity.
8. Electrical system: This electromechanical device adopts the well-known brands of Chint and Delixi. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
The column is made of high-quality 45# steel, which is processed and polished to enhance the overall strength and abrasion resistance of the column.
2. Upper and lower platform platforms:
They are all made of QT500-7 ductile iron. It is finished after high temperature tempering and aging treatment to eliminate internal stress and prevent deformation.
3. Plunger:
The plunger is made of QT500-7 ductile iron. The surface of the plunger is hardened and ground. The material and manufacturing process have high surface hardness and are not easy to wear, which improves the overall service life and wear resistance of the plunger.
4. Hot plate:
The hot plate is finely processed and ground after quenching and tempering, with good surface finish and strong wear resistance.
5. Seals: The cylinder seals are made of YX type high-quality polyurethane oil seals, which are resistant to oil, aging and abrasion.
6. Heat insulation board: The heat insulation board adopts high-quality calcium silicate board, with a pressure resistance of 3.5Mpa and a heat insulation coefficient of 0.031.
7. Hydraulic system: all hydraulic devices adopt national standard components in accordance with national standard requirements, easy to buy and replace, reasonable layout, and easy to maintain and repair. In addition: the hydraulic station oil tank is designed reasonably, occupies a small area, and has a small capacity.
8. Electrical system: This electromechanical device adopts the well-known brands of Chint and Delixi. The electrical device has the advantages of small size, compact structure, fatigue resistance, and is suitable for continuous high-strength work.
If the above type of machine does not match your needs, you can contact me, we can provide customized services according to customer needs
Since raw materials' price fluctuates and the actual needs of customers are different, online price is just for reference.
If you are interested, please contact me for latest quotation.
We can guarantee same quality,lowest price;same price,best quality.
Since raw materials' price fluctuates and the actual needs of customers are different, online price is just for reference.
If you are interested, please contact me for latest quotation.
We can guarantee same quality,lowest price;same price,best quality.
Q1: How to confirm if it is suitable for my machine？
A1: Manufactured entirely according to drawings, CAD files available.
Q2:What’s your MOQ?
A2: 1 set brake pads molds as one order.
Q3: What are your trade terms?
A3: Payment term: TT, 30% deposit before production, 70% balance before shipment.
Q4: What is the lead time?
A4: Mass products need 30 days.
Q5: How do you ship the goods and how long does it take arrive?
A5: By DHL, UPS, FedEx or TNT,Air and sea ship is acceptable.
Q6: How to precede the order if I need custom made?
A6: Provide drawings, or tell us your hot press machine parameters.
Q7: How do you make our business long-term and good relationship?
A7:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A1: Manufactured entirely according to drawings, CAD files available.
Q2:What’s your MOQ?
A2: 1 set brake pads molds as one order.
Q3: What are your trade terms?
A3: Payment term: TT, 30% deposit before production, 70% balance before shipment.
Q4: What is the lead time?
A4: Mass products need 30 days.
Q5: How do you ship the goods and how long does it take arrive?
A5: By DHL, UPS, FedEx or TNT,Air and sea ship is acceptable.
Q6: How to precede the order if I need custom made?
A6: Provide drawings, or tell us your hot press machine parameters.
Q7: How do you make our business long-term and good relationship?
A7:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары
Обеспечивают прецизионное производство деталей из листового металла и широко используется в электронике МЕХАНИЧЕСКОМ ОБОРУДОВАНИИ других отраслях промышленности
OEM клинические аналитические инструменты ротационный парафинный Микротом для лабораторного использования оптимальных секций
2 585,00-2 588,00 $
Китайский поставщик EVA резиновая сумка Obag Водонепроницаемая силиконовая сумка-тоут
4,00-8,00 $
ЧПУ обработка и производство алюминиевых заготовок оборудование для обработки металла на заказ впуск корпуса дроссельной заслонки Honda K20 70 мм
40,00-70,00 $

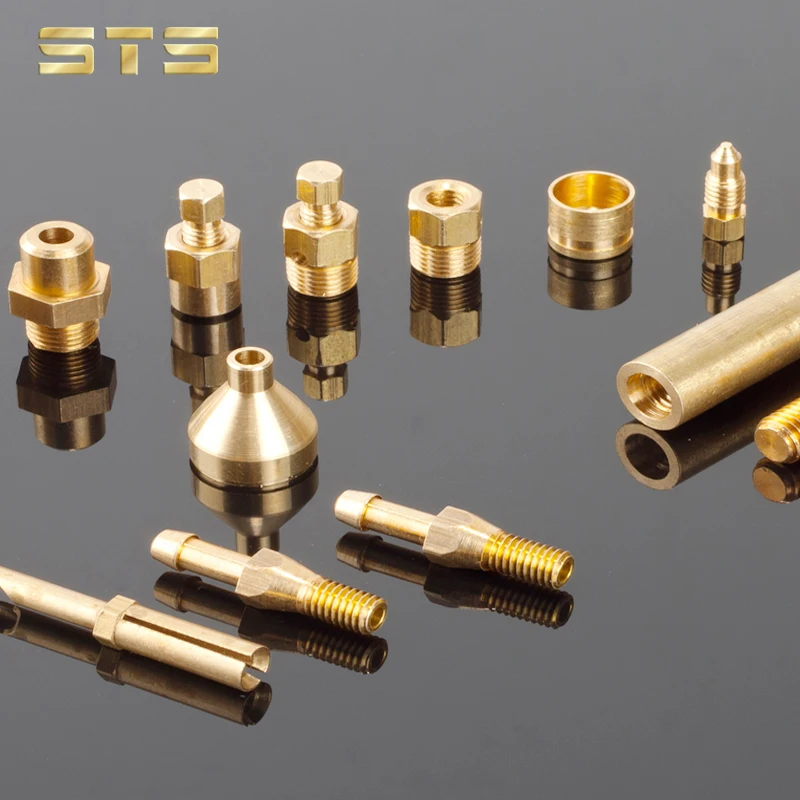

Высокоточный изготовленный на заказ аппаратный фитинг Oem производственный сервис Abs литьевая пластиковая деталь CNC обрабатывающий
