Оптовая продажа ручной LTC 002 полностью автоматический контроллер натяжения
- Категория: >>>
- Поставщик: Dongguan Leesun Precision Mechtronics Co. ltdDongguan ltd
Сохранить в закладки 1601272148835:
Описание и отзывы
Характеристики

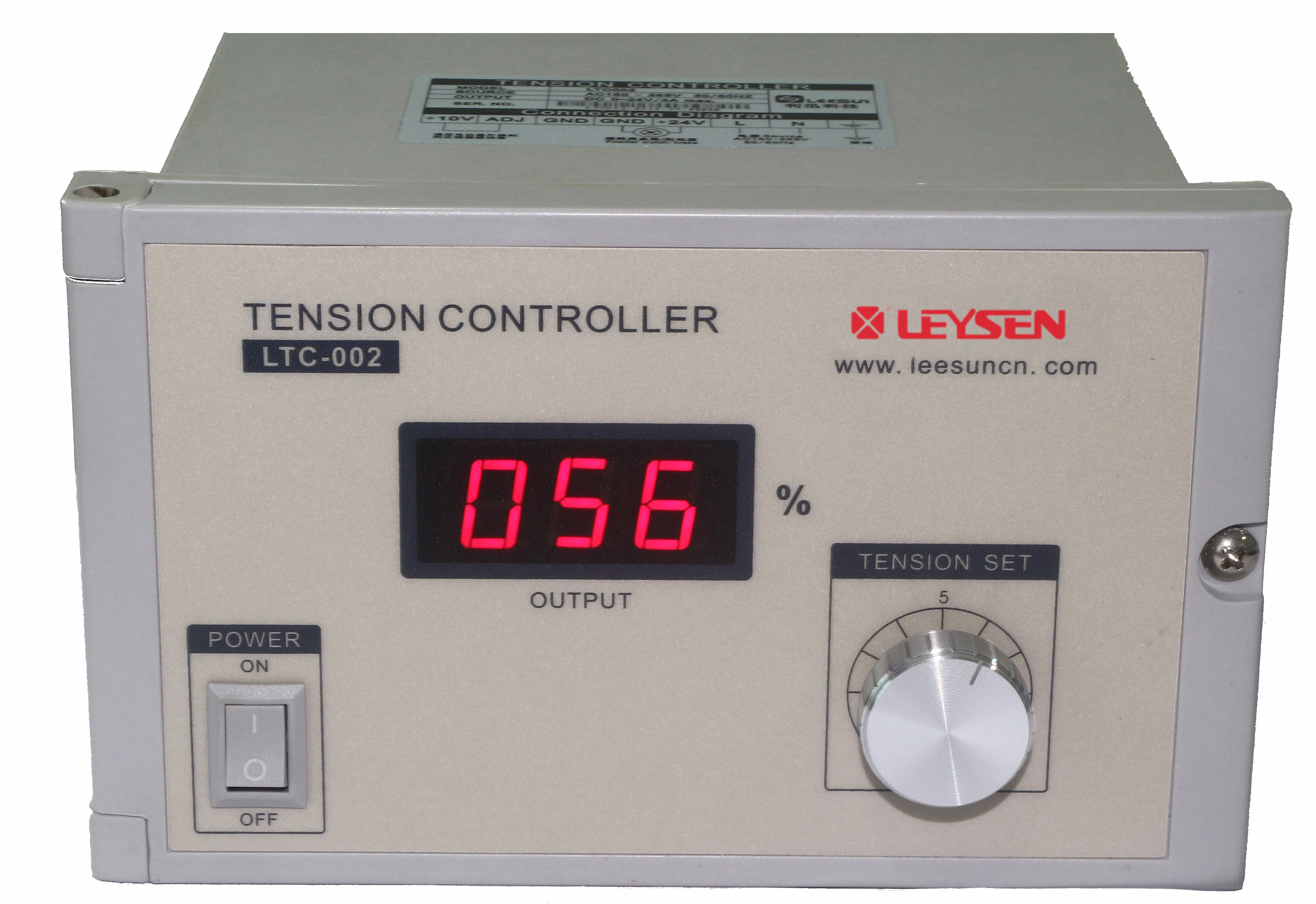

LTC-002 manual tension controller can control the tension of the coil through manual real-time adjustment or external signal input control. It has fast output progress, simple operation, stable performance, and overload and short circuit protection. It is widely used in various coiling, winding, and unwinding control.
Product name | Manual tension controller |
Local Service Location | None |
After Warranty Service | Video technical support, Online support |
MOQ | 1 Pcs |
Payment | T/T |
Delivery time | 3-5 Working Days |
Color | Silvery white |
Packing | Packing and foam |
1.Using a highly adaptable switching power supply, it is beautiful and elegant, with intuitive and clear display.
2.Pulse width modulation switching control system, with stable performance and high cost-effectiveness.
3.Overload and short circuit protection, and external signal control of 0-10VDC.
4.Input power supply: AC85V~264V 50/60Hz output: 0~4.00A DC24V.
5.Applicable models: Magnetic powder clutch/brake.
6.Multiple installation methods: floor standing, wall mounted, and embedded.
1.Loosen the metal fasteners on both sides of the controller, install the metal fasteners in the required installation direction of the machine, tighten the screws, and secure them to the machine.
2.Confirm that all external power sources are turned off before wiring.
3.Open the cover plate to connect the ground wire, power supply, magnetic powder clutch/brake. If using external model control, please disconnect terminals+10V and ADJ first, and then connect terminals ADJ and GND.
4.Check that the wiring is properly connected, close the panel and tighten the screws, connect the power, turn the panel power switch to the "ON" position, and when the panel display light is on, it can start working. The potentiometer knob can be adjusted as needed.
5.The panel is displayed as a three digit number, representing the output percentage ratio, adjustable from 0 to 100%, corresponding to 0 to 24V DC, with a maximum current of 4.00A, suitable for magnetic powder clutches or brakes with a torque of 0.5 to 400Nm.
4.Check that the wiring is properly connected, close the panel and tighten the screws, connect the power, turn the panel power switch to the "ON" position, and when the panel display light is on, it can start working. The potentiometer knob can be adjusted as needed.
5.The panel is displayed as a three digit number, representing the output percentage ratio, adjustable from 0 to 100%, corresponding to 0 to 24V DC, with a maximum current of 4.00A, suitable for magnetic powder clutches or brakes with a torque of 0.5 to 400Nm.
Note: The recommended size for panel cutouts for embedded installation is (165 ± 0.5) mm x (105 ± 0.5) mm
Q:Who are we?
Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final inspection before shipment;
Q:What can you buy from us?
A:Tension Control System,Servo Edge Position Control System,PlanetaryReducer, Differential Slip Shaft,Air Shaft
Q:Why should you buy from us not from othersuppliers?
Q:what services can we provide?
A:We are based in Guangdong, China, start from 2004,sell to Domestic Mar-ket(60.00%),SouthAsia(20.00%),Western Europe(3.00%),Northern Eu-rope(3.00%),Eastern Europe(2.00%),SoutheastAsia(5.00%),North Ameri-ca(1.00%),Eastern Asia(3.00%),Mid East(2.00%).There are total about51-100 people inour office.
Q:How can we guarantee quality?
A:Always a pre-production sample before mass production;Always final inspection before shipment;
Q:What can you buy from us?
A:Tension Control System,Servo Edge Position Control System,PlanetaryReducer, Differential Slip Shaft,Air Shaft
Q:Why should you buy from us not from othersuppliers?
A:Company has a professional design and research team. lt mainly devel.ops and produces high-precisionmagnetic powder clutch/brake, electro-maanetic clutch/brake, pneumatic clutch/brake, tension controllersystem.
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW;Accepted Payment Currency:USD,EUR,HKD,CNY;AcceptedPayment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal;Language Spoken:English,Chinese
Похожие товары

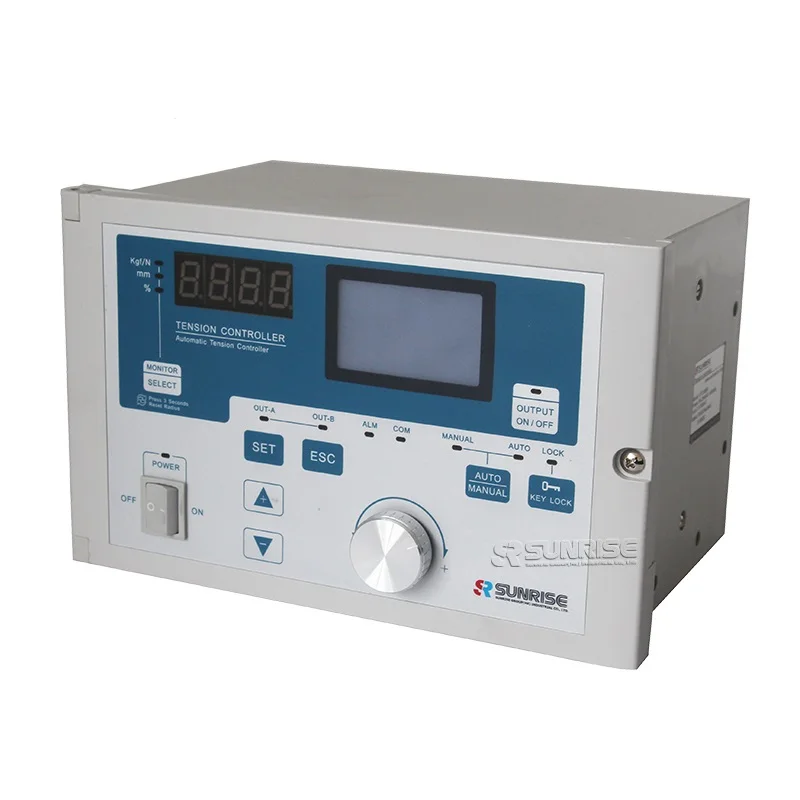

Заводская поставка OEM автоматический регулятор напряжения ручной для системы перемотки и расслабления
350,00 $

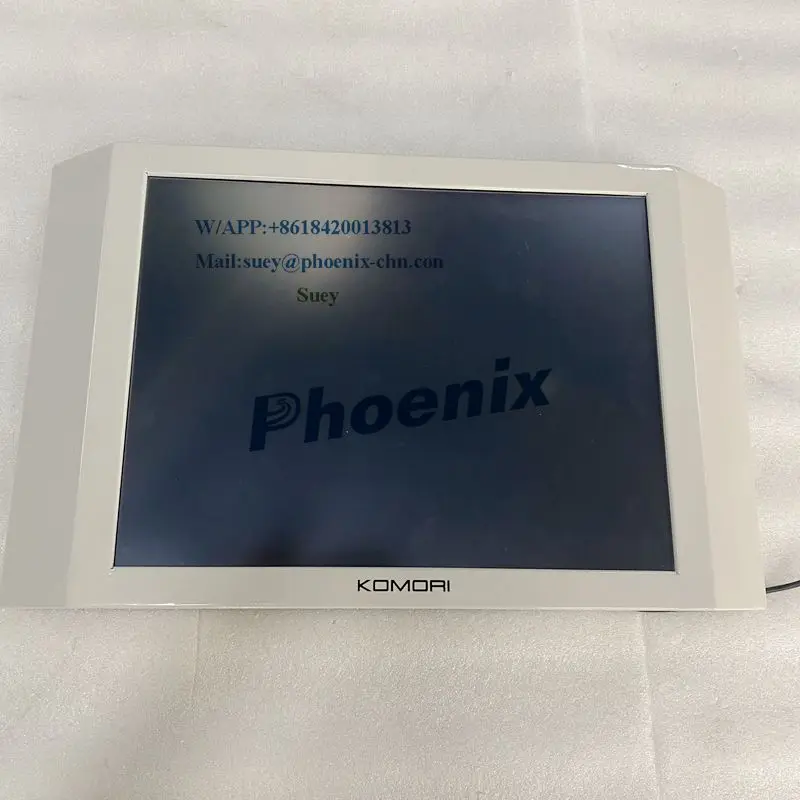

Цветной ЖК-монитор Komori дисплей MTM-15DK-1 постоянного тока 12 В для офсетных пресс-частей

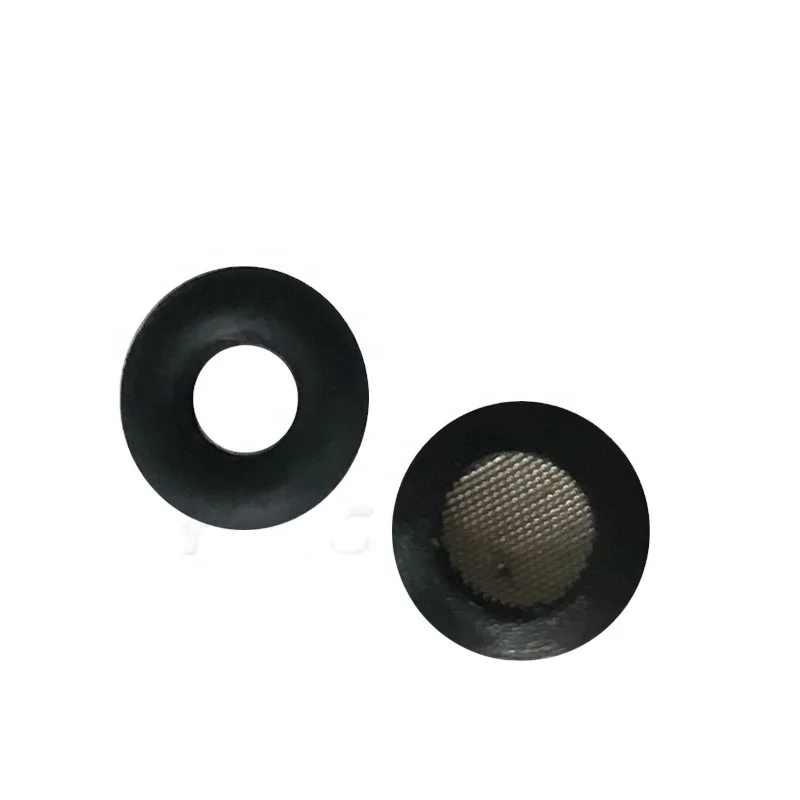

Альтернативный фильтр клапана печатающей головки Linx FA74219 для 4900 принтера используется струйного
5,30-5,50 $

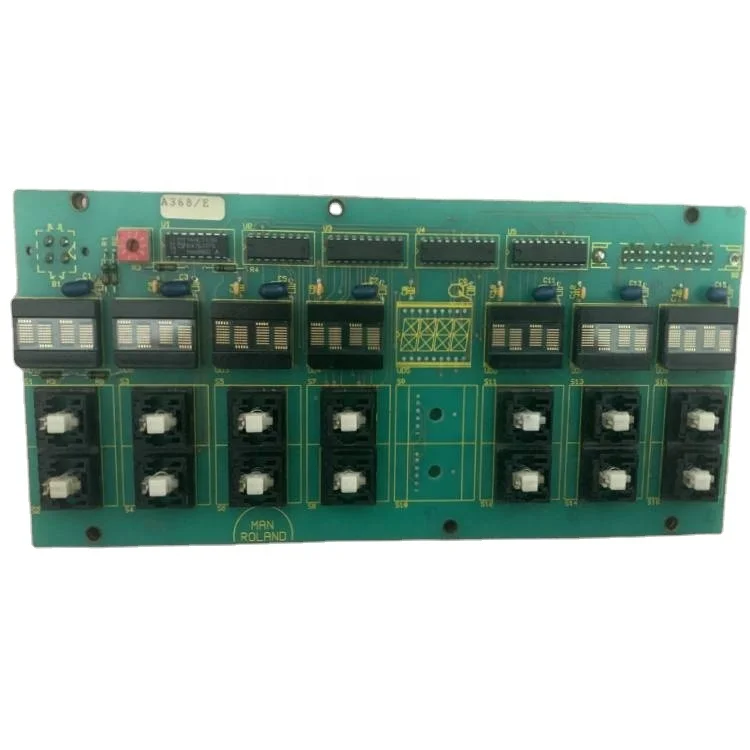

Электрическая чернильная консоль A37V094270 A368/E для принтера Roland R700

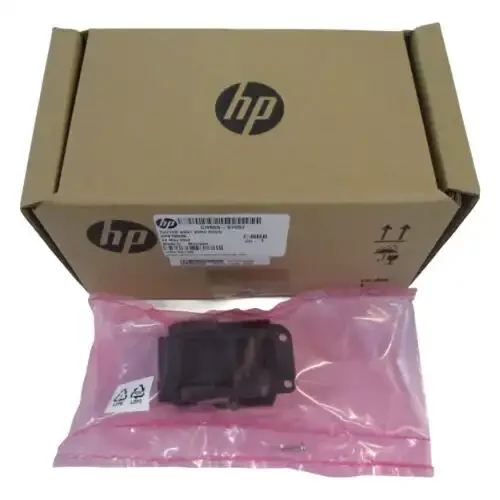

CH955-67007-original HP Новый резак в сборе для Z6200 T7100 T7200 L25500 L26500 латексный 260
75,00 $

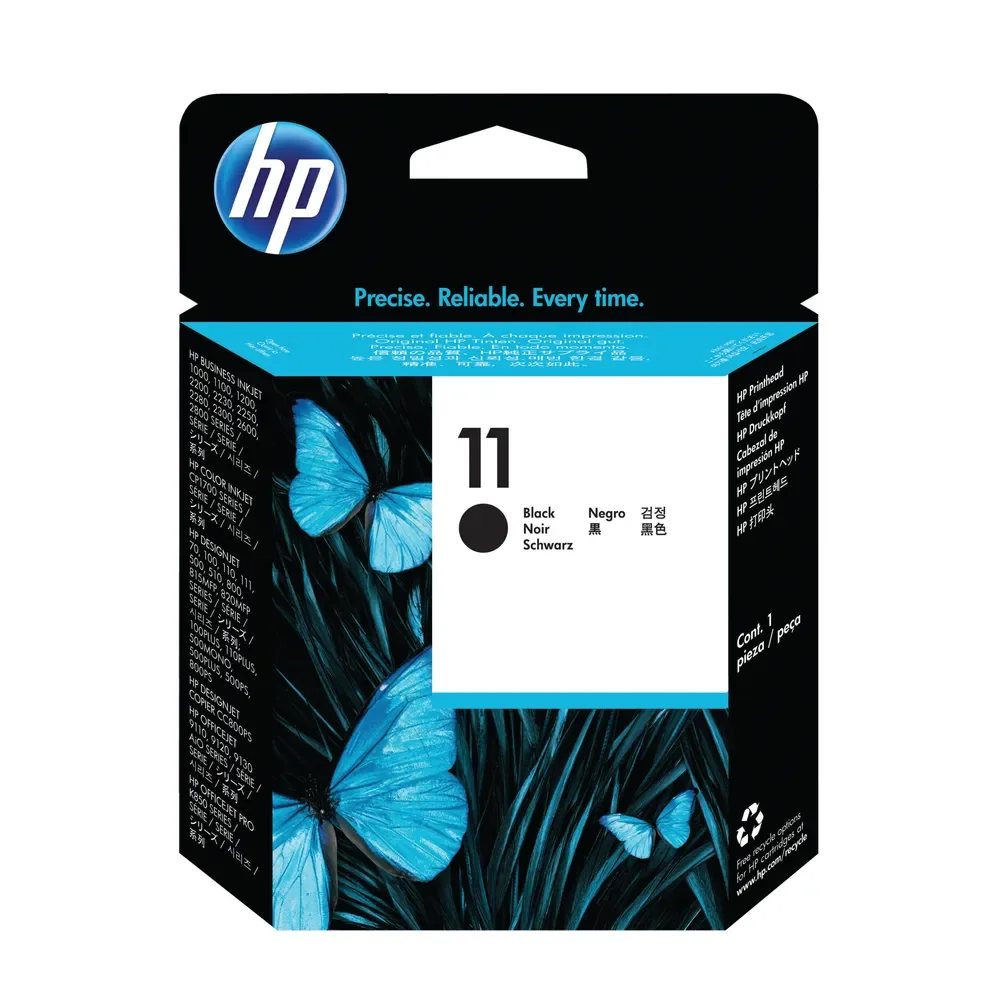

HP11 C4810A K оригинальная новая печатающая головка для HP 70/100/500/510/800/111 по хорошей цене
104,00 $

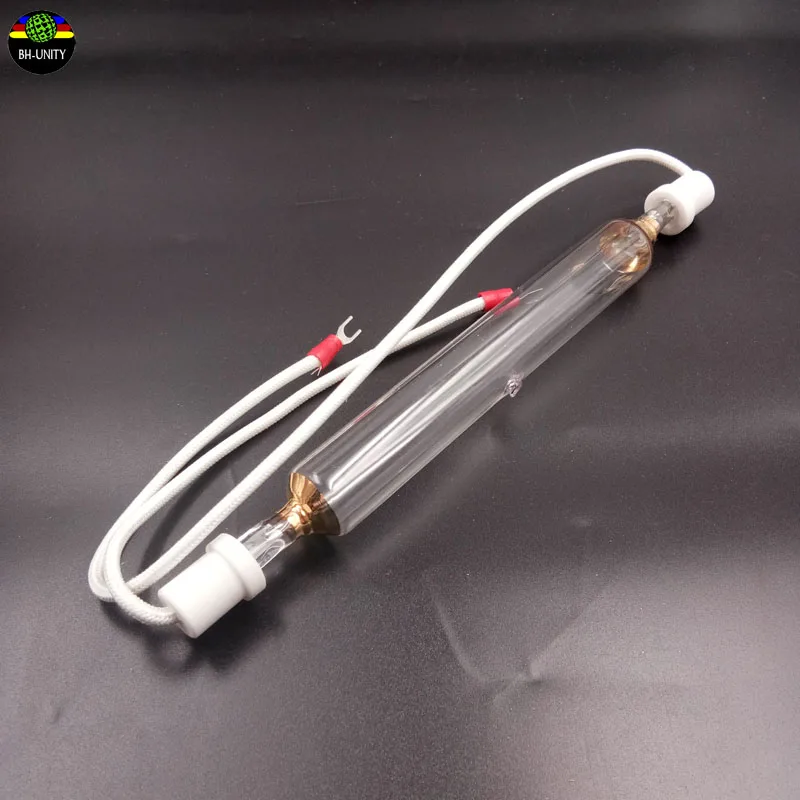

УФ-лампа для принтера 230 мм 220 В 2000 Вт
