4060 400x600 мм Sunway Co2 лазерная резьба кружки гравировальная машина для дерева акриловый неметаллический сувенир
- Категория: >>>
- Поставщик: Fangyu(shanghai) Automation Technology Co. Ltd.
Сохранить в закладки 1601272349019:
Описание и отзывы
Характеристики
Products Description
CO2 laser engraving machine is a type of computer numerical controlled nonmetal laser etching system that uses CO2 laser tube to
output high-density laser beam for engraving & cutting. CO2 laser engravers are used for wood, fabric, leather, acrylic,
plastic,plexiglass, paper, wool, rubber, crystal, ceramic tiles, jade, epoxy resin, bamboo, and more non-metallic materials. It is
widely used in crafts making, advertising, decoration, clothing, leather, toys, electronic appliances, computer embroidery and
cutting, models, packaging and printing, paper products, and more industries.
output high-density laser beam for engraving & cutting. CO2 laser engravers are used for wood, fabric, leather, acrylic,
plastic,plexiglass, paper, wool, rubber, crystal, ceramic tiles, jade, epoxy resin, bamboo, and more non-metallic materials. It is
widely used in crafts making, advertising, decoration, clothing, leather, toys, electronic appliances, computer embroidery and
cutting, models, packaging and printing, paper products, and more industries.
Sunway CO2 laser engraving machine is equipped with a precision CO2 laser generator which can engrave on almost any non-metal
materials surface. The nonmetal laser engraving machine can also be used for cutting many different materials. With the cylinder
rotary attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrument, and so on. The CO2 laser
engraving system supports multiple graphic formats, such as PLT, DXF, BMP, JPG, GIF, PGN, TIF, and so on. The CO2 laser machine is
equipped with DSP control system for CorelDraw, AutoCAD, and more professional softwares.The CO2 nonmetal laser engraver is
compatible with WIN10, WIN8, WIN7,Windows Vista and Windows XP.
materials surface. The nonmetal laser engraving machine can also be used for cutting many different materials. With the cylinder
rotary attachment, you can engrave any cylindrical object, such as cup, brush pot, musical instrument, and so on. The CO2 laser
engraving system supports multiple graphic formats, such as PLT, DXF, BMP, JPG, GIF, PGN, TIF, and so on. The CO2 laser machine is
equipped with DSP control system for CorelDraw, AutoCAD, and more professional softwares.The CO2 nonmetal laser engraver is
compatible with WIN10, WIN8, WIN7,Windows Vista and Windows XP.
Laser Head
Laser head can stop focus lens from polluting. Laser head will make effect of engraving and cutting better.
CO2 Laser Tube
Longer service life, more steady.
Higher effciency, high precision,
small facula.
Higher effciency, high precision,
small facula.
RUIDA Offline/M2 Main Board
RUIDA offline, superior control performance. engraving speed. Support engraving and cutting simultaneously. M2 using coreldraw
software output.
software output.

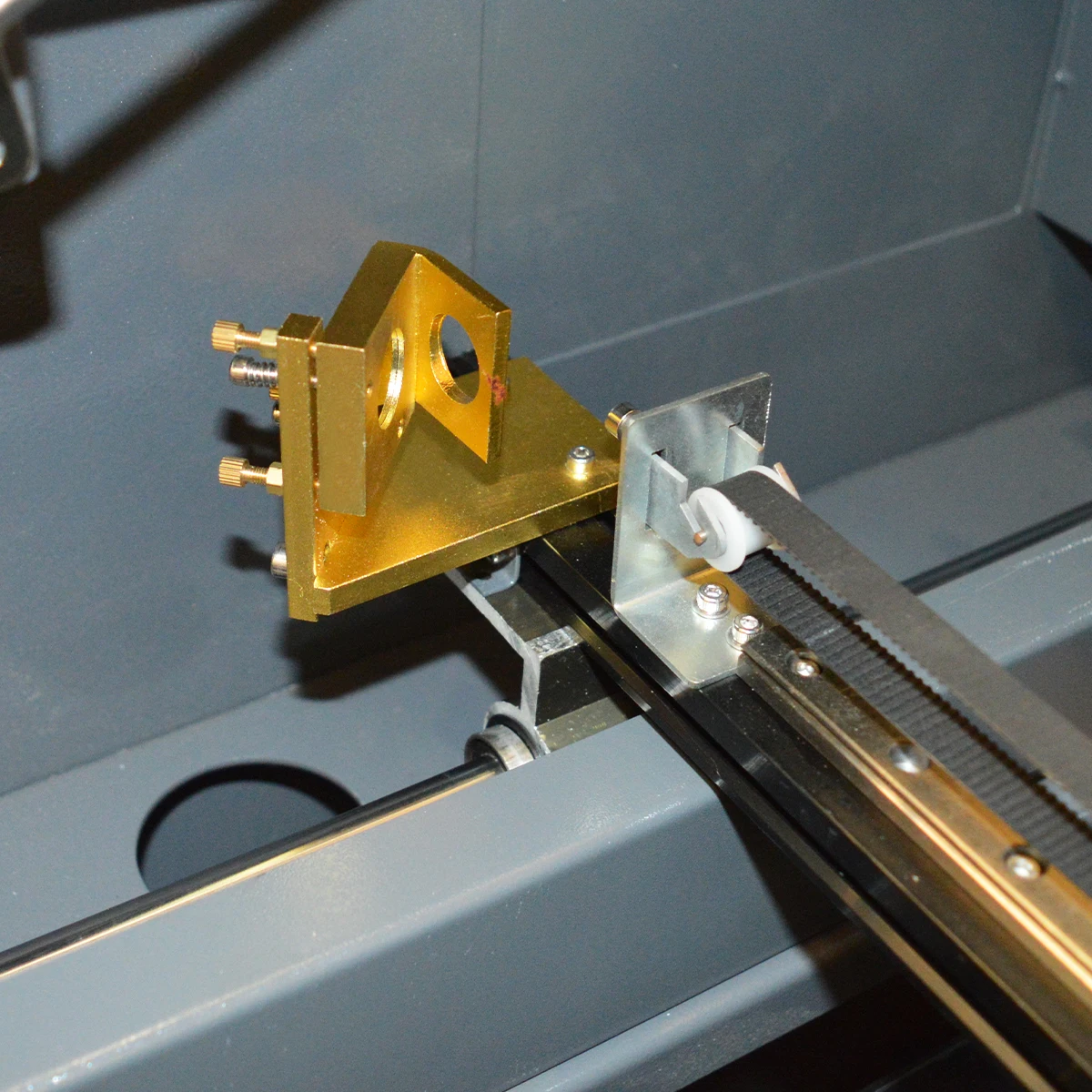

The Lens
Lens use frequently wipe can
prolong life.
prolong life.

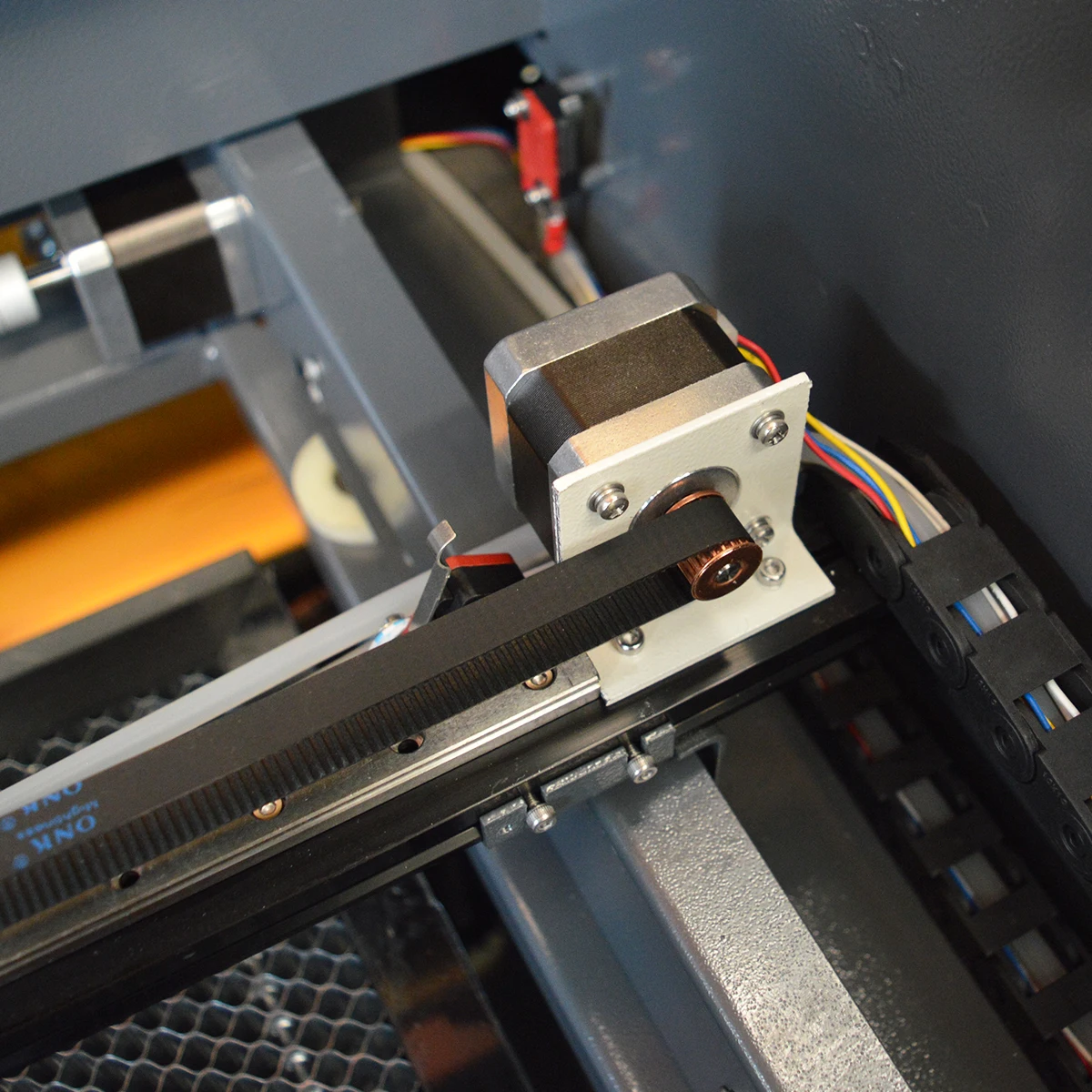

Linear Rail
Linear guide rail with high precision, durable and stable. Not easy to deform.
CO2 Laser Engraving Machine Features:
1. Automatic focus lens.
2. CO2 sealed laser tube including laser powers of 60 Watts, 80 Watts, 100 Watts, 130 Watts, 150 Watts.
3. Honey comb table or knife table for option.
4. Automatic up and down platform for option.
5. Profesional exhauster device and cooling device.
6. Transmit files directly in CorelDraw, AutoCAD, and more softwares.
7. The CO2 laser machine adopts international linear rail with high precision.
8. The CO2 laser machine owns functions of restoring from power off, continuation on break point.
2. CO2 sealed laser tube including laser powers of 60 Watts, 80 Watts, 100 Watts, 130 Watts, 150 Watts.
3. Honey comb table or knife table for option.
4. Automatic up and down platform for option.
5. Profesional exhauster device and cooling device.
6. Transmit files directly in CorelDraw, AutoCAD, and more softwares.
7. The CO2 laser machine adopts international linear rail with high precision.
8. The CO2 laser machine owns functions of restoring from power off, continuation on break point.
Working Area: | 600*400mm |
Working Speed: | 1-1000mm/s |
Cutting Speed: | 1-50mm/s |
Engraving Thickness: | 0-2mm (Depends on materials) |
Cutting Thickness: | 0-20mm (Depends on materials) |
Water Protection: | Yes |
Positioning Way: | Red Light Positioning |
Locating Precision: | ≤0.01mm |
Work Platform: | Honeycomb / Fixed / Lift platform |
Laser Power: | 50W / 60W / 80W / 100W |
Laser Type: | Sealed CO2 Laser Tube |
Cooling Mode: | Water Cooling Protection System |
Net Weight: | 80Kg |
Lift Range: | Manual Regulation 0-100mm |
Power Supply: | AC110-220V/50-60HZ(Custom Made) |
Auxiliary Device: | Exhaust Fan, Exhaust Pipe, Water Pump, Air Pump, User Manual |
Optional Accessories: | Simple Rotation, Standard Chuck, Chiller, Auto Focus System, Water Protection, CCD Camera, Blade Work Platform |
Packaging: | Standard Plywood Case |
Certification: | CE |
Simple Rotary Axis
Standard Rotary Axis
S & A Water Chiller（CW-3000/5000）
Applicable Materials
Wood, acrylic, stone, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass, and other
nonmetal materials.
nonmetal materials.
Applicable Industries
Advertisements, gifts, crafts, arts, toys, shoes, computers, model making, garments, building, paper, packaging and printing.
Applicable Materials | Cutting | Engraving |
Acrylic | Plexiglass | PMMA | Perspex | √ | √ |
Organic Board | Double Color Sheet | √ | √ |
Wood | Plywood | Veneer | MDF | Balsa | √ | √ |
Leather | PU | Shoe Material | Synthetic Leather | Genuine Leather | √ | √ |
Fabric | Cloth | Textile | √ | √ |
Carpet | Mat | Rug | Wool Felt | √ | √ |
Paper | Cardboard | Chipboard | Press Board | √ | √ |
Ceramic | Tile | Marble | Glass | × | √ |
Plastic | √ | √ |
Fiber Glass | Filter Cloth | √ | × |
Coated Metal/Anodized Metal | × | √ |
Cutting thickness of different laser power for reference | ||||||
Laser power(W) | Acrylic(mm) | Plywood(mm) | MDF(mm) | |||
40W | 3 | 2 | 1.5 | |||
60W | 8 | 5 | 3 | |||
80W | 12 | 8 | 6 | |||
100W | 15 | 12 | 9 | |||
150W | 25 | 20 | 15 | |||
