500L 5HL 4BBL Stainless steel electric heating combined 3 vessel microbrewery equipment for sale usa

1.Description:

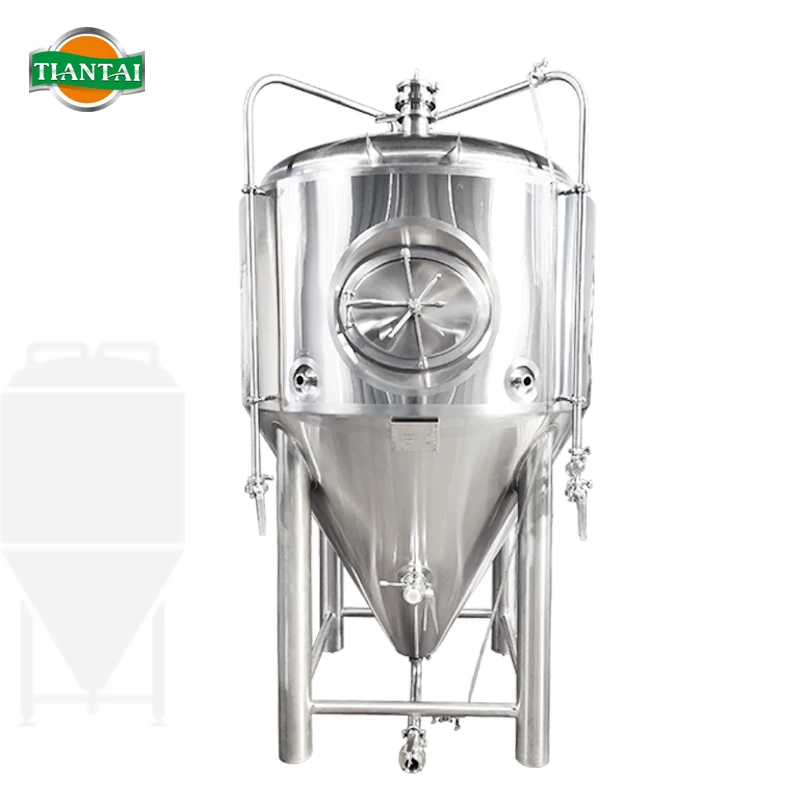

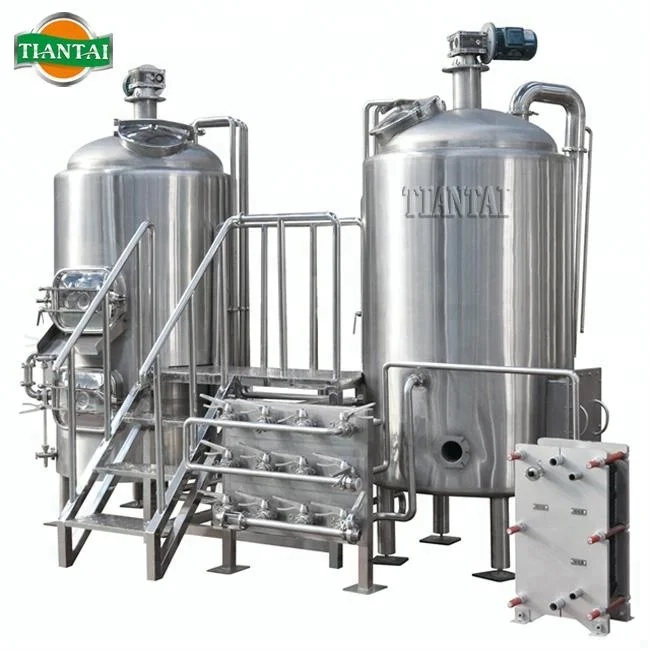

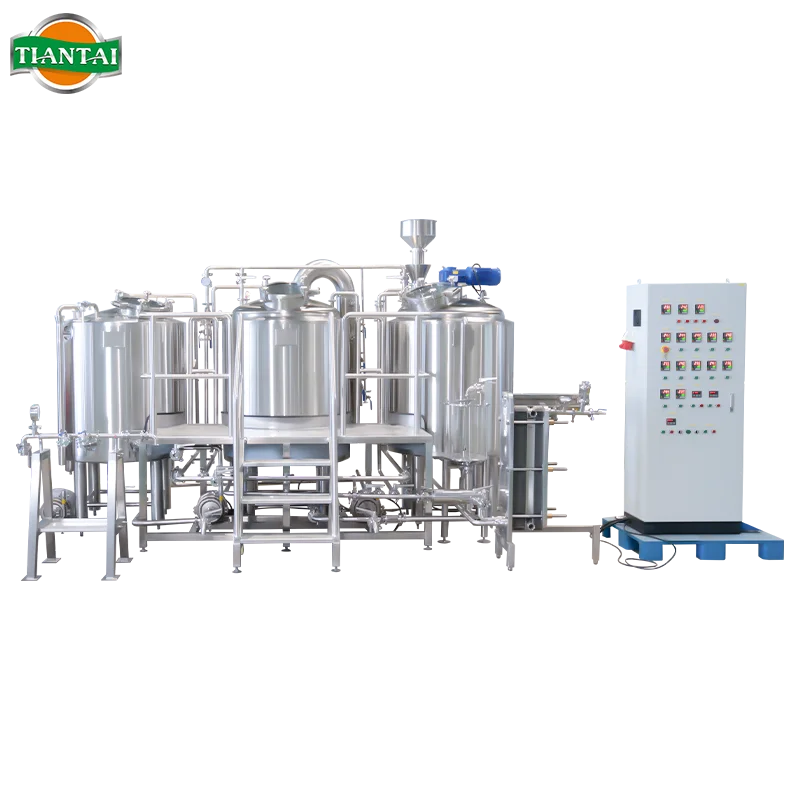

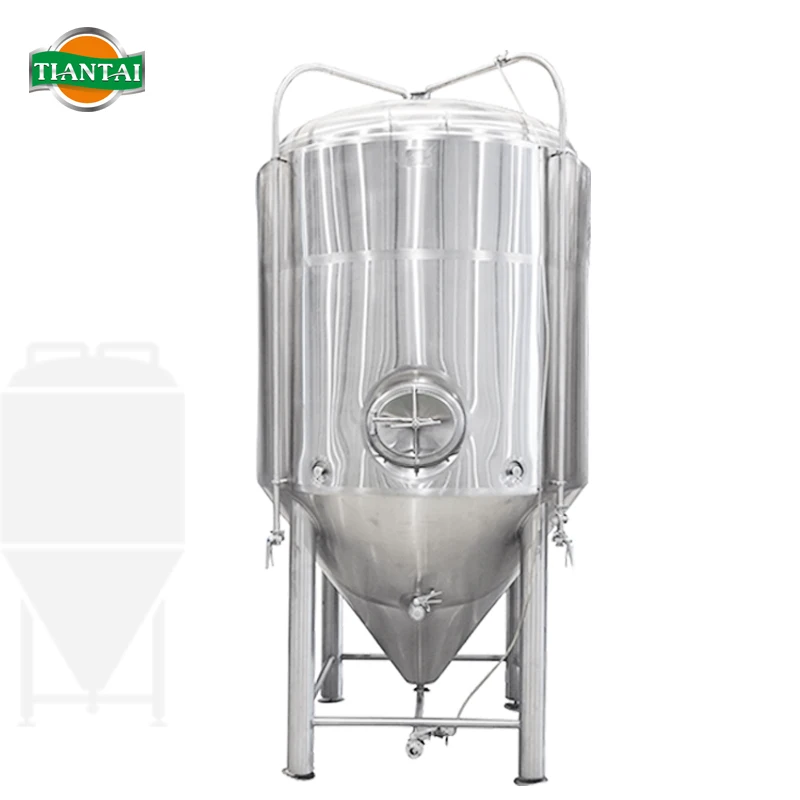

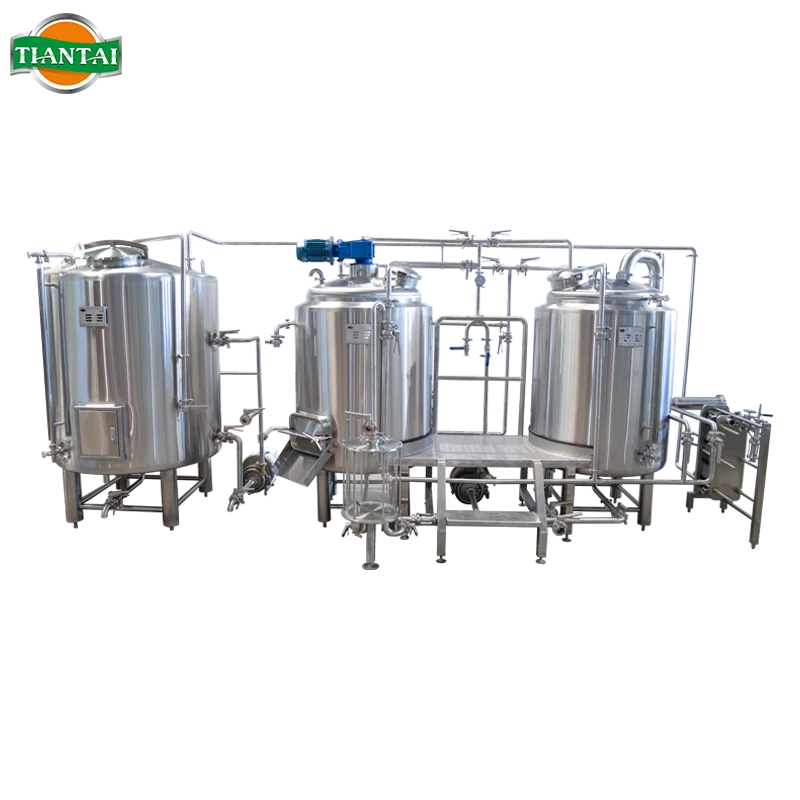

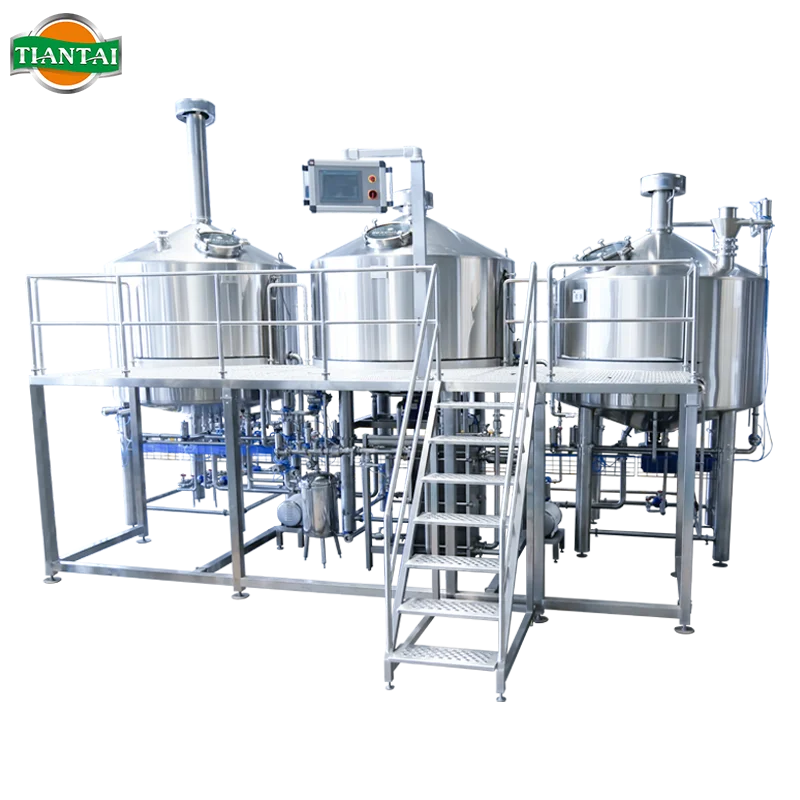

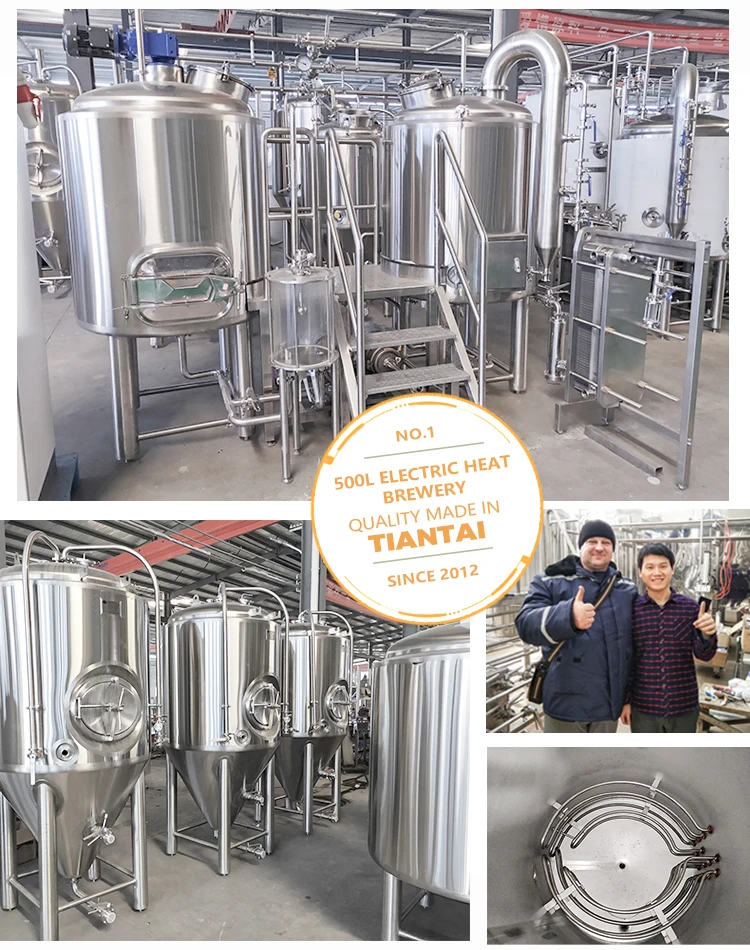

500L 5HL 4BBL Stainless steel electric heating combined 3 vessel microbrewery equipment is often used in small craft breweries or craft brewing bars. The system contains combined three vessels, a Mash/Lauter&Whirlpool Tun and a kettle tank. The mashing process and the wort filtration process are completed by the combined top tank, the boiling is completed by another tank, and the whirlpool processes are completed by the combined bottom tank. With such configuration, saving equipment costs and floor space. This system usually brews one batch a day. If the second batch of brewing takes at least 14 hours, it can cope with a temporary increase in production and is not suitable for planned multi-batch brewing in one day. According to different fermentation cycles of brewed beer, 6pcs 1000L fermenters or 12pcs 500L fermentors can usually be configured, and 4pcs 1000L fermenters and 4pcs 500L fermenters can also be configured to meet the needs of various beer types. The system also needs to be equipped with a complete automatic or manual control system, malt milling system, CIP system, cooling system, air system, etc.

Send Inquiry>>

Now click to contact us for more information !Inquiry Now

2.Our Advantage:

With ISO TUV SGS, the product meets the GB/CE/PED/ASME standard

Local service in EUROPE, AUSTRALIA ETC

5 Years Warranty for tanks

0 trade risk verified by more than 1100 breweries

Build breweries in 76 countries

19 years experience

3.Features

Combined three vessels, 500Liter/batch, first batch takes about 8 hours, and two batches of 14 hours are allowed;

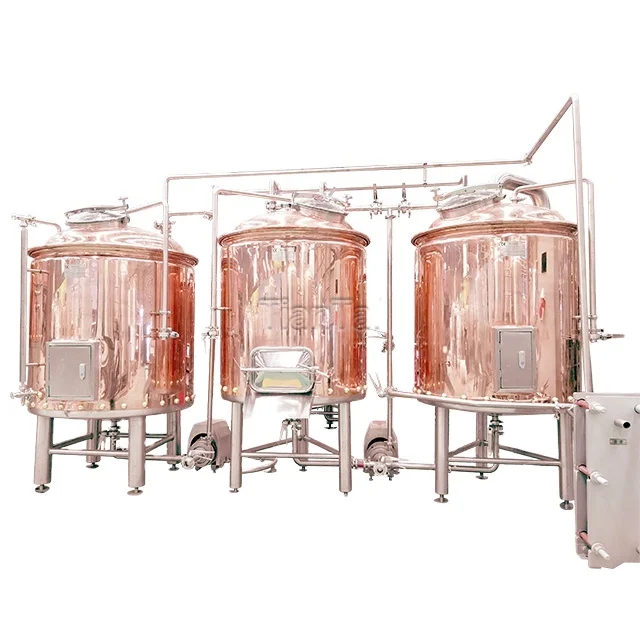

All certificated 304 stainless steel, easy to clean; Copper cladding for special environments such as bars;

Electric heated, high thermal efficiency; Steam or direct fire heating option;

The wort cooled by tap water and -5 ºC ice water to cool in two stages, Single stage available;

Mashing heating and fermentation cooling automatically controlled, and manual control switched at any time;

Manual valve control, humanized operation, low equipment investment cost, high cost performance; PLC automatic control for upgrade;

Beer filling in stainless steel beer barrels, glass bottles or cans;

Send Inquiry>>

Now click to contact us for more information !Inquiry Now

4.Technique Details:

Why do you choose us?

1.3 years warranty

2.Free installation and training

3.Design and maintenance for free

4.High quality and best price

5.inner and outer of the tanks have been mirror polish

6.the material can be stainless steel with low price or red copper with nice-looking

7.the capacity can be 50L~30,000L
