Products Description
Mitex 120 Celsuis degree
Water Type Mold Temperatuer Controller
MTC-Series mold temperature controllers of Mitex are mainly used for heating and keeping of injection molds.They can also play a role in other industries with similiar facilities requirements .
Standard oil heater for heating molds and maintaining temperature, but also for other similar purposes. The high temperature oil from the mold is returned to the cooling tank where it is cooled by indirect cooling. It is then pressurized by a high-pressure pump, fed into the heating tank and finally into the mold at a constant temperature.
Details Images
Microcomputer control
Touching screen control
The MTC can be equipped with touch screen control, high-definition capacitive touch screen, intelligent interface easy to operate.
Electric heating tube
Gear Pump& Swirl Pump
Inside pipe construction
The material of inside pipe is SUS 304, which has high heat resistance, working normally at a higher temperature, and the performance is more stable and reliable
Water manifolds
Rainbow brand over temperature trip
When the abnormal temperature exceeds the set value, the heating power supply is quickly cut off to prevent the equipment from being damaged due to overheating, and to ensure that the mold temperature machine works within the safe temperature range.
Siemens electric
YS brand Gear pump is used for mold temperature machine with small motor power and flow requirement,
YS brand Swirl pumps are used for mold temperature machines with large motor power and water flow requirements.
Product Paramenters
Model | MTC | ||||||||||
1210G | 1210S | 1220S | 1230S | 1210G-TS | |||||||
Medium | Fresh Water | ||||||||||
Max. working temp. | 120℃ | ||||||||||
Control Method | P.I.D control | ||||||||||
Heater capacity (KW) | 9 | 9 | 12/18 | 18/24 | 9*2 | ||||||
Pump | seal method | Mechanical method | |||||||||
Motor capacity | 0.75KW | 0.75KW | 1.5KW | 2.2KW | 0.75KW*2 | ||||||
Max. pressure | 0.38Mpa | 0.22Mpa | 0.24Mpa | 0.26Mpa | 0.38Mpa | ||||||
Max. flow | 56L/Min | 165L/Min | 235L/Min | 315L/Min | 56L/MIn | ||||||
Cooling method | Direct cooling | ||||||||||
Cooling capacity (KW) | 11 | 50 | 11*2 | ||||||||
Main Pipe | 1 inch | 1.5 inches | 1 inch | ||||||||
Branch pipe | 3/8" 4 direction | 3/8" 8 direction | |||||||||
Cooling Line | 3/8" | 3/4" | 3/8" | ||||||||
Alarm | Phase reverse, Medium shortage, pump overload, tem. upper and lower limite, overheat protectiion | ||||||||||
Power supply | AC 380V, 3 Phase, 50hz | ||||||||||
Water pressure | 0.1-0.3Mpa | ||||||||||
Accessorires | 5 Meters power cable | ||||||||||
Dimension (MM) | 850*290*655 | 1070*310*695 | 1130*340*835 | 1130*340*835 | 1100*340*935 | ||||||
Net weight (kgs) | 54 | 60 | 110 | 120 | 105 | ||||||

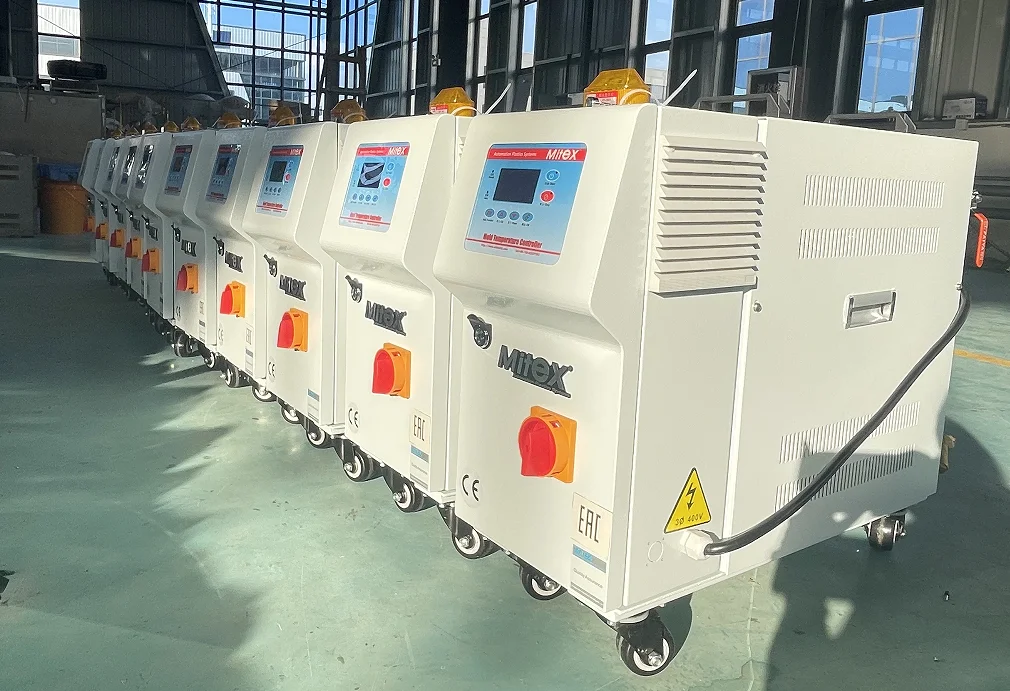

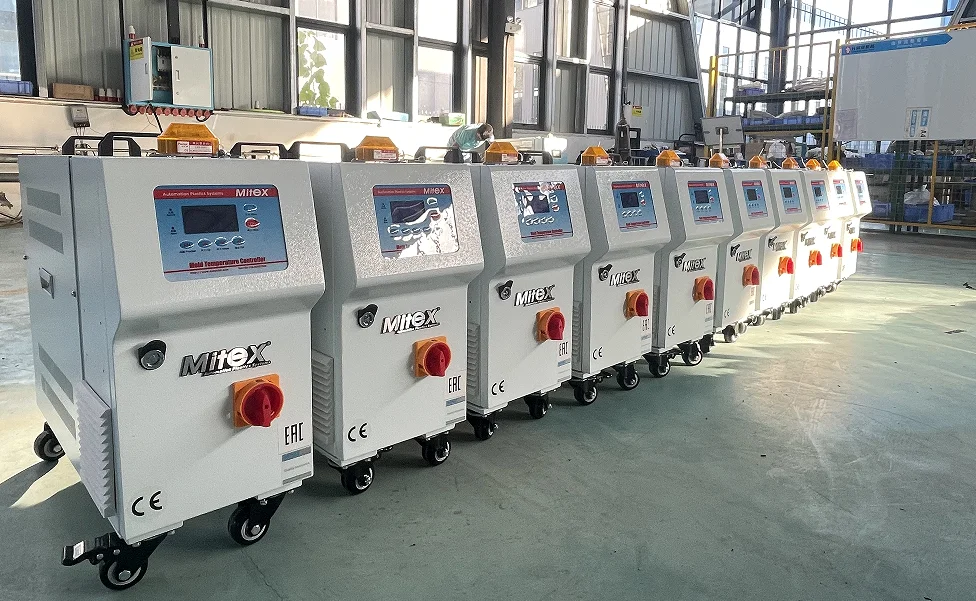

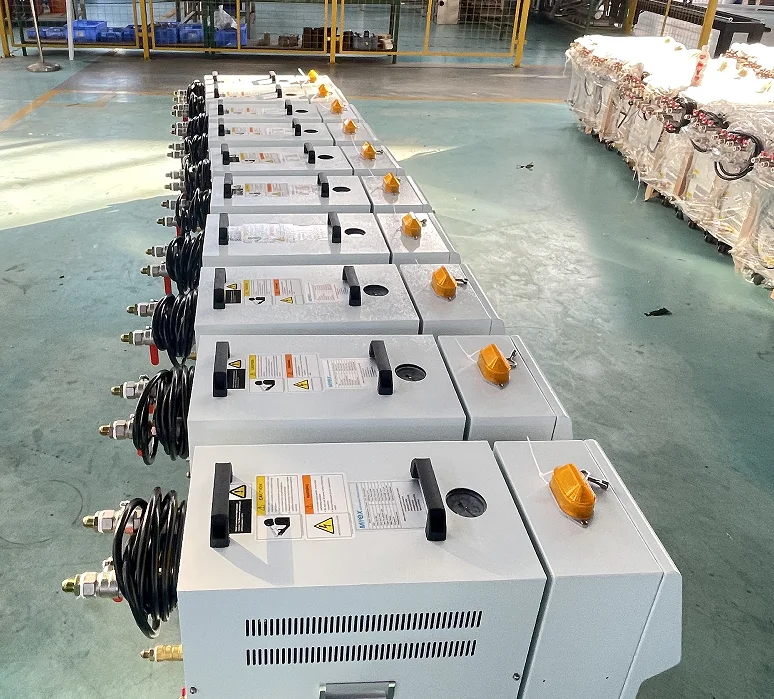

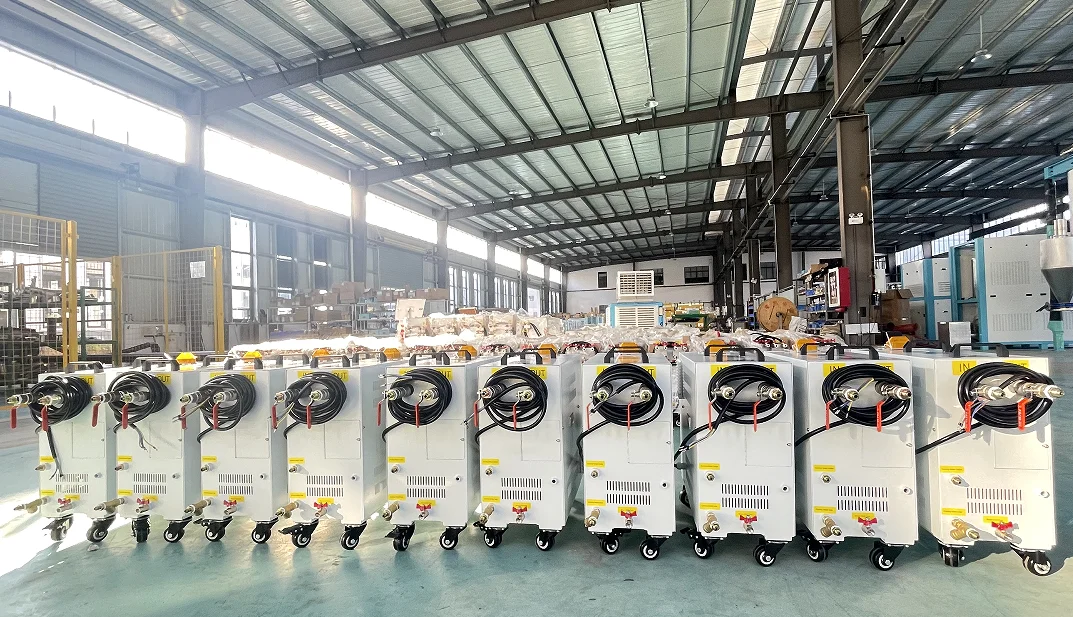

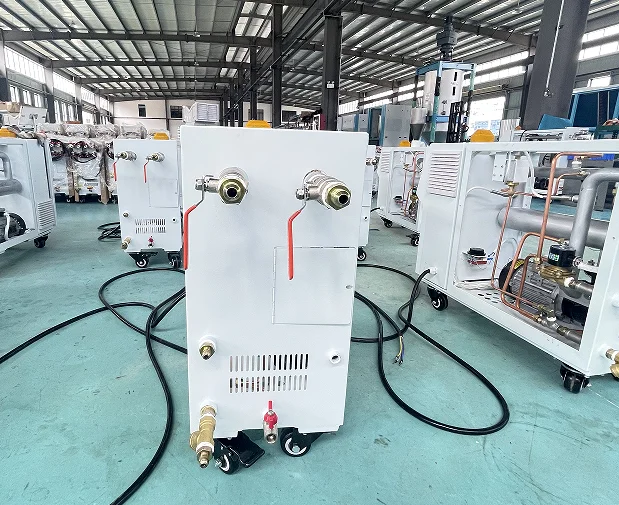

Customer Photos
Company Profile
Jiangxi Danlead Machinery Technology Co., Ltd. is a professional manufacturer dedicated to planning peripheral auxiliary systems for whole-plant plastic moulding automation with 16+years experiences.
Has own brand -------Mitex, more than 30 patents and certificates, serving more than 60 countries around the world.Located in Ganzhou, Jiangxi Province, the world's tungsten capital and the birthplace of rare metals.Factory covers an area of 20,000 square meters .
The Main products include: Centralized feeding system, dehumidifying and drying system, Automatic metering and mixing system, crushing and recovery system. Mold temperature control system and automatic solution etc. Those have been broadly applied in the field of electronic parts, plastic molding, automobile medical treatment. computer connector, optical lenses, hardware die-casting and home appliance etc.
Factory show
Exhibition
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer of plastic auxiliary equipment and we have our own factory.
Q2: How to ensure your product with good quality?
A2: All our products with CE certification and our company strictly comply with ISO900 quality management system. The units will be fully tested before packaging and the packing will be carefully checked.
Q3: What's your MOQ?
A3: The minimum order quantity is just 1 set.
Q4: How long is your delivery time?
A4: Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is within 10 working days if the goods are not in stock, depending on the order quantity.
Q5: OEM is ok?
A5: Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
A1: We are professional manufacturer of plastic auxiliary equipment and we have our own factory.
Q2: How to ensure your product with good quality?
A2: All our products with CE certification and our company strictly comply with ISO900 quality management system. The units will be fully tested before packaging and the packing will be carefully checked.
Q3: What's your MOQ?
A3: The minimum order quantity is just 1 set.
Q4: How long is your delivery time?
A4: Generally it is within 5 working days after receiving the payment if the goods are in stock. Or it is within 10 working days if the goods are not in stock, depending on the order quantity.
Q5: OEM is ok?
A5: Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
