Портативная гидравлическая буровая установка для водяных скважин/Буровая бурения скважин
165 163,38-203 626,08 ₽
Распродажа гидравлическая буровая установка серии XR150D CFA мощностью 150 кВт с максимальной глубиной бурения 20 м
- Категория: >>>
- Поставщик: Zhengzhou Komatco Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601272474520:
Описание и отзывы
Характеристики
Contact
Products Description
Komatco Industry Machinery is a one-stop machinery supplier, leading in China for 16 years. Including engineering, mining, warehousing, logistics, and various parts. Cooperate directly with the brand, and the official warranty for all machines is one year. We have shipped machines to over 148 countries in the past 16 years.
China XuZhou Top Brand Rotary Drilling Rig 150KN XR150D CFA With Cheap Price For Sale

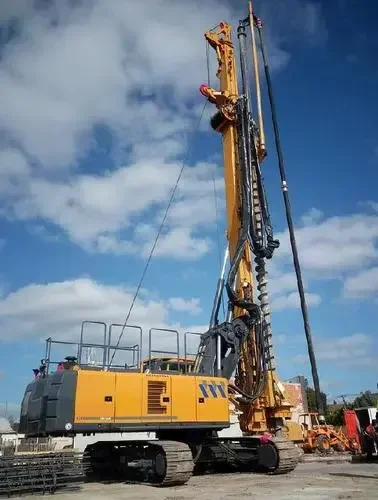

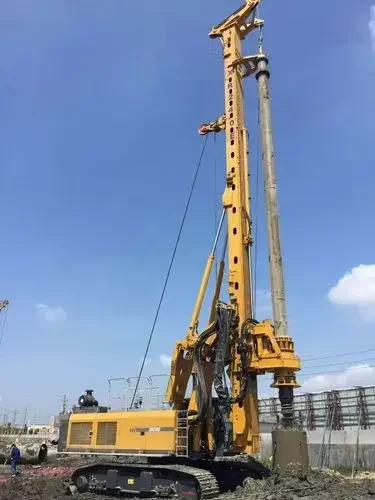

XR150D CFA Rotary Drilling Rig is mainly used in piling foundation construction of large bridge projects across river and sea. With the special chassis made for super-large tonnage rotary drill rig, the construction of super large piling and super deep piling can be realized with pile depth of 150 meters, pile diameter of 4.6 meters. The double speed ratio rotary drive multi-shift control technology, integrated drilling mast design and drill pipe with bar warning protection system are applied to realize comfortable operation and efficient construction and high energy saving.
1. Cummins Chinese III-stage engine is use to the drilling rig
Electronic-controlled injection system, lower fuel consumption, more green environmental protection.
Electronic control technology is used to reduce the phenomenon of touring cars,speed change,white smoke.
Engine failure codes can be displayed automatically, easy maintenance.
2. Mature and reliable full hydraulic system power unit
Large capacity bearings are used to the principal axis, larger capacity, higher precision of the drill hole.
Multiple sets of seal design are used to guarantee the seal ability of the principal axis.
3. Large-stroke and retractable mast
Large-stroke design can satisfy the need of 6m casing pipe.
Adjustable-interval sliding blocks are used between the inside and outside mast, which can reduced wear and maintenance costs effectively.
1. Cummins Chinese III-stage engine is use to the drilling rig
Electronic-controlled injection system, lower fuel consumption, more green environmental protection.
Electronic control technology is used to reduce the phenomenon of touring cars,speed change,white smoke.
Engine failure codes can be displayed automatically, easy maintenance.
2. Mature and reliable full hydraulic system power unit
Large capacity bearings are used to the principal axis, larger capacity, higher precision of the drill hole.
Multiple sets of seal design are used to guarantee the seal ability of the principal axis.
3. Large-stroke and retractable mast
Large-stroke design can satisfy the need of 6m casing pipe.
Adjustable-interval sliding blocks are used between the inside and outside mast, which can reduced wear and maintenance costs effectively.
Item | Unit | Parameter | ||||
Engine | ||||||
Model | QSB7-C202 | |||||
Rated Power | kW | 150 | ||||
Rotary Drive | ||||||
Max.output torque | kN.m | 150 | ||||
Rotary Speed | r/min | 7-33 | ||||
Max.Drilling Diameter | mm | φ1500 | ||||
Max. drilling depth | m | 56 | ||||
Crowd cylinder | ||||||
Max.pull-down piston push | kN | 120 | ||||
Max.pull-down piston pull | kN | 160 | ||||
Max.pull-down piston stroke | m | 3.5 | ||||
Main Winch | ||||||
Max.pulling force | kN | 50 | ||||
Max.line speed | m/min | 60 | ||||
Mast Rake（Slide/forwards/backwards） | ° | ±3/5/15 | ||||
Undercarrige | ||||||
Max.traveling speed | km/h | 2.5 | ||||
Max.grade ability | % | 40 | ||||
Min.clearance | mm | 384.5 | ||||
Track shoe width | mm | 700 | ||||
Distance between tracks | mm | 2960-4200 | ||||
Hydraulic system | ||||||
Working pressure | MPa | 35 | ||||
Overall Drilling Weight | t | 49 | ||||
Dimension | ||||||
Working condition | mm | 7550×4200×19040 | ||||
Transporation condition | mm | 13150×2960×3140 | ||||
Our advantages are as following:
1. Professionally export construction machinery and spare parts for more than 15 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private, rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule.
Please contact me if you have any questions. Looking forward to fruitful cooperation with sincerity and respect.
1. Professionally export construction machinery and spare parts for more than 15 years to over a hundred countries.
2. Experienced in customs clearance in different ports(countries). Clients type has big contractors, tender, private, rental companies, construction companies etc.
3. Quick delivery time and thoughtful services.
We are always committed to offer our customers high quality products with reliable performance, competitive price and comprehensive services, to ensure every engineering project to be run smoothly on schedule.
Please contact me if you have any questions. Looking forward to fruitful cooperation with sincerity and respect.
Our Advantages
After-sale Service
Exporting Case
Packing&Shipping
Company Profile
FAQ
