Automatic PE PP PVC pipe making machine single wall plastic corrugated pipe machine
Product Description
Single Wall Corrugated Pipe Machine
The machine is used to produce single wall corrugated pipe by PE PVC PP or PA Nylon Materials. This kind of corrugated pipe is
always 10-50mm diameters, popular used in machinery tool, machine building, eledtric insulation protection system, electric
automatic control system, public traffic equipment, metor, electric locomotive and air-conditioner equipment, etc.
always 10-50mm diameters, popular used in machinery tool, machine building, eledtric insulation protection system, electric
automatic control system, public traffic equipment, metor, electric locomotive and air-conditioner equipment, etc.
Specification | ||||||||||
Pipe Diameter | 4-12mm | 10-32mm | 10-32mm | 25-65mm | 50-110mm | |||||
Extruder | SJ-30/28 | SJ-45/30 | SJ-50/30 | SJ-65/30 | SJ-90/30 | |||||
Capacity | 8-15kg/h | 40kg/h | 50kg/h | 120kg/h | 250kg/h | |||||
Speed of production line | 1-12m/min | 1-10m/min | 10-20m/min | 1-8m/min | 1-5m/min | |||||
Quantity of mould block | 38 pairs | 38 pairs | 80 pairs | 38 pairs | 50 pairs | |||||
Single Screw Extruder
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality PIPE
extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system
advantages:extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel
>940, the surface of screw is chromeplated Feeding bush with water cooling system
All parts are high standard for exporting..use domestic and foreign well known brands Simens motor, ABB frequency converter, Guomao reducer, Omron temprature control,Demaji screw
we will according to your pipe diameter and speed match suitable motor to save energy ect.

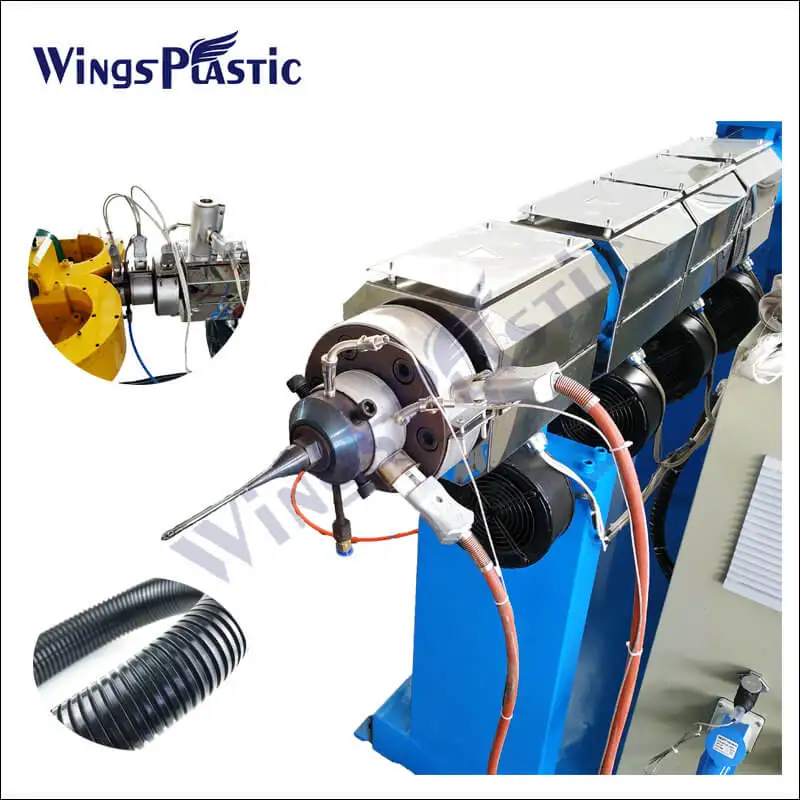

Extrusion Die and The Core Bar and Mouth Mould
1)Material :40Cr , the surface of die is chromeplated, anti-corrosive which better quality than 45#steel
2)One set mold have two sizes design can save cost and easy change to another size of mold...this to meet different reqirements
from customer.
3)Adopt 55 pairs of big block molds total lenghth 3942 mm
from customer.
3)Adopt 55 pairs of big block molds total lenghth 3942 mm
The core bar and mouth mould
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.
Wings Plastic new design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately,it will be save more than 1h for the clean the waste material.

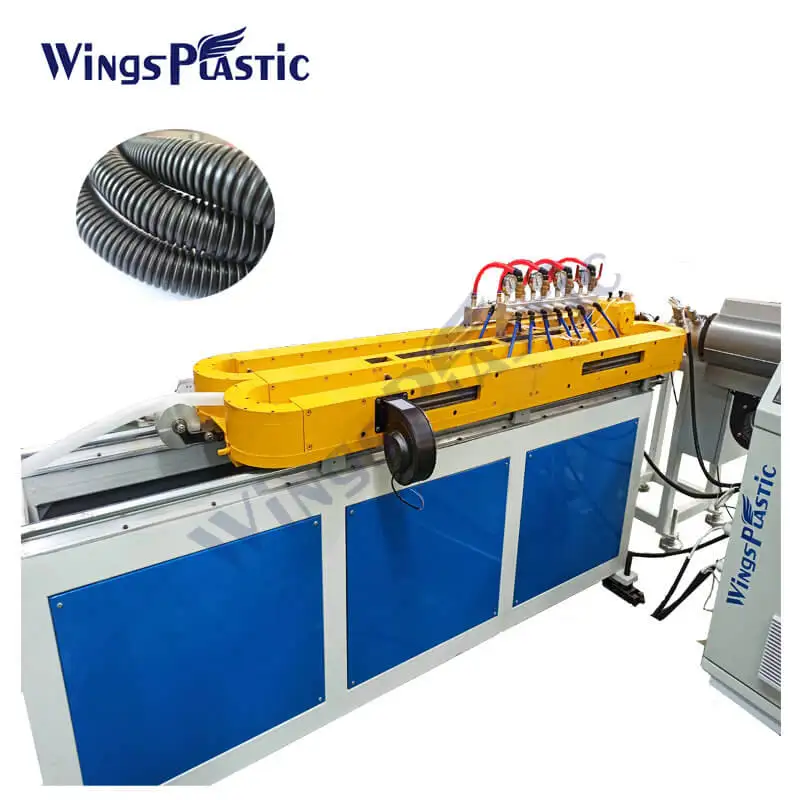

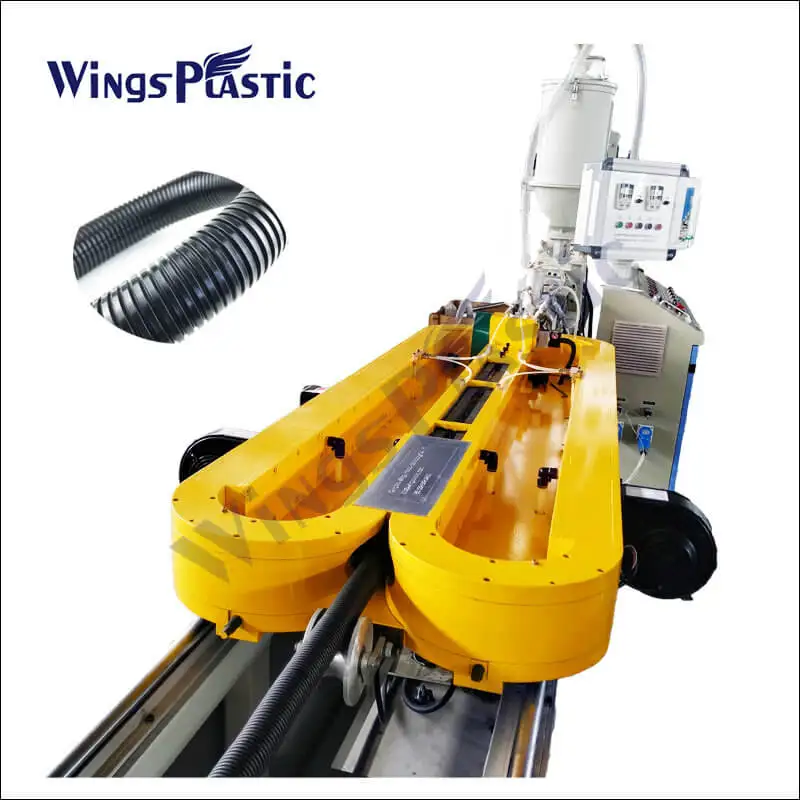

High Speed Forming Machine
Gear driven system with high precision modules and tracks. The track is water cooling system, it could meets 10-30m/min working
speed.It is added water cooling and fan cooling two system.
speed.It is added water cooling and fan cooling two system.
Forming machine with large cooling area .Temperature fast cooling down.this means the speed will be faster. we test for indian
machine speed 20-25mm /minute.
machine speed 20-25mm /minute.

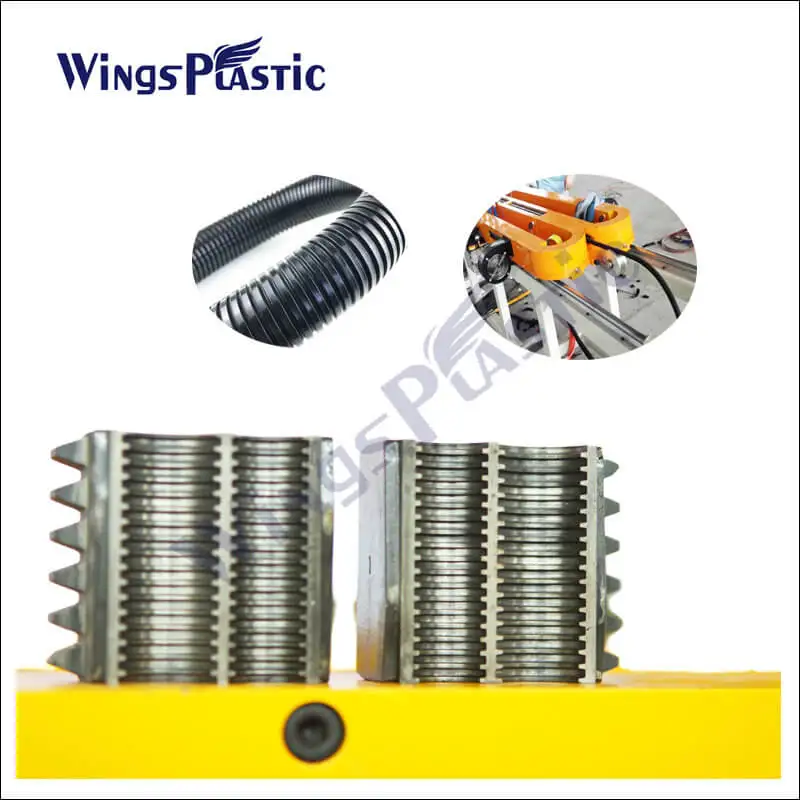

Moulds Block
Materials of moulds block:40CrThe moulds are made by CNC system, it is high precison and long service life.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.
It could be designed into one hole or two hole according customer request.
We could print customers logo into moulds according request.

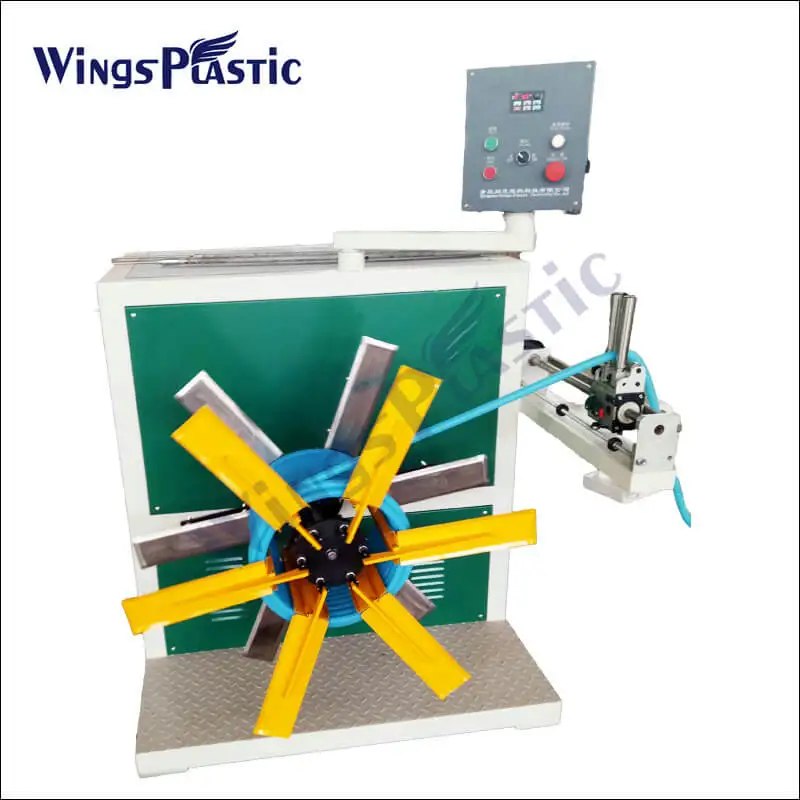

Automatic coiler
No of wheel: two wheel or one wheel according customer requestUseing delta inverter system, it is automatic adjustment of winding speed.
double station rewinder
Advantages:
1)it has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency controland pneumatic self open - lock switching.
Advantages:
1)it has induction device which used for adjust the rewind speed automatically.
2)adopt torque motor and frequency controland pneumatic self open - lock switching.
Control Box
Temperature controller: OMRON
Contactor and replay: SIEMENS
Inverter: ABB or Delta Character
High precise temperature control.
Configurable alarm strategy.
Configurable alarm strategy.
All of the production data can be displayed electrical panel.
Very easy operation.
Running stability
Our Advantage
1.One mould with two or three different sizes. When change size just up and down move forming machine. No need to unmount and reinstall. So will save more than two hours.
2.Can carve customer logo in the mould，replace the jet printer.
Our Service
1.prefessional service team, high work efficiency. The machine price is reasonable and high quality. We can also make turnkey
project for buyers. And we can provide best after sale service.
2. our company have 30 workers and 12 years’ experience in plastic machinery. We focus on machine design and updates. We have 3 engineers for oversea service, machine installation and teach buyers how to use it.
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line,
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: How can we visit your company and machines?
A : Our factory is in Jiaoxi Town, Qingdao City, Shandong Province, China. About 0.5 hours from Qingdao Jiaodong International Ariport.
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
