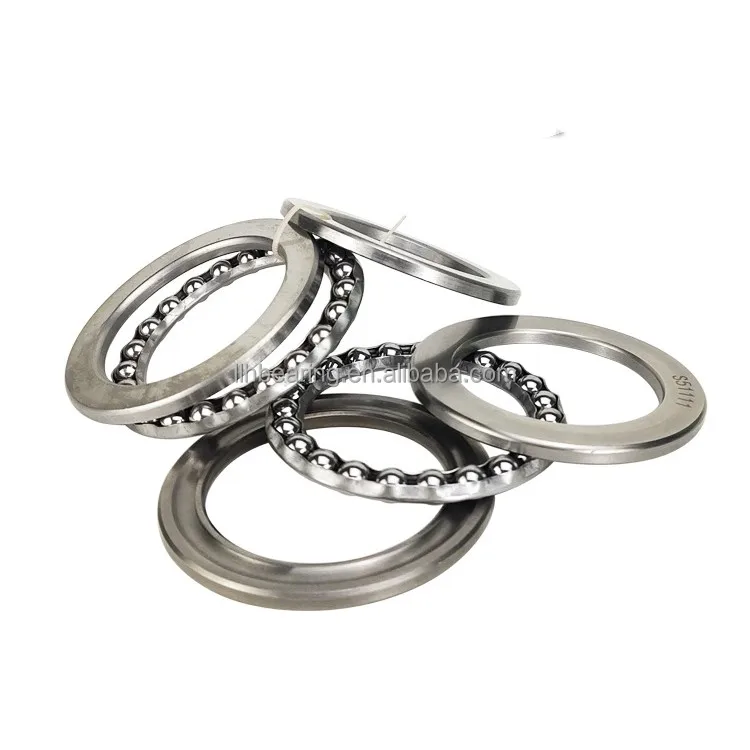

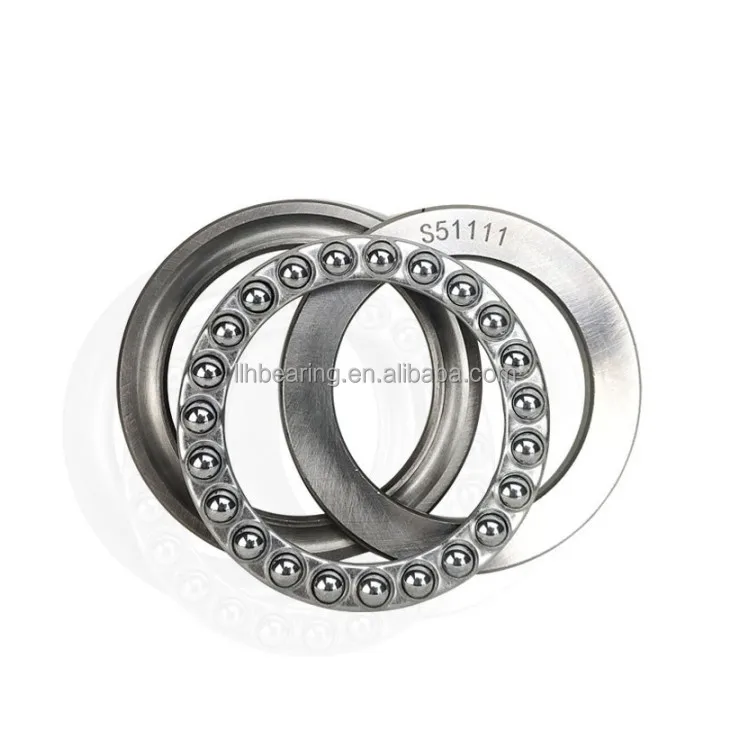

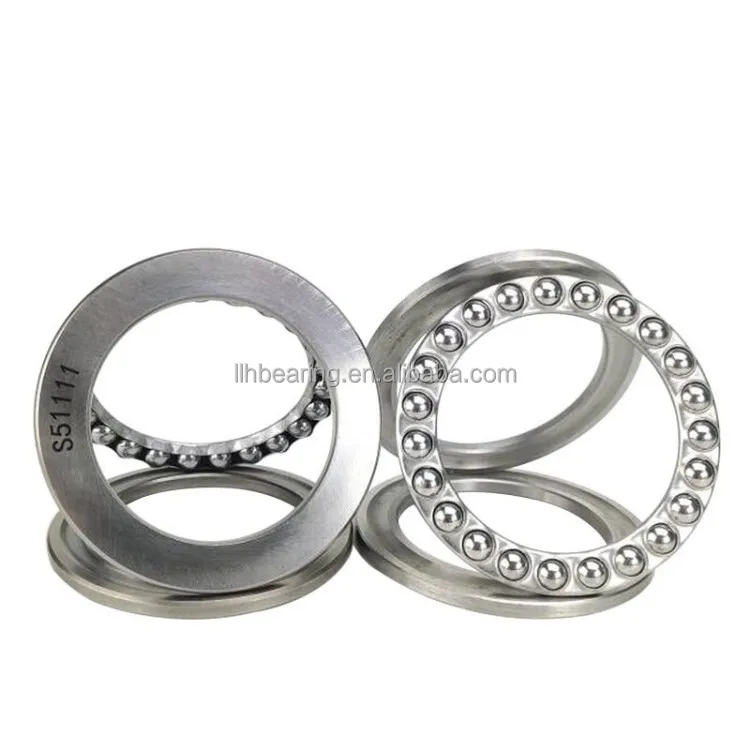

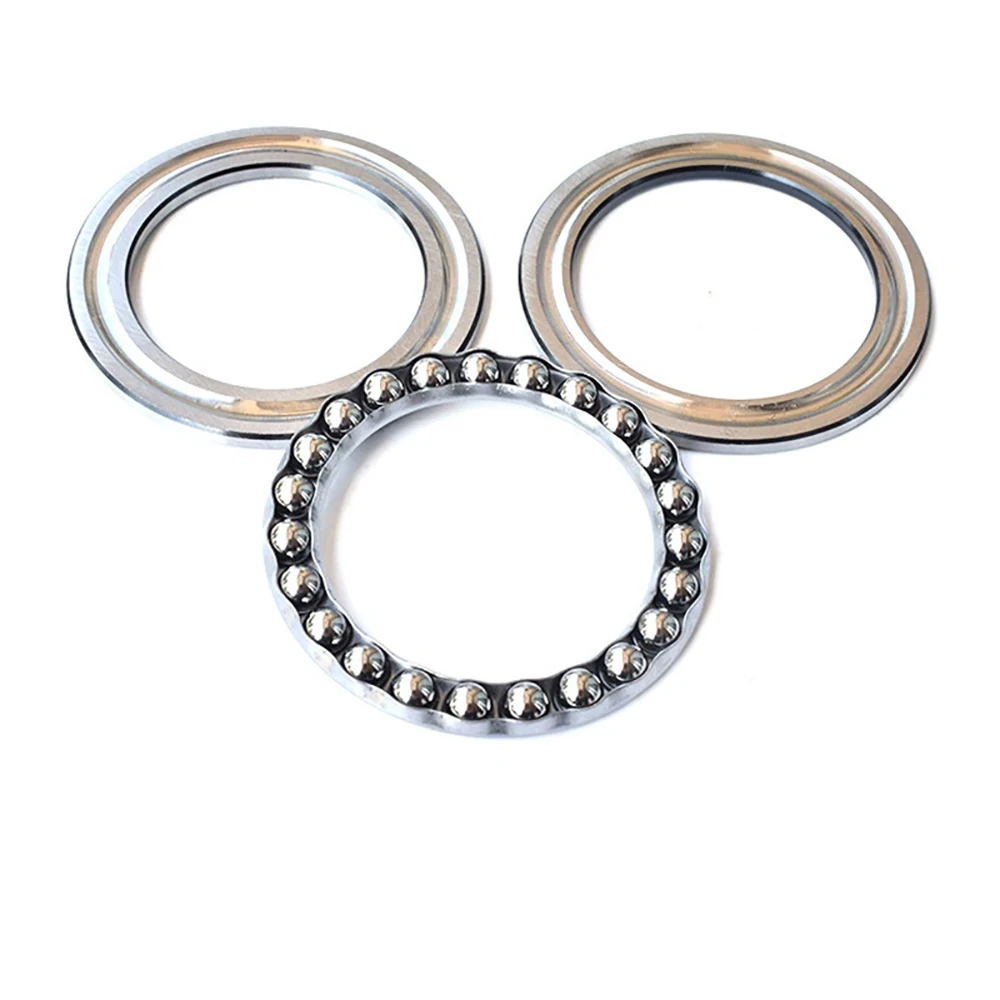

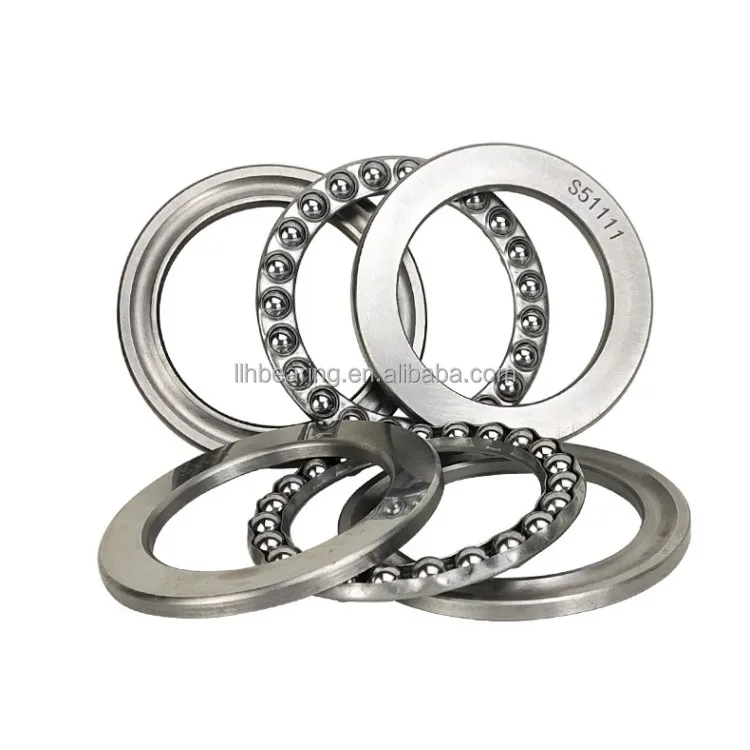

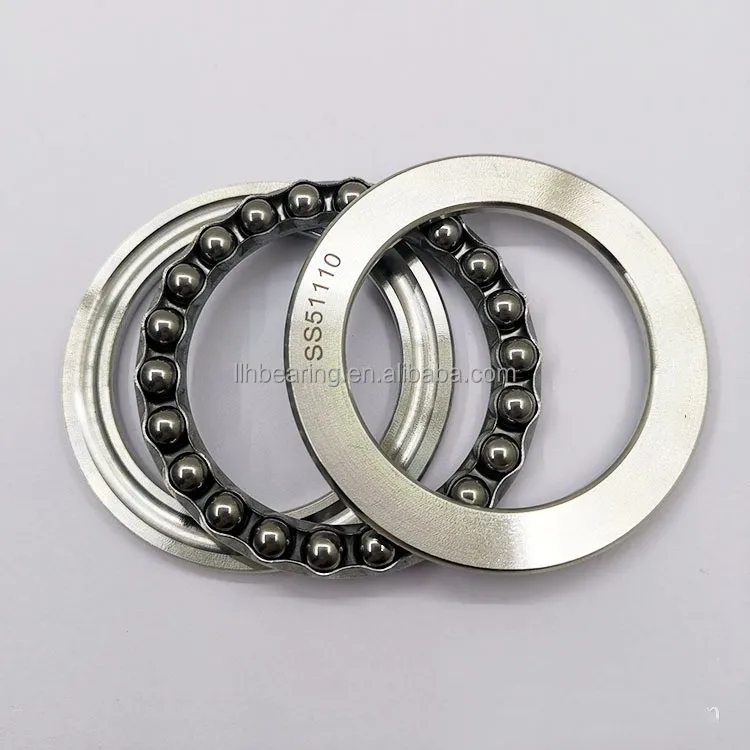

S51111 SS51111 однонаправительный упорный шарикоподшипник из нержавеющей стали 51111 размер 55x78x16 мм

S51111 SS51111 однонаправительный упорный шарикоподшипник из нержавеющей стали 51111 размер 55x78x16 мм

Категория: >>>
Поставщик: Jinan Maolei Bearing Co. Ltd.

Цена:540,04 ₽ - 1 080,07 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Packaging & Shipping

Packaging Details 1.Commercial packaging: 1pc/plastic bag + color box + carton + pallet;

2.Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet; 3.According to the requirement of customer.

Delivery Time 5-30 days, and also according to the quantity from customer
Our strengths:

- 10 years export experience

- Strict quality control

- Delivery in time

- OEM service is available with good prices

- Your success is our business and future

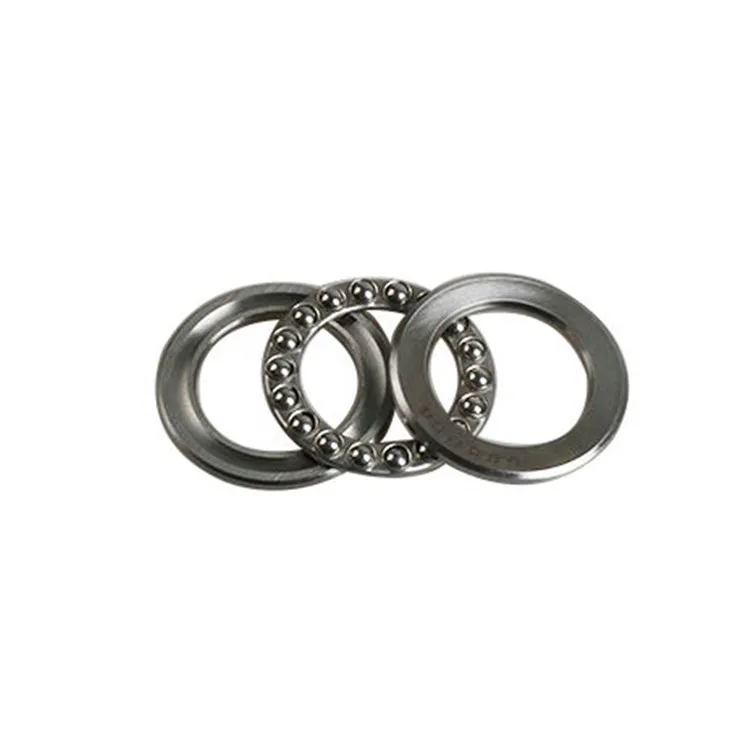

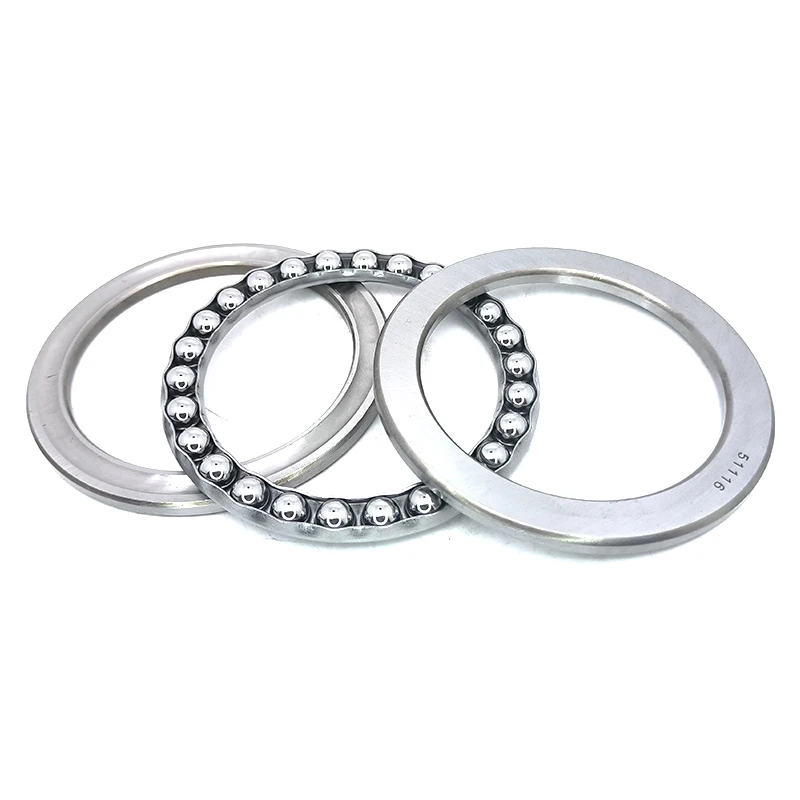

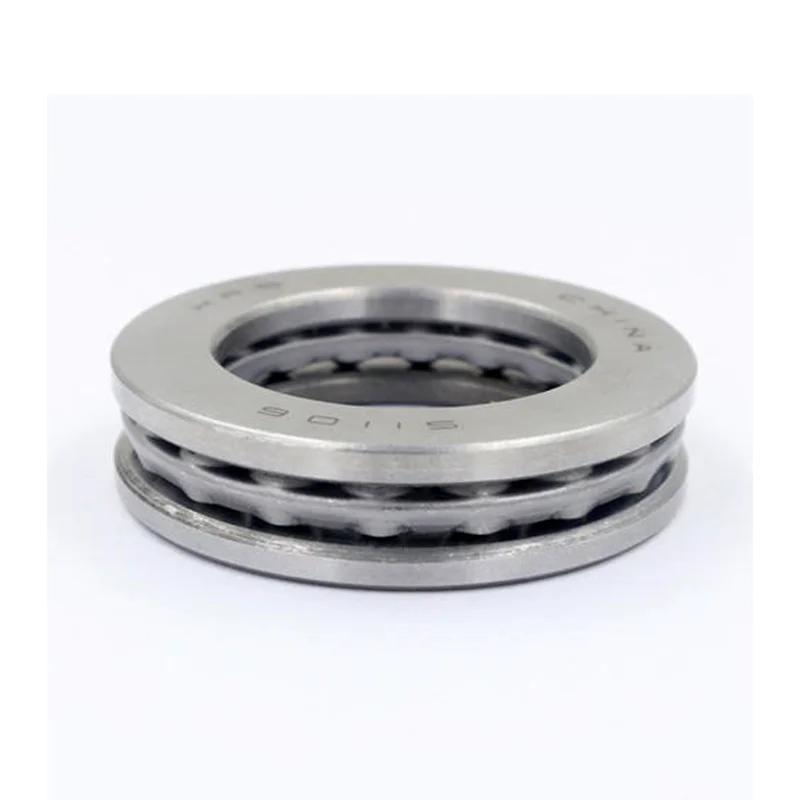

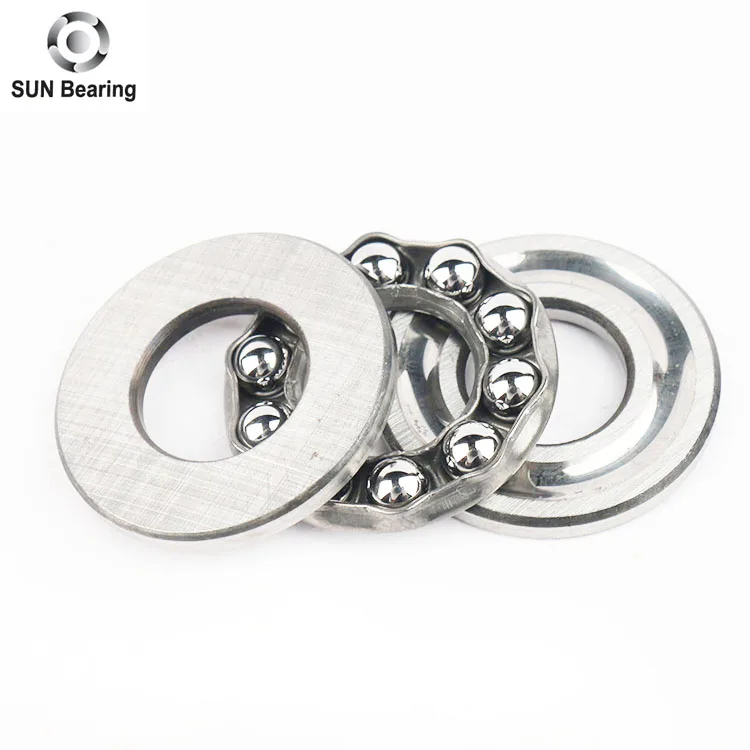

Thrust Ball Bearing

Thrust ball bearings are classfied into those with flat seats or aligning seats depending on the shape of the outer ring sear(housing washer).They can sustain axial loads but no radial loads.

For single-direction Thrust Ball Bearings,pressed steel cages and machined brass cages usually used as shown.The cage in Double-Direction Thrust Ball Bearings are the same as those in Single-Direction Thrust Ball Bearings of the same diamteter series.

Features of thrust ball bearing:

Single direction thrust ball bearings: consist of two washers with raceways, balls guided and cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.
- Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. The shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

Technical datas of thrust bearing

Item

Size (mm) Load rating (kN) Limit speed (r/min) Weight
d D T Ca Coa Grease Oil (kg)
51100 10 24 9 10 14 6500 1000 0.02
51200 10 26 11 12.7 17.1 5700 8800 0.03
51101 12 26 9 10.3 15.4 6500 10000 0.022
51201 12 28 11 13.2 19 5400 8300 0.034
51102 15 28 9 10.5 16.8 6100 9400 0.024
51202 15 32 12 16.6 24.8 4900 7500 0.046
51103 17 30 9 10.8 18.2 6100 9400 0.028
51203 17 25 12 17.2 27.3 4900 7500 0.053
51104 20 25 10 14.2 24.7 5100 7900 0.04
51204 20 40 14 22.3 37.7 3900 6000 0.082
51304 20 47 18 35 55.8 3600 4500 0.092
51105 25 42 11 19.5 37.2 4400 6800 0.059
51205 25 47 15 27.8 50.4 3600 5500 0.12
51305 25 52 18 35.7 61.4 3100 4800 0.18
51405 25 60 24 55.6 89.4 2600 4000 0.34
51106 30 47 11 20.4 42.2 4300 6600 0.068
51206 30 52 16 29.3 58.2 3400 5200 0.15
51306 30 60 21 42.8 78.7 2700 4200 0.27
51406 30 70 28 72.8 126 2200 3400 0.53
51107 35 52 12 20.4 44.7 3900 6000 0.09
51207 35 62 18 39.2 78.2 2900 4500 0.22
51307 35 68 24 55.5 105 2400 3700 0.39
51407 35 80 32 87.1 155 1900 2900 0.79
51108 40 60 13 26.9 62.8 3400 5300 0.12
51208 40 68 19 46.9 98.3 2700 4200 0.27
51308 40 78 26 69.3 135 2100 3300 0.55
51408 40 90 36 113 205 1700 2600 1.14
51109 45 65 14 27.8 69.1 3200 5000 0.15
51209 45 73 20 47.7 105 2600 4000 0.32
51309 45 85 28 80 163 1900 3000 0.69
51409 45 100 39 130 242 1500 2300 1.47

Application of thrust bearing

thrust bearing is widely used in mining operations, paper mills, oil fields, marine industry, steel, electrical, construction machinery, etc.

Payment terms of thrust bearing:

We accept T/T, PAYPAL or Western Union, credit card

Delivery of thrust bearing:

By express, like TNT, FEDEX, UPS, DHL, or by air/ sea

Main bearing product

Our Company

Factory

Office

FAQ

1. How long is your delivery term?

Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.

2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.

3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
