Cost Efficient Multifunction Buffer Smt Pcb Signl Rail NGOK Conveyor Cheap With Compatibility
- Категория: >>>
- Поставщик: Shenzhen Censtar Technology Co. Ltd.
Сохранить в закладки 1601272624994:
Описание и отзывы
Характеристики
PRODUCT DESCRIPTION
Contact information
Description

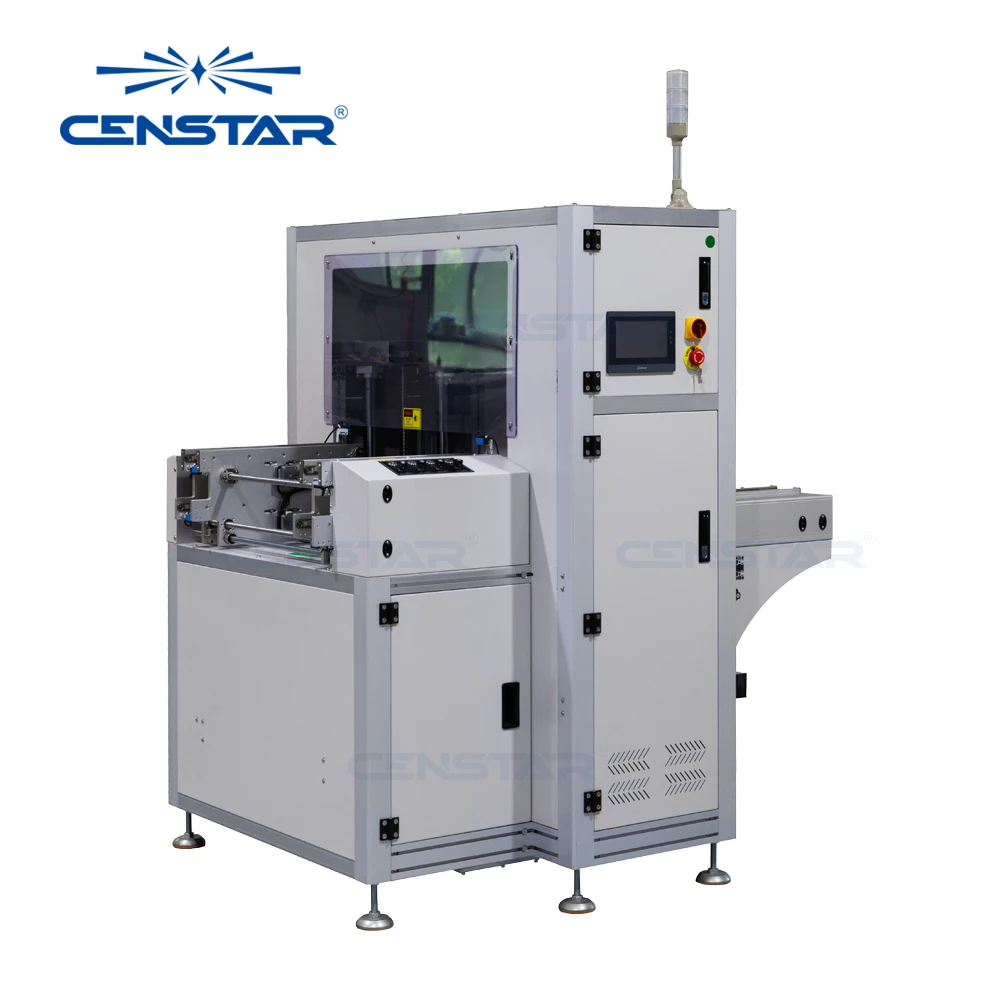

This unit is located after SPI/AOI machine to inspect NG boards in the line. The operator can CALL for NG boards stacked in the rack onto the 2TH layer of the conveyor part to inspect them visually while the good boards are being passed through to the downstream machine without any interruption.
Features
1.PLC+Screen touch panel control
2.Buffer in FIFO,LIFO and by-pass mode.
3.Selectable pitch settings.
4.NG / OK boards can be smartly separated in each layer of conveyor.
5.Enclosed construction improve level of safety.
6.The status of each slot can be changed independently.
7.Rack adjustment by motorized,Infeed conveyor by manual.
8.Threshold signal to protect PCB's in upstream rack.
9.Tower-light display for machines working status.
9.Tower-light display for machines working status.
10.Standard infeed conveyor with inspection station.
11.SMEMA compatible.
Model | BN-L-TN | BN-XL-TN | BN-GL-TN | BN-GXL-TN | |||
Dimension(L*W*H) | 1000*790*1640mm | 1200*900*1640mm | 1500*790*1640mm | 1800*900*1640mm | |||
PCB size(L*W) | 50*50-445*350mm | 50*50-530*460mm | 50*50-445*350mm | 50*50-530*460mm | |||
Weight | 300kg | 330kg | / | / | |||
Transport height | 900±20mm | ||||||
Transfer direction | L-R or R-L | ||||||
Operation side | Front of the machine | ||||||
Fixed rail | Front of the machine | ||||||
Interface | SMEMA | ||||||
Conveyor belts | ESD flat belt | ||||||
Belt speed | 0.5-20m/min adjustable | ||||||
PCB edge support | 4mm | ||||||
PCB thinckness | 0.6mm min | ||||||
PCB weight | 2kg max | ||||||
Components clearance | 25mm below and above | ||||||
Cycle time | Approx 10 Seconds | ||||||
Pitch distance | 25mm or specify | ||||||
Buffer capacity | 20 PCBs or specify | ||||||
Width adjustment method | Rack adjustment by motorized. Infeed conveyor by manual | ||||||
Control | PLC | ||||||
Power supply | AC220V/110V, 50/60 HZ, 1 phase | ||||||
Power consumption | 250VA max. or specify | ||||||
Air supply | 4-6bar | ||||||
Air consumption | 15ltr/min max | ||||||
Our Company
Welcome to Shenzhen Censtar Technology Co., Ltd., your premier source for high-quality SMT & DIP assembly line machines. With a specialized engineering team dedicated to designing and manufacturing our products. We have over 13 years of experience in designing and manufacturing SMT Assembly Machine, and PCB Handling Machine. We are experts in customized solutions for PCB Conveyor, PCB Loader, PCB Unloader, PCB Buffer, PCB reject conveyor, PCB inverter, PCB stacker, Wave Solder Infeed/Outfeed, Surface Cleaning Machines, PCB Shuttle Conveyor, Solder Paste Printers, Reflow Oven, Wave Soldering machine and much more. We provide Full SMT & DIP Production Line Solutions. Our machines are built to the highest standards, using the latest technology and materials to ensure their durability and long lifespan. Our knowledgeable and friendly staff is always on hand to provide the support and expertise you need to get the most out of your investment.
Our success is a result of our dedication to quality and customer satisfaction. We have served customers in 40 countries throughout Europe, America, the Middle East, Southeast Asia, Africa, etc. We help many customers establish factories in LED, TV, Phone, Router, EMS, and other industries all over the world and train over 450 experts and technicians. We are committed to being our customers' most reliable Chinese partner, providing them with the support they need to achieve their goals.
At Shenzhen Censtar Technology Co., Ltd., we take pride in our attention to detail and commitment to delivering reliable and high-performing products. We not only provide SMT & DIP Line equipment, but also provide technical support and services, Besides we give our customers more reasonable and professional suggestions. Our experienced team of engineers and technicians work tirelessly to ensure that every product is manufactured to the highest quality standards, and we provide comprehensive after-sales support to ensure that our customers are completely satisfied with their purchase.
Whether you are looking for customized solutions for your PCB assembly line or simply seeking advice and support, we are here to help. Contact us today to learn more about how we can help you achieve your goals and take your business to the next level!
Our success is a result of our dedication to quality and customer satisfaction. We have served customers in 40 countries throughout Europe, America, the Middle East, Southeast Asia, Africa, etc. We help many customers establish factories in LED, TV, Phone, Router, EMS, and other industries all over the world and train over 450 experts and technicians. We are committed to being our customers' most reliable Chinese partner, providing them with the support they need to achieve their goals.
At Shenzhen Censtar Technology Co., Ltd., we take pride in our attention to detail and commitment to delivering reliable and high-performing products. We not only provide SMT & DIP Line equipment, but also provide technical support and services, Besides we give our customers more reasonable and professional suggestions. Our experienced team of engineers and technicians work tirelessly to ensure that every product is manufactured to the highest quality standards, and we provide comprehensive after-sales support to ensure that our customers are completely satisfied with their purchase.
Whether you are looking for customized solutions for your PCB assembly line or simply seeking advice and support, we are here to help. Contact us today to learn more about how we can help you achieve your goals and take your business to the next level!
Packing Details: Plywood case, for export!
Port: Shenzhen
Delivery Details: About 10-15 working days.
Port: Shenzhen
Delivery Details: About 10-15 working days.
Q: What can we do for you?
A: We have more than 13 years of experience in designing and manufacturing SMT & DIP Assembly machines and PCB Handling Machines. PCB Conveyor, PCB Loader, PCB Unloader, PCB Buffer, Surface Cleaning Machines, PCB Shuttle Conveyor, Reflow Oven, Wave Soldering, Pick and Place, SPI, AOI and much more. We take pride in our ability to provide innovative solutions that meet the specific needs of our clients.
Q: Are you a trade company or manufacturer?
Q: What is your delivery date?
A: The delivery date is about 10-15 working days after receive the payment.
Q: What is your payment terms?
A: 30% deposit before production, 70% payment before shipment.
Q: What is the payment way?
A: We accept the payment terms: T/T, Western Union, etc.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, Our machine is easy to use. Usually, you need 1 day to learn how to operate. If you are a technician, learning will be faster. If you still have questions, please contact us.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide an English user manual for free, and provide an operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, of course. You are warmly welcome to visit our factory and we will arrange free training for you.
Q: When we encounter problems during operation, what services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the engineer's round-trip flight tickets, food, and accommodation.
Q: How can we guarantee quality?
A: Strict QC before shipping the products, Always final Inspection before shipment.
Q: Why choose you?
A: We are the Leading SMT & DIP Machine Manufacturer in China. We provide you with high-quality materials at factory prices. OEM & ODM services offered, meet all your needs. We ensure One-Stop after-sales service.
Thank you for your time and consideration. We look forward to the possibility of establishing a successful business partnership with you.
A: We have more than 13 years of experience in designing and manufacturing SMT & DIP Assembly machines and PCB Handling Machines. PCB Conveyor, PCB Loader, PCB Unloader, PCB Buffer, Surface Cleaning Machines, PCB Shuttle Conveyor, Reflow Oven, Wave Soldering, Pick and Place, SPI, AOI and much more. We take pride in our ability to provide innovative solutions that meet the specific needs of our clients.
Q: Are you a trade company or manufacturer?
A: We are a manufacturing company, located in Shenzhen, China. Full SMT & DIP machines manufacturer; OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 10-15 working days after receive the payment.
Q: What is your payment terms?
A: 30% deposit before production, 70% payment before shipment.
Q: What is the payment way?
A: We accept the payment terms: T/T, Western Union, etc.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, Our machine is easy to use. Usually, you need 1 day to learn how to operate. If you are a technician, learning will be faster. If you still have questions, please contact us.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide an English user manual for free, and provide an operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, of course. You are warmly welcome to visit our factory and we will arrange free training for you.
Q: When we encounter problems during operation, what services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the engineer's round-trip flight tickets, food, and accommodation.
Q: How can we guarantee quality?
A: Strict QC before shipping the products, Always final Inspection before shipment.
Q: Why choose you?
A: We are the Leading SMT & DIP Machine Manufacturer in China. We provide you with high-quality materials at factory prices. OEM & ODM services offered, meet all your needs. We ensure One-Stop after-sales service.
Thank you for your time and consideration. We look forward to the possibility of establishing a successful business partnership with you.
Bill zhou
Shenzhen Censtar Technology Co., Ltd.
Cell/Whatsapp: +86 13822632387
E-mail: censtar001@163.com
E-mail: censtar001@163.com
Похожие товары

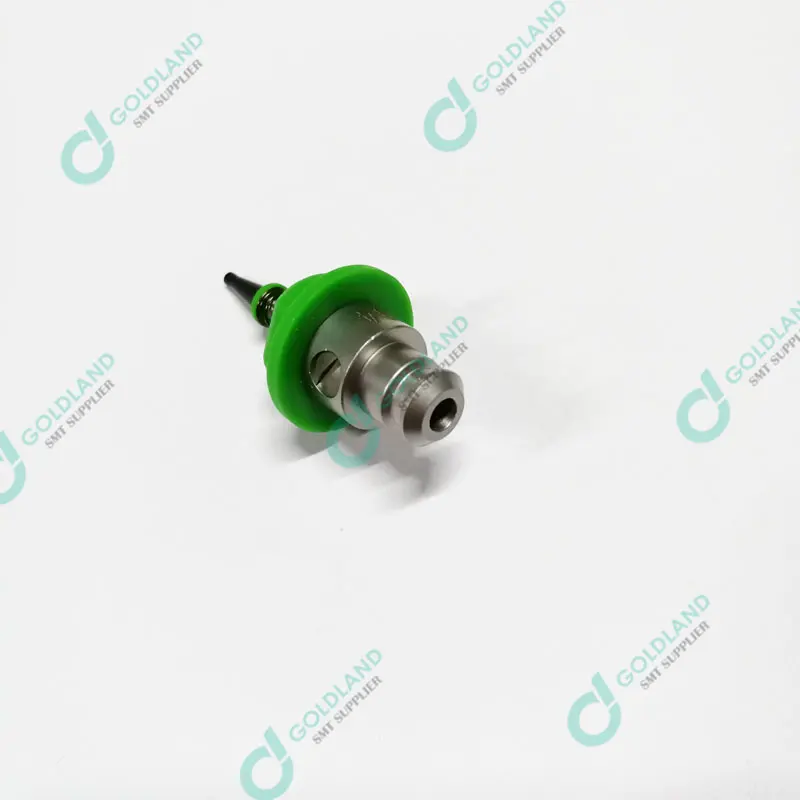

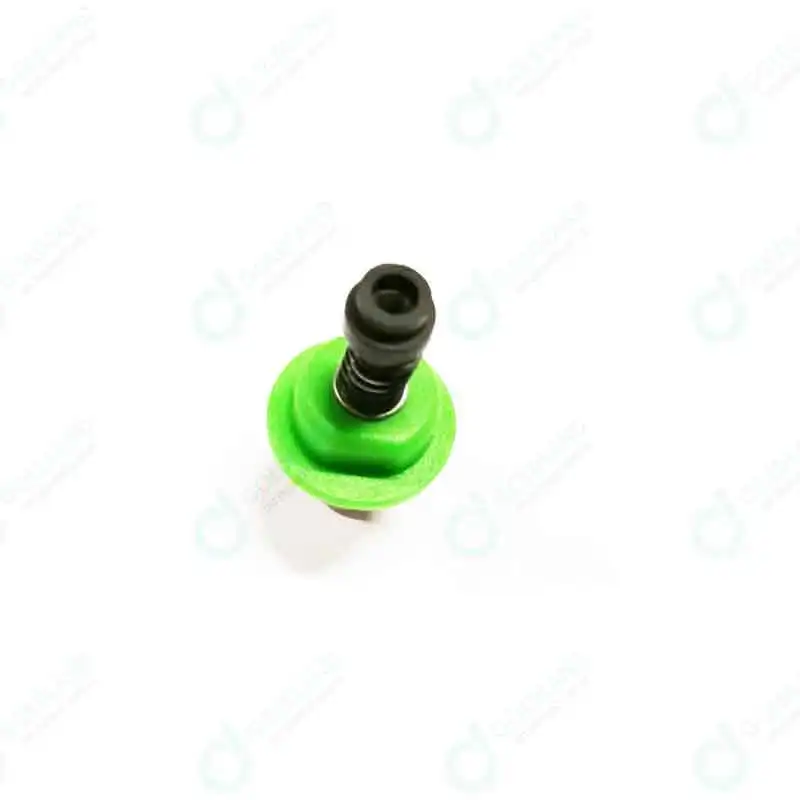

506 насадка juki насадка для машины juki smt

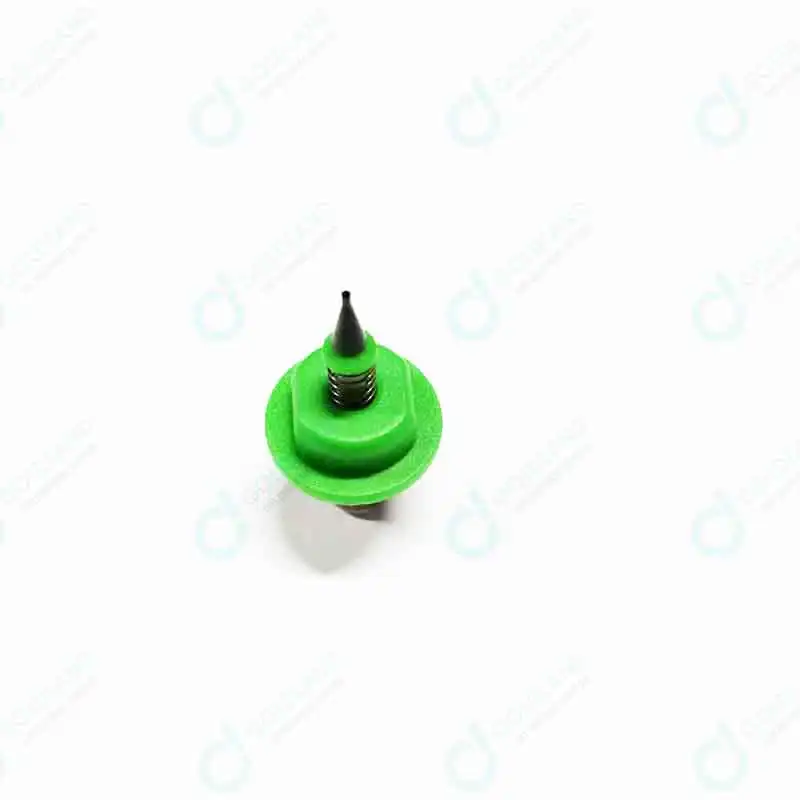

40001340 оригинальные SMT 502 насадка для SMT JUKI pick и место машина
Производство бытовых котельных с использованием единого контракта
KAYO-1706 3DSG/KAYO-A6L высокая скорость 6 головок экономический светодиодный чип mounter машина SMT палочки и место машина

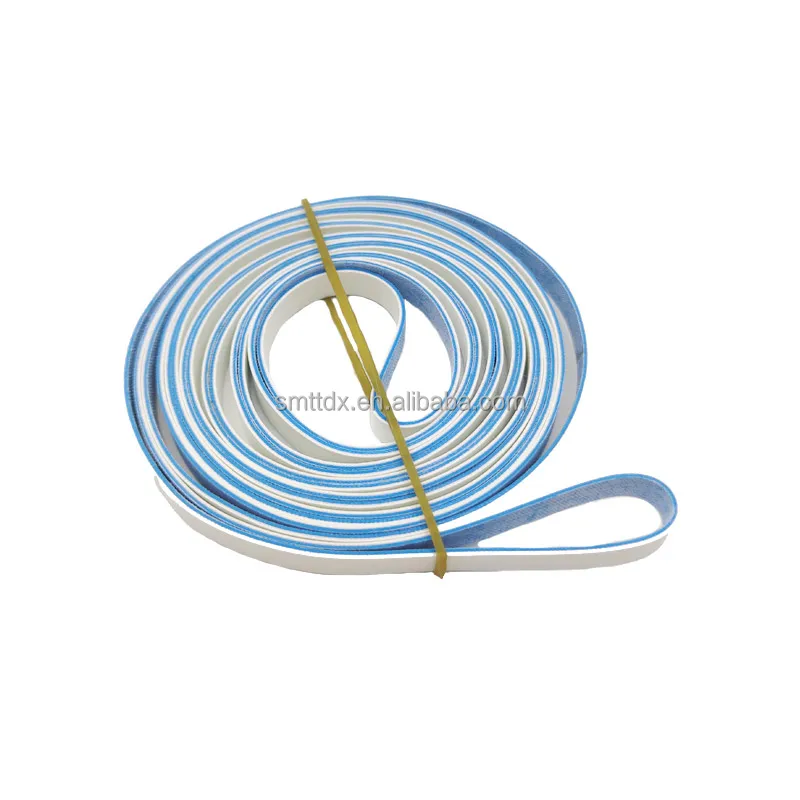

SMT YAMAHA машина для подбора и размещения KHY-M9129 ремня YG12
14 580,84 ₽
SMT Pick And Place Machine Hanwha Оригинальный Новый SM481P Pick And Place Machine для изготовления печатных плат
5 616 322,40 ₽

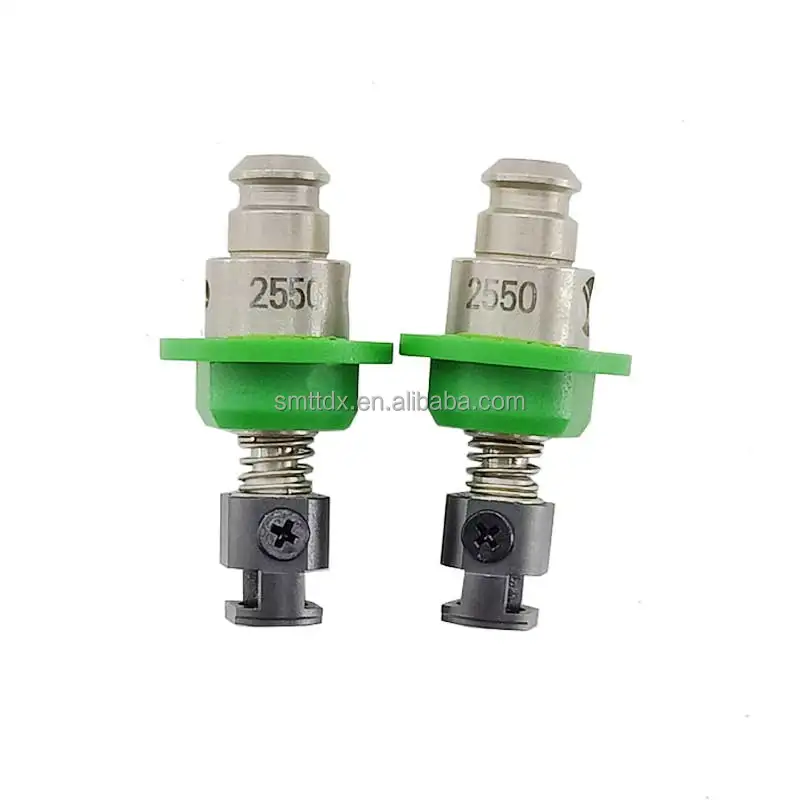

2550 сопло Smt Juki для машины Juki Smt pick and place
