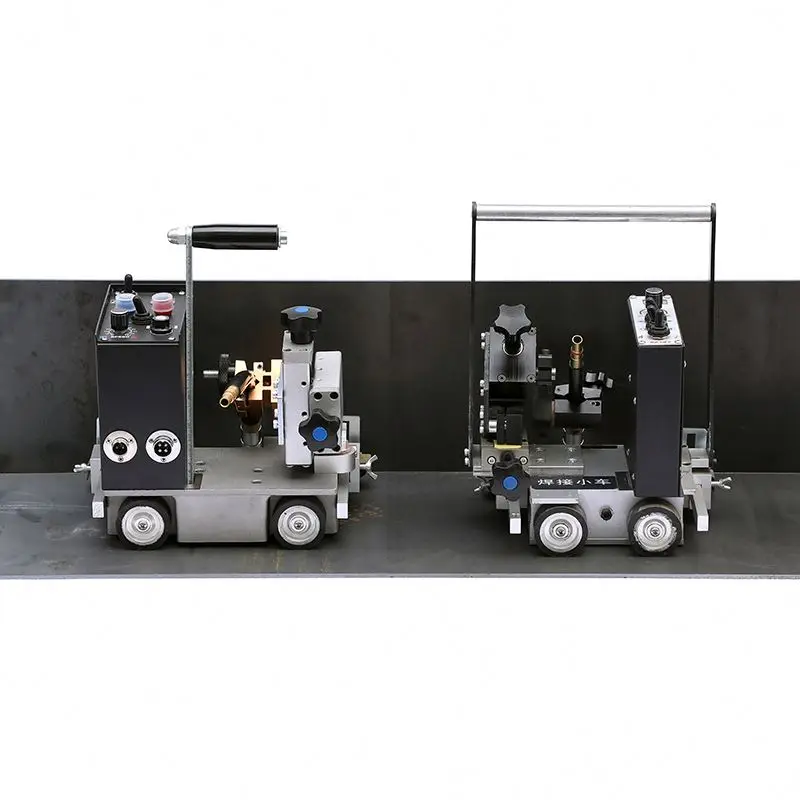

HK-200WSF прямой сварочный бак каретка поворотного типа трактор
281 031,42 ₽
2024 новая рельсовая линейная сварочная тележка автоматическая с поворотной сварочной машиной трактор
- Категория: >>>
- Поставщик: Qingdao Yuehongbo Welding And Cutting Equipment Co. Ltd.
Сохранить в закладки 1601272766424:
Описание и отзывы
Характеристики
KA-H1

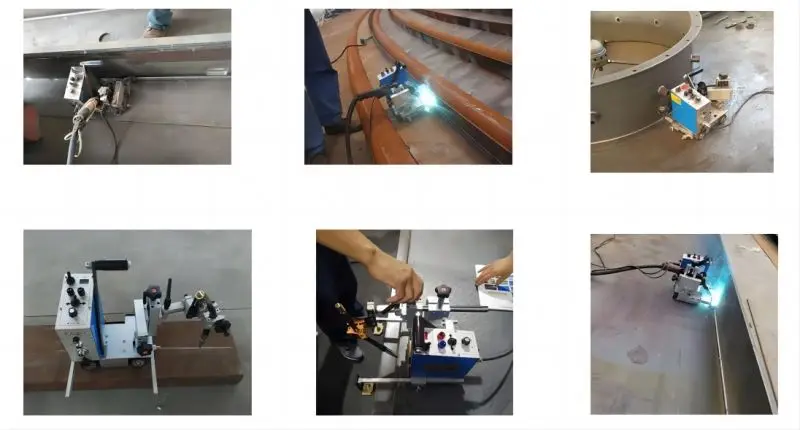

CO2 welding automatic trolleys are widely used in ships, bridges, locomotives, steel structures, petrochemicals and other industries. They are suitable for welding a variety of welding structures, such as: welding of stiffened plates, ribs, intersections, welding of box beams, etc. wait.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.
1、KA-H1 trolley is an automatic welding device suitable for horizontal fillet welding.
2、It can realize welding in both left and right directions. There are induction stop switches installed at both ends of the trolley. The trolley can automatically stop after the welding is completed, making it easy for one worker to operate multiple pieces of equipment at the same time.
3、Small size, light weight, easy to move and install, and unskilled workers can also weld.
2、It can realize welding in both left and right directions. There are induction stop switches installed at both ends of the trolley. The trolley can automatically stop after the welding is completed, making it easy for one worker to operate multiple pieces of equipment at the same time.
3、Small size, light weight, easy to move and install, and unskilled workers can also weld.
4、A permanent magnet is installed to prevent the car from breaking away from the welding line.
Items | Content | Remarks | ||
Carriage | Power source | AC 220v | ||
Size | 300 * 230 * 280 | L×W×H | ||
Weight | 7.5Kg | |||
Moving | Four-wheel drive | Rubber wheels | ||
Walking speed | 0∼99cm/min | Mark with scale | ||
Range of torch adjustment | Up and down | ±20mm | ||
Anteroposterior | ±20mm | |||
Operating Angle adjustment range | Plus or minus 45 ° | |||
Make the Angle adjustment range | Plus or minus 10 ° | |||

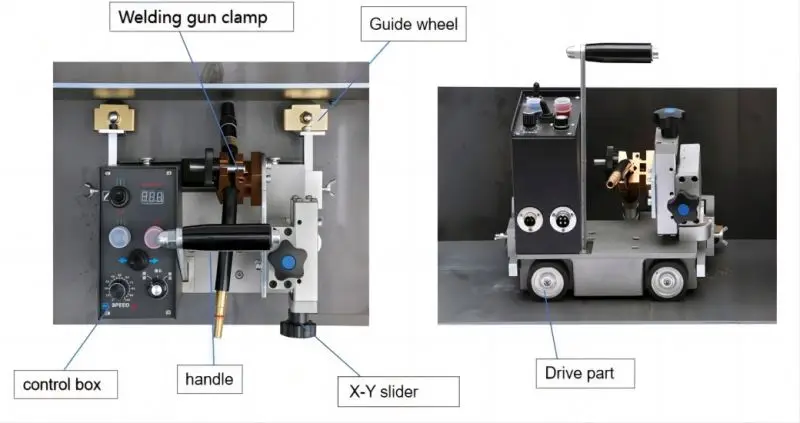

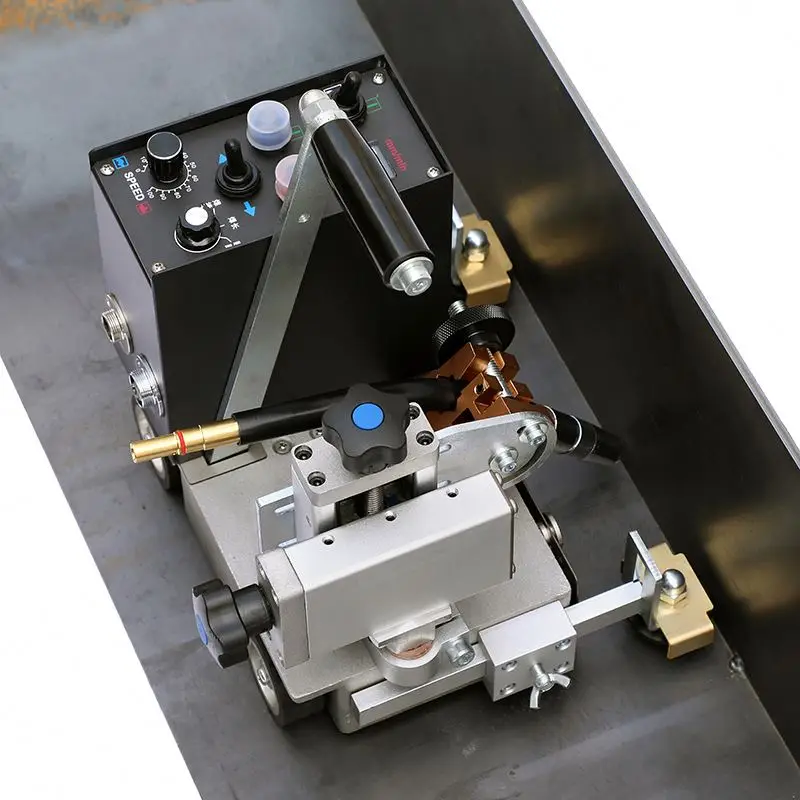

The body consists of: control part, XY slider, guide wheel, welding gun handle, and other accessories
1)Driving part: It is the device that drives the trolley, consisting of four rubber wheels, bevel gears, chains, and sprockets
2) XY slide Block: It is a device for adjusting the position of the welding gun. It can be finely adjusted up, down, left and right during welding.
3) Welding gun clamp: It is a device for fixing the welding gun. It is convenient for disassembly of the welding gun during maintenance and adjustment.
4)Guide wheel: Rolls along the surface of the base metal to guide Device for accurate welding parts
5)Handle: Convenient for installing and moving the trolley
6)Control box: All movements of the trolley can be adjusted, please refer to the "Control Panel Instructions" for details
7)Magnet: Installed with permanent magnets to prevent the trolley from breaking away from the welding line The phenomenon.
1)Driving part: It is the device that drives the trolley, consisting of four rubber wheels, bevel gears, chains, and sprockets
2) XY slide Block: It is a device for adjusting the position of the welding gun. It can be finely adjusted up, down, left and right during welding.
3) Welding gun clamp: It is a device for fixing the welding gun. It is convenient for disassembly of the welding gun during maintenance and adjustment.
4)Guide wheel: Rolls along the surface of the base metal to guide Device for accurate welding parts
5)Handle: Convenient for installing and moving the trolley
6)Control box: All movements of the trolley can be adjusted, please refer to the "Control Panel Instructions" for details
7)Magnet: Installed with permanent magnets to prevent the trolley from breaking away from the welding line The phenomenon.

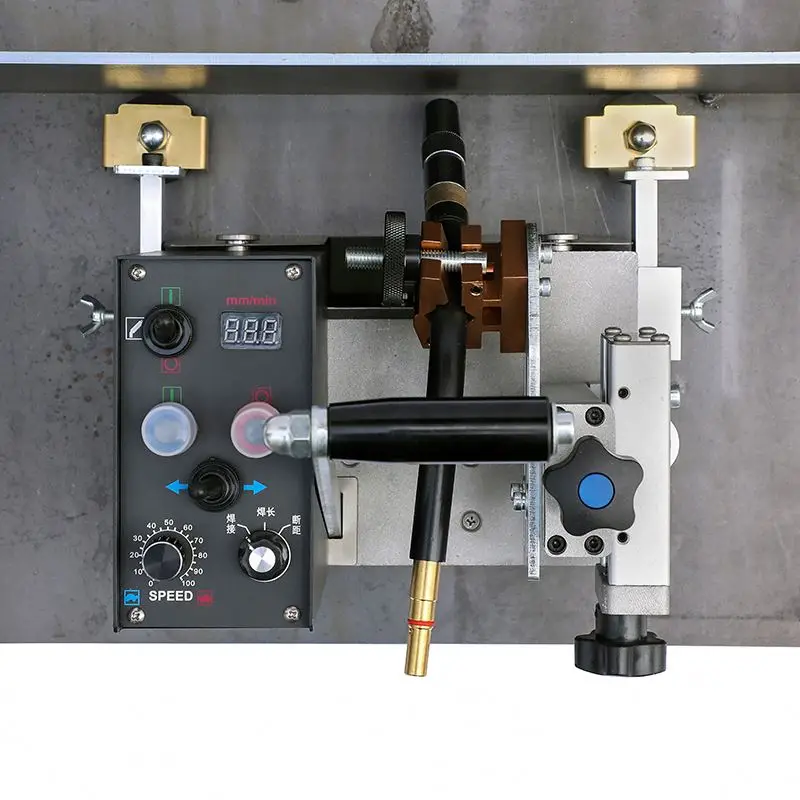

1.Power plug: Connect to AC220V input.
2.Welding/non-welding selector switch: It is the welding/non-welding selector switch of the welding gun. After selecting non-welding and pressing the travel switch, only the trolley will move without welding;
3. Welding gun control line.
4. LED display light: can display walking speed, arc starting/ending time.
5. Walking speed: clockwise rotation speed increases.
6.Start walking: Turn on the switch and the car starts walking;
7.Stop walking: If you press the stop switch while the car is moving, the car will stop all movements;
8.Walking direction selection switch: You can choose to walk left or right;
2.Welding/non-welding selector switch: It is the welding/non-welding selector switch of the welding gun. After selecting non-welding and pressing the travel switch, only the trolley will move without welding;
3. Welding gun control line.
4. LED display light: can display walking speed, arc starting/ending time.
5. Walking speed: clockwise rotation speed increases.
6.Start walking: Turn on the switch and the car starts walking;
7.Stop walking: If you press the stop switch while the car is moving, the car will stop all movements;
8.Walking direction selection switch: You can choose to walk left or right;
Qingdao Yuehongbo Welding and Cutting Equipment Co., Ltd. was established in 2012. It is an entity company integrating design, research and development, manufacturing and sales.
The company's products include automatic welding trolleys, special trolleys for all-position pipeline welding, weld seam laser trackers, visual tracking systems, welding oscillators, special equipment for corrugated board welding, special machines for straight seam plate welding, etc. The products are mainly aimed at large and medium-sized welding companies, and the scope of use includes: steel structure, shipbuilding, bridge, automobile industry and other manufacturing companies. It can realize different welding processes such as horizontal butt joint, right angle joint, vertical butt joint, vertical angle joint, circumferential pipe welding, horizontal butt joint, horizontal angle welding, etc.
The products are sold in more than 20 domestic autonomous regions in China, and exported to more than 20 countries and regions such as Southeast Asia, Europe and the United States. Comprehensive economic indicators (including productivity, sales, and profits) have been leading in the welding equipment industry.
We will follow the purpose of creating value for customers and providing opportunities for employees, and in the corporate style of "pursuing transcendence, harmonious development" and "unity and cooperation, integrity and truthfulness".
We look forward to cooperating with friends at home and abroad to create a brilliant future.
Q1:Is your company a trading one or a factory?
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
Похожие товары
HK-11WE труба автоматическая сварочная тележка/трактор
225 927,22 ₽

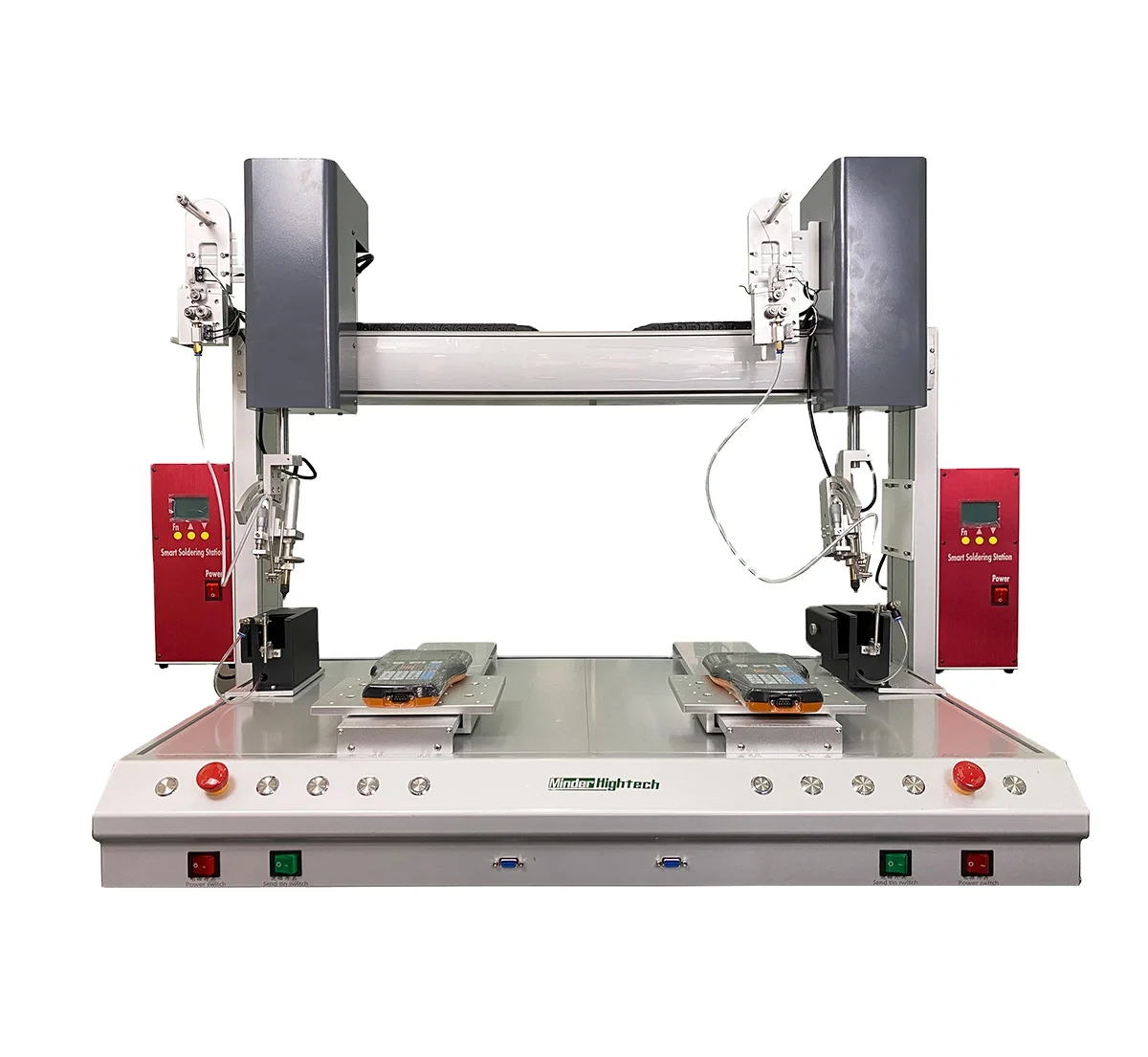

Робот-паяльник с автоматическим потоком
727 375,44 ₽

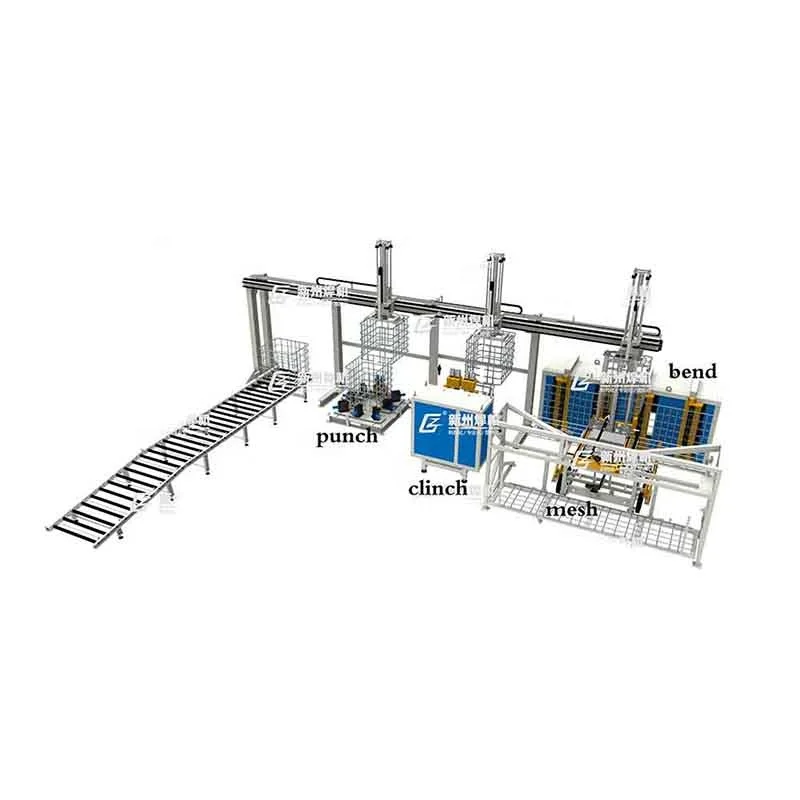

1000L Ibc контейнерное оборудование бак из нержавеющей стали трубчатый каркас автоматический сварочный аппарат
22 041 680,00 ₽ - 33 062 520,00 ₽
Новый инструмент для ремонта материнской платы мобильного телефона
3 857,30 ₽ - 4 077,72 ₽

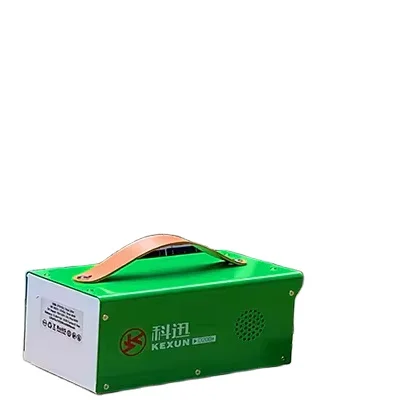

200 Вт 192Wh портативный генератор солнечной энергии переменного тока 110 В 220 уличная походная солнечная станция для зарядки телефона ноутбука
Материнская плата для мобильного телефона
3 857,30 ₽ - 4 077,72 ₽

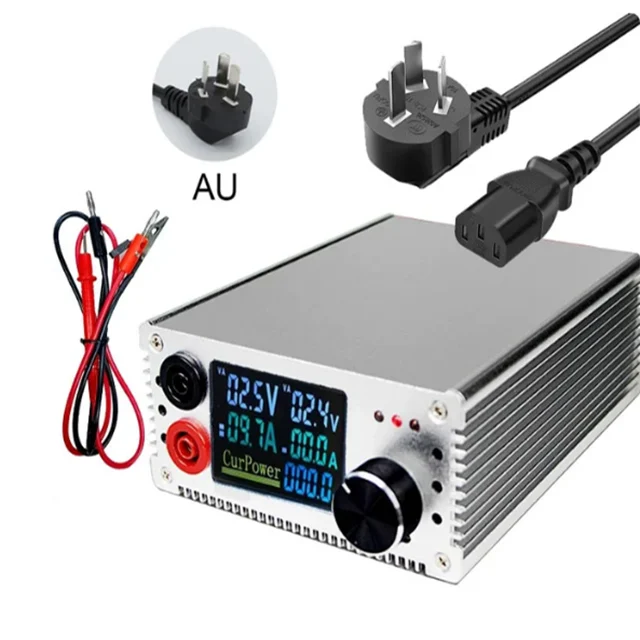

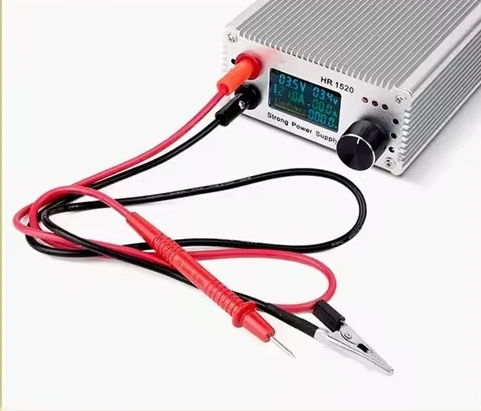

HR1520 Shortkiller защита емкости перегрева материнская плата мобильного телефона короткое замыкание сжигание дефектоскоп инструмент для ремонта
