KA-H1

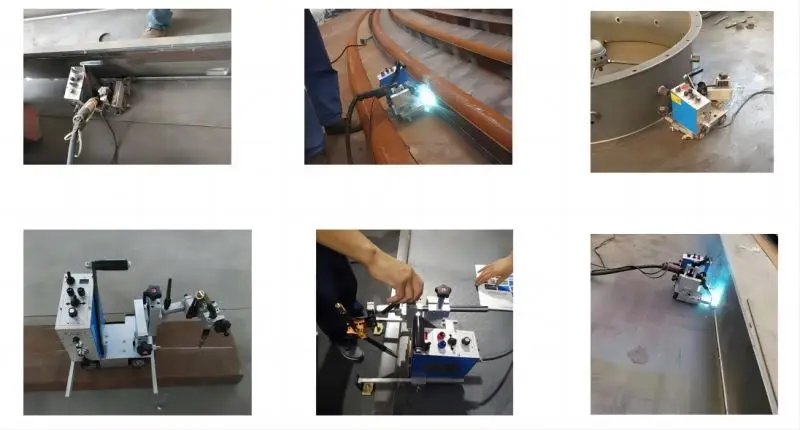

CO2 welding automatic trolleys are widely used in ships, bridges, locomotives, steel structures, petrochemicals and other industries. They are suitable for welding a variety of welding structures, such as: welding of stiffened plates, ribs, intersections, welding of box beams, etc. wait.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.
Its main advantages are:
1.Reduce labor intensity and improve the working environment.
2.Improve work efficiency, which is 1.5 times that of manual welding.
3.Avoid poor weld quality caused by human factors. Generally, the defective rate of manual operation is about 20%. , and the use of automatic welding trolleys has no welding defect rate, so its comprehensive benefits are nearly 200% higher than manual welding.
4.High degree of automation, ensuring the stability of welding quality.
5.No need for very skilled technical workers.

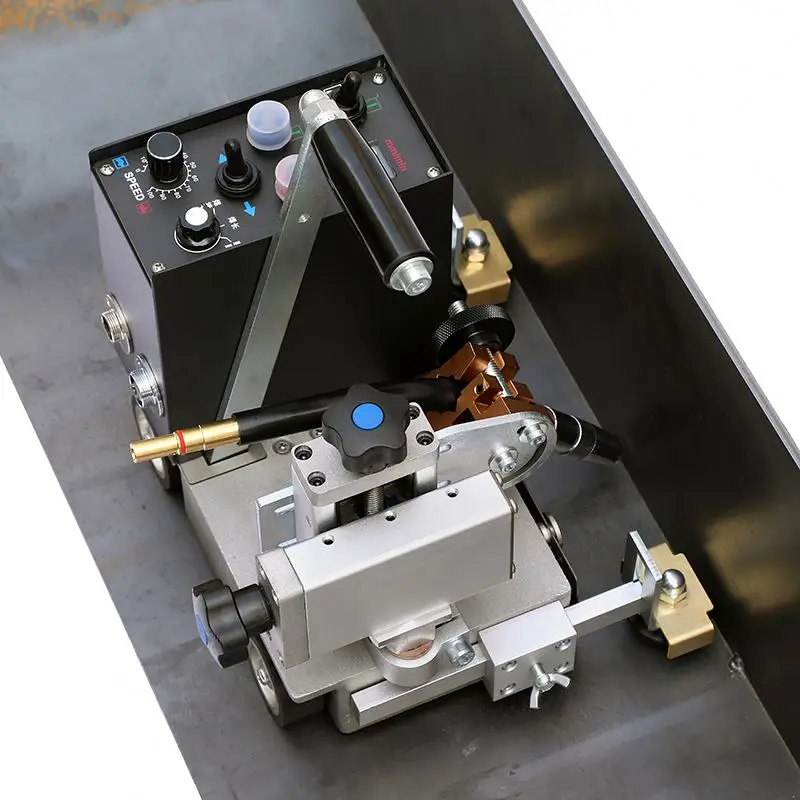

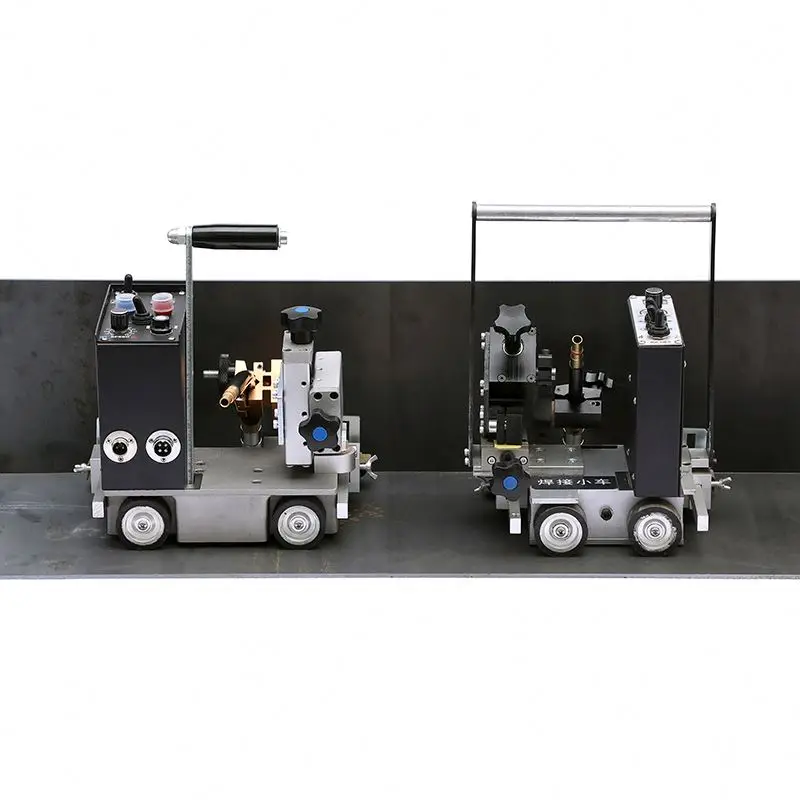

1、KA-H1 trolley is an automatic welding device suitable for horizontal fillet welding.
2、It can realize welding in both left and right directions. There are induction stop switches installed at both ends of the trolley. The trolley can automatically stop after the welding is completed, making it easy for one worker to operate multiple pieces of equipment at the same time.
3、Small size, light weight, easy to move and install, and unskilled workers can also weld.
2、It can realize welding in both left and right directions. There are induction stop switches installed at both ends of the trolley. The trolley can automatically stop after the welding is completed, making it easy for one worker to operate multiple pieces of equipment at the same time.
3、Small size, light weight, easy to move and install, and unskilled workers can also weld.
4、A permanent magnet is installed to prevent the car from breaking away from the welding line.
Items | Content | Remarks | ||
Carriage | Power source | AC 220v | ||
Size | 300 * 230 * 280 | L×W×H | ||
Weight | 7.5Kg | |||
Moving | Four-wheel drive | Rubber wheels | ||
Walking speed | 0∼99cm/min | Mark with scale | ||
Range of torch adjustment | Up and down | ±20mm | ||
Anteroposterior | ±20mm | |||
Operating Angle adjustment range | Plus or minus 45 ° | |||
Make the Angle adjustment range | Plus or minus 10 ° | |||

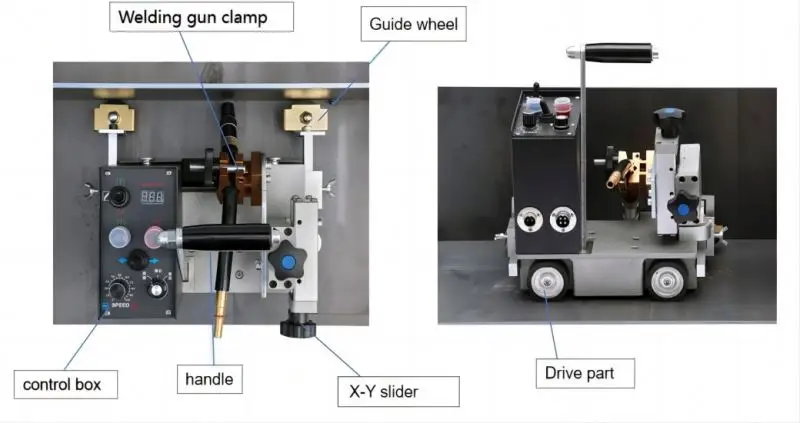

The body consists of: control part, XY slider, guide wheel, welding gun handle, and other accessories
1)Driving part: It is the device that drives the trolley, consisting of four rubber wheels, bevel gears, chains, and sprockets
2) XY slide Block: It is a device for adjusting the position of the welding gun. It can be finely adjusted up, down, left and right during welding.
3) Welding gun clamp: It is a device for fixing the welding gun. It is convenient for disassembly of the welding gun during maintenance and adjustment.
4)Guide wheel: Rolls along the surface of the base metal to guide Device for accurate welding parts
5)Handle: Convenient for installing and moving the trolley
6)Control box: All movements of the trolley can be adjusted, please refer to the "Control Panel Instructions" for details
7)Magnet: Installed with permanent magnets to prevent the trolley from breaking away from the welding line The phenomenon.
1)Driving part: It is the device that drives the trolley, consisting of four rubber wheels, bevel gears, chains, and sprockets
2) XY slide Block: It is a device for adjusting the position of the welding gun. It can be finely adjusted up, down, left and right during welding.
3) Welding gun clamp: It is a device for fixing the welding gun. It is convenient for disassembly of the welding gun during maintenance and adjustment.
4)Guide wheel: Rolls along the surface of the base metal to guide Device for accurate welding parts
5)Handle: Convenient for installing and moving the trolley
6)Control box: All movements of the trolley can be adjusted, please refer to the "Control Panel Instructions" for details
7)Magnet: Installed with permanent magnets to prevent the trolley from breaking away from the welding line The phenomenon.

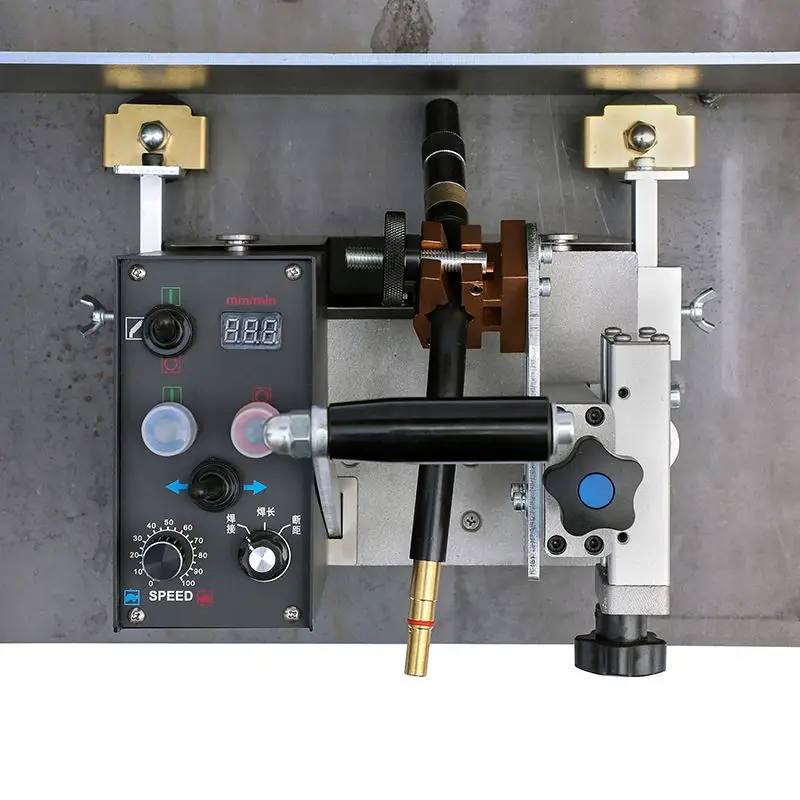

1.Power plug: Connect to AC220V input.
2.Welding/non-welding selector switch: It is the welding/non-welding selector switch of the welding gun. After selecting non-welding and pressing the travel switch, only the trolley will move without welding;
3. Welding gun control line.
4. LED display light: can display walking speed, arc starting/ending time.
5. Walking speed: clockwise rotation speed increases.
6.Start walking: Turn on the switch and the car starts walking;
7.Stop walking: If you press the stop switch while the car is moving, the car will stop all movements;
8.Walking direction selection switch: You can choose to walk left or right;
2.Welding/non-welding selector switch: It is the welding/non-welding selector switch of the welding gun. After selecting non-welding and pressing the travel switch, only the trolley will move without welding;
3. Welding gun control line.
4. LED display light: can display walking speed, arc starting/ending time.
5. Walking speed: clockwise rotation speed increases.
6.Start walking: Turn on the switch and the car starts walking;
7.Stop walking: If you press the stop switch while the car is moving, the car will stop all movements;
8.Walking direction selection switch: You can choose to walk left or right;
