Лидер продаж высокоавтоматическая машина для SMT330 X 2022 интеллектуальное Программирование
- Категория: >>>
- Поставщик: Wenzhou Yingxing Import&Export Co. Ltd.
Сохранить в закладки 1601272971808:
Описание и отзывы
Характеристики
Product Description
Introduction

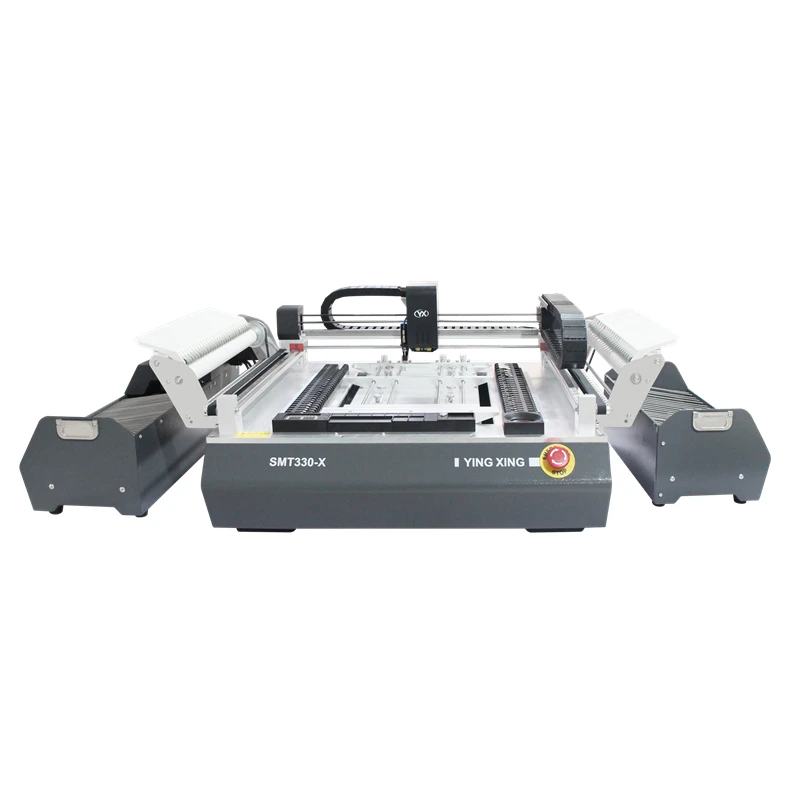

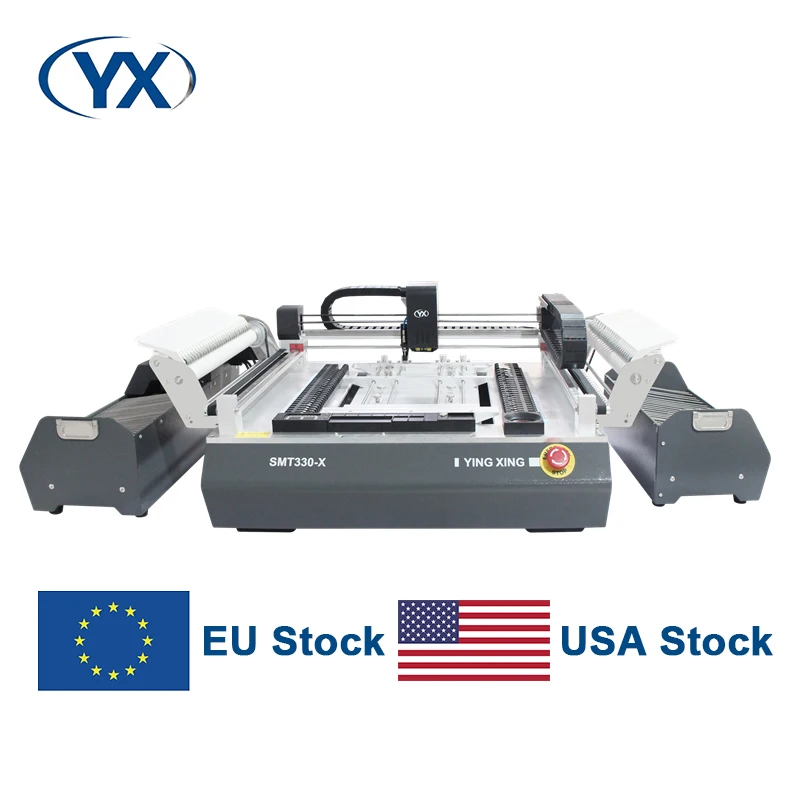

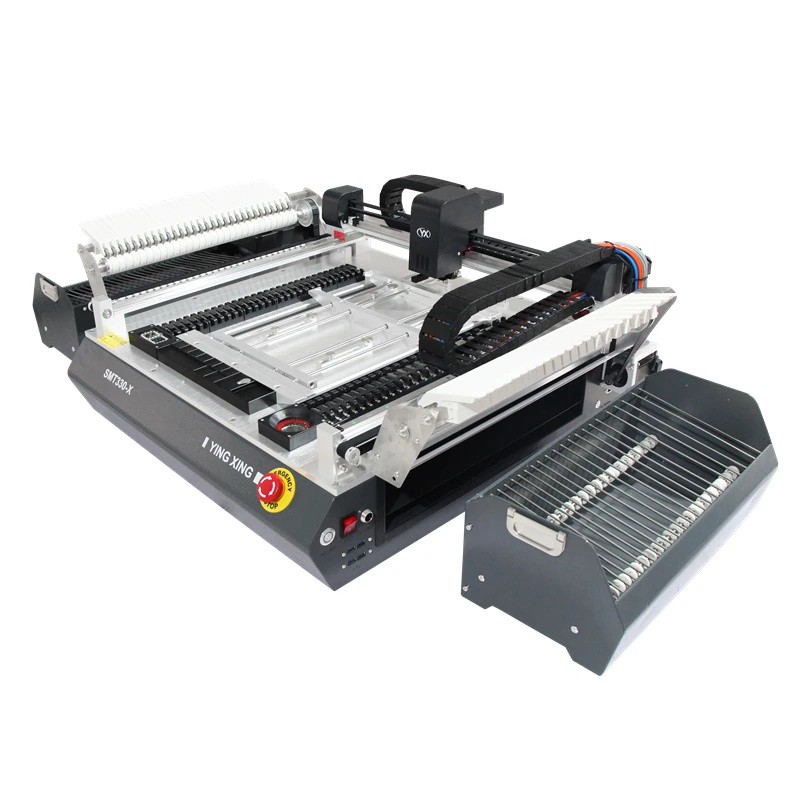

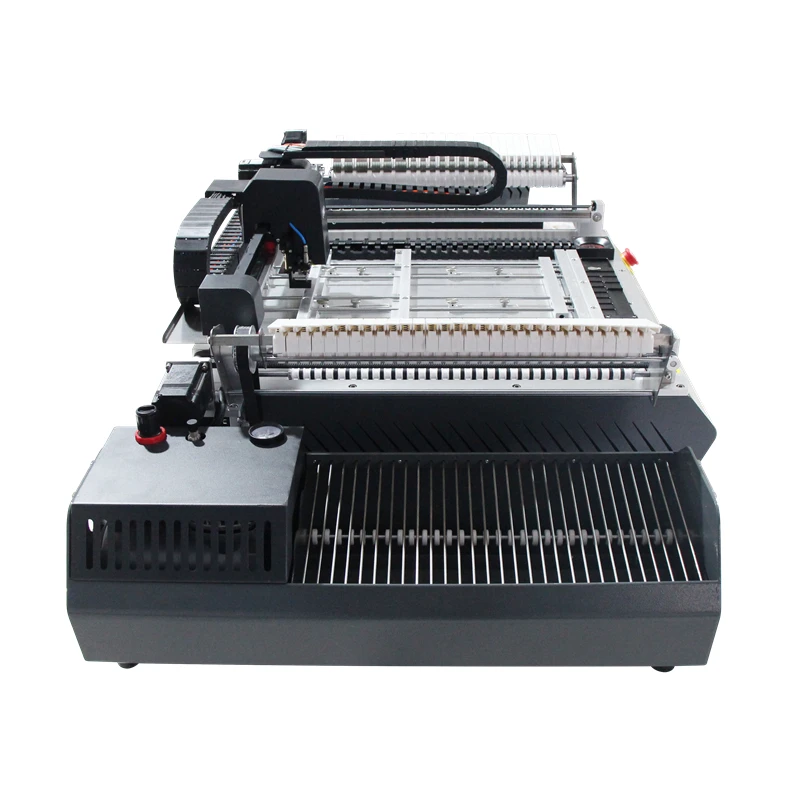

The SMT330-X series mounter with 2heads ,can pick and place at the same time. Independent 54 feeder station, 19"Dell display, multiple sets of high resolution CCD industry dual camera vision.The transmission mechanism is equipped with high precision synchronous belt.and Linear Guideway, stepping servo motor.support CSV. document edit.Maximum PCB 320*450mm, suit for general resistance capacity
The machine SMT330-X with the 4 cameras+stepping servo motor+54pcs feeders.
The SMT330-X series mounter with 2heads ,can pick and place at the same time. Independent 54 feeder station, 19"Dell display, multiple sets of high resolution CCD industry dual camera vision.The transmission mechanism is equipped with high precision synchronous belt.and Linear Guideway, stepping servo motor.support CSV. document edit.Maximum PCB 320*450mm, suit for general resistance capacity
The machine SMT330-X with the 4 cameras+stepping servo motor+54pcs feeders.
Feature

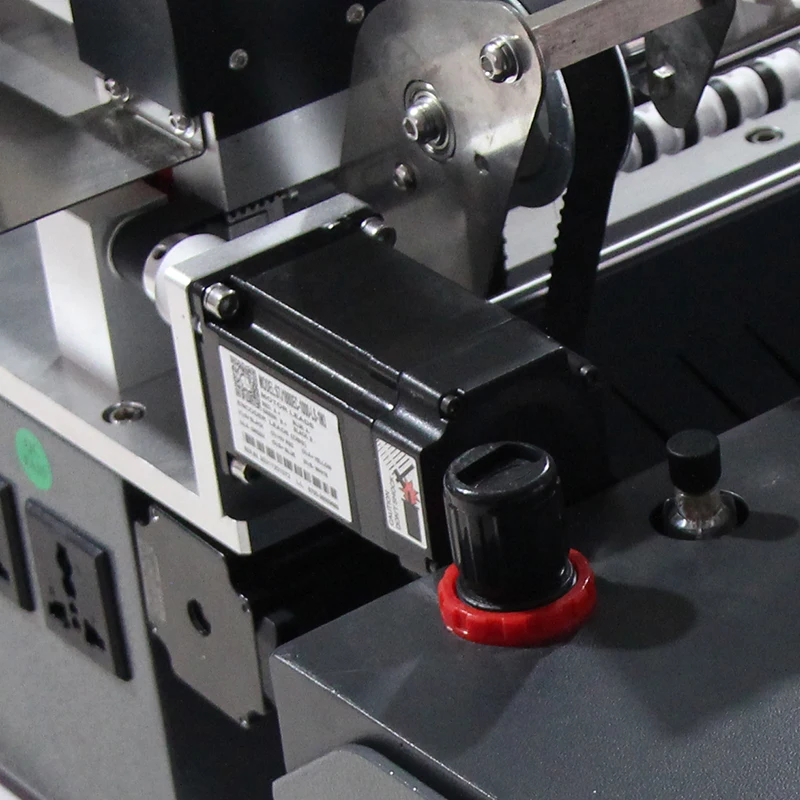

1. Configuration Step Servo Motor
2. Support Multiple Feeders
3. Double Mark Point Recognition.

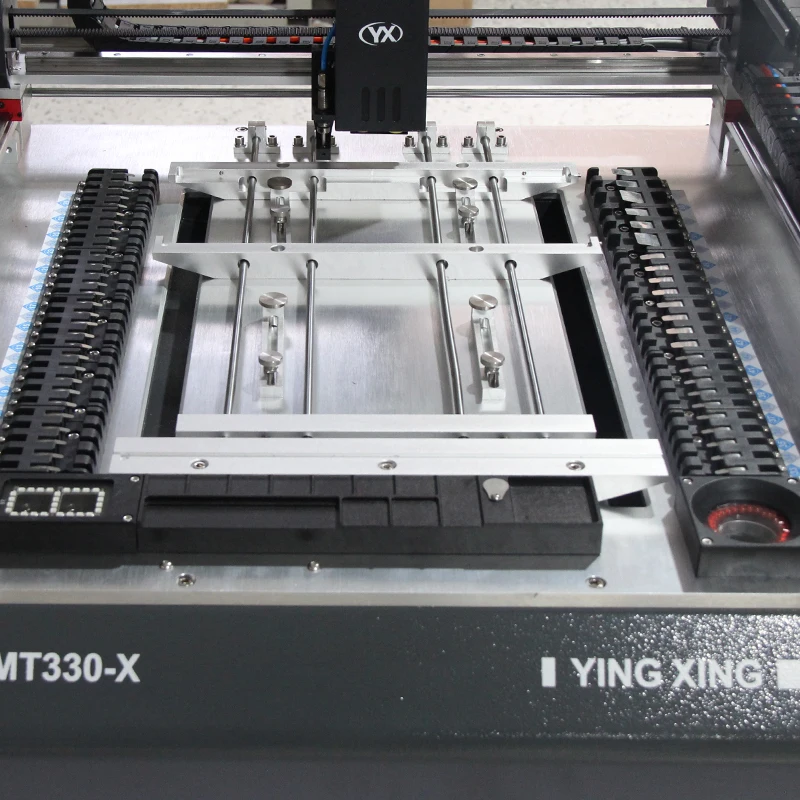

4. PCB Mounting:320*450mm PCB Support
5. Double Components Identification
6.High Precision Identification Camera
7.5500pcs/h Mounting
8.TAIWAN HIWIN Linear Guider Way
9.Drive Belt
10.Automactic Stripping Film Feeder
11.Patented Bilateral Feed System
Part List
1.Pick and place machine SMT330-X:1 set
2.Feeder location feeder no.27pcs:2 set
3.Display Dell 19":1pcs
4.Keyboard Dell:1pcs
5.Mouse Dell:1pcs
6.Power cord:1pcs
7.Nozzle 502-506:each 5pcs
8.Manual:1pcs
Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts（Within 1 YEAR warranty ）
Model | SMT330-X |
Mounting Numbers | 2Pcs |
Mounting Precision | 0.025mm |
Mounding Angle | 0～360° |
Mounting Speed | 5500pcs/hour |
Moter | Stepping Servo Motor |
Camera | 4Pcs |
Quantity of the feeder | 54Pcs |
Suction Nozzle Type | Juki Series Nozzle |
RC(0402、0603、0805、1206 etc) | |
LED Lamp Beads(0603、0805、3014、5050 etc) | |
Chip(SOT、SOP、QFN、BGA etc) | |
SMD Height | ≤5.5mm(Customize ≤11mm) |
PCB Minimal Size | 10×10mm |
PCB Maximum Size | 320×450mm |
PCB Thickness | ≤2mm |
Type | 8mm、12mm、16mm、24mm、32mm |
Front IC Location | 10Pcs |
Back IC Tray | 1Pcs |
Vibration Feeder | YX Customized Feeder(Optional) |
X/Y Axis Moving Range | 430×530mm |
Z Axis Moving Range | 10mm |
Z Axis Rotation Angle | 0～360° |
Visual Camera | CCD High-definition Camera |
Numbers of Visual | Parts Camera×3、PCB Camera×1 |
Recognition Capability | MAX. 22×22mm |
PC System | Microsoft WIN7 |
Operational Software | R & D |
Compatible File Format | CSV. Format |
Program Method | Support Online and Offline Ways |
Air Pressure | 0.4Mpa |
Vacuity Degree | -66kpa |
Power | 230W |
Power Supply | AC220V±10％ 50Hz |
Main Engine Outline Size | L990×W730×H375mm |
Materials Feeder Outline Size | L235×W700×H245mm |
Weight | 85kg |
Product Details
Company Information
Exhibition
Certifications
Product packaging
FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.
Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.
Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.
Q:English version for these machines?
A:Yes
