Гидравлический Цилиндр PTFE поршневое уплотнение кольцо дизайн

Гидравлический Цилиндр PTFE поршневое уплотнение кольцо дизайн

Категория: >>>
Поставщик: Guangzhou JST Seals Technology Co. Ltd.Guangzhou Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

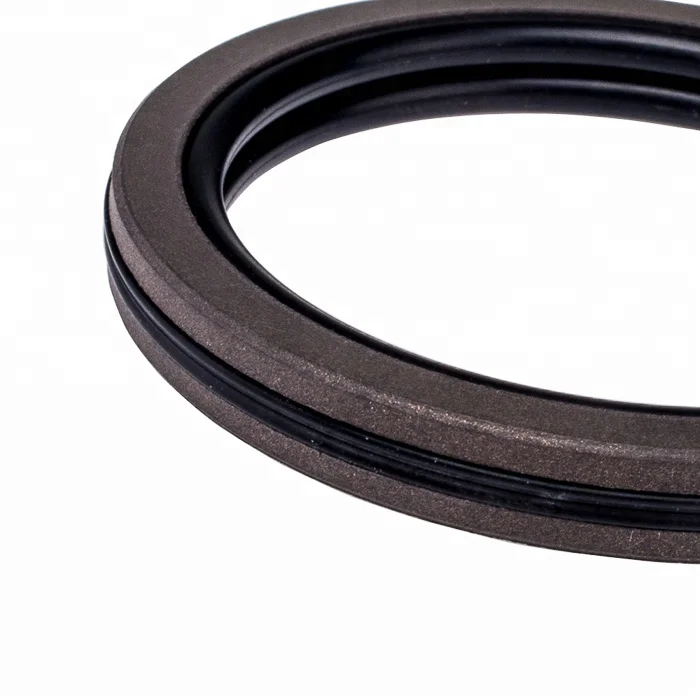

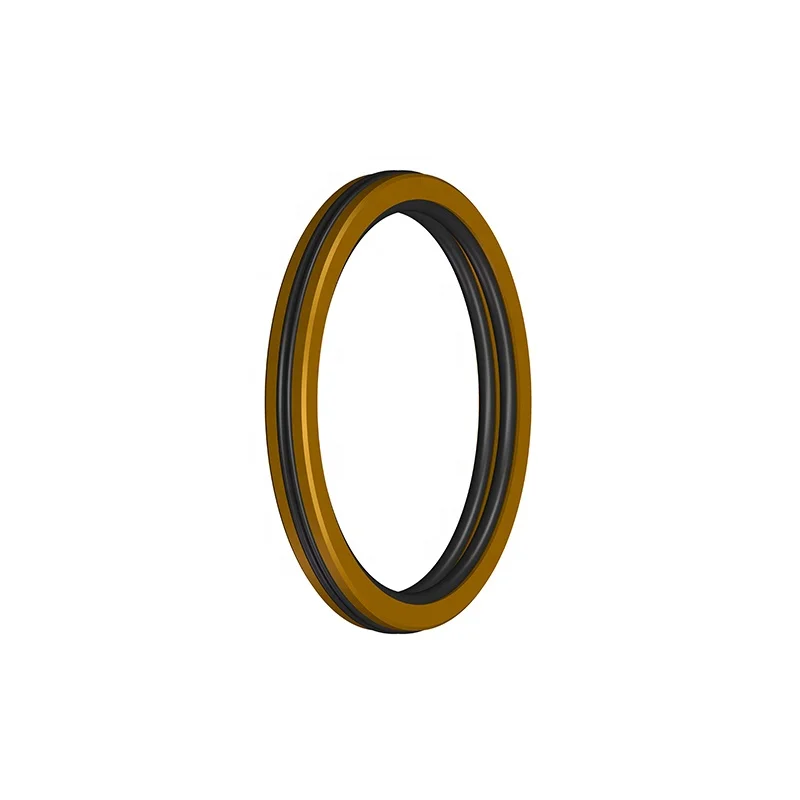

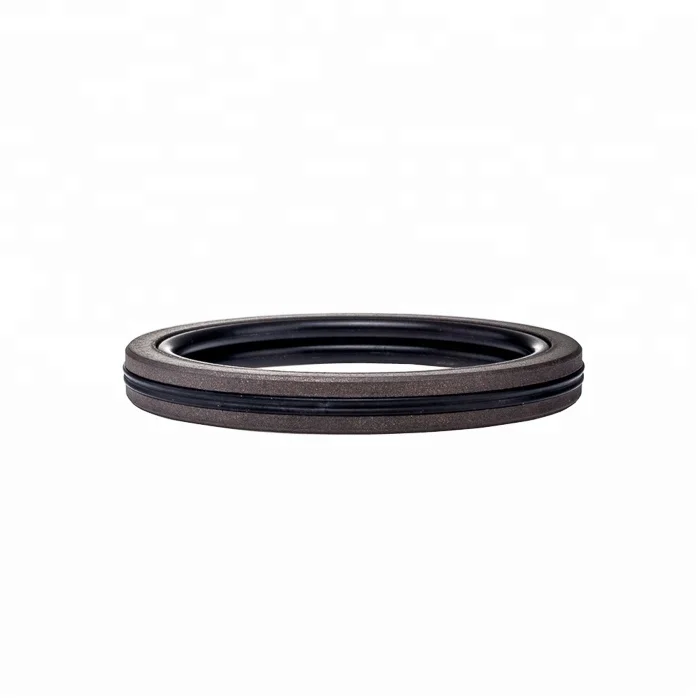

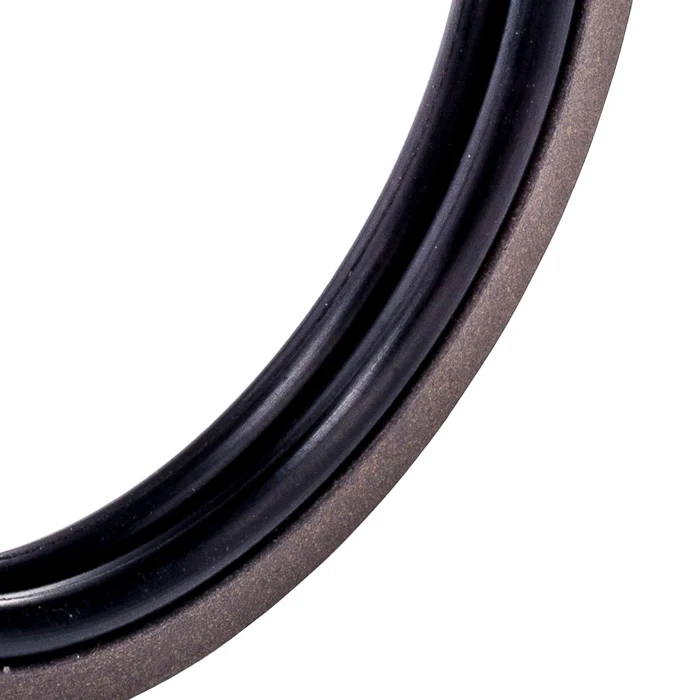

Hydraulic cylinder PTFE piston seal ring design

Double-acting cylinders are widely used and they operate under pressure on both sides which requires for a double-acting seal.

The double acting piston seal has a cross section and same sealing function in both directions. Generally, the double acting piston seal consists of a slip ring and an elastomer ring. During installation, make the slip ring close to the cylinder surface to provide dynamic sealing capacity while maintaining the static sealing performance at the sealing groove.

A typical double acting hydraulic cylinder has the same medium on both sides of the piston. Therefore, it is allowed to form a relatively thick lubricating film between the piston seal and the cylinder bore to minimize friction and wear.

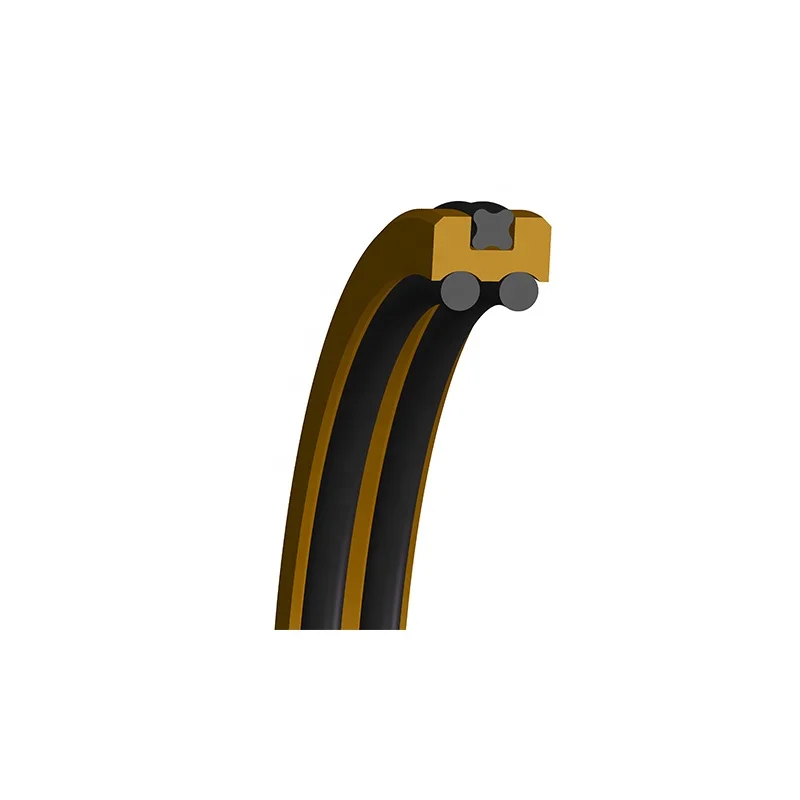

XTP is Double acting piston seals, composed of PTFE piston sealing ring, O-ring and X ring, and is used for the piston

bidirectional seal of hydraulic cylinder. Especially suitable for separating two different mediums.

Size：

Diameter: φ8-φ500mm

Advantage:

1. Good sealing effect in Dynamic and static sealing
2. Minimal start-up and movement friction, no creeping
3. High pressure resistance, High temperature resistance
4. Simple groove structure and easy installation

Working Conditions:

●Working Pressure: ≤40Mpa
●Working Temperature:
-30℃ to +110℃
-25℃ to +220℃
Depending on material selected.
●Working Speed: ≤4m/s
●Working Medium: Hydraulic oil; Gas; Water; etc
●Material:
PTFE Band: Bronze filled PTFE
O Ring:
NBR, A70±5
FKM, A75±5

Specification

item	value
Size	Diameter: 8-500mm
Place of Origin	China
	Guangdong
Brand Name	JST
Model Number	XTP
Application	Oil cylinder
Size	Standard Size
Certificate	ISO9001:2008
Material	PTFE+NBR
MOQ	500pcs
Delivery date	15days
Feature	two-way seal
Product name	PTFE piston seal
Type	CNC Processing
OEM	Aviable

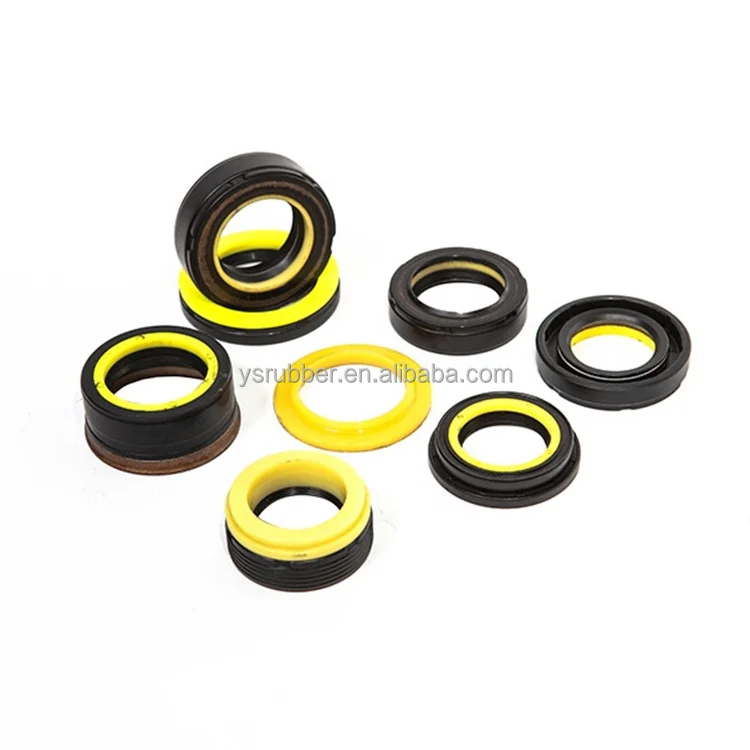

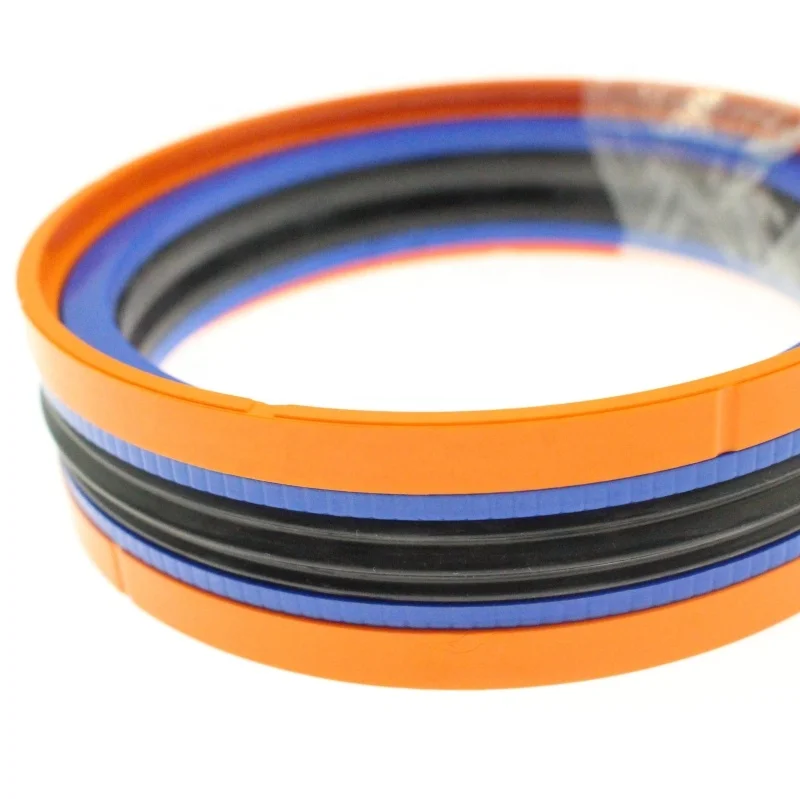

Main Products

Company Profile

Throughout industrial revolutions, sealing technology is the supportive key factor propelling industrial developments. In the general trend of global industrial upgrading, JST undertakes the mission to fuel social development of mankind via sealing technology.

JST has passed ISO9001 quality management system certification, API Q1 system certification and HSE system certification. JST is dedicated to innovation, and has developed over 40 patented products and counting.

JST keeps increasing production capacity to meet the rising demand from customers. We have rubber seal production workshop, PTFE seal production workshop and tooling processing workshop.

JST's products and services cover construction machinery, oil & gas drilling and stimulation, LNG, aerospace, nuclear & wind power, medical equipment and other industries, and meet the complex and harsh working conditions and technical requirements of various industries with its strength.

We have businesses in more than 30 countries and regions, and established partnerships with top oil service and equipment companies worldwide.

Our Capabilities:

-Rubber Mixing
-Vulcanization
-Tool Processing
-Billet Molding
-Automatic Molding
-Sintering
-Machining
-Skiving
-Cutting
-Packaging

Our Strengths：

-Innovative Product Designs
-Manufacturing Excellence
-Sufficient Stock & Fast Delivery
-Over 25 Years of Experience
-Material Testing Capabilities
-Seals Application Testing Capabilities
-Optimized & Advanced Production Processes
-Higher Standard Quality Control System
-Accurate Logistics Control System

PRODUCTION PROCESS

Packing & Delivery

●Standard packing:
Inner is corrugated paper with film shrinkable.
Outer is carton with film wrapped
*Customized packing available

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
●Standard export port:
Guangzhou or Shenzhen

Payment

T/T (30% deposit, and 70% balance payment paid before shipment)

L/C (for big order)

FAQ

Q1: Are you trading company or manufacturer?
A: We are manufacturer.

Q2: How long is your delivery time?
A: Generally it takes 3-7 days if we have stock.
Otherwise it takes about 10-15days depending on the qty.

Q3: Can you provide samples? Is it free or extra?
A: Yes, we can supply the sample for free. Freight charges can be negotiated.

Q4: What are your payment terms ?
A: 30% T/T in advance, balance before shipment.

Q5: How soon i can get the quotation?
A: If your information is complete, we offer our quotation within 24 hours.

Q6: Could you supply solutions to us?
A: Sure we can.

Q7: Do you have a minimum order requirement?
A: Small trial order is acceptable.
