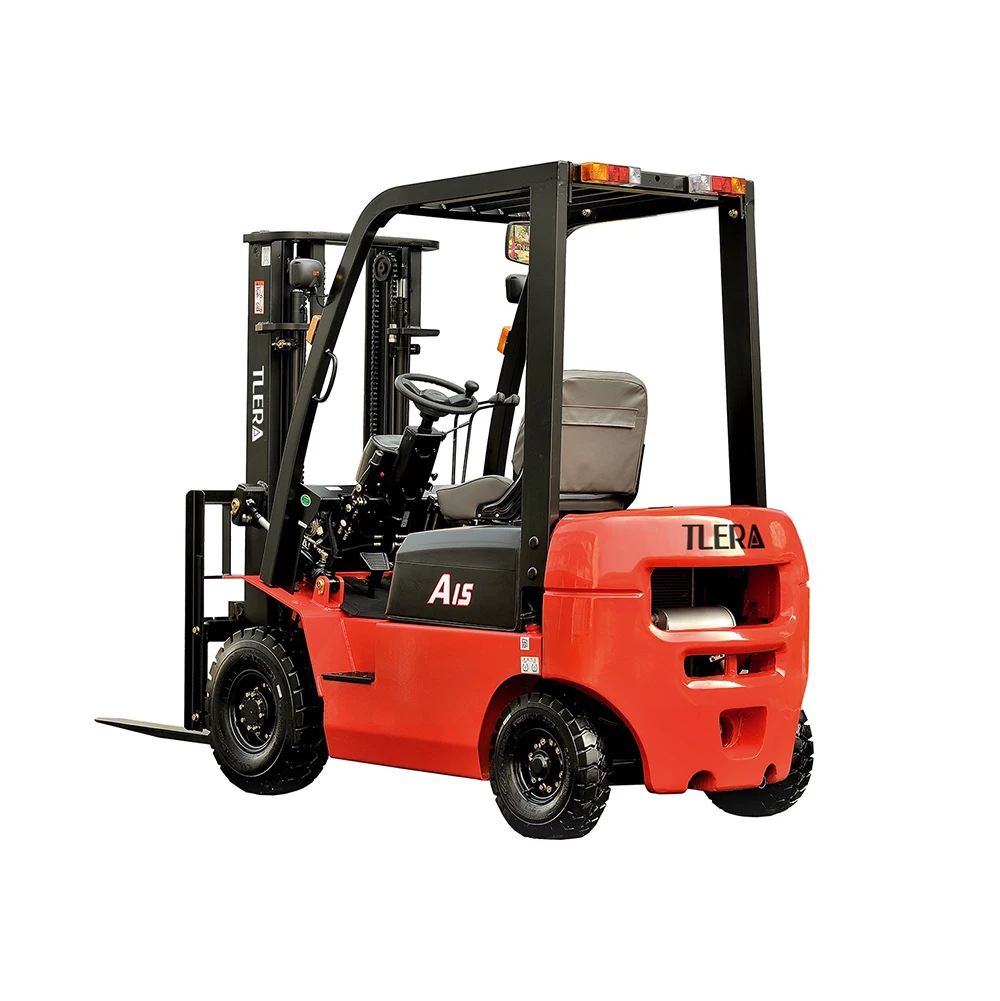

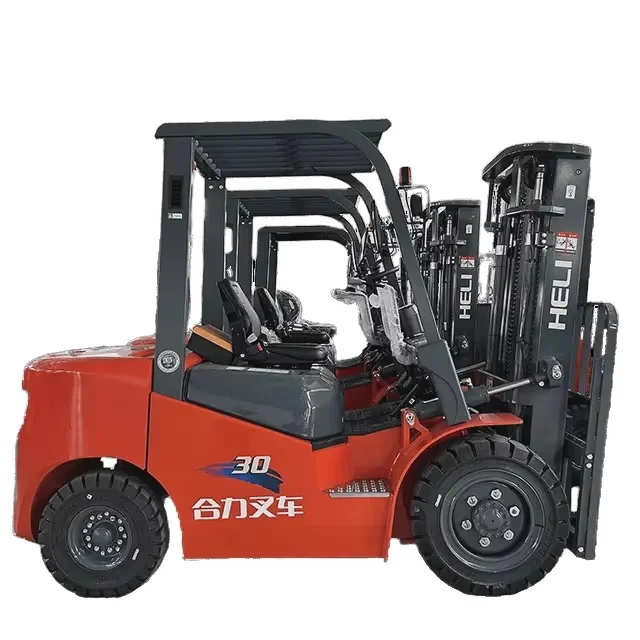

Дешевый вилочный погрузчик 3 тонны высококачественный недорогой дизельный двигатель автоматический штабелер в Китае для продажи
- Категория: >>>
- Поставщик: Fujian Tianli Times Machinery Co. Ltd.
Сохранить в закладки 1601273039170:
Описание и отзывы
Характеристики
Model | FD30 | FD35 | |||||
Power Type | Diesel | Diesel | |||||
Rated Capacity | kg | 3000 | 3500 | ||||
Load Centre | mm | 500 | 500 | ||||
Lift Height | mm | 3000 | 3000 | ||||
Fork Size | L×W×T | mm | 1070×125×45 | 1070×125×50 | |||
Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | |||
Front Overhang (Wheel center to fork face) | mm | 480 | 485 | ||||
Ground Clearance（Bottom of mast） | mm | 140 | 140 | ||||
Overall Dimension | Length to face of fork(Without fork) | mm | 2730 | 2775 | |||
Overall Width | mm | 1225 | 1225 | ||||
Mast Lowered Height | mm | 2115 | 2115 | ||||
Mast Extended Height(With backrest) | mm | 4150 | 4150 | ||||
Overhead Guard Height | mm | 2090 | 2090 | ||||
Turning Radius (outside) | mm | 2440 | 2480 | ||||
Speed | Travel (Empty load) | km/h | 20 | 20 | |||
Lifting (Full load) | mm/s | 510 | 440 | ||||
Max.Gradeability (No load/Full load) | % | 20 | 20 | ||||
Tire | Front | mm | 28×9-15-12PR | 28×9-15-12PR | |||
Rear | mm | 6.50-10-10PR | 6.50-10-10PR | ||||
Wheelbase | mm | 1700 | 1700 | ||||
Service weight | kg | 4300 | 4500 | ||||
Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |||
Engine | Model | C240 | 4JG2PE-01 | ||||
Manufacture | ISUZU | ISUZU | |||||
Rated output/r.p.m. | kw | 35.4/2500 | 46/2450 | ||||
Rated torque/r.p.m. | N·m | 137.7/1800 | 184.7/1600-1800 | ||||
No.of Cylinder | 4 | 4 | |||||
Bore×Stroke | mm | 86×102 | 95.4×107 | ||||
Displacement | cc | 2369 | 3059 | ||||
Fuel Tank Capacity | L | 60 | 60 | ||||
Transmission | Type | Hydraulic | Hydraulic | ||||
Stage | FWD/RVS | 1/1 | 1/1 | ||||
Q1: How about the delivery time?
A1: Usually our producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q2: How about the continuous working time for the electric series forklifts ? How long time to charge the battery full?
A2: Our battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, our charger is automatic, after the battery is full, it will stop working automatically.
Q3: Can you provide customized products? OEM products or ODM products?
A3: Yes, we can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
Q5: How long is the after-sales warranty?
A5: We can provide video technical support.
Q6. Can I visit your company?
A6: Of course. We always with great pleasure at your service. If you want to order our products and visit our company, please contact us to make an appointment.
A1: Usually our producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q2: How about the continuous working time for the electric series forklifts ? How long time to charge the battery full?
A2: Our battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, our charger is automatic, after the battery is full, it will stop working automatically.
Q3: Can you provide customized products? OEM products or ODM products?
A3: Yes, we can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q4: Could we request our own color for the products?
A4: Yes, of course, you just need to offer us the RAL code.
Q5: How long is the after-sales warranty?
A5: We can provide video technical support.
Q6. Can I visit your company?
A6: Of course. We always with great pleasure at your service. If you want to order our products and visit our company, please contact us to make an appointment.
Похожие товары
Продвижение AC мотор 1.4 т 1.6 т электрический штабелер
1.5 ton электрический штабелер, электрическая тележка

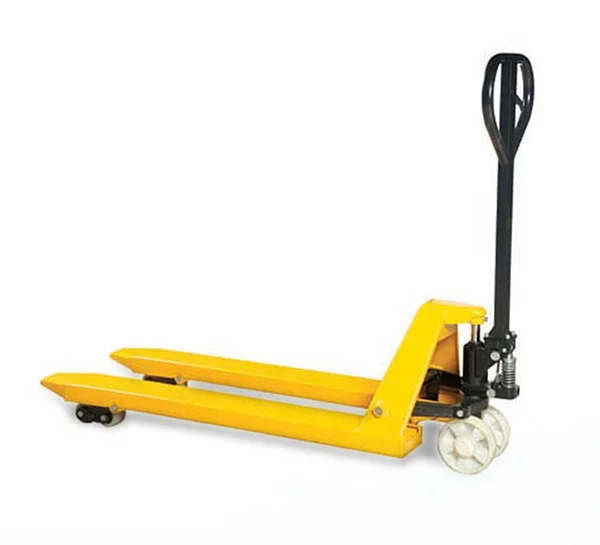

Высококачественный склад пешеходных мощность рук ручной штабелер гидравлические тележки

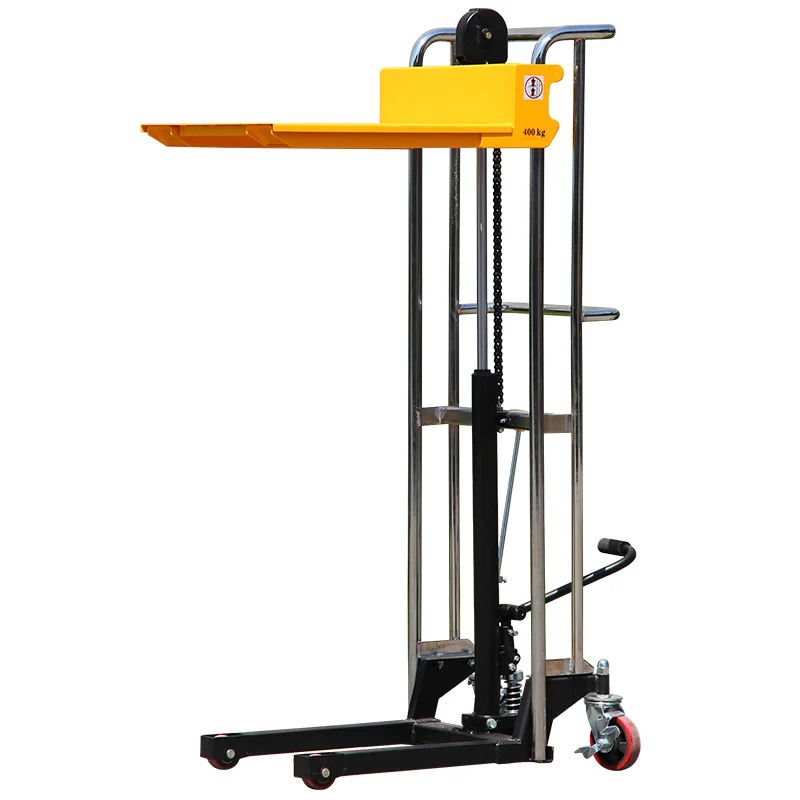

Мини-погрузчик, небольшой вилочный погрузчик, ручной штабелер 400kgs с CE/TUV/GS
