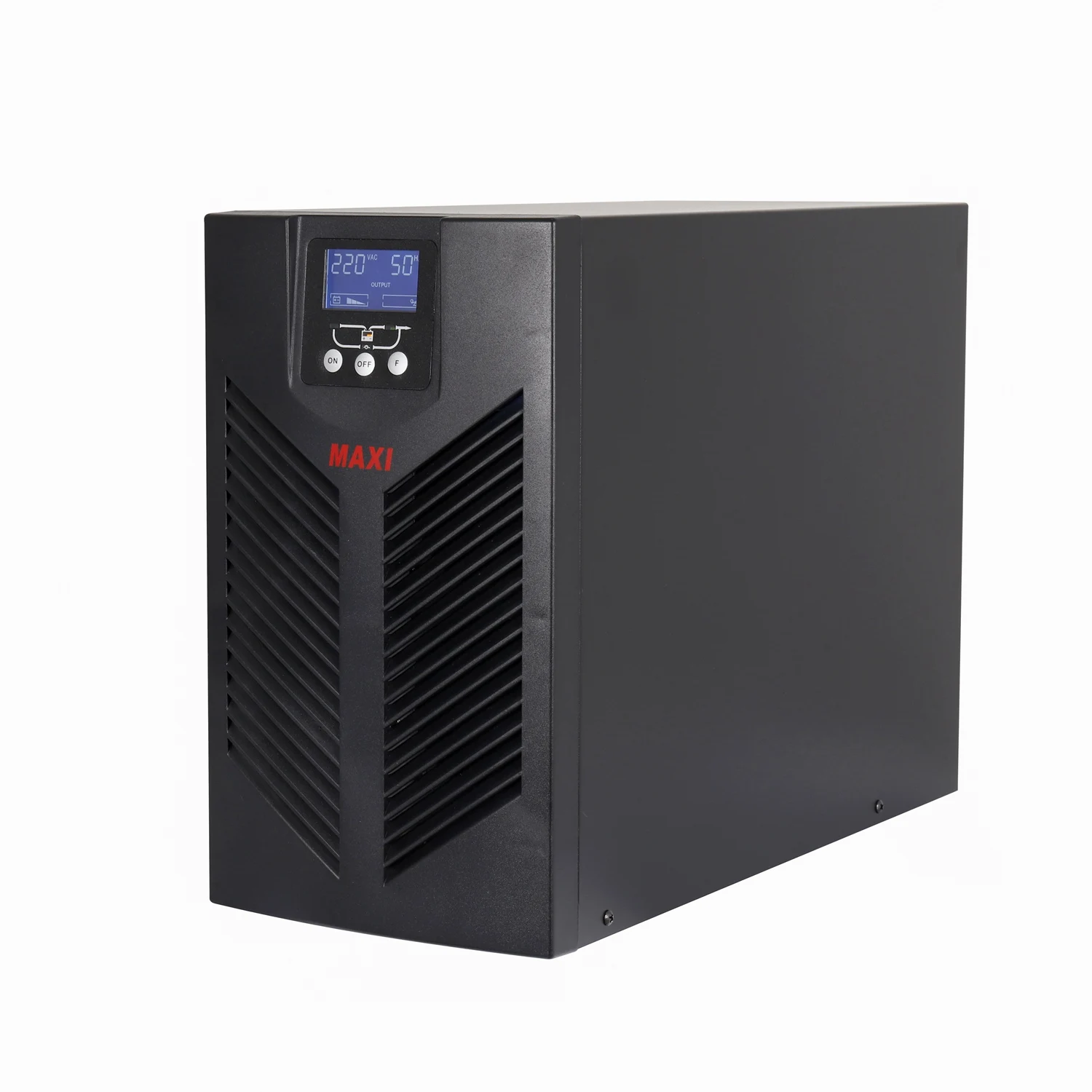

Однофазный 2 кВА онлайн Двойное преобразование 110 В 220 ИБП 2000 Вт кВт резервное питание для компьютера ПК дома

Однофазный 2 кВА онлайн Двойное преобразование 110 В 220 ИБП 2000 Вт кВт резервное питание для компьютера ПК дома

Категория: >>>
Поставщик: Foshan Xinchen Electronic Co. Ltd.

Цена:8 771,88 ₽ - 9 100,82 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Company Profile

VR

Products Description

Product Paramenters

Model

MXG 1K(L)

MXG 2K(L)

MXG 3K(L)

PHASE

Single phase with ground

CAPACITY

1000VA/900W

2000VA/1800W

3000VA/2700W

INPUT

Nominal Voltage

208/220/230/240VAC

Voltage Range

55-150VAC ± 3% or110-300VAC ± 3% at 50% load

80-150VAC ± 3% or 160-300VAC ± 3% at 100% load

Frequency Range

40Hz~70Hz

Power Factor

≥0.99 nominal voltage(100% load)

THDi%

≤ 5%

OUTPUT

Output Voltage

208/220/230/240 VAC

AC Voltage Regulation

± 1

Frequency Range(Synchronized Range)

47~53Hz or 57~63Hz

Frequency Range(Batt.Mode)

50Hz ± 0.1Hz or 60Hz ± 0.1Hz

Current Crest Ratio

3:1

Harmonic Distortion

≤ 2% THD(Linear Load),≤ 4%THD (Non-linear Load)

Transfer Time

AC TO DC

Zero

Inverter to Bypass

4 ms(Typical)

ECO to Battery Mode

8 ms(Typical),10 ms(max)

Waveform

Pure Sine wave

EFFICIENCY

Line Mode

≥ 89% battery fully charged

≥ 91% battery fully charged

Eco Mode

≥ 96% battery full charged

Battery Mode

≥ 86%

≥ 85%

≥ 88%

BATTERY

Battery Type

12V/7AH

12V/7AH

12V/7AH

12V/7AH

Numbers

3

6

6

8

Typical Recharge Time

5hours recover to 95% capacity for internal battery

Charging Current

1-3KVA 1A

1-3KL 5.5A

Charging Voltage

27.5VDC ± 1%

41.25VDC ± 1%

82.5VDC ± 1%

82.5VDC ± 1%

110VDC ± 1%

INDICATORS

LCD Panel

Load level,Battery level,AC mode Battery mode Bypass mode,and Fault indicator

ALARM

Battery Mode

Sounding every 5 seconds

Low Battery

Sounding every 2 seconds

Overload

Sounding every seconds

Fault

Continuously sounding

PHYSICAL

Dimension,D*W*H(mm)

350*144*230

425*190*328

Net Weight(long backup)(kgs)

6

12

12

Net Weight(w/built-in battery)(kgs)

8.5

11.5

23

24

28

ENVIRONMENT

Humidity

20-95% RH 0-40℃ (non-condensing)

Noise level

Less than 50dBA 1Meter

MANAGEMENT

Smart RS-232 or USB

Supports Windows 2000/2003/XP/Vista/2008,Window 7/8/10,Linux and MAC

Optional SNMP

Power management from SNMP manager and web browser

STANDARD

EMC/Safety

EMC EN62040-2 C2 for CE models

Why Choose Us

Exhibition

Certifications

Product packaging

FAQ

FAQ
Q1:Main products range
A: Our main products range is offline ups 600va-3000va, online hight frequency ups 1kva-80kva,online low frequency ups
2kva-200kva,ups battery 12V 7ah-200ah

Q2:Are you manufacturer or trading company?
A:we are UPS manufacturer

Q3:Can I have a sample for testing?
A:Yes，you can have a sample for testing.

Q4:how long is your deliver time?
A:normally 15 days

Q5:How do you control quality?
A: We strictly implement quality control following IQC, IPQC, FQC, QQC standards

Q6:How to pay?
A:We accpect TT and L/C

Q7:Warranty
A: 1 year warranty for UPS. 1 year warranty for battery 7AH-17AH. 2 years warranty for battery 24AH-200AH

Q8:Do you have OEM&ODM service?
A: Yes，our products can be customized.
