24000L flexitank / flex ibag в 20-футовом контейнере
14 826,07-18 977,36 ₽
20mt flexitank flexi мешок с воздушным клапаном для битумного высокотемпературного сопротивления
- Категория: >>>
- Поставщик: Shandong Blue Whale Packing Material Co. LtdShandong Ltd
Сохранить в закладки 1601273102717:
Описание и отзывы
Характеристики
Our flexitank has passed COA certification and is underwritten by China Pacific Insurance(group) Co.,Ltd.
Certifications And Cooperation Partners
Products Description

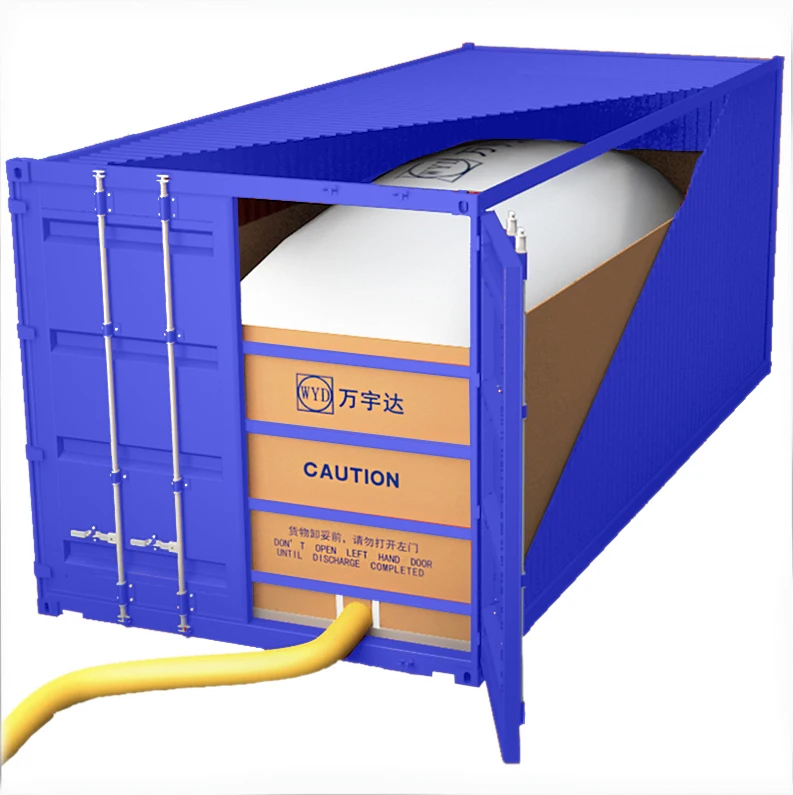

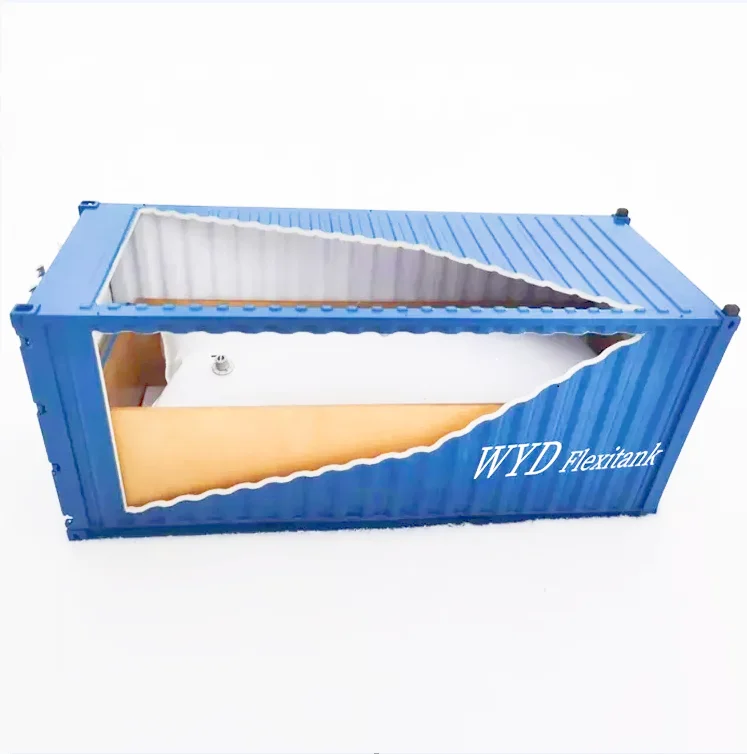

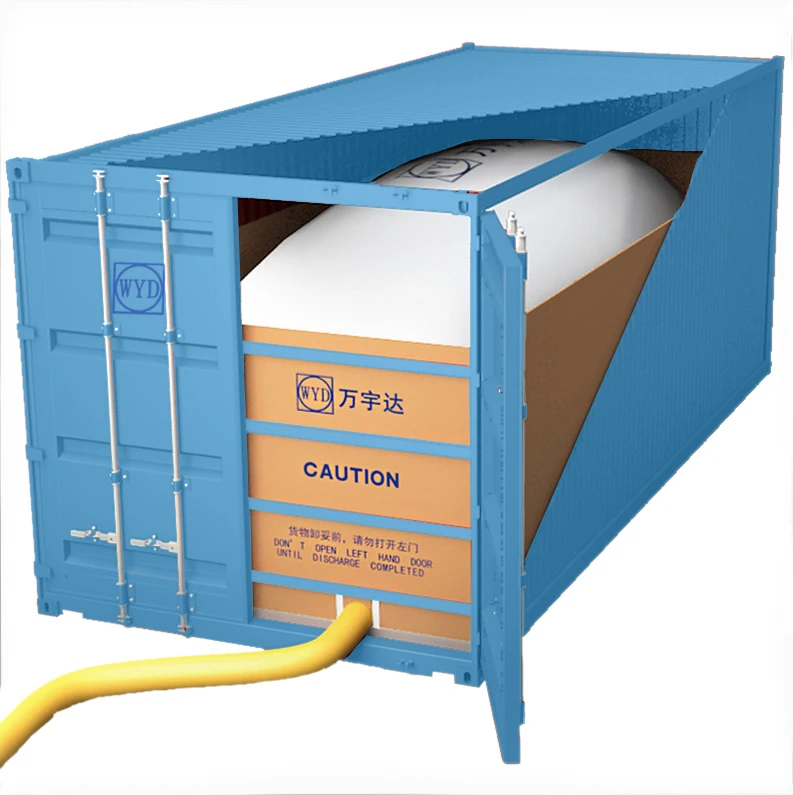

Flexitank It is a new type of flexible packaging container that can store and transport various non-dangerous liquid goods. Each flexitank can be placed in a 20-foot container, with a volume of 14-24 cubic meters, and can store and transport up to 24,000 liters of liquid.

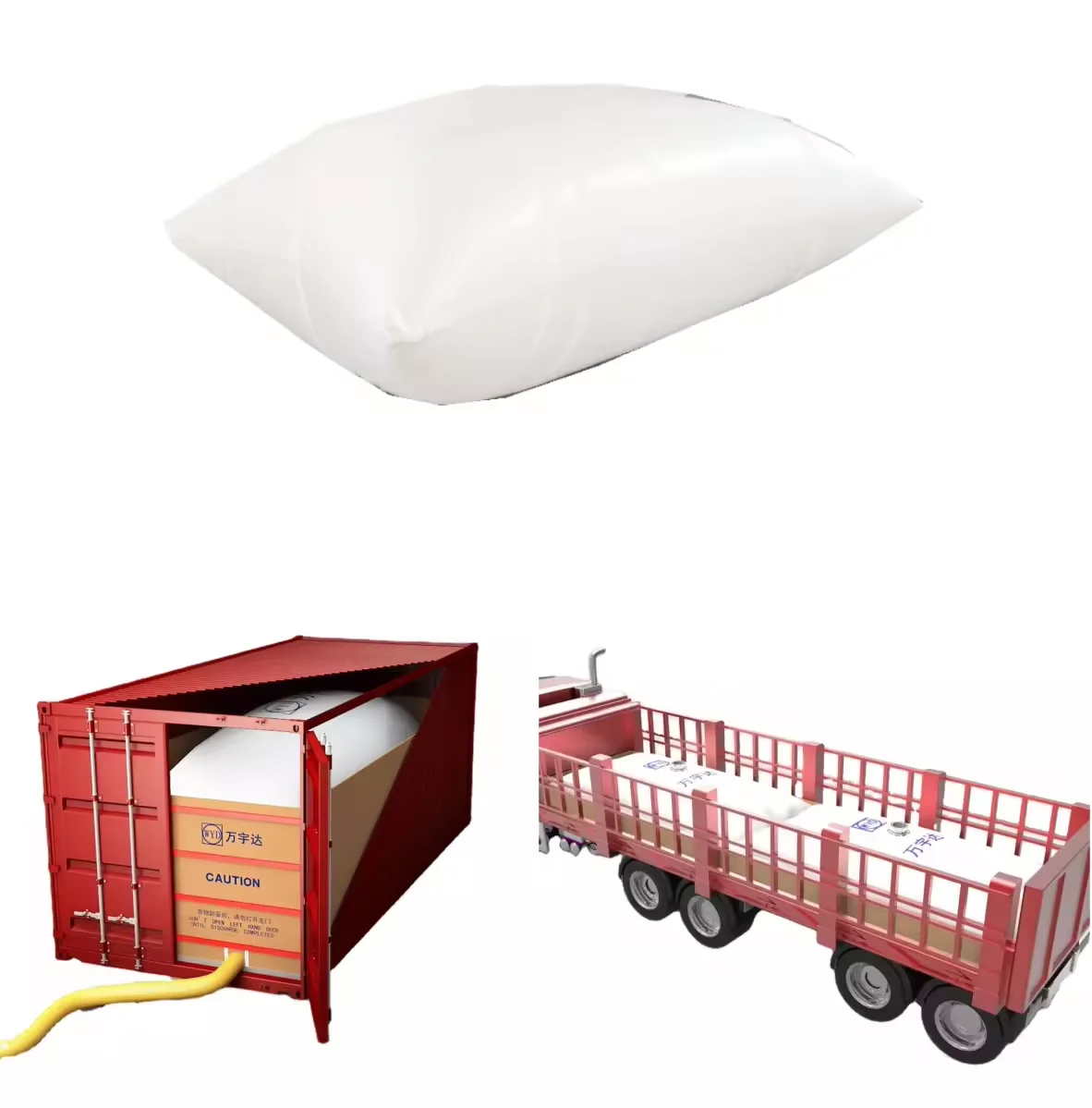

Flexitanks can replace expensive tanks in the transportation of non-hazardous liquids. The raw materials of the product have no pollution to the environment, and are especially suitable for transportation such as sea, railway, and land transportation.
Flexitanks can replace expensive tanks in the transportation of non-hazardous liquids. The raw materials of the product have no pollution to the environment, and are especially suitable for transportation such as sea, railway, and land transportation.
Name | Flexitank |
Grade | Food and Non-food |
Suitable for | 20" Container |
Type | Bottom Loading &Discharging flexitank Top loading & Bottom Discharging flexitank |
Place of Origin | China |
Material | 100% new PE Film+PP Fabric |
Usage | Food liquid, non-food liquid, chemicals packaging and transportation |
Certificate | COA, BV, ISO9001, etc. |

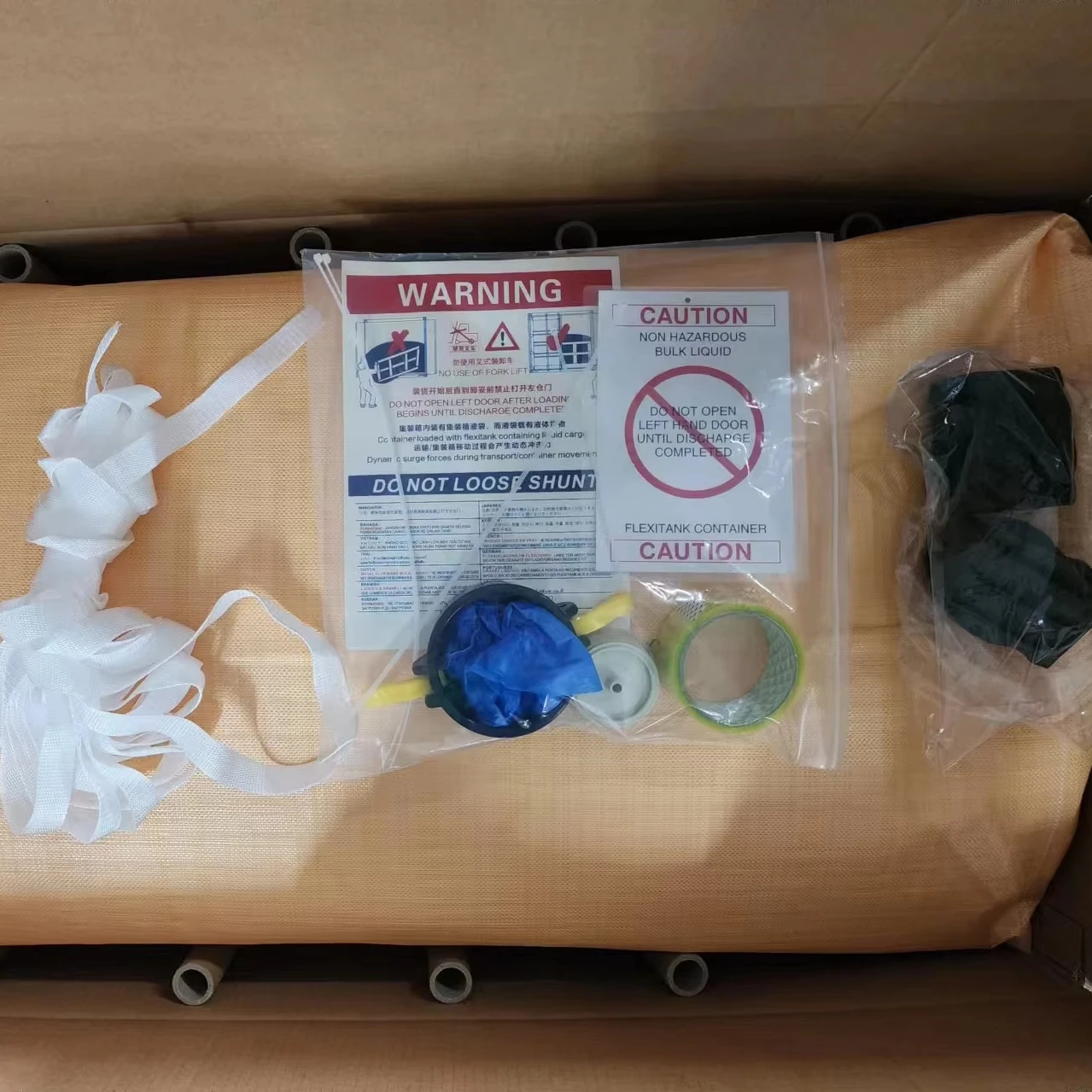

Accessories | Steel pipe 5pcs, Baffle 1pc, Alarm Mark 1pc, Corrugated paper 28m, Paper-board 1pc, Adhesive tape 1pc. |

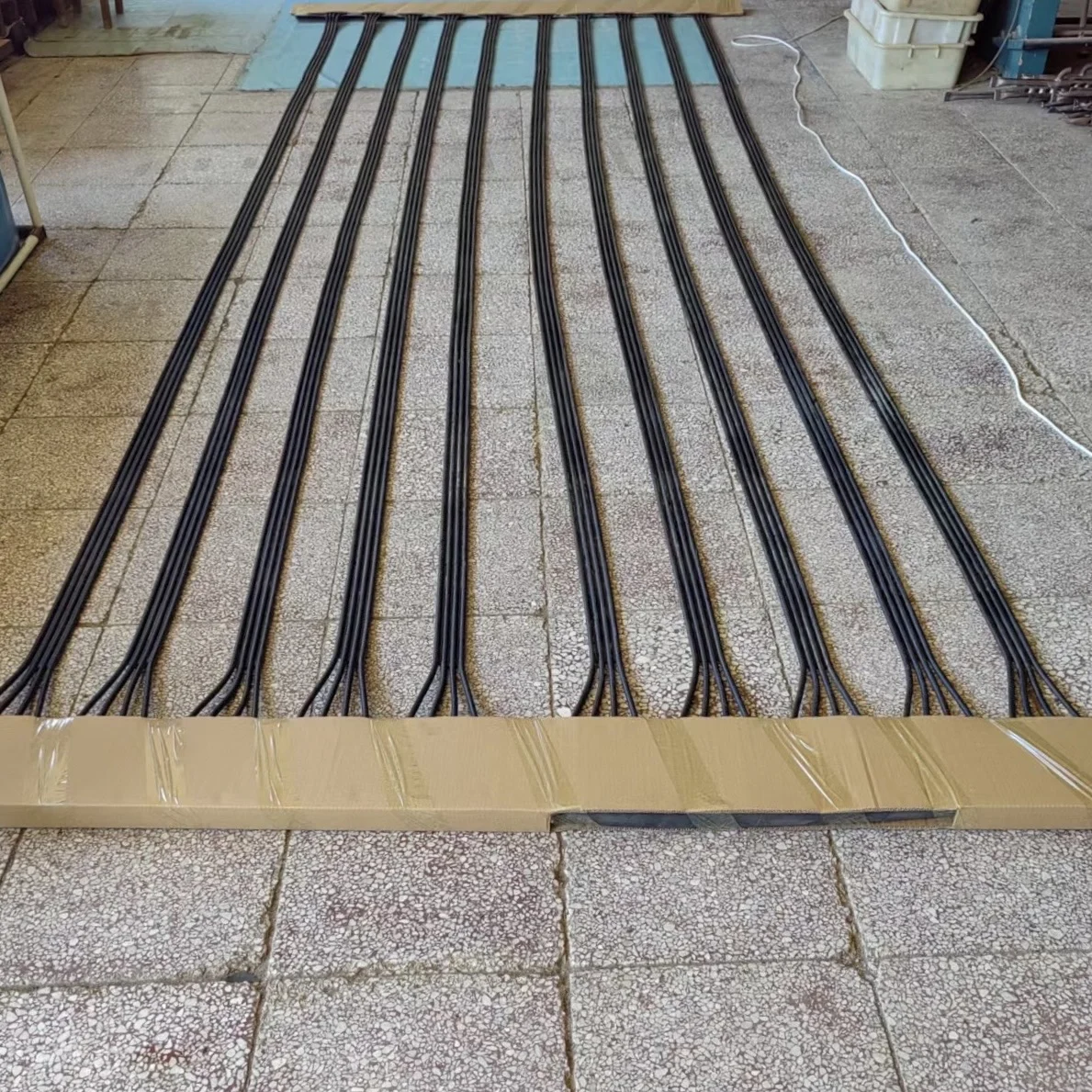

Assistant designs | Heating pad---Speed up the melting of goods especially in cold weather Airvent --Air release |
Valve | 3 inch ball valve |
Loading Capacity | 24000L |
Layers | 3+1 layer /4+1 layer /2+1 layer or customized |
Advantage | Capacity as big as 24000L Volume after folded only 1CBM Food-grade and degradable Simple structure, the rapid installation High Strength to gurantee safty |
20ft container flexitank: The whole set include:
Size: 5.8*2.4*1.7m Steel pipe 5pcs,
PP fabric: 180gsm Baffle 1pc
Size: 5.8*2.4*1.7m Steel pipe 5pcs,
PP fabric: 180gsm Baffle 1pc
PE liner: 13u Alarm Mark 1pc,
Weight: 50kg include 1 or 2 vales for fill and discharge Corrugated paper 28m

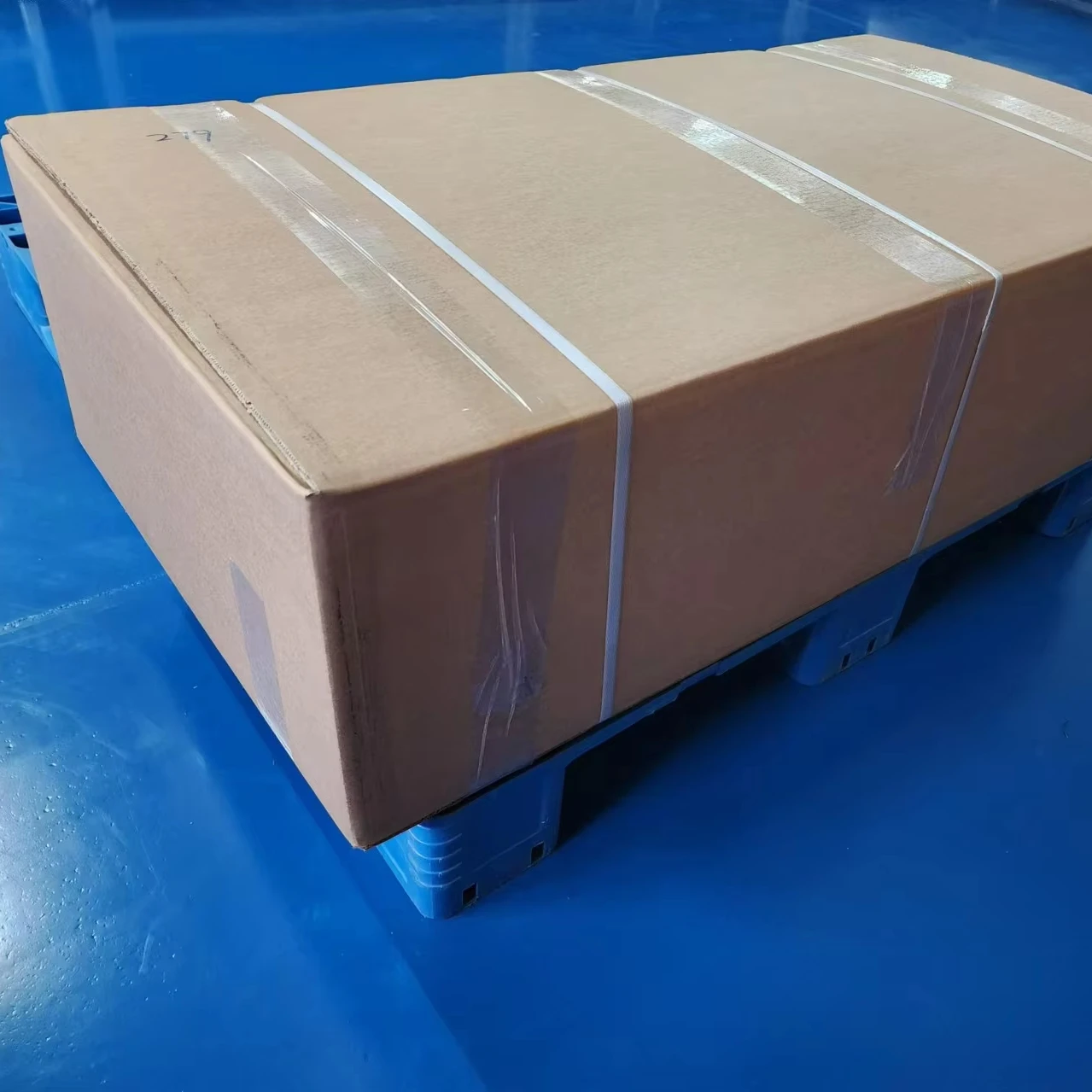

Packing carton size: 103*51*40cm, Paper-board 1pc,
A 20ft GP can load 80 sets.A 40ft HQ can load 180 sets. Adhesive tape 1pc.
Weight: 50kg include 1 or 2 vales for fill and discharge Corrugated paper 28m
Packing carton size: 103*51*40cm, Paper-board 1pc,
A 20ft GP can load 80 sets.A 40ft HQ can load 180 sets. Adhesive tape 1pc.
Continuous innovation、research and development of new materials to meet the needs of different application scenarios.
The flexitank we produce are resistant to high temperature, low temperature, corrosion, rubbing and oxygen resistance.
The flexitank we produce are resistant to high temperature, low temperature, corrosion, rubbing and oxygen resistance.
Why Choose Us
1. Strengthen the inner bag with high-tensile purpose durable one-piece tubular polypropylene woven fabric that provides intensive protection to the liquid cargo loaded within the inner bag.

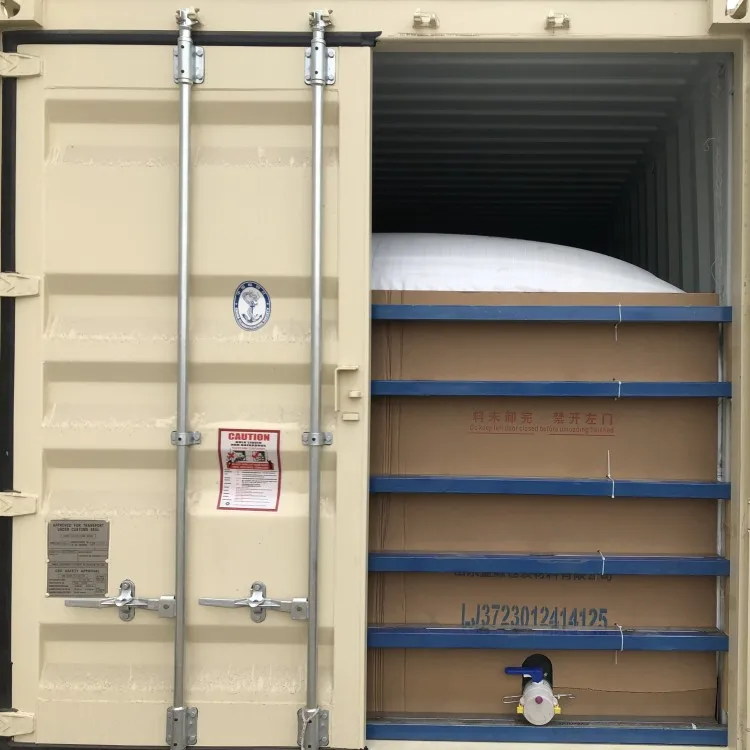

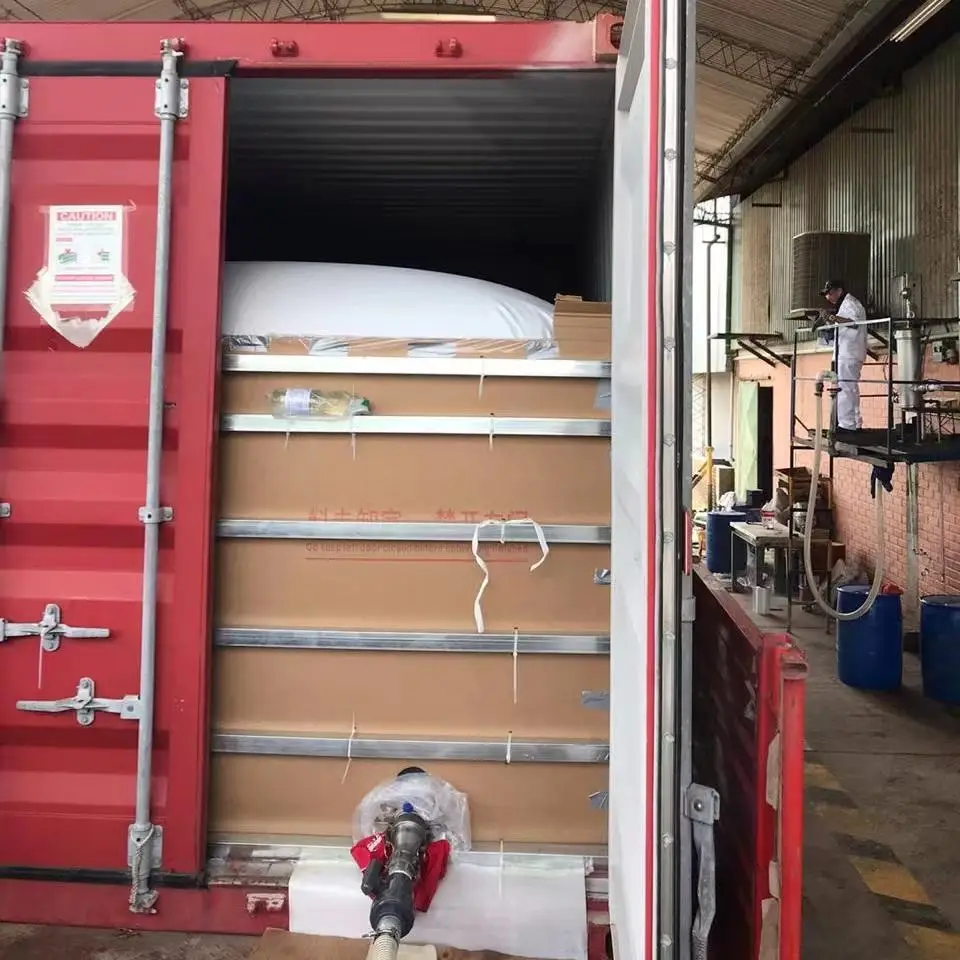

2. Mechanical heavy steel constructed bulkhead system is designed for double protection to liquid cargo within the container,withwhich a container loaded with 24,000L liquid flexitank has been witnessed safely passed the COA Railway lmpact Test done at CRCC. In which the container received 2 times huge impacts at the running speed of 6mph.3. Blue Whale flexitank system fully complies with COA standard.
4. All polyethylene, polypropylene, steel materials used are fully recyclable, all are environmental friendly.
5. International Certifications: COA, ISO 9001, ISO 14001, SGS.
QC
The tensile strength of Our pp fabric exceeds 15.2% of the international standard.

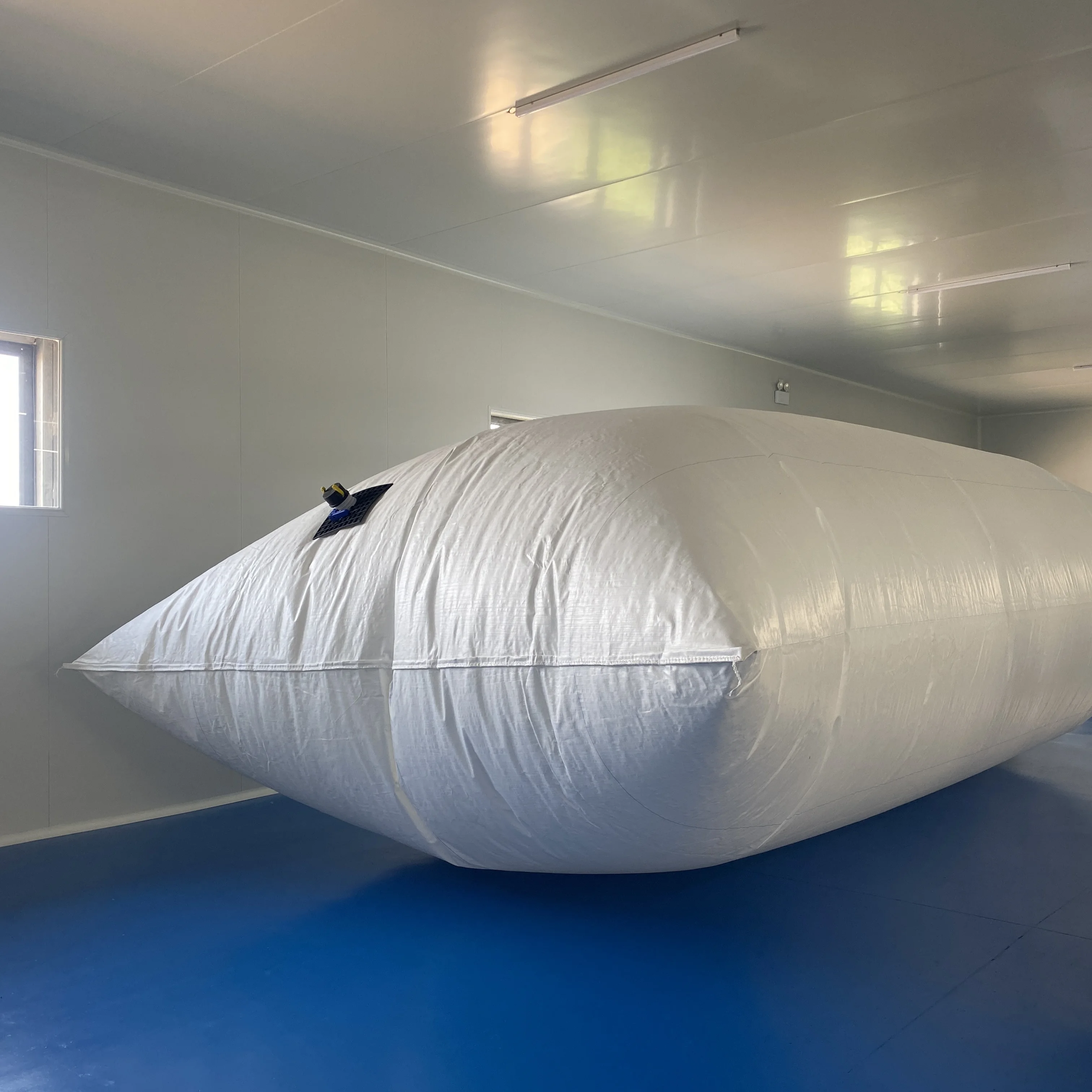

Each flexitank is ultrasonically tested to prevent leakage;
Each valve is vacuum tested before leaving the factory.
Flexitank Operational Manual
Company Profile
Shandong Blue Whale Packaging Materials Co., Ltd. is one of the leading and professional manufacturers and exporters of flexitank and container liner bags in China. We can customize products according to customer needs. Widely used in food, chemical, petroleum and other industries, suitable for railway, road and sea container transportation.
We have a strict quality control system, the flexitank has passed COA certification and is underwritten by China Pacific Insurance Company.
Every year, more than 5 billion liters of liquids and 1 billion kilograms of powders and granules are transported through Blue Whale packaging products.
We use professional knowledge to ensure the safety of flexitank.
Blue Whale, Delivered safely!
We have a strict quality control system, the flexitank has passed COA certification and is underwritten by China Pacific Insurance Company.
Every year, more than 5 billion liters of liquids and 1 billion kilograms of powders and granules are transported through Blue Whale packaging products.
We use professional knowledge to ensure the safety of flexitank.
Blue Whale, Delivered safely!
Customer Visiting & Feedbacks
FAQ
1) I understand how cardboard bulkhead, metal bar, roll corrugated paper is packaged. In addition, I wonder how the accessories
(fixed button, flashback, ball valve, and other accessories) are packaged.
- We will pack other accessories together with Flexitank in a carton, please check the package photo in the attachment for your reference.
2) Should a 3-inch ball valve be assembled and used?
No, we will ship the valve with the valve installed at the factory. Please refer to the installation video in the attachment.
3) How do you fix the cardboard bulkhead and metal bar? Is a cable tie provided?
We will provide black fixed button to fix the metal bar, and the cardboard bulkhead will also have some ties to assist on fixing it.
4) Can you provide installation guide material (document with photos, video with installation process?
Please check the installation manual in the attachment, I hope it will be helpful to you.
5) In the case of leakage during the sea transportation process, insurance is sometimes handled. What are your company's insurance standards and countermeasures?
Our company's Flexitank insurance is guaranteed by China Pacific Company. If there is a quality problem on our side, the cost incurred during the handling of the goods will be borne by our company.
(fixed button, flashback, ball valve, and other accessories) are packaged.
- We will pack other accessories together with Flexitank in a carton, please check the package photo in the attachment for your reference.
2) Should a 3-inch ball valve be assembled and used?
No, we will ship the valve with the valve installed at the factory. Please refer to the installation video in the attachment.
3) How do you fix the cardboard bulkhead and metal bar? Is a cable tie provided?
We will provide black fixed button to fix the metal bar, and the cardboard bulkhead will also have some ties to assist on fixing it.
4) Can you provide installation guide material (document with photos, video with installation process?
Please check the installation manual in the attachment, I hope it will be helpful to you.
5) In the case of leakage during the sea transportation process, insurance is sometimes handled. What are your company's insurance standards and countermeasures?
Our company's Flexitank insurance is guaranteed by China Pacific Company. If there is a quality problem on our side, the cost incurred during the handling of the goods will be borne by our company.
