USB 3 0 2MP 1080P модуль камеры с глобальной экспозицией полноцветовое распознавание Встроенный
- Категория: >>>
- Поставщик: Shenzhen Huiber Vision Technology Co. Ltd.
Сохранить в закладки 1601273134502:
Описание и отзывы
Характеристики
Product Parameter
80 degree distortion free lens
110 degree distortion free lens

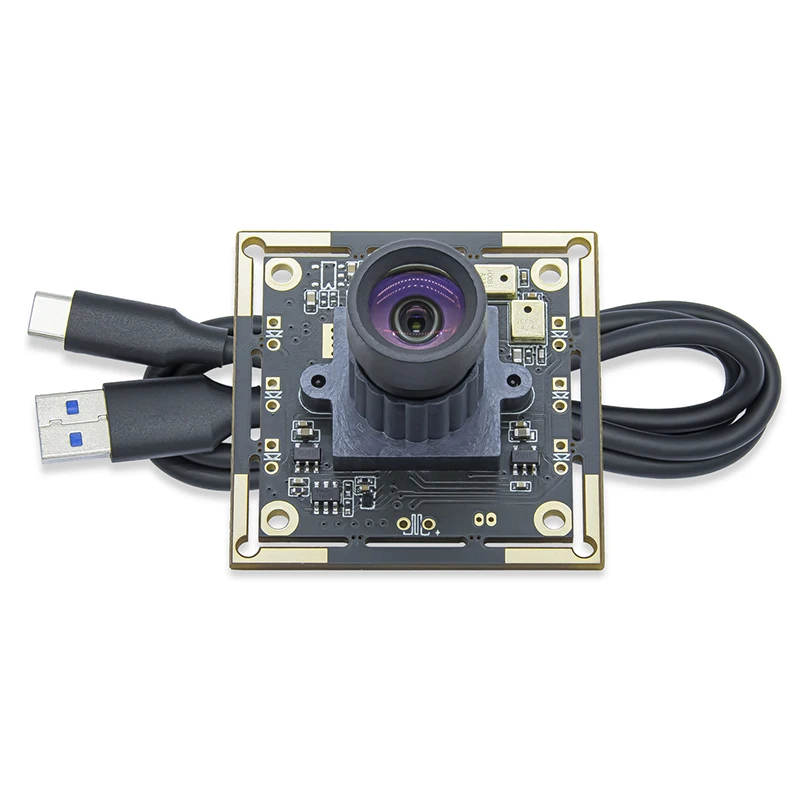

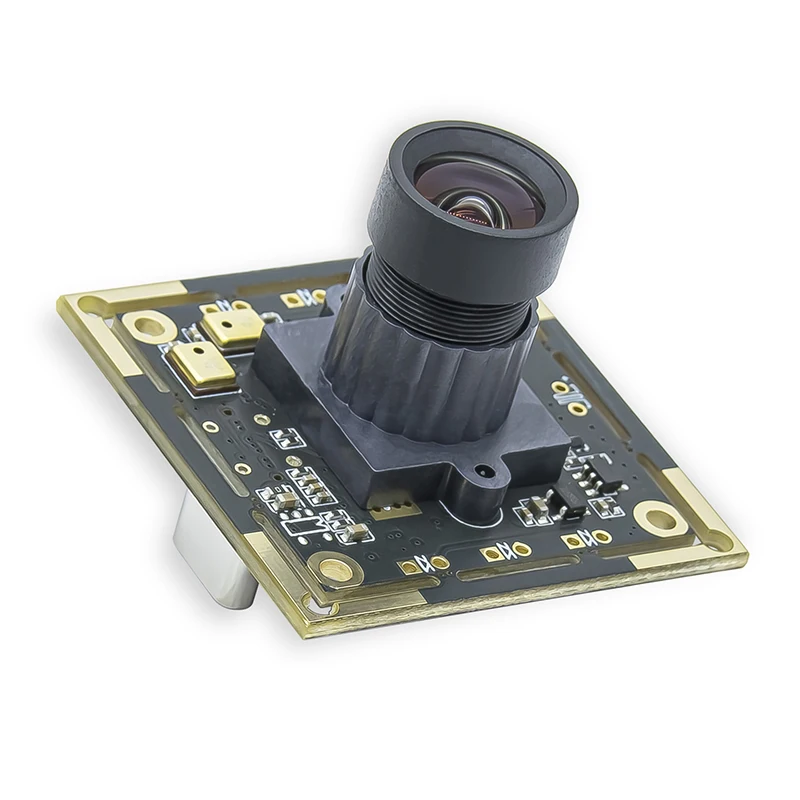

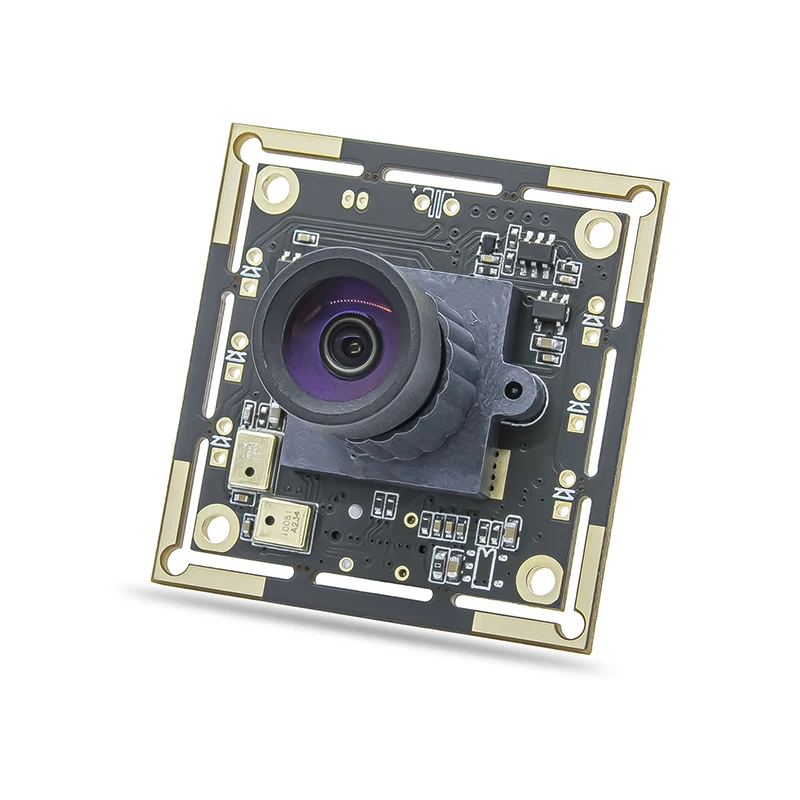

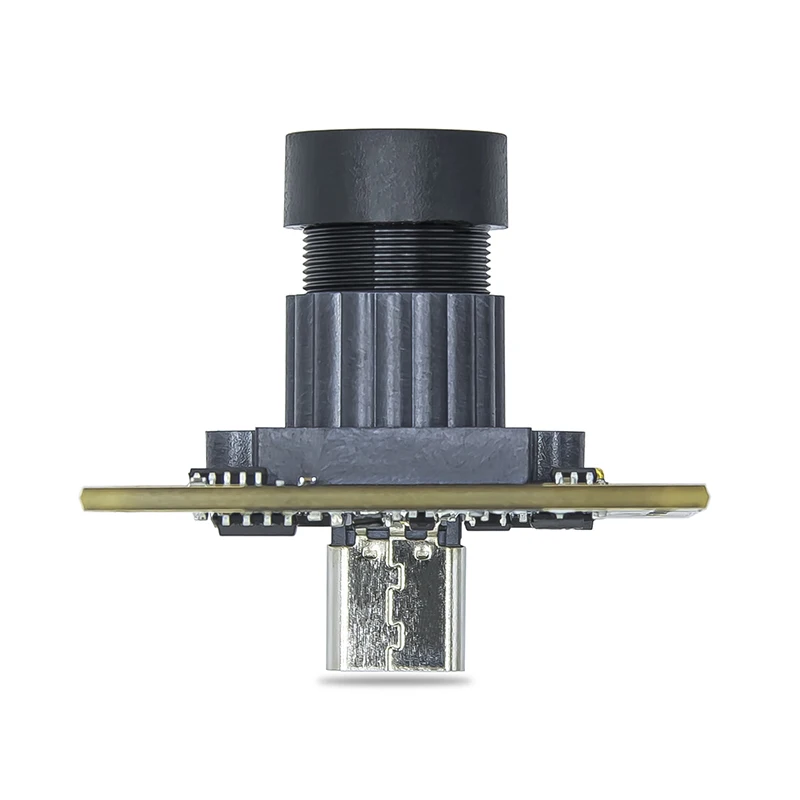

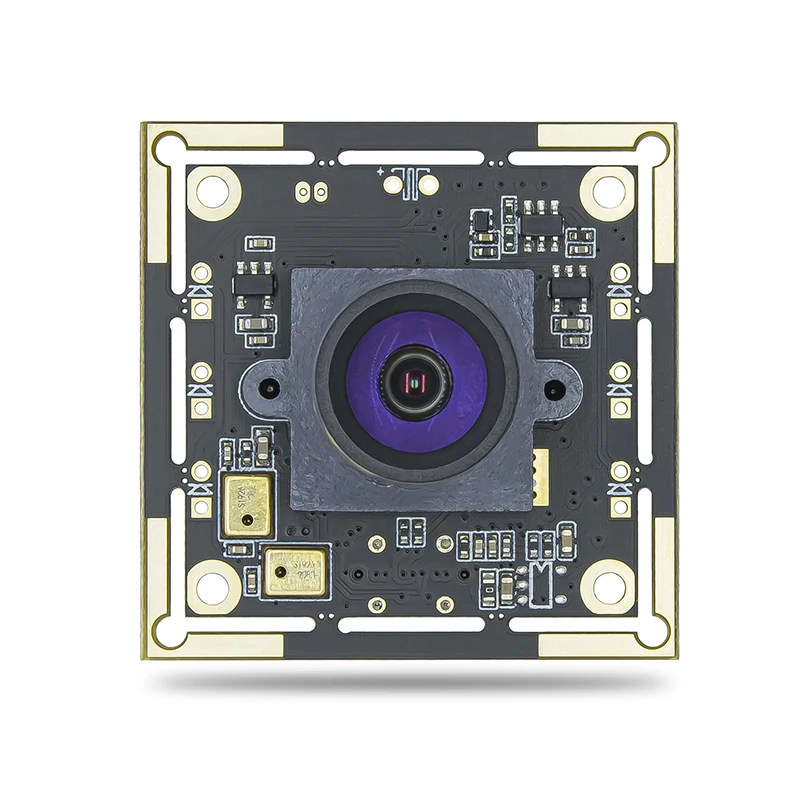

Product Name | USB 3.0 global exposure 2MP 1080P camera module |
Module No | HBVCAM-F2314GS-U3 V22-80 |
Module Size | 38mm × 38mm × 23.60mm±0.5MM |
Features | 1. Standard industrial camera 38, 32mm board structure 2. 6 plug-in lights can be added and welded (infrared white lights), which can be made into an on/off image or photosensitive control - can be extended to the external frame light board 3. There is a reserved functional interface, which can customize software functions such as triggering, pulse output input, etc. (additional charge for customization) 4. Advantages: USB3.0-YUY2 can also run high frame rates 1080P-60 frames_ 720P-90 frames; TYPEC interface can be wired in both forward and reverse directions 5. Defects: high cost and high price |
Temperature (Operation) | -30°C to 70°C |
Temperature (Stable Image) | 0°C to 50°C |
Assembly technique | SMT (ROHS) |
Focus | Fixed |
Object distance | 30CM-infinity |
Resolution | 600LW/PH (Center) |
PCB printing ink | Black |
interface | USB 2.0 |
Power suuply | USB bus power |
supply voltage | DC 5V±5% |
Maximum Power consumption | 700 mW |
Operating system request | Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc |
Sensor | AR0234 (1/2.6” ) |
Seneor Package | CSP,Bare Die |
Maximum resolution | 1920*1080 |
Sensitivity | 270mV /（lux-sec） |
Pixel Size | 3.0µm x 3.0µm |
Maximum Image Transfer Rate | MJPEG 640x480 60FPS / YUY2 640x480 60FPS MJPEG 800x600 60FPS / YUY2 800x600 60FPS MJPEG 1280x720 60FPS / YUY2 1280x720 60FPS MJPEG 1280x960 60FPS / YUY2 1280x960 60FPS MJPEG 1920x1080 60FPS / YUY2 1920x1080 60FPS |
S/N Ratio | 38db |
Max Dynamic Range | 71.4db |
Shutter type | Global shutter |
AGC/AEC/Whiter balance | Auto |
Output Formats | YUY2/MJPEG |
Microphone | Support |
Lens Construction | 2G2P |
F/No | 2.4 |
EFL | 4.2 mm |
FOV | 80° |
TV Distortion | <5% |
Relative Illumination (Sensor) | 70% |
IR Filter | 650±10nm |
Module Package | Anti-electrostatic tray |
Certifications | FCC/CE/ROHS |
