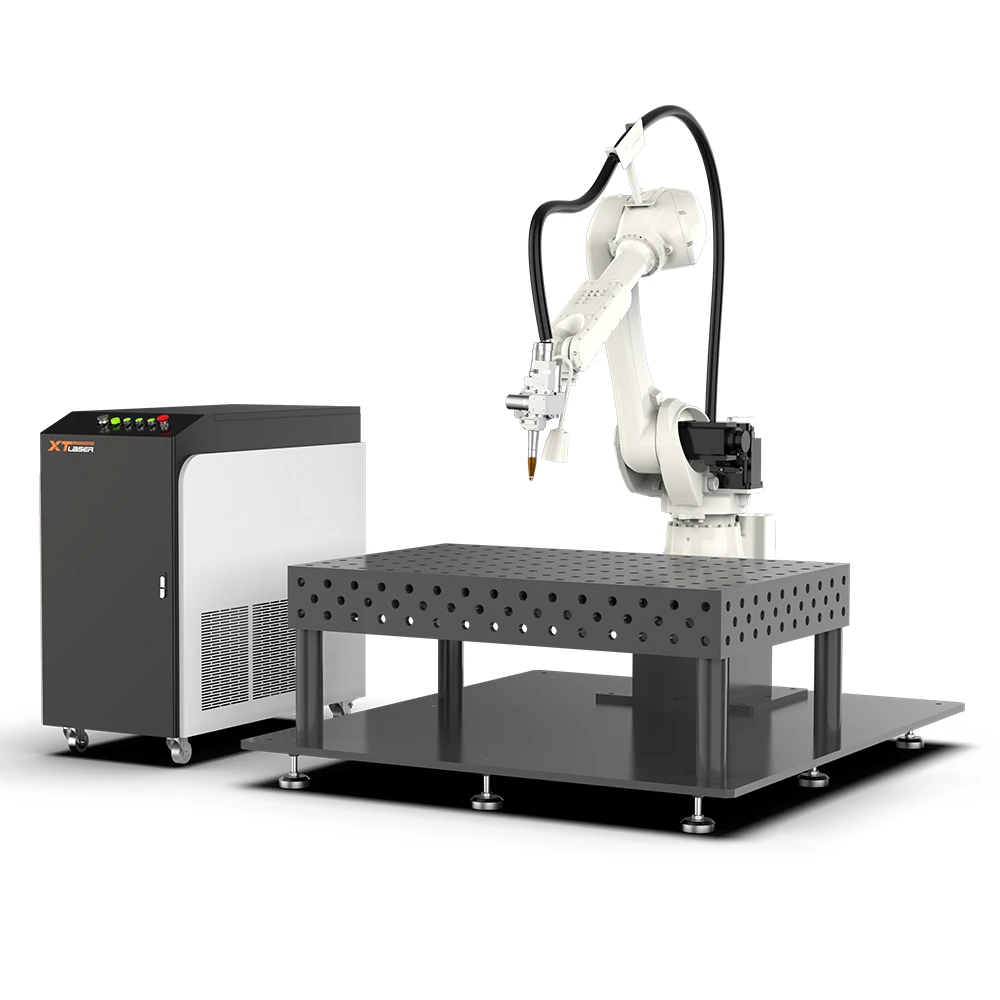

Автоматический сварочный аппарат XTlaser 2000 Вт волоконно-лазерный с роботизированной сварочной рукой
3 054 391,20-3 258 017,28 ₽
Лидер продаж 1300 Вт 1500 мини модель 4 в 1 Ручной Волоконно лазерный сварочный аппарат с воздушным охлаждением
- Категория: >>>
- Поставщик: Jinan Lasermen CNC Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601273190292:
Описание и отзывы
Характеристики
LaserMen handheld fiber laser welding machine 3000w lazer welder laser welding machine 5 in 1
Products Description
Product Paramenters
Model | LM-2000 5-in-1 laser welding machine | ||
Machine functions | Welding Cutting Cleaning Weld seam cleaning Power battery welding | ||
Laser type | Fiber laser, 1070±20nm wavelength | ||
Laser power | 1000W, 1500W, 2000W. 3000W | ||
Cooling mode | Water cooling | ||
Wobble type | Double wobble (X and Y) | ||
Welding wobble width | 0-5mm | ||
Cleaning scanning width | 0-35mm | ||
Weld seam cleaning width | 0-12mm | ||
Power battery welding size | φ20mm | 20mm*5mm | |
Assist gas | Nitrogen / argon, 0.1-1Mpa | ||
Features:
1. Multi-functional 5-in-1 fiber laser welding machine, equipped with RelFar double wobble system, can do industrial welding, power battery welding, cleaning (rust removing), weld seam cleaning, cutting. 5 working modes can be flexibly
switched.
2. Handheld type, with longer cable (9 meter outside of machine, optional 20 and 30 meters);
switched.
2. Handheld type, with longer cable (9 meter outside of machine, optional 20 and 30 meters);
3. Besides welding, the machine can do cleaning work, such as removing rusts, oil stains, etc.
4. Switching from welding function to cleaning function, only need to replace the focal lens kit and parts;
5. Power battery welding is more cost-effective with this machine. φ20mm circle and 20*5mm rectangle can be welded, both penetration welding and seam welding.
5. Power battery welding is more cost-effective with this machine. φ20mm circle and 20*5mm rectangle can be welded, both penetration welding and seam welding.
6. Thin metal cutting can be done by changing the welding nozzle to cutting nozzle.
7. Weld channel cleaning before welding, and weld seam cleaning after welding, to improve the welding result and quality.
8. Small machine body, can move easily. It is very convenient.
Advantages:
1. Laser power 1-3KW, very suitable for welding metal thickness up to 10mm.
2. Welding: Strong laser power melts metal and welds them in short time with very solid quality, no holes and cracks.
3. Cleaning mode: Strong laser power impacts on the metal surface and gasifies residues (rusts, oxidized layer, painting, etc.);
4. Easier and with cheaper cost to weld power battery.
5. Easy to learn and use, new users can master it with around one week practice. It saves much labor charge for you.
6. Safe, machine comes with safety goggles. CE certified laser machine.
1. Laser power 1-3KW, very suitable for welding metal thickness up to 10mm.
2. Welding: Strong laser power melts metal and welds them in short time with very solid quality, no holes and cracks.
3. Cleaning mode: Strong laser power impacts on the metal surface and gasifies residues (rusts, oxidized layer, painting, etc.);
4. Easier and with cheaper cost to weld power battery.
5. Easy to learn and use, new users can master it with around one week practice. It saves much labor charge for you.
6. Safe, machine comes with safety goggles. CE certified laser machine.
Welding
Fiber laser welding is suitable for stainless steel, aluminum, brass and other metals or alloys. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Cleaning
Fiber laser cleaning has a good cleaning effect on iron, carbon steel plate, stainless steel plate, mold steel gear,
aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface, clean the surface oil, stains and dirt, clean the rubber mold residue. Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
aluminum plate, paint layer and other materials. The laser cleaning mode can clean the oxide layer, remove the paint on the surface, clean the surface oil, stains and dirt, clean the rubber mold residue. Meet the requirements for equipment cleaning in the shipbuilding industry, auto parts, rubber molds, machine tools, environmental protection industries and other fields.
Machine applications:
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc. 2.It can be used to weld various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
3. Weld channel / weld seam cleaning before welding and after welding
4. Removing rust, oxidized layer, oil stains, dirt, etc.
5. Power battery welding.
Product Details
* Laser welding / cutting mode
The portable welding gun / torch is light, flexible and easy to operate, it can be used for continuous welding of various angles and positions.
* Laser cleaning mode
Easily switched to cleaning mode by changing the focal lens and nozzle part. Win a rust removing tool with up to 35mm cleaning scanning width.
* Power battery welding mode
Power battery manufacturing process. Welding method and process will directly affect the cost of the battery, quality, safety and consistency of the battery.
Laser welding works by utilizing the excellent directionality and high power density of the laser beam. By focusing the laser beam in a very small area through an optical system, a heat source area with highly concentrated energy is formed at the place to be welded in a very short period of time, which results in the melting of the object to be welded and the formation of a solid weld and weld seam.
Laser welding works by utilizing the excellent directionality and high power density of the laser beam. By focusing the laser beam in a very small area through an optical system, a heat source area with highly concentrated energy is formed at the place to be welded in a very short period of time, which results in the melting of the object to be welded and the formation of a solid weld and weld seam.
Advantages:
1). The weld surface is smooth and even, no spatter, no defects, no cracks inside the weld, ensuring that the aluminum alloy has good mechanical properties after welding.
2). In the welding of aluminum alloy, the production efficiency is high and there is no need to fill the wire.
3). There is no dent after welding, post-welding polishing and grinding is reduced, which saves production cost.
2). In the welding of aluminum alloy, the production efficiency is high and there is no need to fill the wire.
3). There is no dent after welding, post-welding polishing and grinding is reduced, which saves production cost.
* Weld channel weld seam cleaning mode
Weld channel cleaning before welding, and weld seam cleaning after welding. Laser irradiation on the workpiece surface breaks the contamination layer, so that rust, dirt, and oxidized layer instantly peeled off the substrate, to restore the material's original surface, the whole process is physically and mechanically, and will not produce new substances and pollution. Laser cleaning technology is currently emerging as a highly efficient, environmentally friendly, low-cost process.
Advantages:
1). Remove oxides and other impurities, improve metal corrosion resistance.
2). Optimize the surface conditions before welding.
3). Weld seam and welding effect better and stable.
2). Optimize the surface conditions before welding.
3). Weld seam and welding effect better and stable.
Raycus / MAX / BWT and more brands are for your choices.
The laser source has a higher photoelectric performance conversion ability, a more stable beam, and a stronger anti-reflection ability.
Water chiller for efficient cooling the laser source and optical lens to ensure stable laser output and long service life of optical parts.
* Control system
One system can switch 5 different working models, support multiple languages.
The operation is simple and clear. Welding parameters are saved in the controller system, You can do easy welding even with little welding experience.
High-quality control buttons that have passed 10,000 pressure tests.
Standard automatic wire feeder, you can choose different diameters of welding wire according to welding requirements. Single wire feeding and double-wire feeding both are available for your choice. In double-wire feeder, you can switch on only one wire feeding if you want to feed single wire.
Machine is with full; set laser welding nozzles, laser cutting nozzles, weld swam cleaning nozzle, power battery welding nozzle and laser cleaning nozzles.
RelFar controller, CE certified power supply and electronics are used, and the wiring is neat and tidy to ensure safety and easy maintenance.
