Brightwin Hot sell automatic 2ml 3ml 5ml 10ml test tube filling capping and labeling machine
Overview
This machine is mainly applied to various material round bottle, flat bottles. Filling material could be small dose of m liquid, like syrup, essential oil, perfume, Royal jelly, oral liquid, face cream etc.
The machine finished all works of bottle feeding, filling, putting inner plug if there is and capping outer covers automatically.
It can be connected with other automatic machines to compose an automatic filling and packaging line, as:
The machine finished all works of bottle feeding, filling, putting inner plug if there is and capping outer covers automatically.
It can be connected with other automatic machines to compose an automatic filling and packaging line, as:
Some of samples
Deatails

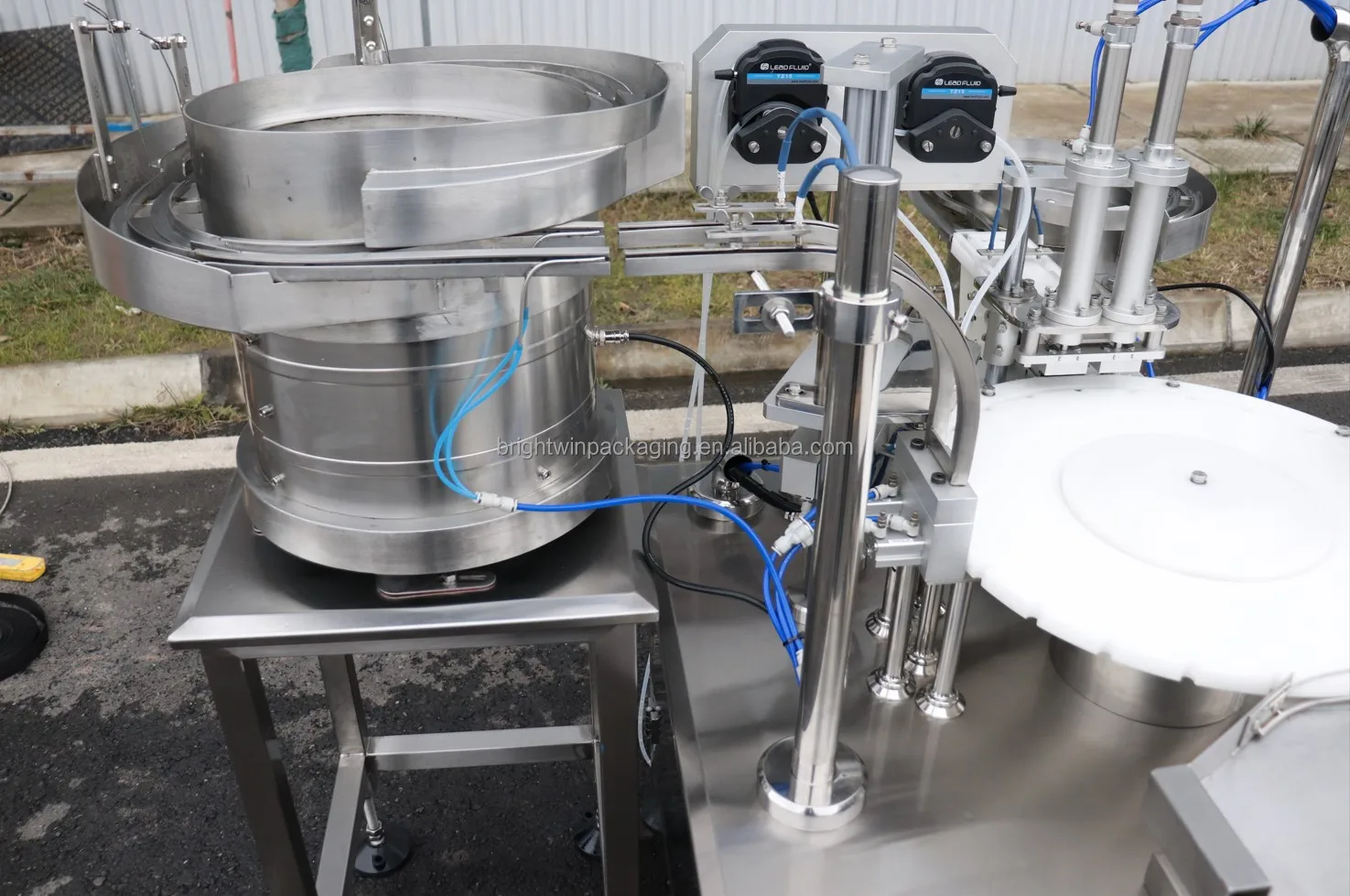

1. Bottles feeding device
According to bottles' shape and capacity need can choose different feeding methods, like: unscrambler, elevator, vibrator, swing disc, etc.

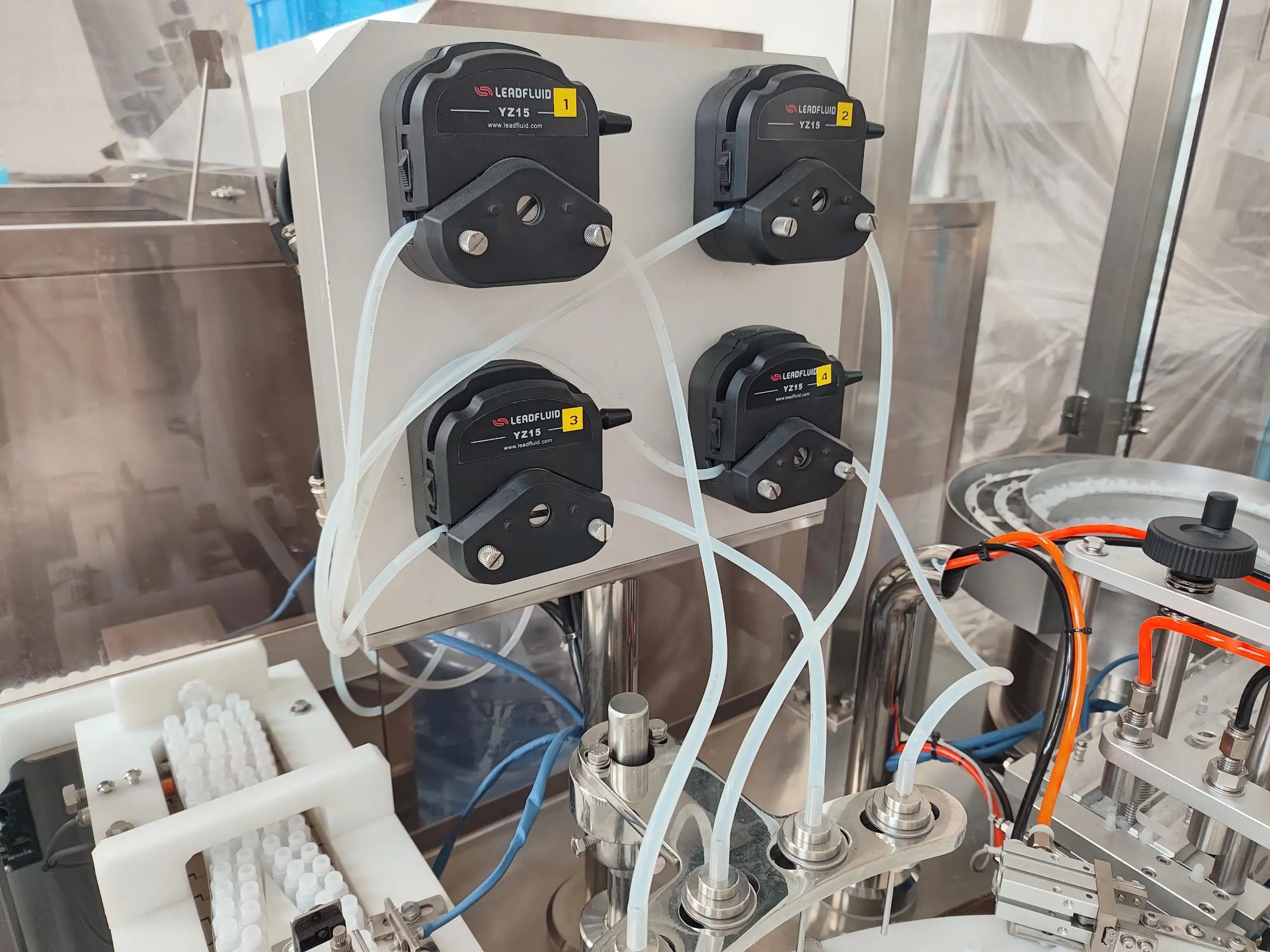

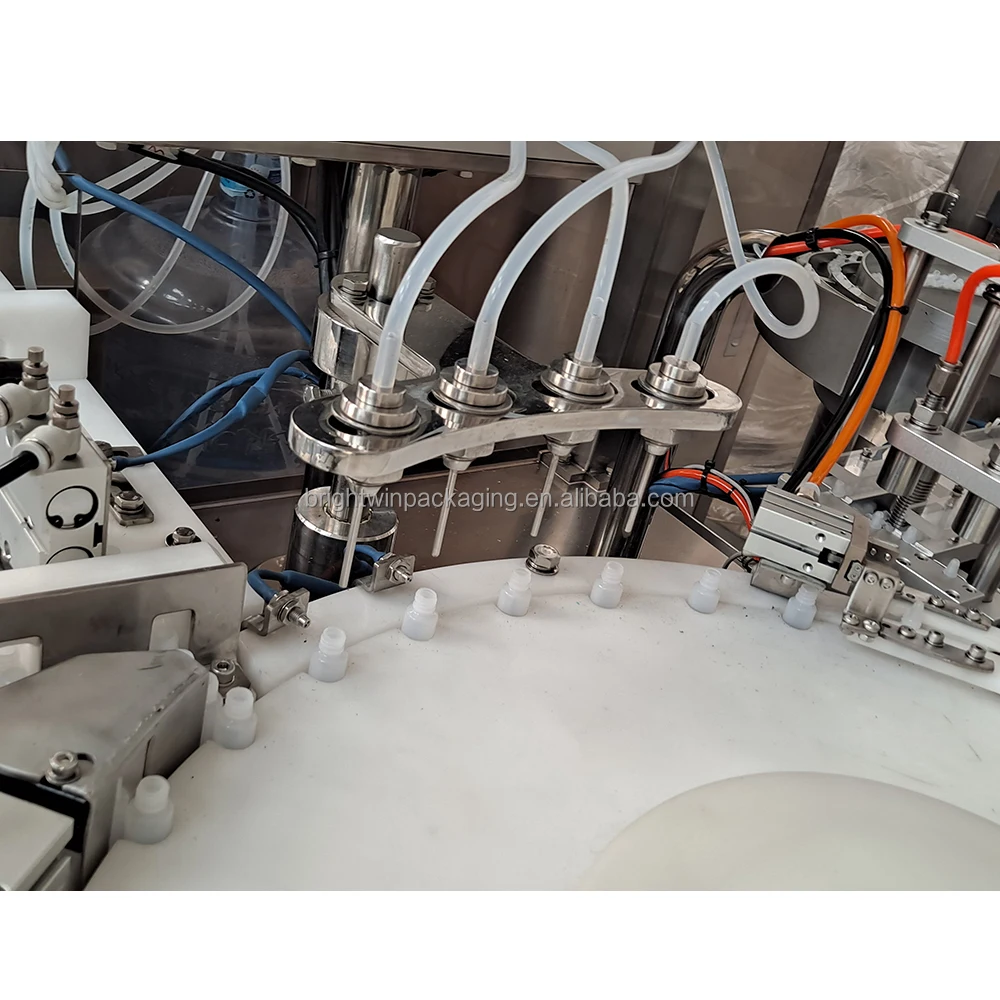

2. Filling part
According to the viscosity of the liquid, will adopt different filling methods, like: peristaltic pump, piston pump, etc. And filling nozzles numbers are based on filling volume and capacity need.
3. Plug feeding(If there are plugs)
According to plugs' shape and capacity need can choose different feeding methods, like: elevator, vibrator, etc.
4. Plugs inserting part
If there are plugs, the machine should add this part. According to the plugs' shape and capacity need to adopt different plugs placing method and plugging head number. Normally, punch or iron hand are available options.
5. Caps feeding device
According to caps' shape and capacity need can choose different feeding methods, like: elevator, vibrator, etc.

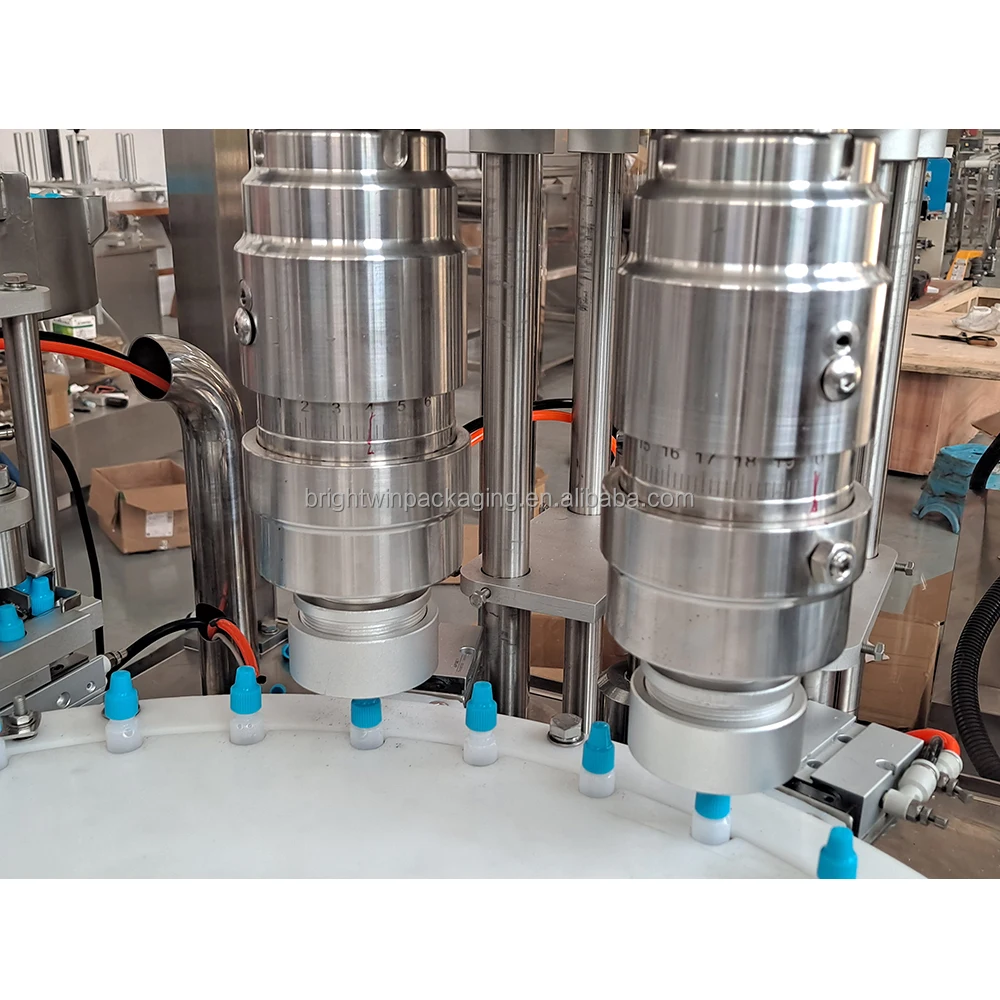

6. Capping part
According to the caps' shape and capacity need to adopt different caps placing method and capping head number. Normally, punch or
iron hand are available options.
iron hand are available options.
7. Labeling device
It's an optional device. It can be installed on star wheel or connect after the filling and capping machine. According to bottles' different shape and labels' position to choose different labeling type: standing round bottle labeling machine, standing double sides labeling machine, horizontal labeling, bottom labeling machine, etc.
Main features:
● Suitable for different bottle size, 0.5ml-100ml.
● The machine adopts full-auto PLC and human-computer touch screen control system.
● No bottles, stop filling.
● No bottles, No plunger and caps feeding.
● Magnetic moment capping, adjustable on pine, tight, do not hurt the jar and cover.
● Versatility, suitable for different specifications and bottle type, changing accessories convenient.
● Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or
more bottles and other working fault.
● Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment.
● Mechnical arm take and put plug and cap, stable and very accurate.
● High filling precision.
● Suitable for different bottle size, 0.5ml-100ml.
● The machine adopts full-auto PLC and human-computer touch screen control system.
● No bottles, stop filling.
● No bottles, No plunger and caps feeding.
● Magnetic moment capping, adjustable on pine, tight, do not hurt the jar and cover.
● Versatility, suitable for different specifications and bottle type, changing accessories convenient.
● Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or
more bottles and other working fault.
● Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment.
● Mechnical arm take and put plug and cap, stable and very accurate.
Technical Parameters
Filling material | Liquid/thick liquid/cream. etc | 360cubes/min | 540cubes/min | 720cubes/min | |||
Filling method | peristaltic pump/piston pump. etc | 2 | 3 | 4 | |||
Filling nozzle number | 1/2/4 etc, according to capacity request | ||||||
Capacity speed | 20-200 bpm | ||||||
Suitable bottle size | customized | ||||||
Suitable caps | customized | ||||||
cap percent of pass | ≥99% | ||||||
power | 220V 50Hz | ||||||
power consumption | 1.8Kw | ||||||
stand-lone noise | ≤50dB | ||||||
Air consumption | 0.36m³/min | ||||||
Weight | Approx. 800kg | ||||||
