Настраиваемый горизонтальный всасывающий центробежный химический насос
38 572,94 ₽ - 88 166,72 ₽
Hengbiao сильный кислотный щелочной центробежный насос анти устойчивый PVDF фторопластовый химический
- Категория: >>>
- Поставщик: Hebei Shenghui Pump Co. Ltd.
Сохранить в закладки 1601273246439:
Описание и отзывы
Характеристики
Hengbiao Strong Acid Alkali Centrifugal Pump Anti Resistant PVDF Fluoroplastics Chemical Pump
Product Description
IHF CHEMICAL CENTRIFUGAL PUMP
IHF single-stage single-suction fluorine plastic alloy chemical centrifugal pump (referred to as IHF chemical centrifugal pump) is designed and manufactured according to international standards and combined with non-metallic pump technology. The pump body is made of metal shell lining polyfluorinated ethylene propylene (F46). The pump cover, impeller and bushing are all made of metal inserts outside the fluoroplastic sinter pressed, the shaft seal adopts externally mounted advanced bellows mechanical seal, static The ring is made of 99.9% aluminum oxide ceramic (or silicon nitride), and the moving ring is made of PTFE filling material, which has excellent corrosion resistance and wear resistance. The inlet and outlet of the pump are all reinforced with cast steel to enhance the pressure resistance of the pump. The actual use shows that the pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and overhaul, and long service life.
Application
IHF Chemical Centrifugal Pump Product Usage
IHF pump is widely used in: pickling and painting processes in automobile manufacturing and steel industry; electrolyte transportation in non-ferrous metal smelting; chlorine water, wastewater treatment and acid addition in ionic membrane caustic soda projects in steel and automobile manufacturing.

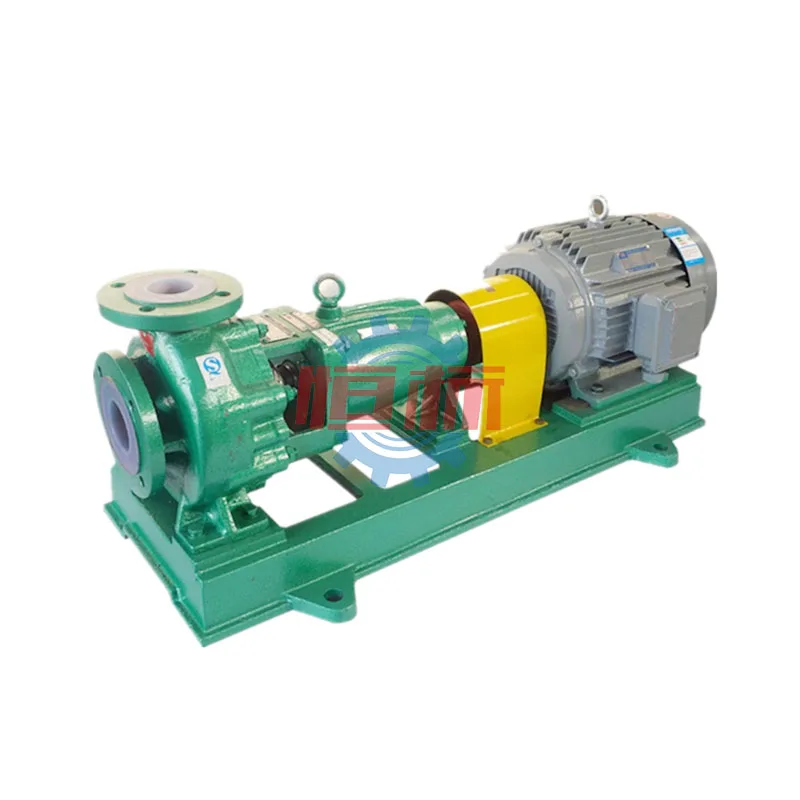

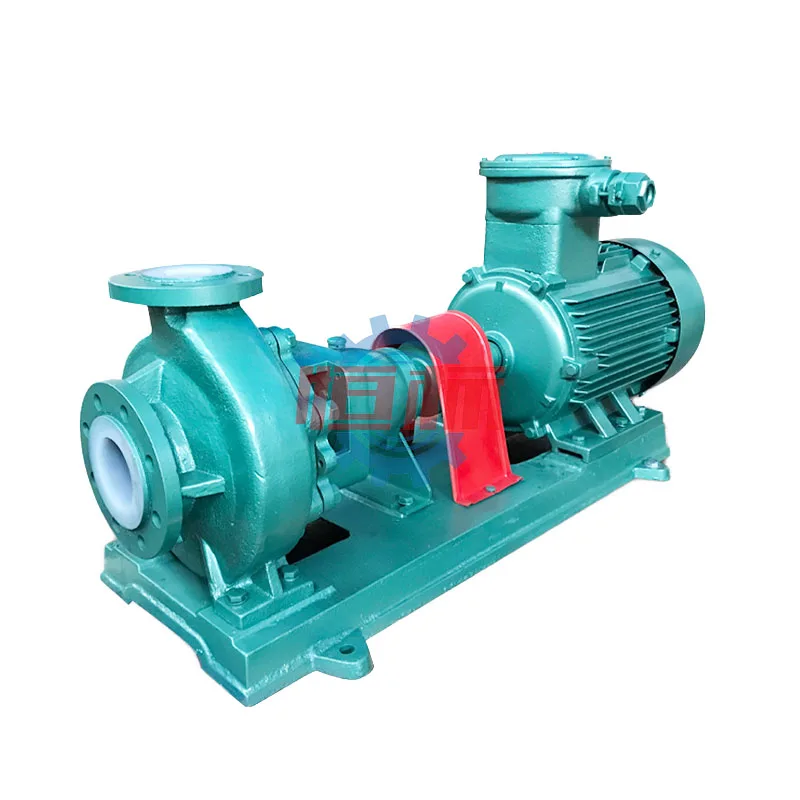

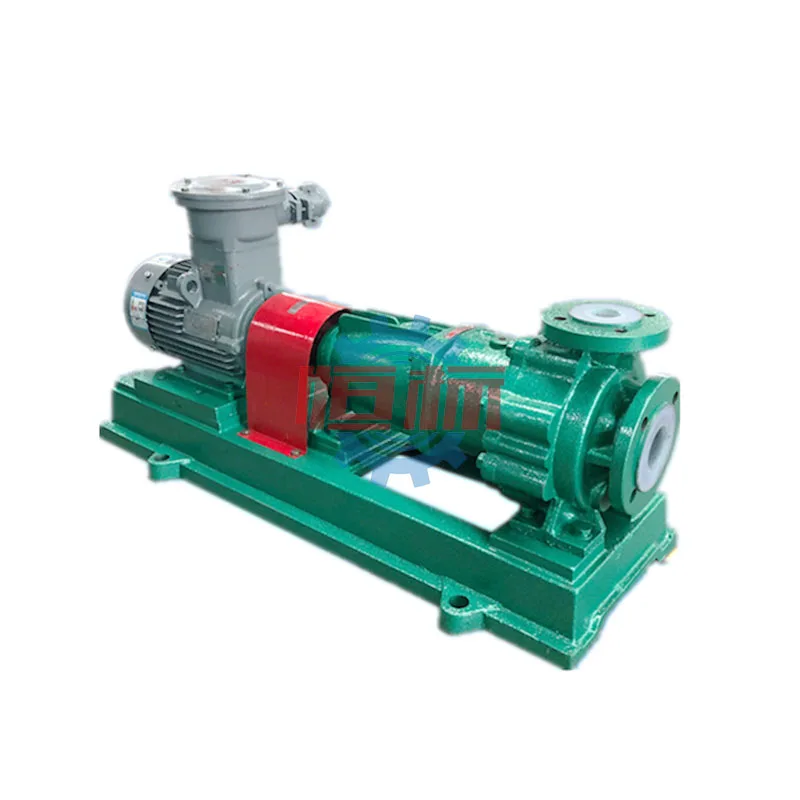

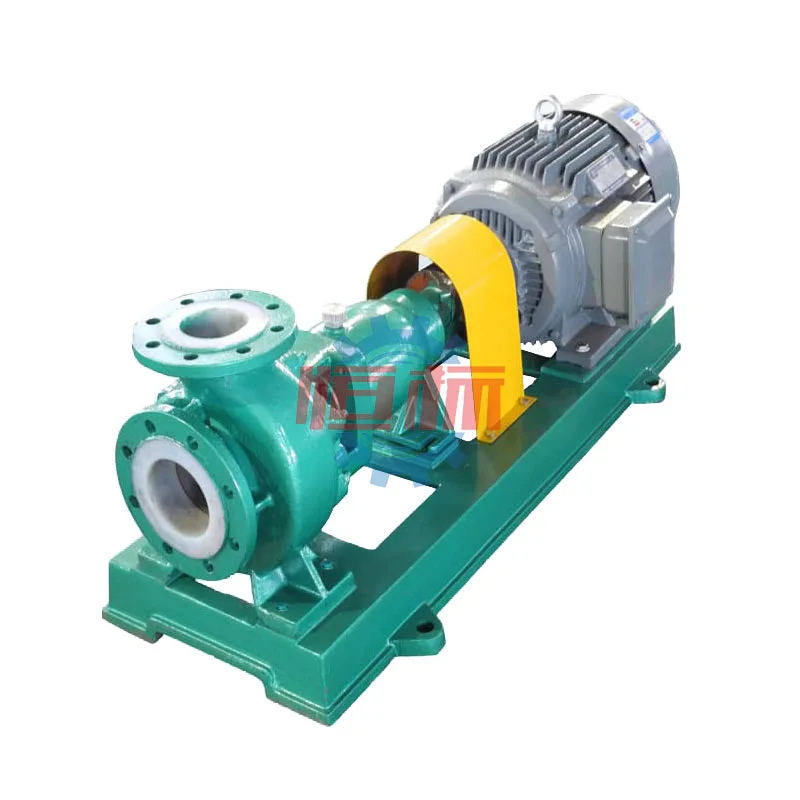

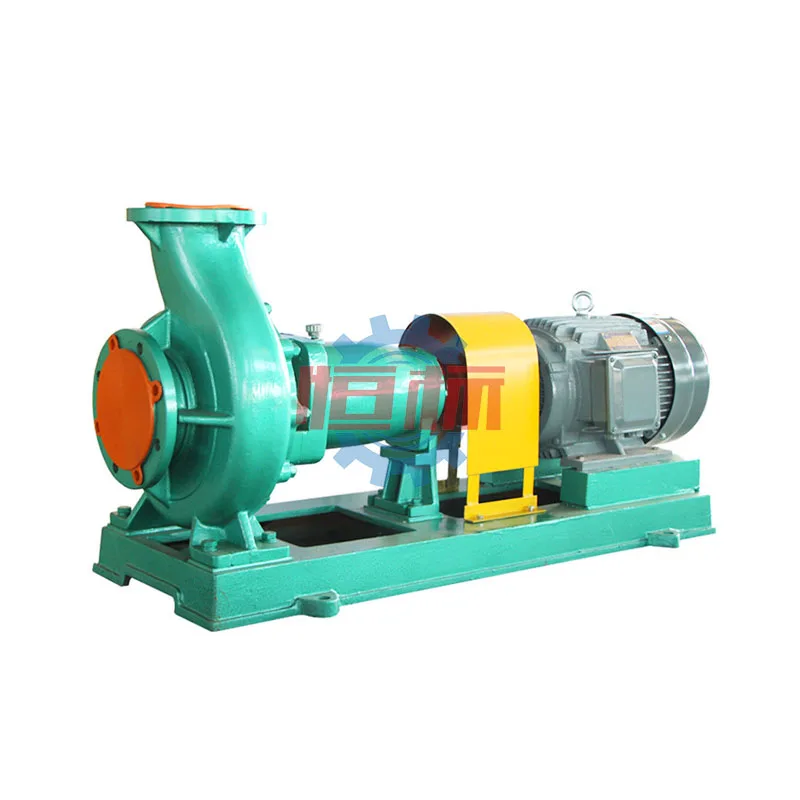

Product Display
Technical Parameters of IHF Chemical Centrifugal Pump
Flow Rate: 6.3-400m3 /h;
Head: 5 ~ 132m;
Speed: 1450~2900RPM;
Power: 0.55 ~ 110KW;
Inlet Diameter: 50 ~ 200mm;
Maximum Working Pressure: 1.6mpa;
Applicable Temperature: -20 °C ~ 150 °C;
Feature: Transport Acid and Alkali and Other Liquids.
IHF Chemical Pump Design Features
1. IHF centrifugal pumps are designed and manufactured in accordance with international standards in accordance with international standards. Its performance, rated performance points and dimensions are equivalent to the relevant international standards and national standards:
2. IHF pump body and the pump cover are made of a metal-based body lined with fluoroplastics, and the impeller is molded with a dedicated mold in the metal insert outsourcing fluoroplastic alloy;
3. a wide range of corrosion resistance, high strength and durability;
4. The shaft seal adopts advanced exterior-type bellows mechanical seal, and the world-advanced SSIC industrial ceramics are used for the moving and stationary ring of the grinding, and other materials can also be used according to the user’s special working conditions to grind the material.
5. corrosion resistance, wear resistance, sealing, easy installation, easy maintenance.
Reliable Mechanical Seal
The shaft seal adopts advanced externally mounted bellows mechanical seal, the static ring is made of alumina (99.99%) ceramic, and the moving ring is made of tetrafluoride filling material (or other materials according to the user’s special working conditions).
Advantages: corrosion resistance, good sealing, easy installation, easy maintenance.
| Type | Inlet mm | Out let mm | Motor power KW | Flow m3/h | Head m |
| IHF50-32-125 | 50 | 32 | 2.2 | 12.5 | 20 |
| IHF50-32-125A | 50 | 32 | 1.5 | 11 | 16 |
| IHF50-32-160 | 50 | 32 | 4 | 12.5 | 32 |
| IHF50-32-160A | 50 | 32 | 3 | 11.7 | 28 |
| IHF50-32-200 | 50 | 32 | 7.5 | 12.5 | 50 |
| IHF50-32-200A | 50 | 32 | 5.5 | 11.7 | 44 |
| IHF65-50-125 | 65 | 50 | 3 | 25 | 20 |
| IHF65-50-125A | 65 | 50 | 2.2 | 22.3 | 16 |
| IHF65-50-160 | 65 | 50 | 5.5 | 25 | 32 |
| IHF65-50-160A | 65 | 50 | 4 | 23.4 | 28 |
| IHF65-40-200 | 65 | 40 | 11 | 25 | 50 |
| IHF65-40-200A | 65 | 40 | 7.5 | 23.4 | 44 |
| IHF80-65-125 | 80 | 65 | 5.5 | 50 | 20 |
| IHF80-65-125A | 80 | 65 | 4 | 45 | 16 |
Product Model
Related products
Company Information
HEBEI SHENGHUI PUMP CO., LTD. is founded in 2010, is a manufacturer of pumps with integrating design, research and development, production, sales and installation in botou city Hebei Province. Standard industrial workshops 15,000m³, more than 50 imported equipment for processing and assembling with large and medium sizes, and more than 100 workers including over 20 administrators with intermediate and senior title and engineering technicians. Mainly produce: external&internal gear pumps, lobe pumps, centrifugal pumps, screw pumps, multi-stage pumps, chemical pumps, vacuum pumps and other series pump(about 4200 models), widely used in petroleum, chemical, food oil,marine industries, building use material and other liquid industries. SHENGHUI PUMP has passed the international ISO9001:2015 authentication, possessing the independent right to import and export since 2010. While expanding domestic market percentage constantly, our products are being exported to The United States, Canada, Mexico, Brazil, Chile, Peru, venezuela, Russia, Ukraine, England, France, Germany, Vietnam, Malaysia, Indonesia, the Philippines, Australia, Saudi Arabia, uzbekistan, kazakhstan, Cameroon, Tanzania and Nigeria and so on, more than 87 countries and regions totally.
FAQ
Q1. Are you trade company or manufacturer?
A1. We are a manufacturing vendor with an international sales department specialized in support for global distributors.
Q2. Which payment terms can be accepted?
A2. We accept Alibaba Trade Assurance Order, Western Union,also can T/T.
Q3. How long for your delivery time?
A3. It will take about 3-25days to finish an order, but the exact time is according to actual situation.
Q4.How long is the warranty?
A4. 12 Months, excluding the artificial damage.
Q5. Can we become your distributor in our country?
A5. Yes, we very welcome you! More details will be discussed if you are interested.
Any more questions, pls feel free to contact us.
