Beacon Machine Cr1016 Heui Eui Eup 320D PT HEUP Common Rail Diesel Fuel Injectors Pump Test Bench Diagnostic Equipment
- Категория: >>>
- Поставщик: Shandong Beacon Machine Manufacturing Co. Ltd.
Сохранить в закладки 1601273291210:
Описание и отзывы
Характеристики
Product Description

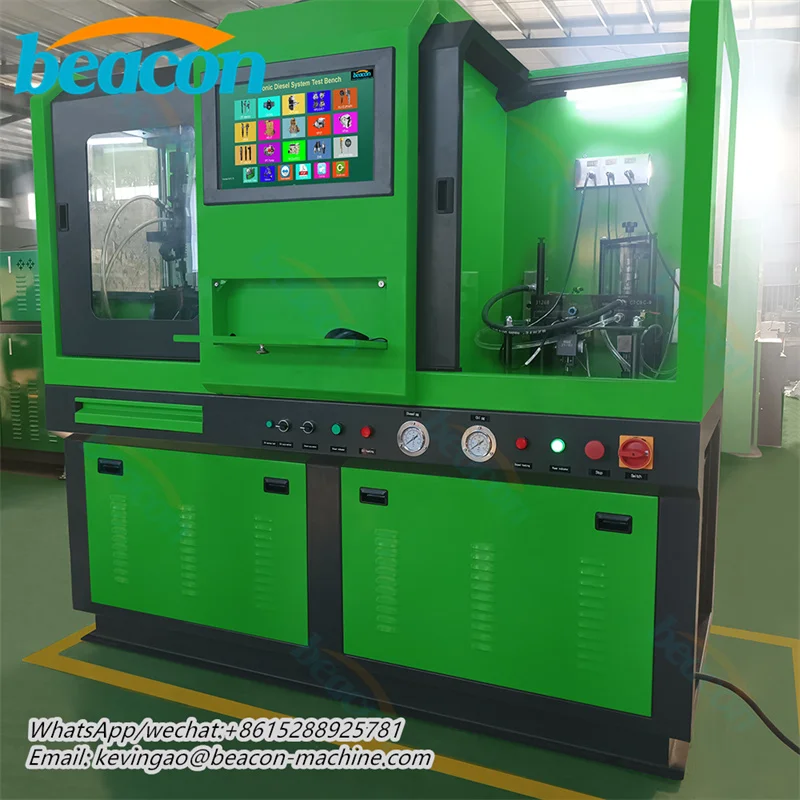

Beacon Machine Cr1016 Heui Eui Eup 320D PT HEUP Common Rail Diesel Fuel Injectors Pump Test Bench Diagnostic Test Equipment
Introduction
1.Common injectors test
2.Piezo injector test
3.Common rail pump test
4.Denso HP0 pump test
5.Test Heui CAT C7 C9 3126B&3116
6.Bosch denso, siemens, Delphi coding functions
7.Test Eui eup with TU-A cam box
The CR1016 high-pressure common rail test bench is to imitate the working conditions of diesel engine ECU (Engine Control Unit), while providing control signals for common rail
systems such as Bosch and Delphi, driving high-pressure common-rail fuel pumps and high-pressure common-rail injectors. Work; the drive signal parameters can be set and saved by the user according to their actual conditions, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail system.
systems such as Bosch and Delphi, driving high-pressure common-rail fuel pumps and high-pressure common-rail injectors. Work; the drive signal parameters can be set and saved by the user according to their actual conditions, which is convenient for maintenance personnel to judge and repair the working status of the high-pressure common rail system.
BASIC FUNCTION
1.Common injectors test
2.Piezo injector test
3.Common rail pump test
4.Denso HP0 pump test
5.Test Heui CAT C7 C9 3126B&3116
6.Bosch denso, siemens, Delphi coding functions
7.Test Eui eup with TU-A cam box
CHARACTERISTIC
(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional)
(3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional);
(4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional);
(5) Caterpillar 320D high pressure pump can be tested (optional);
(6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional);
(7) HPI injector and PT pump (optional) can be tested;
(8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(9) The database is fully open, and the part number can be increased.
(10) The network is automatically upgraded, and the test data and functions are always up-to-date;
(11) The response time of fuel injection can be tested;
(10) Injector compensation codes can be generated;
(11) Injector resistance and inductance can be tested
(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional)
(3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional);
(4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional);
(5) Caterpillar 320D high pressure pump can be tested (optional);
(6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional);
(7) HPI injector and PT pump (optional) can be tested;
(8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(9) The database is fully open, and the part number can be increased.
(10) The network is automatically upgraded, and the test data and functions are always up-to-date;
(11) The response time of fuel injection can be tested;
(10) Injector compensation codes can be generated;
(11) Injector resistance and inductance can be tested

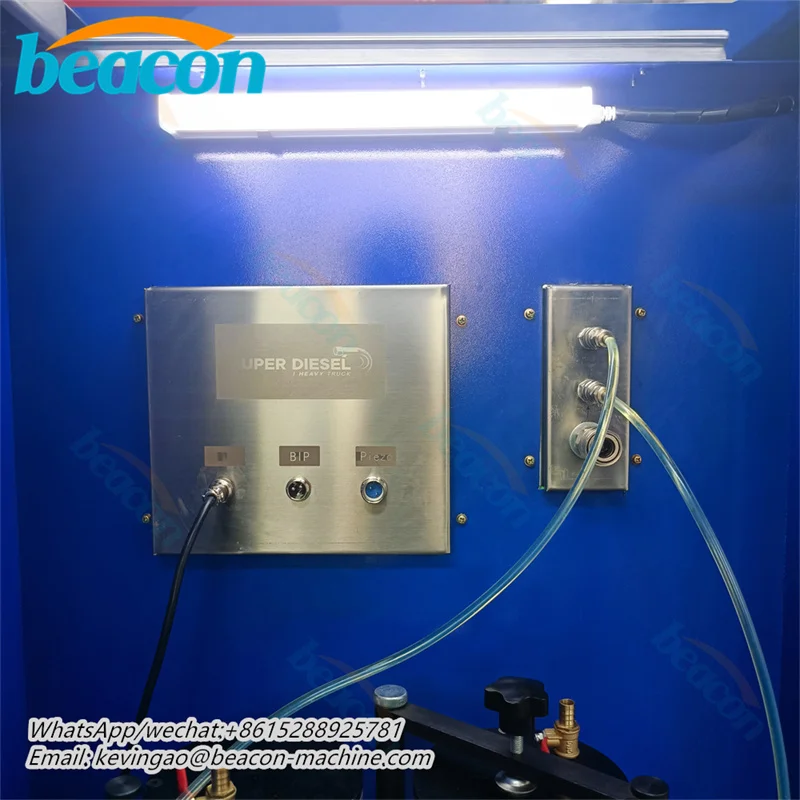

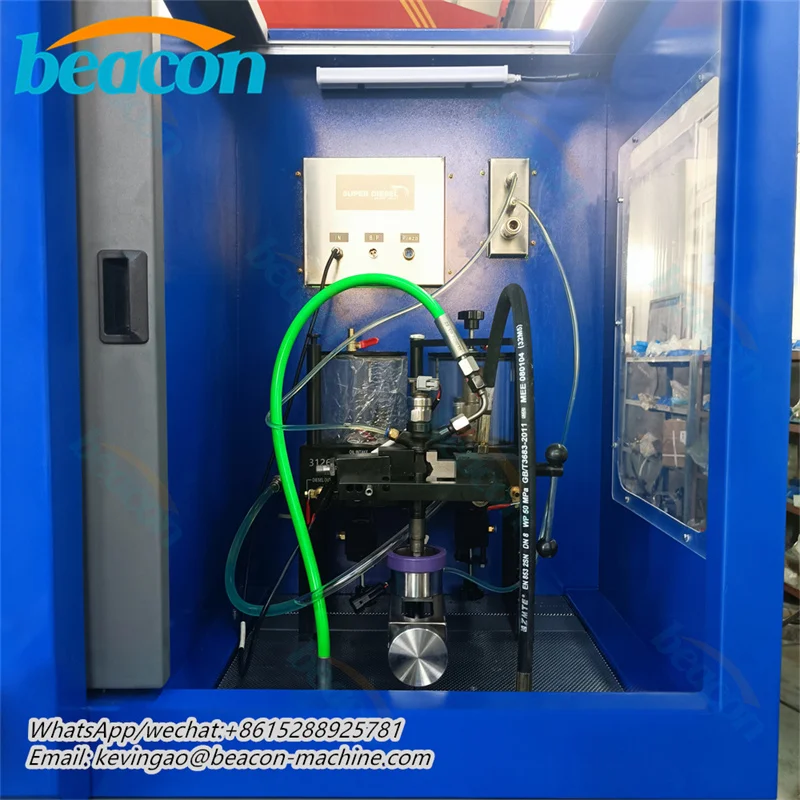

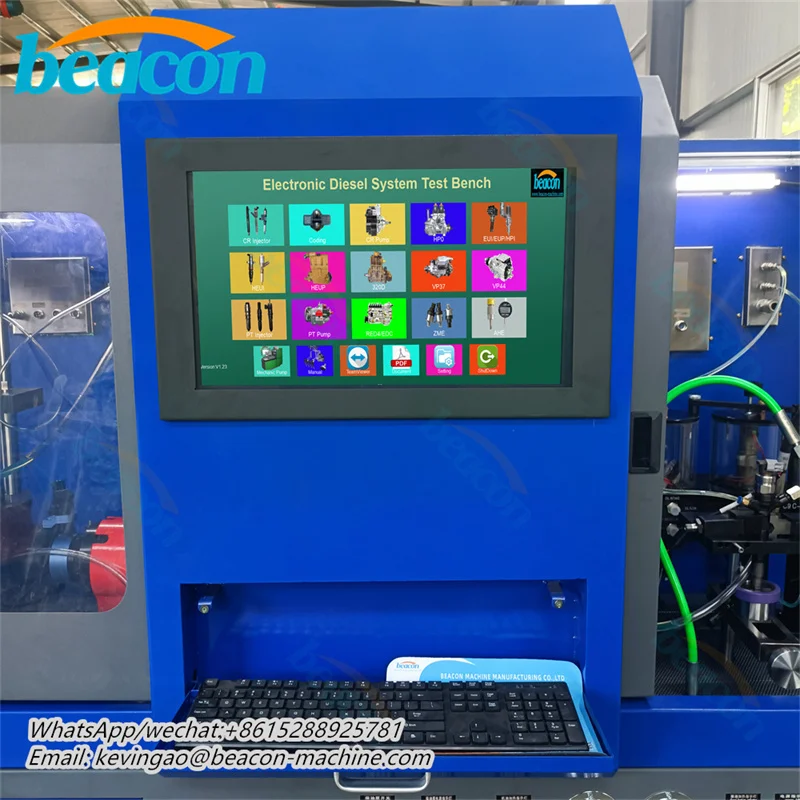

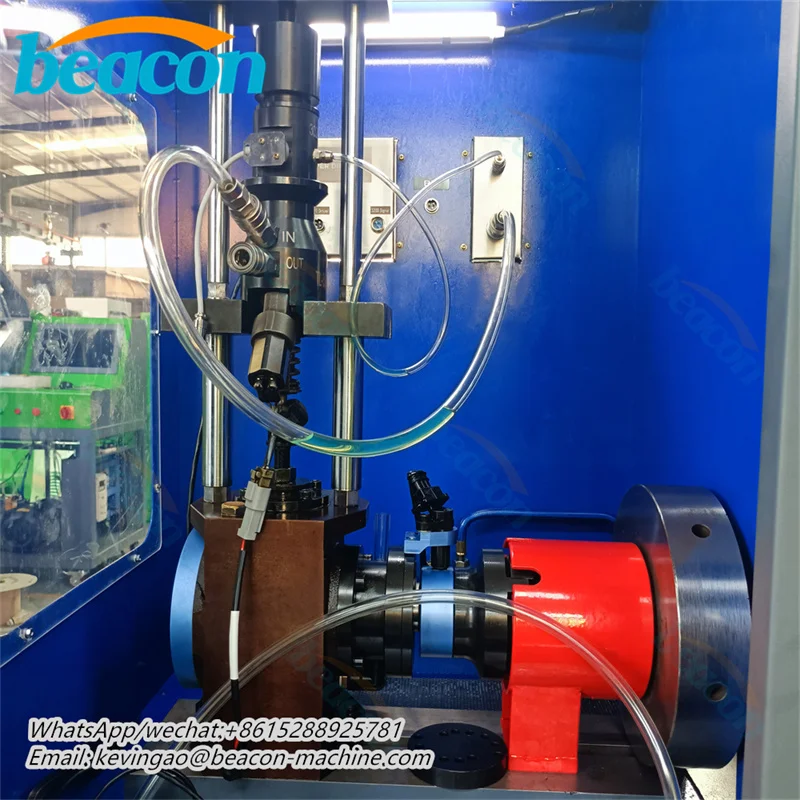

Details Images
Accessories
Specification
Main motor speed: | 0-4000 r / min can be adjustable |
Motor power: | 11KW, 15KW |
Fuel Injector open | 12V, 80V, 150V |
voltage Control range: | phase adjustment |
Injector opening | 0-1000HZ Control accuracy: 1HZ |
frequency Control: | 0-65535us |
Fuel Injector Hold Time Control: | 0-1000 times |
Delivery Oil Count Control accuracy: | 1 times |
Fuel pressure control | 0-2400bar |
Control accuracy: | 1bar |
Electronic power: | 380v /220v 3 phase 220v single phase |
Product Size: | 190*110*180CM |
Weight: | 850KG(Contains cam box) |
