DDP цена класса A LiFePO4 105Ah 173Ah230Ah 280Ah 304Ah 3 2 V литий-железо-фосфатный элемент солнечная батарея
10 401,66-11 904,13 ₽
Литиево ионный аккумулятор Lifepo4 5 12 кВтч 10 кВт лет 220 В 200 А · ч 48 солнечная автономная система 100ah IP65 100A
- Категория: >>>
- Поставщик: Zhengzhou Tengi Power Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601273318488:
Описание и отзывы
Характеристики
Product Description
What can I do for you?
Nice to meet you.I am Tina.Please feel free to contact me if you are interested in our products.
To be My Friend Now !
Please Click 'Send Inquiry' to get my ‘whats app’ Number!
System MODEL | Tgi-5KW | Tgi-8KW | Tgi-10KW | Tgi-12KW | ||||
PV System Size Nominal (kWp) | ||||||||
Power (W) | 550 | |||||||
Vmp (V) | 41.96 | |||||||
Dimensions (L x W x H) (mm) | 2279*1134x35 | |||||||
Certification | CE / TUV (IEC 61215 & IEC 61730) | |||||||
INVERTER SPECIFICATIONS | ||||||||
Inverter Size (kW) | 5 | 8 | 10 | 12 | ||||
Max DC Power (W) | 6500 | 10400 | 13000 | 15600 | ||||
Max DC Voltage (V) | 500 | 1000 | ||||||
MPPT Voltage Range(V) | 150-425 | 125-425 | 200-650 | 200-650 | ||||
Output Voltage | 220,230Vac | 220/380,230/400Vac | ||||||
UPS (Off Grid Model with Battery) | ||||||||
Rated Power (VA) | 5000 | 8000 | 10000 | 12000 | ||||
Max DC Charge/Discharge Current(A) | 120 | 190 | 210 | 240 | ||||
Max Power(W)for 10 Seconds | 7500 | 12000 | 15000 | 18000 | ||||
BATTERY BANK SPECIFICATIONS | ||||||||
Battery Type | Lithium/Li-Ion(LifePO4) | |||||||
Total Batteries | 2 | 3 | 4 | 5 | ||||
Battery Bank Power(kWh) | 5.12 | 10.24 | 15.36 | 20.48 | ||||
Battery Voltage (V) | 51.2 | |||||||
Battery Current(Ah) | 100 | |||||||
Number of PV Modules | 10 | 16 | 20 | 24 | ||||
Send Inquiry to get more information and discount price | ||||||||
Configuration Details

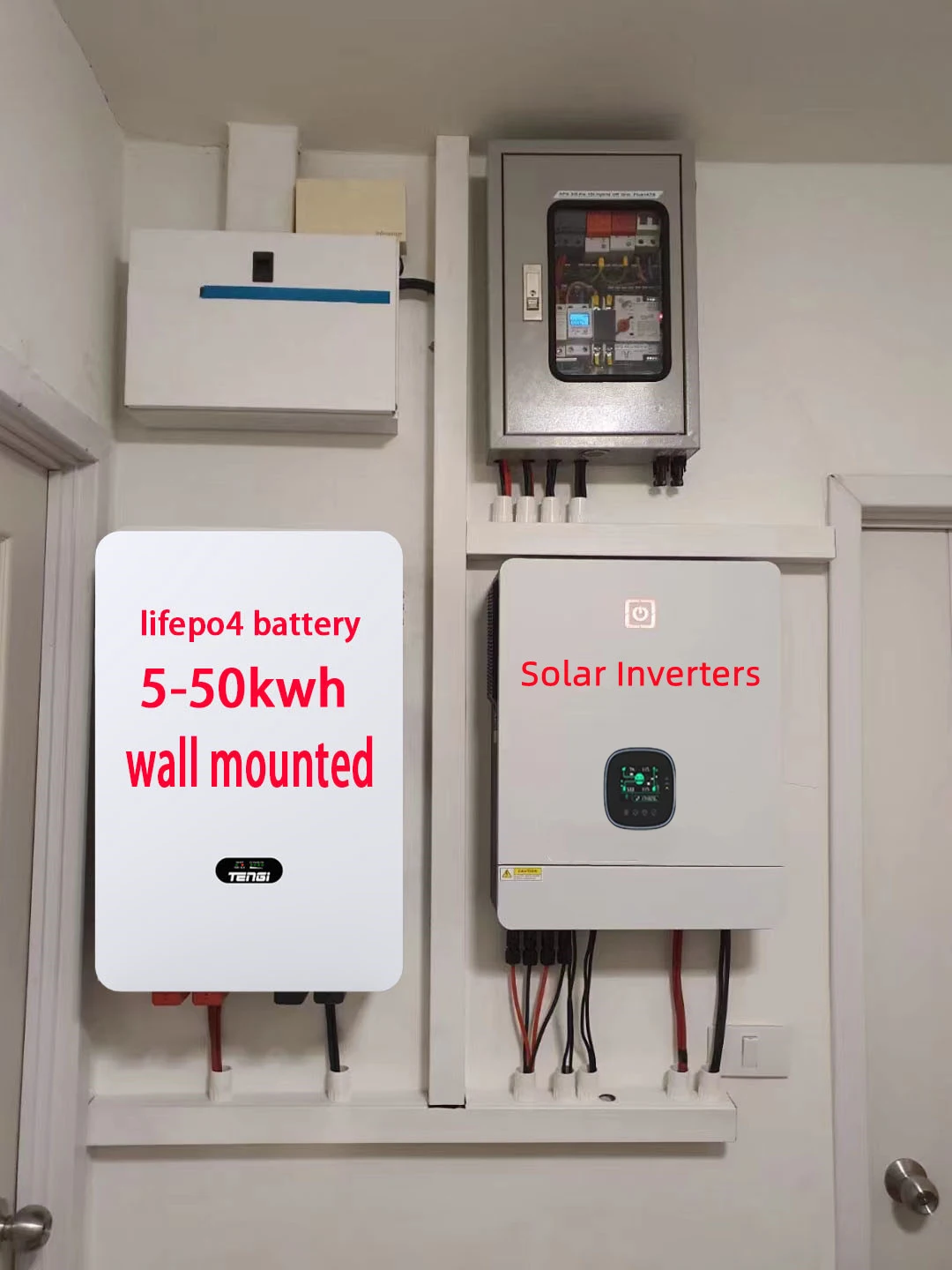

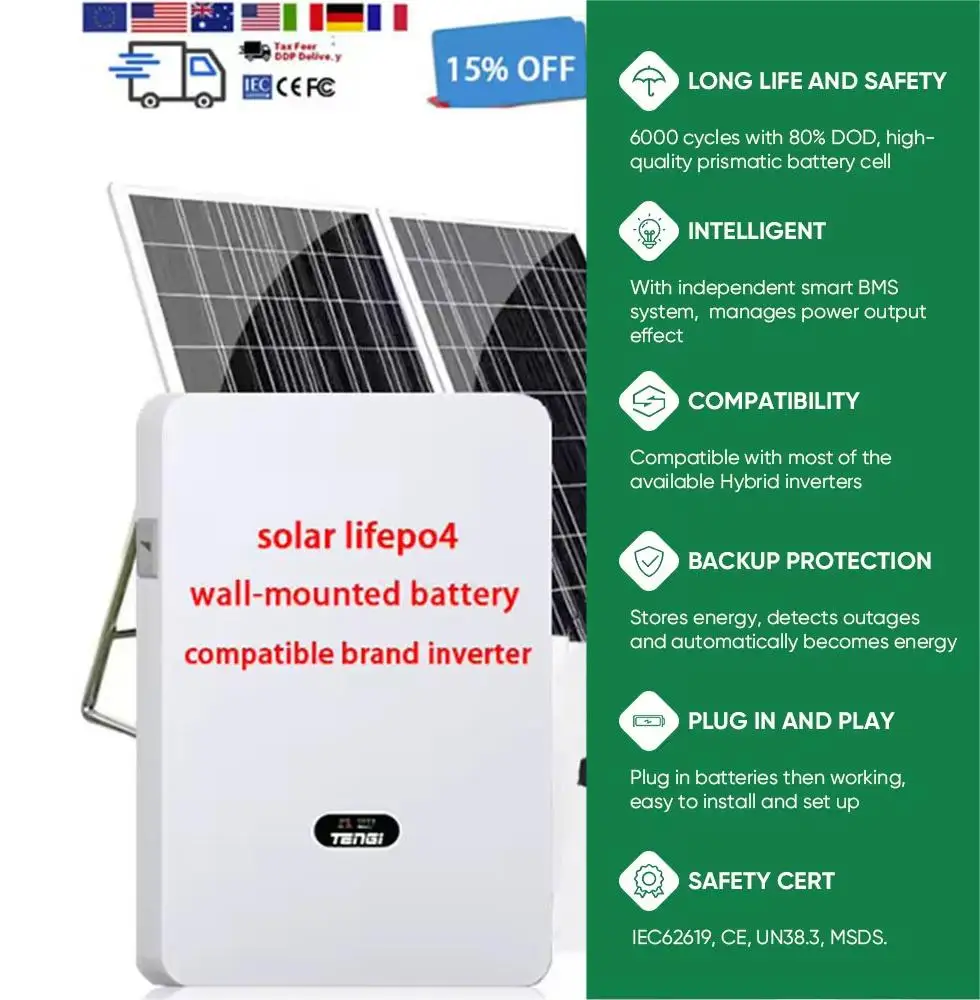

⭐Wall Mounted LiFePo4 Battery
✅15-20 years design life.
Up to 6000 + cycle Ilfe
✅Wall mount or ground stack brick,
simply connecting to inverter
✅Battery module is scalable for any larger storage system.
✅Battery modular built in high quality BMS. Protect battery cells all the way.
✅Lithium iron phosphate battery cell,
stay safe with battery storage at home.
Up to 6000 + cycle Ilfe
✅Wall mount or ground stack brick,
simply connecting to inverter
✅Battery module is scalable for any larger storage system.
✅Battery modular built in high quality BMS. Protect battery cells all the way.
✅Lithium iron phosphate battery cell,
stay safe with battery storage at home.
⭐Half Cut Mono 550W Solar Panel
✅Peak Power Watts: 550W
✅Maximum Power Voltage: 42.06V Maximum
✅Power Current: 12.84A
✅Open Circuit Voltage: 49.75V
✅Short Circuit Current: 13.63A
✅Dimensions:2279x1134x35mm
Weight:26.9 kg
⭐Hybrid Solar Inverter
✅6 time periods for battery charging and discharging
✅Max.charging/discharging current of 240A Max.10pcs parallel
✅DC couple and AC couple to retrofit existing solar system
✅DC couple and AC couple to retrofit existing solar system
⭐Installation System
✅Installation Mode: Roof Mounting/ Ground Mounting/ Carport Mounting.
✅Support Material: Aluminium Alloy. ✅Tools Bag: Selectable.
✅MC4 Connector: 30A, 1000VDC.
✅MC4 Connector: 30A, 1000VDC.
✅PV Combiner Box: 8 Inputs, 1 Outputs. ✅PV Cable: 4mm².
✅Breakers Switches: Selectable.
⭐Monitoring System
installation and registration Problem support one-click dispatch and navigation Safe operation, traceable logs, etc
✅Support full lifecycle data storage to ensure data security and reliability
5KW Off Grid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Mono 390w solar panel | 10 pcs | |||
2 | PV combiner box | 5 input 1 output | 1 pc | |||
3 | Hybrid inverter(Charge controller & Inverter) | MPPT ：48V 60A Rate power： 5KW | 1 pc | |||
4 | Battery with cable | 48V 200Ah | 4 pc | |||
5 | PV Cable | 4mm² PV cable | 100 m | |||
6 | Connector | Solar connector | 10 pairs | |||
7 | Ground/Roof mounting system | Customize for 18pcs of 390w solar panel | 1 set | |||
10KW Off Grid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Mono 390w solar panel | 18 pcs | |||
2 | PV combiner box | 6 input 2 output | 1pc | |||
3 | Hybrid inverter(Charge controller & Inverter) | MPPT ：48V 120A Rate power： 10KW | 1 pc | |||
4 | Battery with cable | 12V 220Ah | 8 pcs | |||
5 | PV Cable | 4mm² PV cable | 200m | |||
6 | Connector | Solar connector | 15 pairs | |||
7 | Ground/Roof mounting system | Customize for 18pcs of 390w solar panel | 1 set | |||
Customer Successful Case
Product Features
Safety First: Ready for Fully-covered Protection
Energy storage safety weighs more than anything. With 3-layer protection from cell level to electrical level, structural level and emergency protection level, We redefines energy storage system safety.
USE SmartGen（Listed company) BMS
1.Alarm and protection functions of over/under voltage, over current, over temperature, reverse connection, etc.;
2.The stable and reliable AFE chip is adopted to realize the voltage detection of the cell
USE CATL Battery Cells(Grade A+)
Thanks to features such as the high reliability, long service life and high energy efficiency of CATL's battery systems,
"renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.
"renewable energy + energy storage" has more advantages in cost per kWh in the whole life cycle.
Specification
Model | ZXJC-LV02-5 | ZXJC-LV02-10 | |||||
Rated Voltage | 51.2V | 51.2v | |||||
Rated Capacity(kWh) | 5.12 | 10.24 | |||||
Operating Voltage Range(Vdc) | 40~58.4 | 40~58.4 | |||||
Rated Charging & Discharging Current(A) | 50 | 100 | |||||
Max. Charging & Discharging Current(A) | 100 | 200 | |||||
Peak Current(A) | 300 | 600 | |||||
Number of parallel | ≤6 | ≤6 | |||||
Cycle Life(time) | ＞6000@80%DOD，25℃/0.5C | ＞6000@80%DOD，25℃/0.5C | |||||
Protection Degree | IP65 | IP65 | |||||
Operating Temperature Range | 0~55℃ Charging & -20~60℃ Discharging | 0~55℃ Charging & -20~60℃ Discharging | |||||
Communication Method | RS485 / CAN | RS485 / CAN | |||||
Display | SOC, LED | SOC, LED | |||||
Installation Method | Wall mounting or Floor mount | Wall mounting or Floor mount | |||||
Dimension (WxHxD) | 470mm*620mm*150mm | 590mm*850mm*150mm | |||||
Weight | 40kg | 76kg | |||||
Qualification | UN38.3, IEC62619, IEC/EN62477, EN61000 | ||||||
Packing&Shipping
Part of Visiting Customers
Exhibition
Company Profile
About Us
Tengi Power, founded in 2007, Chinese high-tech enterprise, our main business is Residential Energy Storage System,Industrial&Commercial Energy Storage System, Inverters, Photovoltaic modules research and development, production and sales.
