Лидер продаж 2024 инструменты для бурения скважин тип C Q60-273 мм ручной инструмент обработки
149 887,37 ₽ - 152 091,60 ₽
Новая буровая установка из углеродистой стали для бурения скважин
- Категория: >>>
- Поставщик: Gpe Oil Machinery Co. Ltd.
Сохранить в закладки 1601273536072:
Описание и отзывы
Характеристики
About GPE
We are a premier and integrated supplier of petroleum equipment, dedicated to providing high-quality products and outstanding services. With years of expertise and a deep commitment to excellence, we offer a comprehensive range of petroleum equipment that meets the diverse needs of our global clients.
Products Description

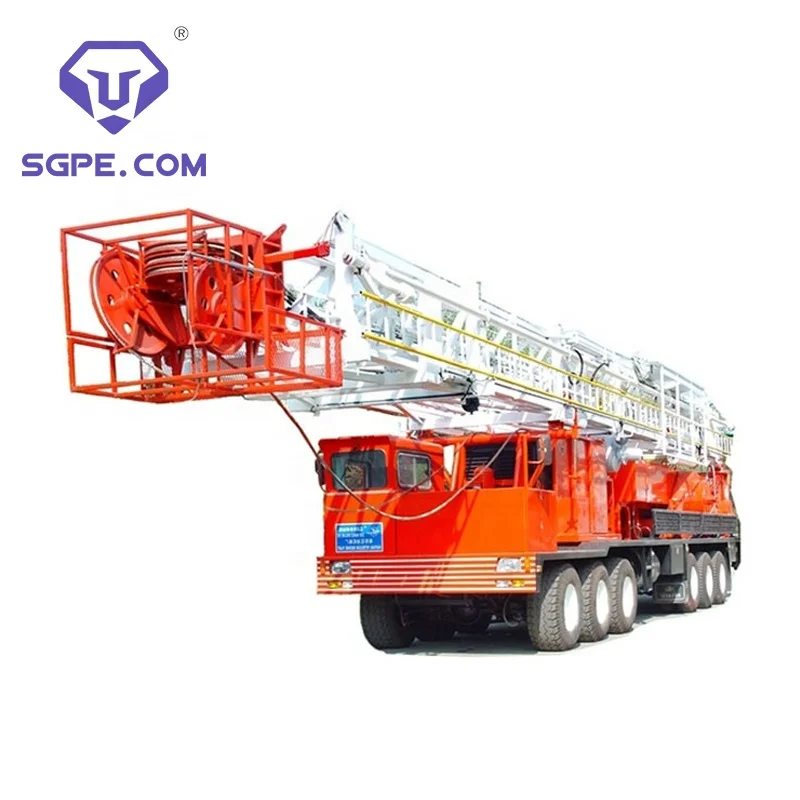

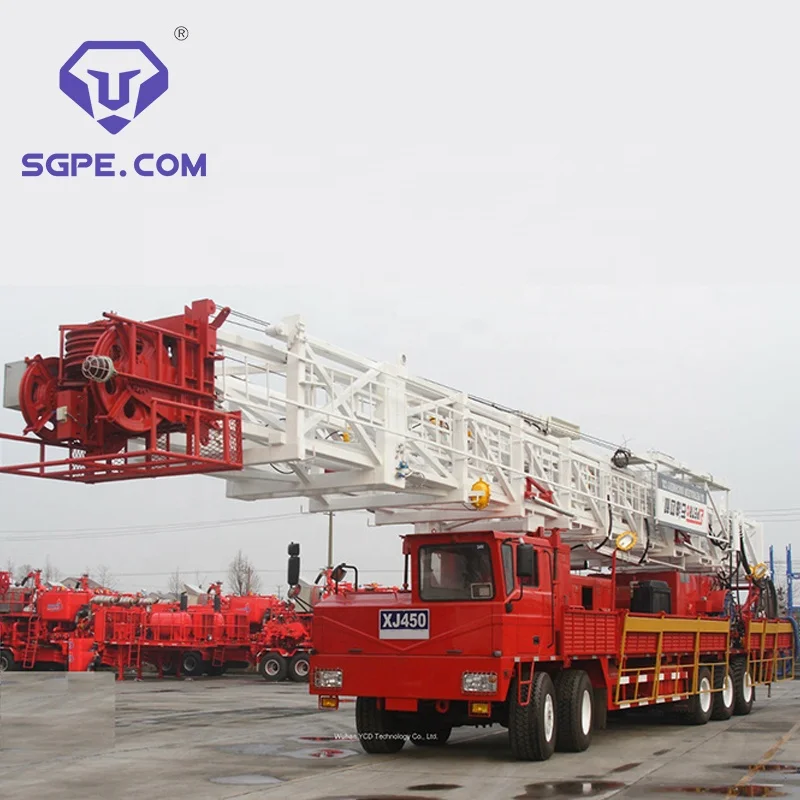

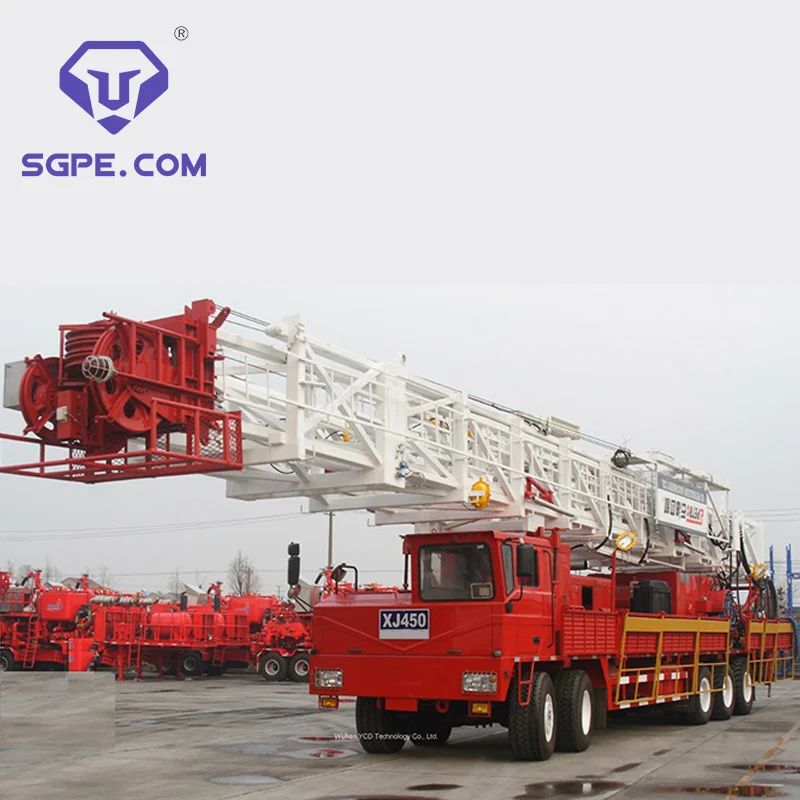

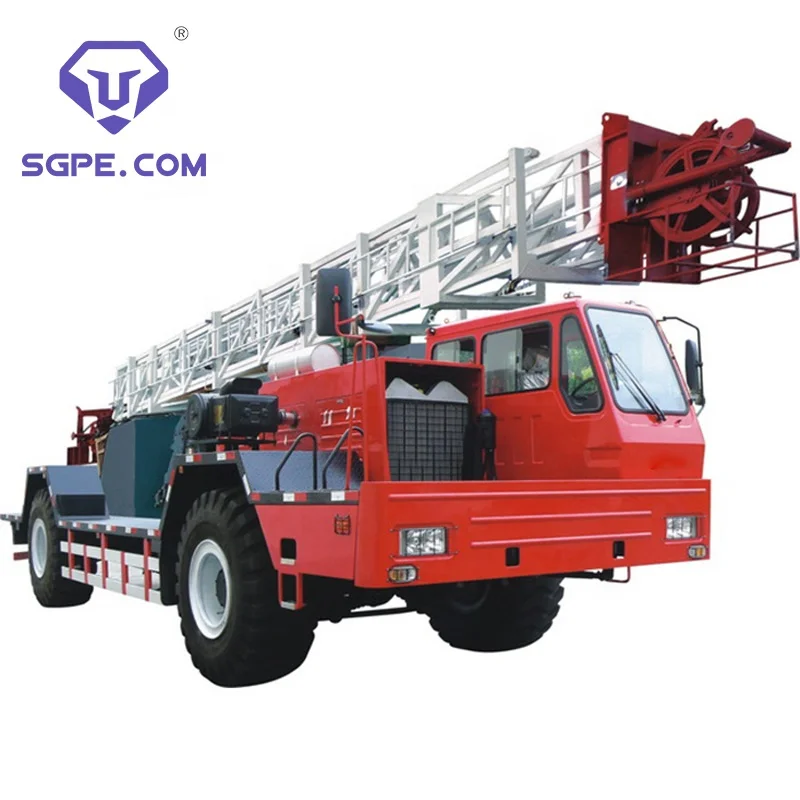

Oil rig drilling rig equipment ZJ/CZ Series Oil drilling rig and spare parts
（1) Adopting digital-control technique, computer technique and integrating mechanics, electricity, hydraulics and pneumatics into
design, the intelligent control for drilling rig is realized through PLC technology and touch screen.
design, the intelligent control for drilling rig is realized through PLC technology and touch screen.
（2) Adopting AC VF motor drive, the drawworks , rotary table and mud pump achieves stepless speed regulating function .
（3)The drawworks is a structure with single shaft, gear transmission, stepless speed regulating, the brake adopts hydraulic disk
brake and dynamic brake together, with simple structure and reliable performance.
（4)Adopting constant WOB auto-bit-feed device, the WOB is controlled precisely.
brake and dynamic brake together, with simple structure and reliable performance.
（4)Adopting constant WOB auto-bit-feed device, the WOB is controlled precisely.
（5)The rig operation has realized the functions for collecting, display, storing, printing and transfer of drilling parameters, and
the function of multi-points monitoring and communication.
（6)The rig operation has realized the full digital-control or digital closed-loop control for traveling block position, trip speed,
safety presetting and interlock protection, and preventing collide up and impact down (crown and RT protection) .
（7)with the online monitoring system for working s tatus of mechanical, electric, hydraulic and pneumatic implements, failure alarm and failure self-diagnosis has been realized, the equipments can work normally and troubleshooting can be done easily.
（8)The driller control cabin is independent and lifted hydraulically (ZJ70DBS), without contacting the drill floor, with little
vibration, and convenient for installation and teardown. The driller control cabin is a pressurized unit for explosion proof
(certificated). The drillers can fitful all drilling operation parameter setting on the operating chair, the operation manner has
been improved and the labor intensity lightened greatly .
vibration, and convenient for installation and teardown. The driller control cabin is a pressurized unit for explosion proof
(certificated). The drillers can fitful all drilling operation parameter setting on the operating chair, the operation manner has
been improved and the labor intensity lightened greatly .
（9)It can be equipped with rig moving device, satisfying the requirement for cluster well drilling.
（10)Satisfying the requirement for TDS installation.
Product display
Product Paramenters
Model | ZJ10/1125CZ | ZJ15/1350CZ | ZJ20/1470CZ | ZJ30/1700CZ | ZJ40/2250CZ |
Drilling depth(4-1/2"drill pipe)m(ft) | 1000(3280) | 1500(4920) | 2000(6560) | 3000(9840) | 4000(13120) |
Workover depth(3-1/2"drill pipe)m(ft) | 3500(11483) | 4000(13123) | 5500(18045) | 6500(21325) | 7500(24606) |
Max.hook load kN(lb) | 1125(253000) | 1350(303696) | 1470(330700) | 1700(381260) | 2250(505800) |
Drill line diameter mm(in.)/lines | Φ26（1"）/8 | Φ26（1"）/8 | Φ29（1-1/8"）/8 | Φ29（1-1/8"）/8 | Φ34（1-1/4"）/10 |
Max.hook speed m/s(ft/s） | 1.23(4) | 1.33(4.36) | 1.31(4.3) | 1.36(4.46) | 1.36(4.46) |
Overall dimensions(m) | 17.5×3.1×4.18 (57.4×10.17×13.7) | 19.6×2.9×4.3 (64.3×9.5×13.8) | 20.13×3.2×4.4 (66×10.5×14.44) | 21.25×3.3×4.47 (69.7×10.8×14.67） | 22.45×3.3×4.48 (73.65×10.8×14.7) |
Weight kg(lb) | 42000(92590) | 51000(112430) | 56000(123456) | 76000(167548） | 82000(180776) |
Power system | CAT3406C | CAT3408 | CAT3412 | CAT3406C | CAT C-16 |
Engine power kW(hp)(2100r/min) | 343(460) | 354(480) | 485(650) | 343×2(460×2) | 448×2(600×2) |
Model,transmission | ALLISON-S5600DB | ALLISON-S5600HR | ALLISON-S6610HR | ALLISON-S5600x2 | ALLISON- |
Emergency power(eletrical motor) | Optional | Optional | Optional | ||
Chassis driving type | 10×8(8×8) | 10×8 | 12×8 | 14×8 | 14×10 |
Min.turning dia.m(ft) | 34(111.55) | 34(111.55) | 34(111.55) | 42(137.8) | 44(144) |
Min.ground clearanec in.mm(in.) | 340(13.39) | 340(13.39) | 340(13.39) | 340(13.39) | 340(13.39) |
Drawworks type | Double drum(Single drum) | Double drum(Single drum) | Double drum(Single drum) | Double drum(Single drum) | Double drum(Single drum) |
Drawworks power hp | 450 | 550 | 650 | 750 | 1000 |
Dia.Length,main drum in. (in.) | Φ429×965(Φ16.9×38） | Φ429×965(Φ16.9×38） | Φ480×914.5(Φ18.9×36） | Φ480×914.5(Φ18.9×36） | Φ625×1254(Φ25×49.4） |
Main brake type,main drum | Band type(or hydraulic disc type）Force spray water cooling-forced | Band type(or hydraulic disc type） | Band type(or hydraulic disc type） | Band type(or hydraulic disc type） | hydraulic diso |
Auxiliary brake,main drum | 22 "SR hydro brake | 22"SR hydro brake(force spray water cooling-forced) | 22"SR hydro brake(force spray water cooling-forced) | WCB324 disc brake | WCB224 disc New |
Speeds of drawoworks | 5 forward 1 reverse | 5 forward 1 reverse | 5 forward 1 reverse | 5 forward 1 reverse | 5 forward 1 reverse |
Mast type | JJ119/33.1-W | JJ135/34-W | JJ155/35-W | JJ180/38-W/JJ180/38-W | JJ225/39-W |
Mast height m(ft） | 31.3(102.69) | 34(111.55) | 35(114.83) | 36(118.11)/38(124.6) | 39(127.92) |
Height,Monkey boardm(ft) | 19.7/20.7(55.77/64.6) | 20/21.5(65.62/70.54) | 20/21,5(65.62/70.54) | 20.4(66.9) | 20.4(66.9) |
Max.wind load km/h(kn) | 110(60) | 110(60) | 110(59.35) | 110(60) | 110(60) |
Control/ lighting/ power system | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) | 24V/220V/380V(China) |
Reted pressure, hydrauic/air system Mpa(psi） | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) | 14/0.833-0.93(2002/119.12-133) |
Substructure | ZT1470/3.7-S telescoping substructure | ZT1470/4.5-S telescoping substructure | ZT1690/4.5-Z foldable substructure | ZT2250/5-Z foldable substructure | ZT3000/6.7-Z foldable substructure |
Rotary table | ZP175(ZP105) | ZP175 | ZP175 | ZP205 | ZP275 |
Travelling block | YG150 | YG150 | YG150 | YG170 | YG225 |
Swive | SL120 | SL135(SL160） | SL160 | SL225 | SL225 |
Certifications
Our Honors
FAQ
Q1. How to get an accurate quotation?
A1: The customer should provide the related technical requirements, drawings, pictures,industrialvoltage, planned output, and our engineers will provide solutions and quotations in time.
Q2. How about your delivery time?
A2: Generally, it will take 35 working days after receiving your deposit payment. The specific deliverytime depends on the
items and the quantity of your order, Sometimes we have standard machines instock.
items and the quantity of your order, Sometimes we have standard machines instock.
Q3. What is the warrantee period of the machine?
A3: We can supply 1 year warranty for our machines, We can provide internet or calling service at anytime. We can also send engineers to your place if the production has big quality problems.
A3: We can supply 1 year warranty for our machines, We can provide internet or calling service at anytime. We can also send engineers to your place if the production has big quality problems.
Q4. after-sales service
A4: 1. Installation: Free installation and commissioning, travel expense is on foreign(Including round ticket and accommodation cost) customer 2. Personnel training: Our engineers will give your employees free machine training when they cometo your company to assemble the machines, and welcome to our factory to learn how to operate ourmachine.
Q5. What services can we provide?
A5: Accepted Delivery Terms: FOB, CFR, CIF, EXW,FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery,DAF, DES; Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY,CHF;Accepted Payment Type: T/T, L/c,D/P D/A, MoneyGram, Credit Card, PayPal, Western UnionCash,Escrow; Language Spoken: English,Chinese, Spanish, Russian
Похожие товары
Специальные инструменты для нефтяных буровых установок стандарты API 7K ручные щипцы обработки
Инструмент для бурения нефтяных скважин
165 316,95 ₽
Дробилка воздушный компрессор шейкер для транспортного средства судовое оборудование резиновый амортизатор
6 612,68 ₽ - 6 722,89 ₽
Стандартное нефтяное сверлильное оборудование API для полого присоски твердый присоска стержень полировки
6 061,63 ₽ - 8 816,91 ₽

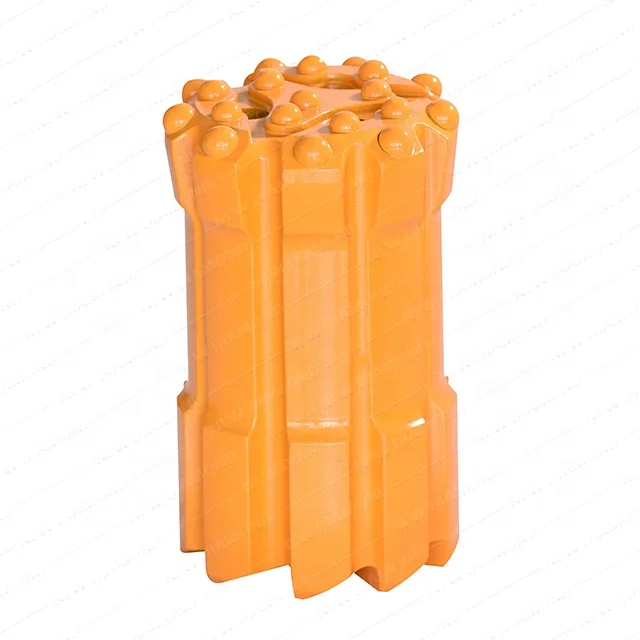

Новая твердосплавная буровая насадка для Добычи Руды T38 твердая каменная Кнопка T45 и T51 инструмент ковки бурового Сверла завода-изготовителя

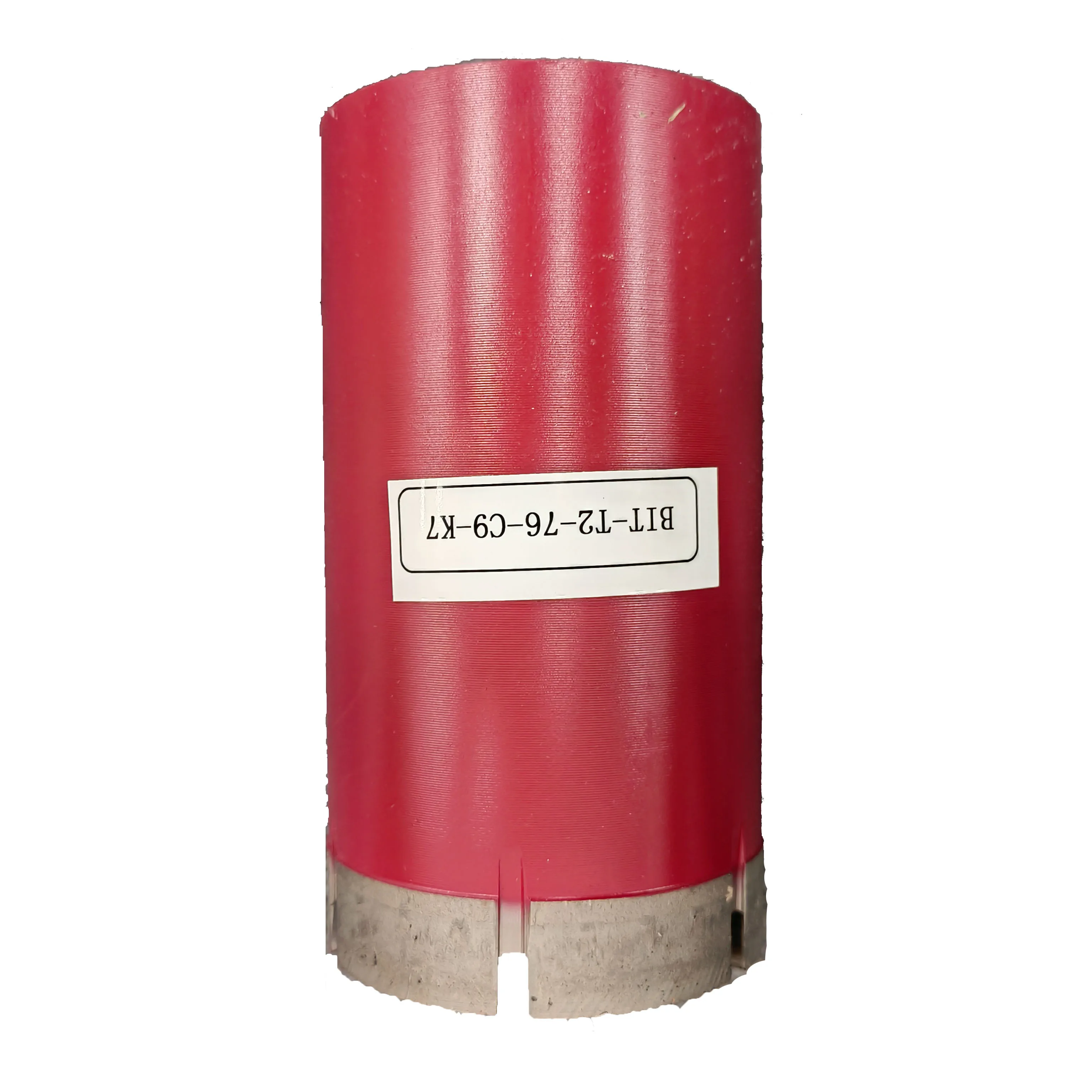

Высококачественное оборудование для бурения скважин T2-76 NQ и HQ алмазного керна
7 494,37 ₽ - 8 265,85 ₽

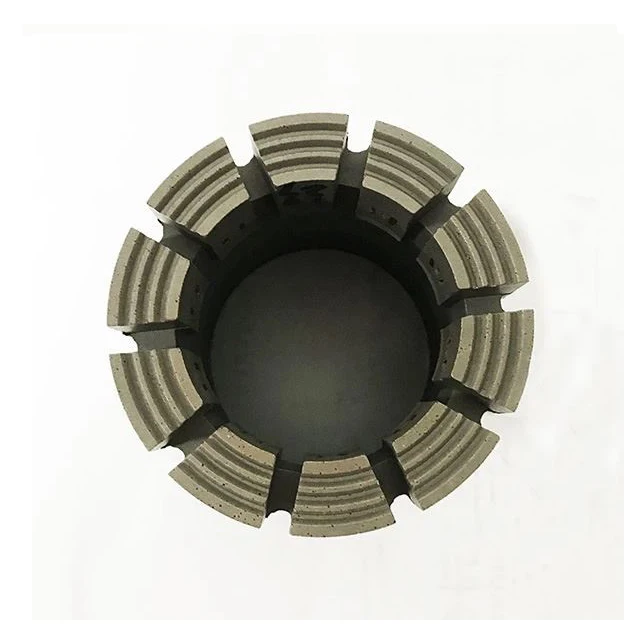

HQ пропитанное алмазное сверло
