CloudEngine S5735-S24P4XEZ-V2 24x10 м/100 м/1000 м Base-T портов, 4x10GE SFP + портов, 2x12GE стек портов POE + Ethernet-коммутатор
26 024,62 ₽ - 28 735,52 ₽
CloudEngine S5735 S24ST4XE V2 гигабитный коммутатор (24 * GE SFP портов 8*10/100/1000 или 4*10GE 2*12GE стек
- Категория: >>>
- Поставщик: Chongqing Yujia Technology Co. Ltd.
Сохранить в закладки 1601273573831:
Описание и отзывы
Характеристики
Product Description
Based on the latest generation of high-performance hardware and Huawei software platform, CloudEngine S5735-S-V2 series switches have enhanced Layer 3 features, simple operation and maintenance, flexible Ethernet networking, mature IPv6 features, and are widely used for enterprise campus access and aggregation, and data center access scenarios.
Reliability protection
Powerful power supply capacity
Network intelligent operation and maintenance
Powerful power supply capacity
Network intelligent operation and maintenance
Item | Details |
Description | S5735-S24ST4XE-V2 (24*GE SFP ports, 8 of which are dual-purpose 10/100/1000 or SFP, 4*10GE SFP+ ports, 2*12GE stack ports, without power module) |
Part Number | 98012231 |
Model | S5735-S24ST4XE-V2 |
First supported version | V600R023C00 |
Details Images
Specification
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) |
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.0 mm (1.72 in. x 17.40 in. x 17.56 in.) | |
Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 650 mm x 550 mm (7.28 in. x 25.59 in. x 21.65 in.) |
Chassis height [U] | 1 U |
Weight without packaging [kg(lb)] | 4.95 kg (10.91 lb) |
Weight with packaging [kg(lb)] | 6.85 kg (15.1 lb) |
Typical power consumption [W] | 31.6 W |
Typical heat dissipation [BTU/hour] | 107.82 BTU/hour |
Maximum power consumption [W] | 48.70 W (with two 80 W AC power modules) |
85.78 W (with two 1200 W DC power modules) | |
Maximum heat dissipation [BTU/hour] | 166.17 (with two 80 W AC power modules) |
292.69 (with two 1200 W DC power modules) | |
Static power consumption [W] | 14 W |
MTBF [years] | 112.03 years |
MTTR [hours] | 2 hours |
Availability | > 0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 38.1 dB(A) |
Noise at normal temperature (acoustic pressure) [dB(A)] | 26.1 dB(A) |
Number of card slots | 0 |
Number of power slots | 2 |
Number of fans modules | 2 |
Redundant power supply | 1+1 |
Power modules without fans and power modules with fans cannot be installed in the same chassis. | |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
Devices cannot start when the temperature is lower than 0°C (32°F). | |
Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | Pluggable power supply |
Rated input voltage [V] | AC input: 100 V AC to 240 V AC; 50/60 Hz |
High-voltage DC input: 240 V DC | |
DC input: –48 V DC to –60 V DC | |
Input voltage range [V] | AC input: 90 V AC to 290 V AC; 45–65 Hz |
High-voltage DC input: 190 V DC to 290 V DC | |
DC input: -38.4 V DC to -72 V DC | |
Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
Memory | 2 GB |
Flash memory | Physical space: 1 GB |
Console port | RJ45 |
Eth Management port | Supported |
USB | Supported |
RTC | Not supported |
RPS input | Not supported |
Power supply surge protection [kV] | Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode |
Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode | |
Ingress protection level (dustproof/waterproof) | IP20 |
Types of fans | Built-in |
Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
Airflow direction | Air intake from left, front, and right and air exhaust from rear |
PoE | Not supported |
Certification | EMC certification |
Safety certification | |
Manufacturing certification |
Packing & Delivery
Company Profile
Chongqing Yujia Technology Co., Ltd. was established in 2010, we have been engaged in this industry more than 10 years. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price. we are devoted to offering Switches, Routers, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc. our long-term aim is to provide users high-quality, efficient, economic, timely services. The rich experience of our wealth, serious and responsible attitude is our responsibility. Looking forward to establish long-term and win-win business relations with you.
Why Choose Us
A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.
C) Safe and Easy Payment Solutions
We accept all major credit cards, PayPal and wire transfer.
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)More Than 10 Years Industry Experience
we have been engaged in this industry more than 12 years, we have rich industry experience.
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.
C) Safe and Easy Payment Solutions
We accept all major credit cards, PayPal and wire transfer.
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)More Than 10 Years Industry Experience
we have been engaged in this industry more than 12 years, we have rich industry experience.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
Похожие товары

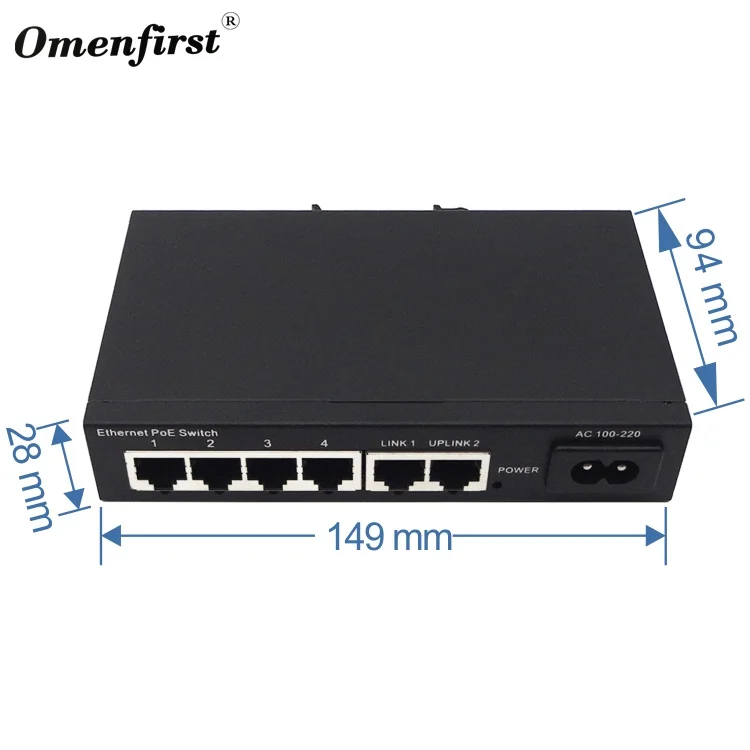

Поддержка пользовательских 6x0/100 Мбит/с коммутатор Poe, самовосогласованный порт RJ45, коммутатор poe, небольшой 4-портовый коммутатор Ethernet Poe
704,84 ₽ - 759,06 ₽

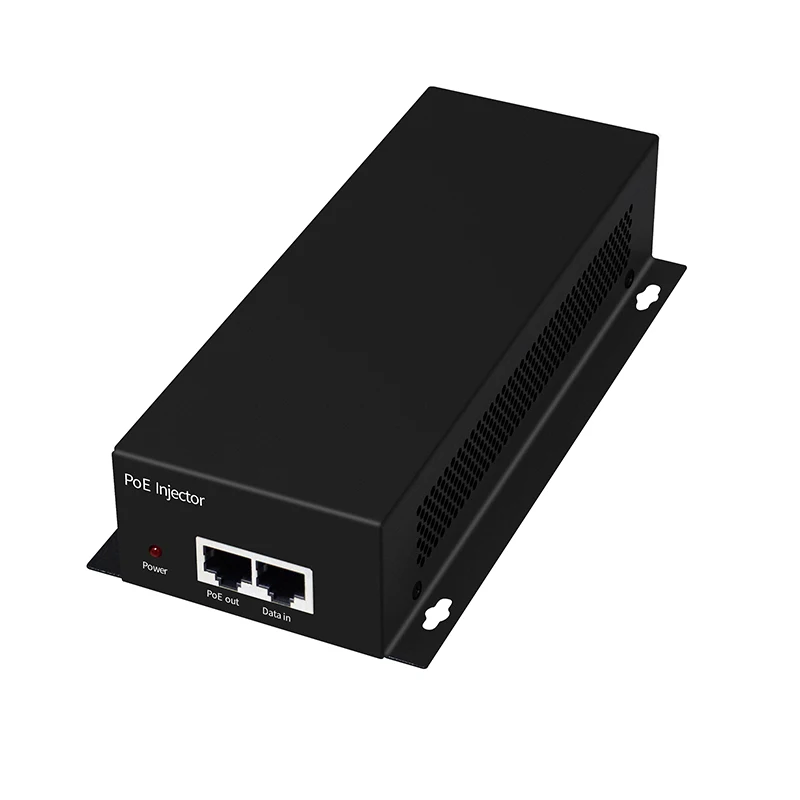

Инжектор 48v 10g PoE 48V 52V 55V 56V 220V 30W 50W 60W 90W 802.3af/at/bt для переключателя 10G
2 602,47 ₽ - 2 819,34 ₽

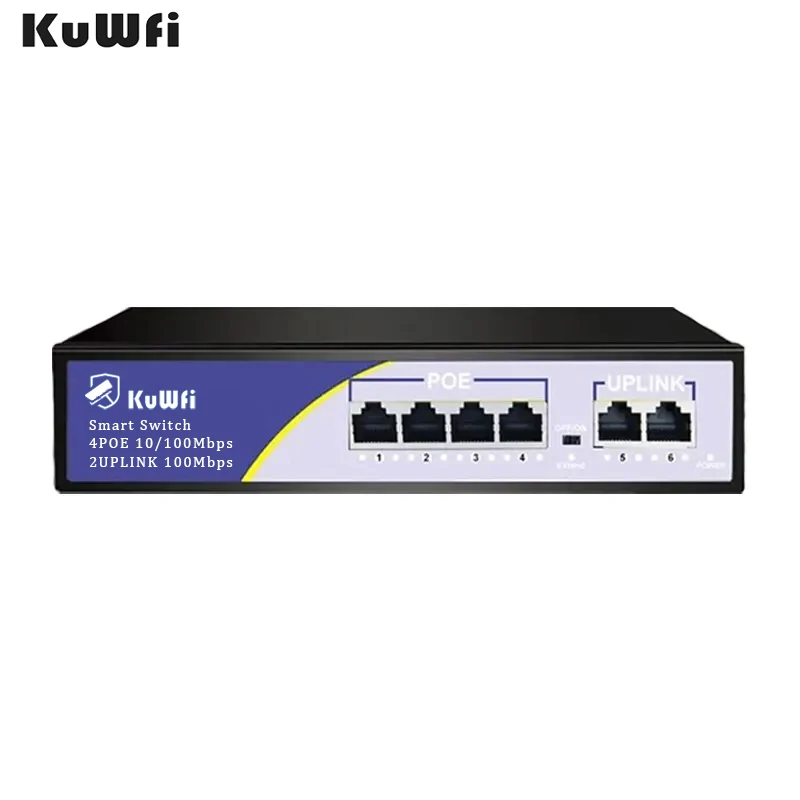

Коммутаторы ethernet KuWFi, 4 + 2 порта, 250 м, Wi-Fi, 4 порта, 100 Мбит/с, переключатели с 2 портами, восходящая линия связи
866,41 ₽ - 1 083,28 ₽

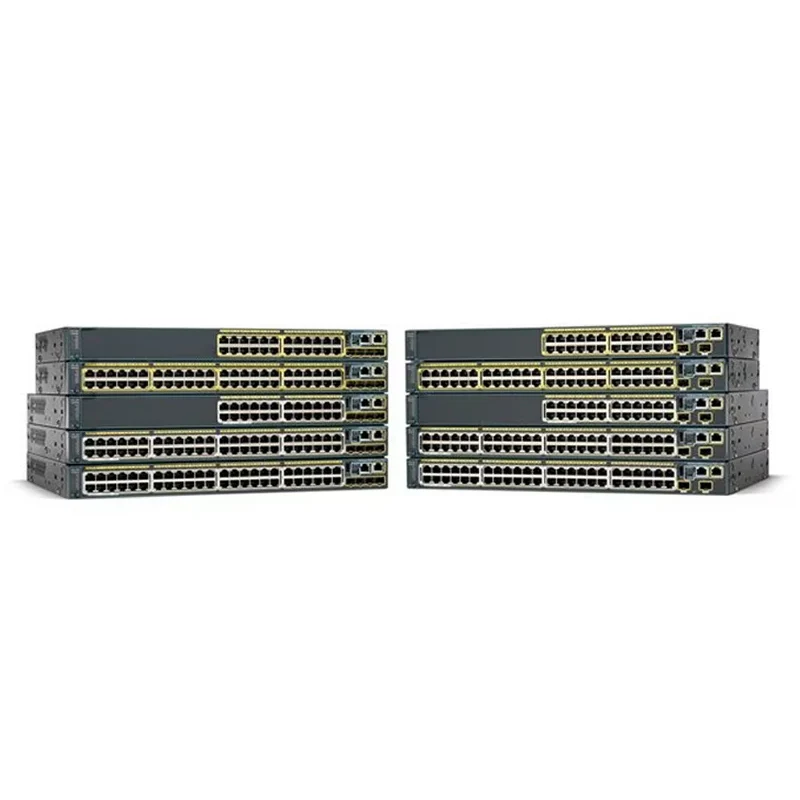

WS-C2960 + 48PST-L 2960 плюс 48 портов 100 Мбит/с коммутаторы Ethernet, уровень 2, сетевой коммутатор доступа к PoE WS-C2960 + 48PST-L
39 036,93 ₽ - 41 747,83 ₽

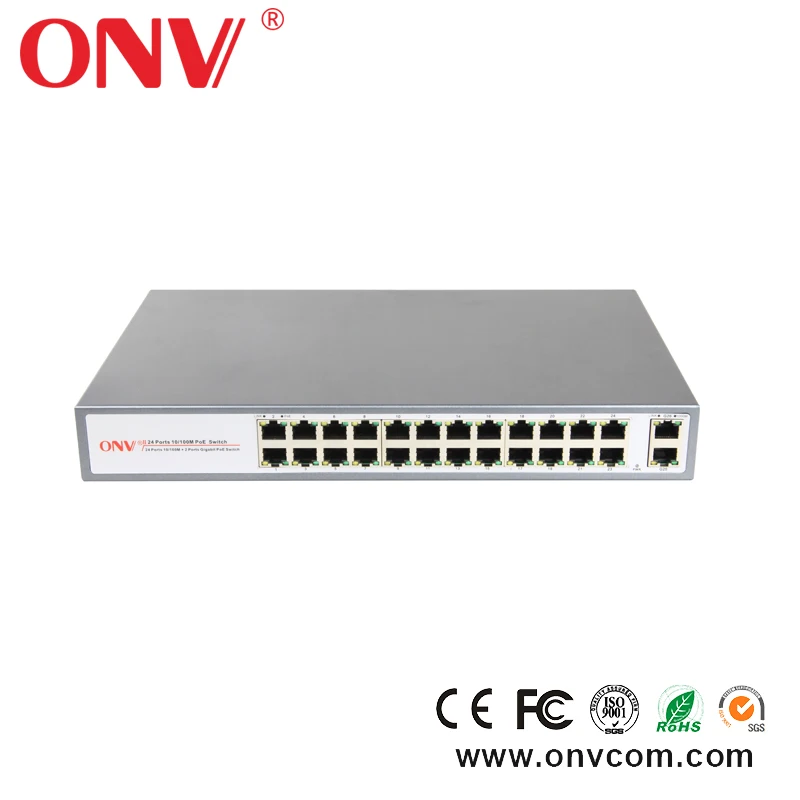

24 порт 10/100 м Ether уровня 2 полностью переключатель питания через ethernet Gigabit восходящего коммутатора
