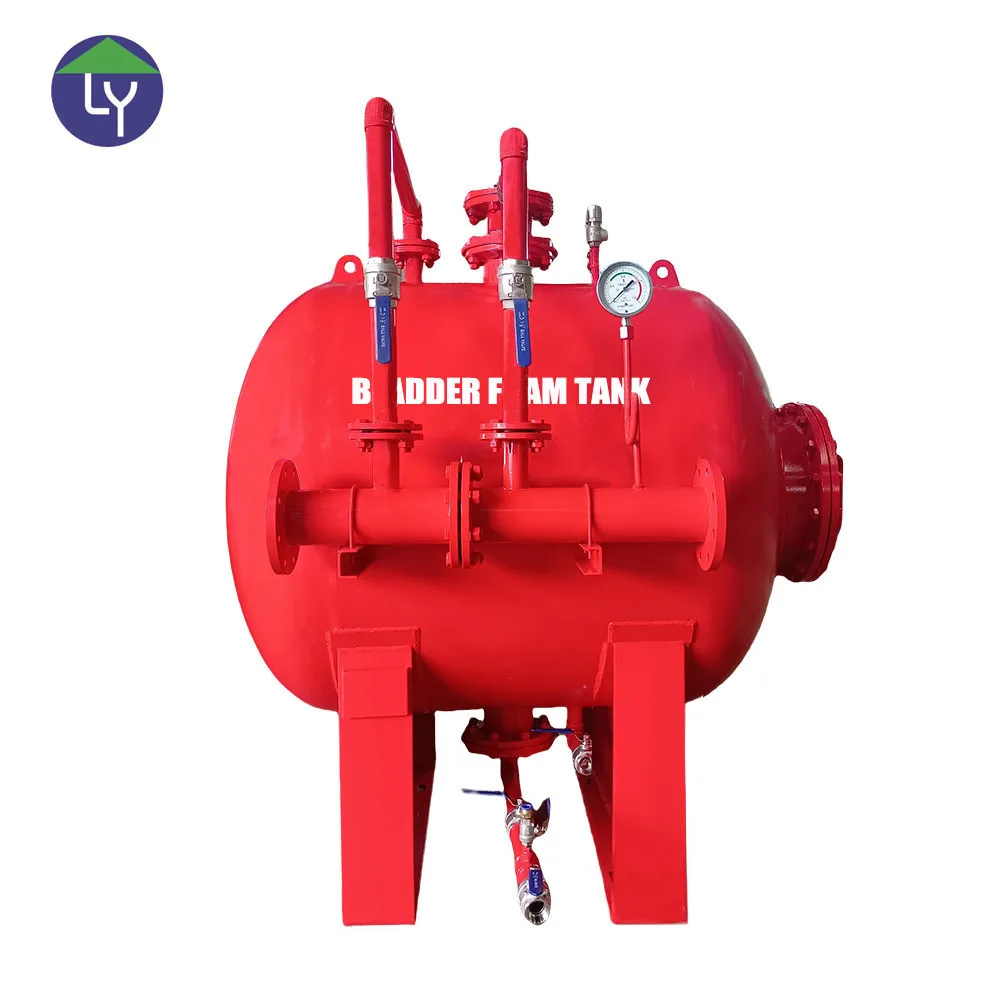

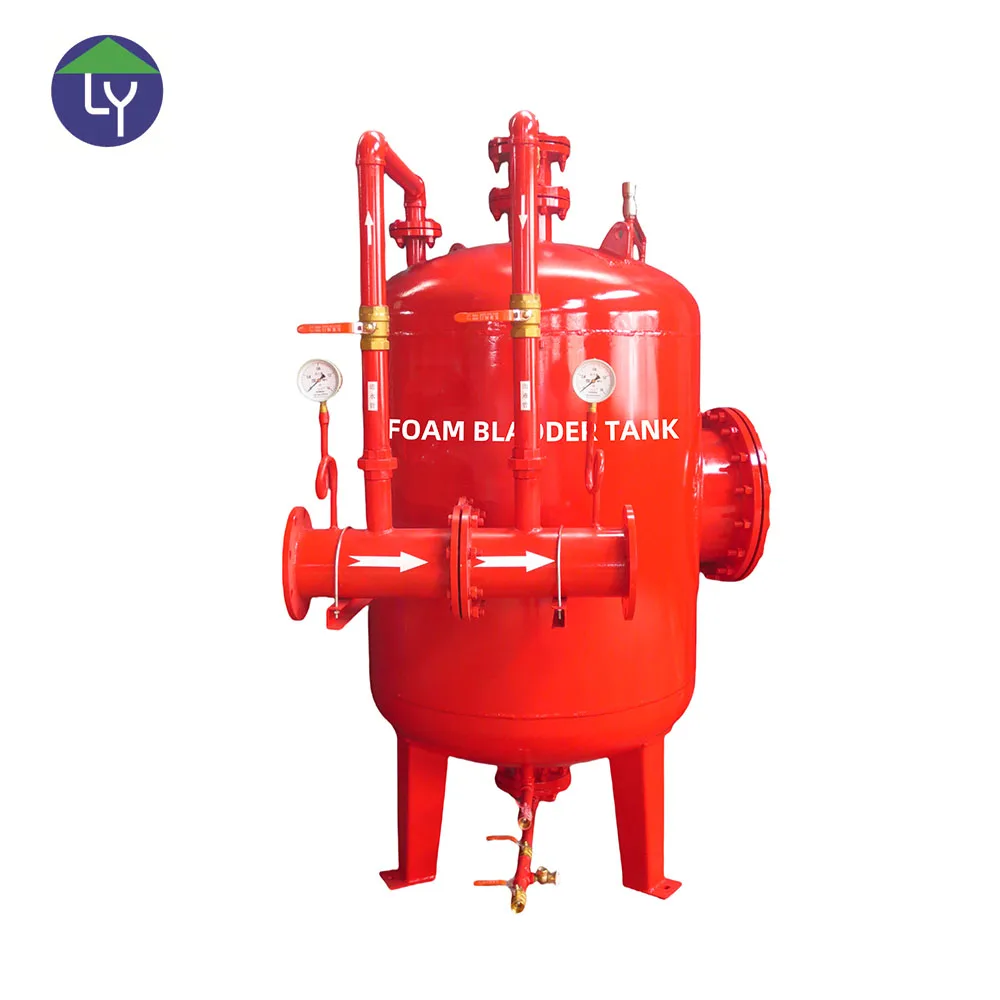

Заводская цена высокое качество горизонтальный/вертикальный пенопластовый резервуар для пожаротушения
- Категория: >>>
- Поставщик: Hunan Longin Fire Equipment Co. Ltd.Hunan Ltd.
Сохранить в закладки 1601273710925:
Описание и отзывы
Характеристики
Products Description
* This PHYML pressure fire bladder foam tank is mainly consisting of foam tank shell, bladder, pressure proportioner (carbon steel). water inlet pipe(carbon stee), foam concentrate outlet pipe(carbon stee), water drain valve(Brass), foam concentrate drain valve(Brass), bladder air relief valve(Brass), tank air relief valve(Brass).
* When the water go through the pressure reducing orifice, it will create a pressure difference in the front and behind of the pressure reducing orifice, the pressure is higher in front of the pressure reducing orifice, and most of the high pressure water goes though the pressure reducing orifice, and a little water goes through the water inlet pipe, goes into the tank, then extrude the bladder, the extruded foam concentrate goes out of the bladder through the outlet pipe, and goes into the proportioner, mix with the water, and become water-foam mixture, goes through the fire fighting pipe into the foam system, mix with the air, create foam, and put out the fire!
* When the water go through the pressure reducing orifice, it will create a pressure difference in the front and behind of the pressure reducing orifice, the pressure is higher in front of the pressure reducing orifice, and most of the high pressure water goes though the pressure reducing orifice, and a little water goes through the water inlet pipe, goes into the tank, then extrude the bladder, the extruded foam concentrate goes out of the bladder through the outlet pipe, and goes into the proportioner, mix with the water, and become water-foam mixture, goes through the fire fighting pipe into the foam system, mix with the air, create foam, and put out the fire!
Model | Φ | L(mm) | H(mm) | H1(mm) | B(mm) | Inlet&Outlet |
PHYML-300 | 600 | 850 | 1750 | 850 | 600 | DN65 |
PHYML-500 | 800 | 1050 | 1750 | 850 | 800 | DN65 |
PHYML-600 | 800 | 1050 | 1950 | 950 | 800 | DN80 |
PHYML-800 | 1000 | 1250 | 1850 | 900 | 1250 | DN80 |
PHYML-1000 | 1100 | 1300 | 1750 | 1050 | 1350 | DN100 |
PHYML-1500 | 1100 | 1300 | 2150 | 1050 | 1350 | DN100 |
PHYML-2000 | 1400 | 1700 | 2200 | 1150 | 1650 | DN150 |
PHYML-3000 | 1600 | 1900 | 2300 | 1150 | 1850 | DN150 |
Model | Φ | L(mm) | H(mm) | H1(mm) | B(mm) | Inlet&Outlet |
PHYM-300 | 600 | 1250 | 1200 | 600 | 850 | DN80 |
PHYM-500 | 800 | 1250 | 1400 | 700 | 1050 | DN80 |
PHYM-1000 | 1000 | 1850 | 1750 | 1050 | 1350 | DN100 |
PHYM-1500 | 1100 | 2150 | 1850 | 1050 | 1450 | DN100 |
PHYM-2000 | 1200 | 2450 | 1950 | 1050 | 1550 | DN100 |
PHYM-3000 | 1400 | 2750 | 2150 | 1050 | 1750 | DN150 |
PHYM-4000 | 1600 | 2850 | 2350 | 1150 | 1900 | DN150 |
PHYM-5000 | 1600 | 3350 | 2350 | 1150 | 1900 | DN150 |
PHYM-10000 | 2000 | 4050 | 2850 | 1250 | 2300 | DN150 |
Product Paramenters
Model Number | Capacity | Description | Working Pressure | Ratio | Flow Rate Range |
PHYML-200 | 200 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYML-300 | 300 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYML-500 | 500 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYML-600 | 600 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYML-800 | 800 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYML-1000 | 1000 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYML-1500 | 1500 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYML-2000 | 2000 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYML-2500 | 2500 Liters | Vertical,Fixed | 0.6-1.2MPa | 3% or 6% | 16-48LPS |
PHYML-3000 | 3000 Liters | Vertical,Fixed | 0.8-1.2MPa | 3% or 6% | 16-48LPS |
PHYML-4000 | 4000 Liters | Vertical,Fixed | 0.8-1.2MPa | 3% or 6% | 24-80LPS |
PHYML-5000 | 5000 Liters | Vertical,Fixed | 0.8-1.2MPa | 3% or 6% | 32-110LPS |
Model Number | Capacity | Description | Working Pressure | Ratio | Flow Rate Range |
PHYM-200 | 200 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYM-500 | 500 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 4-24LPS |
PHYM-800 | 800 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYM-1000 | 1000 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYM-1500 | 1500 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYM-2000 | 2000 Liters | Horizontal,Fixed | 0.6-1.2MPa | 3% or 6% | 8-32LPS |
PHYM-3000 | 3000 Liters | Horizontal,Fixed | 0.8-1.2MPa | 3% or 6% | 16-48LPS |
PHYM-5000 | 5000 Liters | Horizontal,Fixed | 0.8-1.2MPa | 3% or 6% | 24-64LPS |
PHYM-10000 | 10000 Liters | Horizontal,Fixed | 0.8-1.2MPa | 3% or 6% | 32-110LPS |
Recommend Products
Our Advantages
● Quality products: All products are tested according to ISO standards, from raw material to finished product.
● On-demand services: Our products and services are tailored to requirements of our customers and partners around the world
● Testing and Certifications: Before being packaged for shipment, all of our products are tested and certificated for the required tests.
Company Profile
Product packaging
Certifications
FAQ
Q1: What can you buy from us?
A: Our main categories include vertical/ horizontal fire fighting foam bladder tank.
Q2: Do you receive customized order?
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3:Can I get some samples?
Q3:Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample
cost and express cost.
Q4:What's the lead time?
cost and express cost.
Q4:What's the lead time?
A: According to the order quantity, small orders usually need 3-5 days, big orders need negotiation.
Q5: What's your payment terms?
Q5: What's your payment terms?
A: We receive T/T, L/C, Western Union and etc.
