Products Description
HICHWAN IH32-25-125 316 TA2 centrifugal pump corrosion-resistant chemical transport pump
IH series stainless steel centrifugal pump flow parts are all cast in stainless steel, for organic acids, organic compounds, alkali and organic solvents have good corrosion resistance.Custom titanium, Austenitic stainless steel, duplex steel, Hastelloy and high nickel steel, etc.
Flow rate: 3.2-400m3/h
Head: 20-125m
Power: 0.75-110kw
Operating temperature: -20~260℃
Customized options: high temperature type, steam insulation type, API682 series flushing solution
Using a new hydraulic model design, the efficiency is 5% higher than the traditional IH pump, thickening the journal, lengthening the bearing box, shortening the cantilever ratio, making the performance more stable and can be configured with internal or external sealing, and a wider range of applications.
Model
1.Stainless steel shell, advanced technology,high quality material.
2.Bearing box mirror polishing,bearing no deformation,extended life.
3.The machine seal is configurable, can be equipped with single and double side machine seal, and the cooling water washing deviceis added.
4.Cast steel base to effectively reduce vibration.
5.Brand motor, high efficiency, energy saving, safety and environmental protection.
Perfomance Parameter
The following is the data used by the 50HZ motor, can be customized 60HZ electrial model, please contact us.
NO. | Type | Flow m³/h | Head m | EFF % | NPSHr m | Import*Export mm | Speed r/min | Power kW |
1 | IH25-25-125 | 3.2 | 20 | 53 | 1.8 | 25*25 | 2900 | 0.75 |
2 | IH25-25-160 | 3.2 | 32 | 46 | 1.8 | 25*25 | 2900 | 1.1 |
3 | IH25-25-200 | 3.2 | 50 | 43 | 1.8 | 25*25 | 2900 | 1.5 |
4 | IH25-25-250 | 3.2 | 80 | 40 | 1.8 | 25*25 | 2900 | 2.2 |
5 | IH-40-32-125 | 6.3 | 20 | 52 | 1.8 | 40*32 | 2900 | 1.1 |
6 | IH40-32-160 | 6.3 | 32 | 47 | 1.8 | 40*32 | 2900 | 2.2 |
7 | IH40-32-200 | 6.3 | 50 | 38 | 1.8 | 40*32 | 2900 | 4 |
8 | IH40-32-250 | 6.3 | 80 | 32 | 1.8 | 40*32 | 2900 | 7.5 |
9 | IH50-32-125 | 12.5 | 20 | 51 | 2 | 50*32 | 2900 | 2.2 |
10 | IH50-32-160 | 12.5 | 32 | 46 | 2 | 50*32 | 2900 | 4 |
11 | IH50-32-200 | 12.5 | 50 | 39 | 2 | 50*32 | 2900 | 7.5 |
12 | IH50-32-250 | 12.5 | 80 | 33 | 2 | 50*32 | 2900 | 15 |
13 | IH65-50-125 | 25 | 20 | 62 | 2 | 65*50 | 2900 | 3 |
14 | IH-65-50-160 | 25 | 32 | 57 | 2 | 65*50 | 2900 | 5.5 |
15 | IH65-40-200 | 25 | 50 | 52 | 2 | 65*40 | 2900 | 11 |
16 | IH65-40-250 | 25 | 80 | 46 | 2 | 65*40 | 2900 | 18.5 |
17 | IH65-50-315 | 25 | 125 | 39 | 3 | 65*50 | 2900 | 30 |
18 | IH80-65-125 | 50 | 20 | 69 | 3 | 80*65 | 2900 | 5.5 |
19 | IH80-65-160 | 50 | 32 | 67 | 2.3 | 80*65 | 2900 | 11 |
20 | IH80-50-200 | 50 | 50 | 63 | 2.5 | 80*50 | 2900 | 15 |
21 | IH80-50-250 | 50 | 80 | 57 | 2.5 | 80*50 | 2900 | 30 |
22 | IH80-50-315 | 50 | 125 | 47 | 2.5 | 80*50 | 2900 | 45 |
23 | IH100-80-125 | 100 | 20 | 77 | 4.2 | 100*80 | 2900 | 11 |
24 | IH100-80-160 | 100 | 32 | 73 | 4.3 | 100*80 | 2900 | 15 |
25 | IH100-65-200 | 100 | 50 | 72 | 3.9 | 100*65 | 2900 | 22 |
26 | IH100-65-250 | 100 | 80 | 68 | 3.6 | 100*65 | 2900 | 37 |
27 | IH100-65-315 | 100 | 125 | 62 | 3.2 | 100*65 | 2900 | 75 |
28 | IH125-100-20 | 200 | 50 | 77 | 5 | 125*100 | 2900 | 45 |
29 | IH125-100-200 | 200 | 80 | 75 | 4.5 | 125*100 | 2900 | 75 |
30 | IH125-100-315 | 200 | 125 | 72 | 4.5 | 125*100 | 2900 | 110 |
31 | IH150-125-250 | 200 | 20 | 77 | 3.2 | 150*125 | 1450 | 18.5 |
32 | IH150-125-315 | 200 | 32 | 75 | 3.2 | 150*125 | 1450 | 30 |
33 | IH150-125-400 | 200 | 50 | 70 | 3.2 | 150*125 | 1450 | 45 |
34 | IH200-150-250 | 400 | 20 | 81 | 4.5 | 200*150 | 1450 | 37 |
35 | IH200-150-315 | 400 | 32 | 79 | 4.5 | 200*150 | 1450 | 55 |
36 | IH200-150-400 | 400 | 50 | 78 | 4.5 | 200*150 | 1450 | 90 |
1.Pump Shell | 2.Impeller Nut | 3.Sealing Ring | 4.Impeller |
5.Pump Cover | 6. Blade Shaft | 7. Machine Seal Ring | 8.Pull Rod |
9.Machine Seal Gland | 10. Double end water washer seal | 11.Bearing Cover | 12.Bearing |
13.Pump Spindle | 14.Rack | 15.Supporting Foot | 16.Bearing Box |
17.Ripple Spring | 18.Oil Seal | 19.Rear Bearing Cover | 20.Pump Coupling |
21.Guard | 22. Power Adapter | 23.Motor |

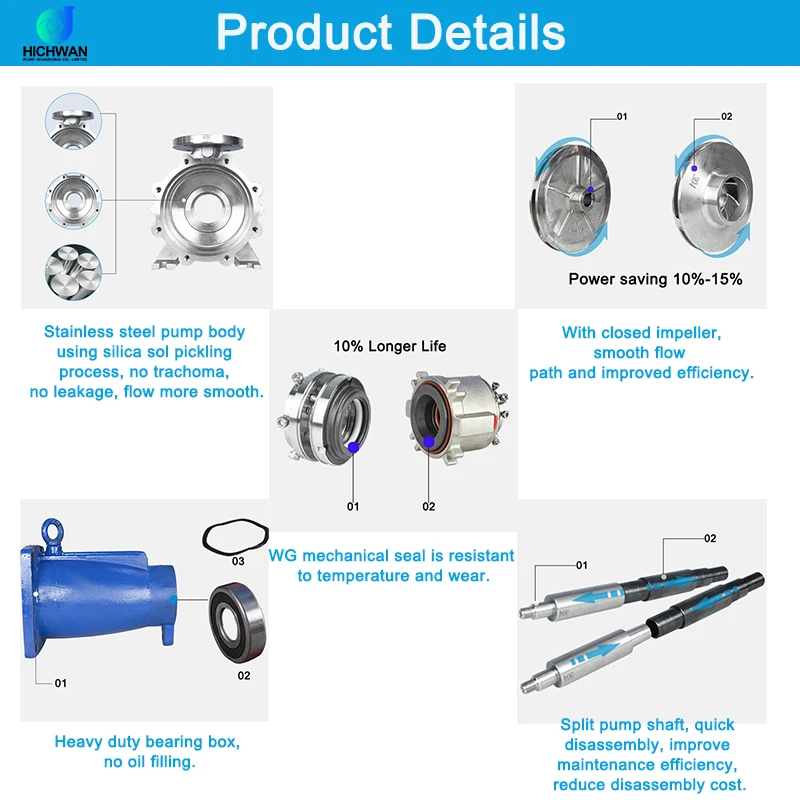

Details Images
National standard 16kg flange, can be beauty standard, European standard.
Thickened shell, wear and corrosion resistant.
Materials available 304/316/2205/TA2.
Pump body with footing, can withstand part of the pipe gravity, no need to disassemble the pipe during maintenance.
01.Precision mortise and tenon card slot, high-speed operation does not fall off.
02.Smooth surface without burrs, reduce friction.
The impeller is made of stainless steel casting, corrosion resistance, wear resistance, dynamic balance accuracy of G2.5, greatly reduce the radial force, improve the service life.
WG mechanical seal is resistant to temperature and wear.
Standard with WG type mechanical seal, normal pressure 1.5Mpa, limit temperature 180℃, can withstand the solid content of the medium ≤20%, can also be selected according to the actual working conditions WB2 type/corrugated metal pipe/BSH washing mechanical seal.
01. Standard Avras ring, transport of organic solvents need to be replaced.
02.Optional modular mechanical seal with API682 flushing solution.
Heavy duty bearing box, no oil filling.
HT250 casting molding, wall thickness of about 15mm, can bear the vibration of the unit and bearing, processing using a boring machine molding, to maintain a high degree of concentricity. Cancel the traditional oil seal design, use V-type water seal ring, efficiency increased by 3%.
01. Bearing installation without tapping, directly press into place.
02.Imported bearings, high-speed quiet, scientific structure, long service life.
03.Built-in corrugated spring to reduce vibration.
The impeller shaft is cast with stainless steel, high precision and corrosion resistance, and the pump shaft is made of 45# steel, and the Morse taper is used between the two to lock the back pull rod, which cancels the original shaft sleeve design of the pump, reduces the leakage point and improves the sealing.
01. Blade shaft
02. Pump shaft
Application Occasion
Petrochemical Industry
Food Industry
Biological Medicine
Wastewater Treatment
Environmental Protection
Metallurgy
Company Profile

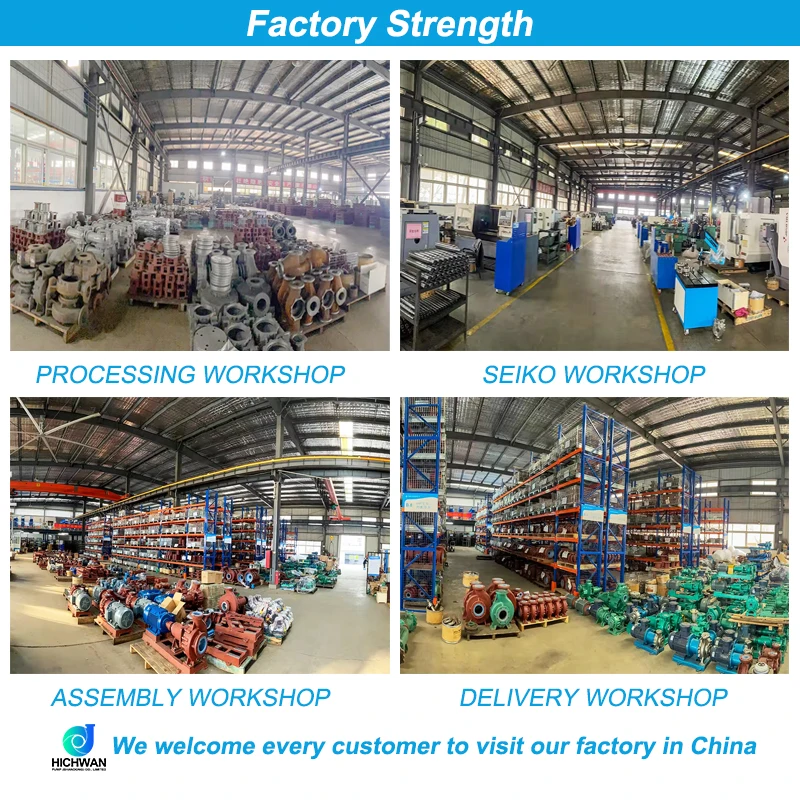

Established in 2008, our factory has become a famous enterprise in the Chinese market, and our products are exported to Europe, America, Asia and Africa.We integrate design, manufacturing, and service, with various large mold bases and advanced aluminum alloy molds to meet the special requirements of casting, OEM, and processing.
FAQ
Q:When will the product be shipped?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:In most cases, we guarantee delivery within 2 weeks, but if you need to customize, the delivery time needs to be negotiated.
Q:What is the packing method?
A:We offer standard export carton or plywood wooden case for package.
Q:What can you buy from us?
A:Kinds of Centrifugal Chemical Pumps.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Q:How long is the warranty period?
A:We provide 1-year warranty of the pump body.
Q:What are the terms of payment?
A:TT,L/C,Western Union,Paypal,Ali-pay,Cash,Credit Card.
Packing & Delivery
Contact Us
Похожие товары
Автоматическое Управление насосом-JUT-1 автоматический регулятор давления Водяной насос электронный переключатель
1 719,38 ₽
Водяной насос для аквариума
715,44 ₽
DB Высокое качество оптовая продажа Электрический Вертикальный 230 В * 50 Гц перекачивающий водяной насос для токарного станка
4 437,10 ₽
Шестеренчатый насос высокого давления с жидкостным охлаждением быстрый зарядный EV
31 059,70 ₽
Микро Бесщеточный погружной водяной насос Прямая продажа с фабрики Китая мини-Размер 5 В постоянного тока
330,21 ₽
DL Высокое качество 45 Вт 1500l/h микро аквариумный насос 1500L/H циркуляционный для аквариума
291,68 ₽ - 363,23 ₽

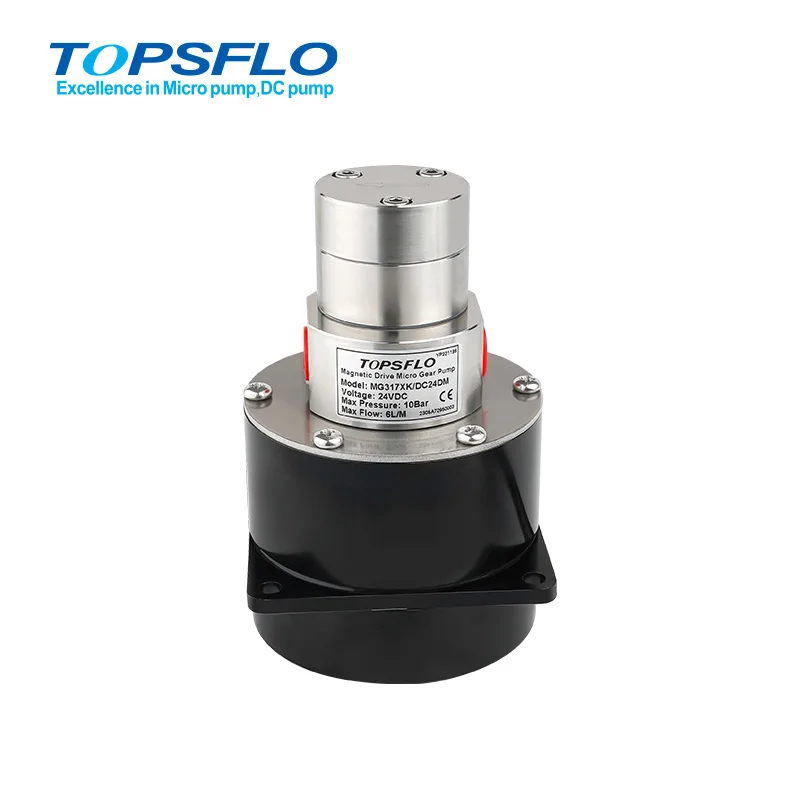

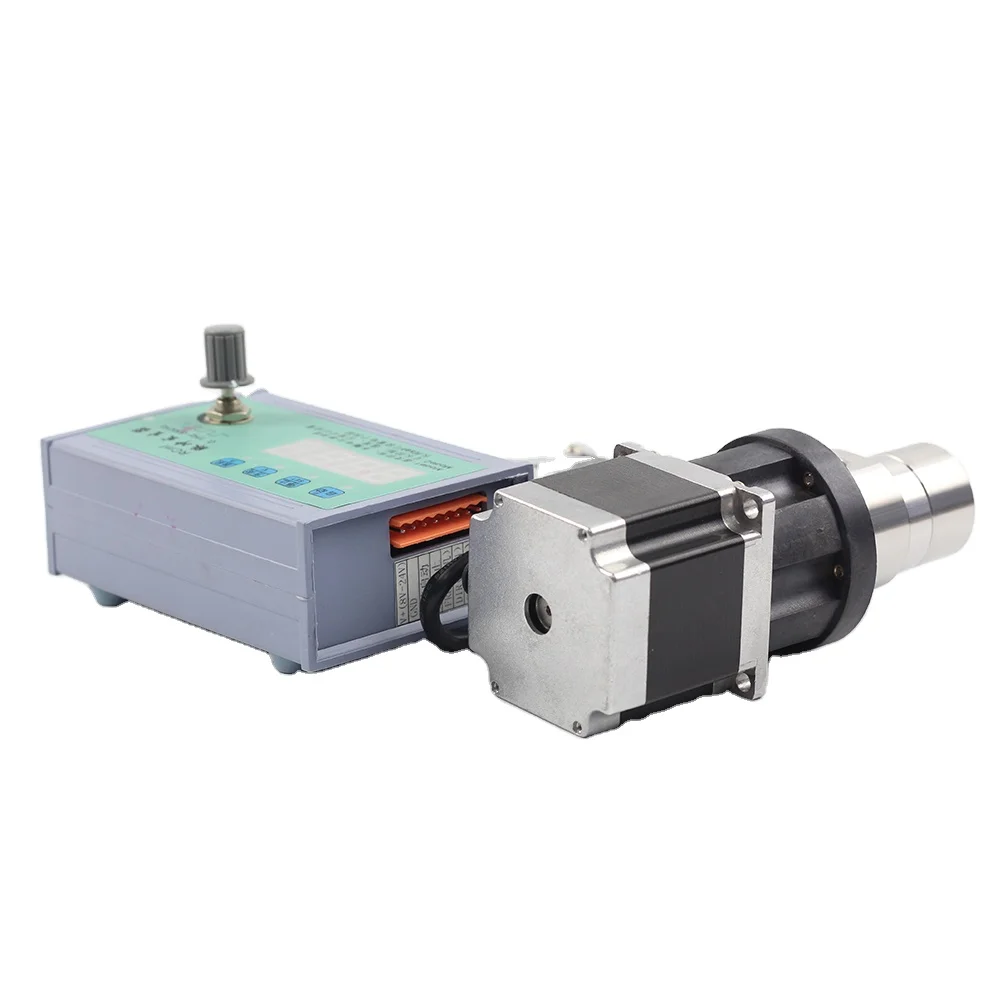

Оптовая продажа Высококачественные магнитные микро-шестеренчатые насосы запасные части с шаговым двигателем
