Измерительные устройства CISO DSG предназначены для двухлинейных систем с давлением до 400 бар
- Категория: >>>
- Поставщик: Yantai Ciso Lubrication Technology Co. Ltd.Yantai Ltd.
Сохранить в закладки 1601273805532:
Описание и отзывы
Характеристики
Products Description
●Easy cross-porting with external screw to combine
●Solid-block construction for durability and error-free exchange
●Operates effectively in a wide range of temperatures
●Easy to monitor
●Materials:steel galvanized
DSG Dual-line Metering Devices
The durable, galvanized steel DSG metering devices are designed for dual-line systems with pressures of up to 400 bar (5800 psi) These metering devices are available with up to eight outlets,and each pair of outlets is equipped with an indicator pin for visual monitoring.
Also, the DSG metering devices are available with low-wear proximity switches, or piston etectors, for electrical monitoring.Additional features include rust-resitant material.
Technical data | ||
Outlets | 2-8 | |
Operating temperature | Max.120℃ | |
Operating pressure | Max. 400bar，5800psi | |
Discharge | 0~2.2ml/cyc（adjustable） fixed output：0.55、1.1、1.65、2.2ml/cyc | |
Lubricant | NLGI 0#-3# | |
inlet thread | G3/8 | |
Outlet thread | G1/4 | |
Materials | steel galvanized | |
Dimensions(mm)：
Outlet Number | L1 | L |
2 | 30 | 44 |
4 | 62 | 76 |
6 | 94 | 108 |
8 | 126 | 140 |
Lubrication system customization
Single Line Lubrication System
A single-line lubrication system is a type of lubrication system in machinery and equipment that is used to provide a continuous supply of lubricant to various components.
A metering valve is mounted on the main line connected to the pump. The metering valve has a certain resistance to pressure shocks, after which the pressure is built up and the pressure delivers the established lubricant to the lubrication point. When the system is depressurised, a certain dose of lubricant is replenished in the metering valve for the next lubrication.
A metering valve is mounted on the main line connected to the pump. The metering valve has a certain resistance to pressure shocks, after which the pressure is built up and the pressure delivers the established lubricant to the lubrication point. When the system is depressurised, a certain dose of lubricant is replenished in the metering valve for the next lubrication.
The Advantages :●Connecting numerous lubrication points ●Smallest dosing quantities ●Compact construction
●For oil or grease● Cost-effective●Easy assembly
●For oil or grease● Cost-effective●Easy assembly
Progressive Lubrication System
The progressive lubrication system comprises a feed pump and progressive distributors.The lubricant is pumped through the main lines to the progressive distributor with the pump. The lubricant is delivered “progressively” to the friction point.The circulation of a progressive distributor is monitored optically or lectrically.
The Advantages :
●Compact lexible kit
●Monitored function
●Channels flow through completely
●Wide range of use
●Integrated return valve inside
●Compact lexible kit
●Monitored function
●Channels flow through completely
●Wide range of use
●Integrated return valve inside
Dual Line Lubrication System
Dual line lubrication systems can be used for large systems with dispersed lubrication points that require different amounts of lubrication. Using two main lines Alternating branch lines along the main line are connected to a two-line metering unit to supply large quantities of lubricant to the lubrication points.
In large two-line systems, pressure switches at the end of the line are used to control and In large two-line systems, end-of-line pressure switches are used to control and monitor the system. These flexible systems are simple in design and can be controlled.Dual line metering units can be combined with downstream progressive metering units to increase the total number of lubrication points receiving small quantities of lubricant. Two-line systems that can dispense accurate lubricant over distances of up to 100 metres or more, up to 2,000 lubrication points.
The Advantages :
●Reliability, up to 2,000 lubrication points can be supplied with precisely measured lubricant over a length of up to 100 m.
●Reliability, up to 2,000 lubrication points can be supplied with precisely measured lubricant over a length of up to 100 m.
●Simple and flexible, easy to expand or reduce
●Multiple applications
●Ultrasonic high and low level control
●Built-in lubricant filter
●Maintains high efficiency in harsh environmental conditions.
FAQ
1 .Are you factory or only company?

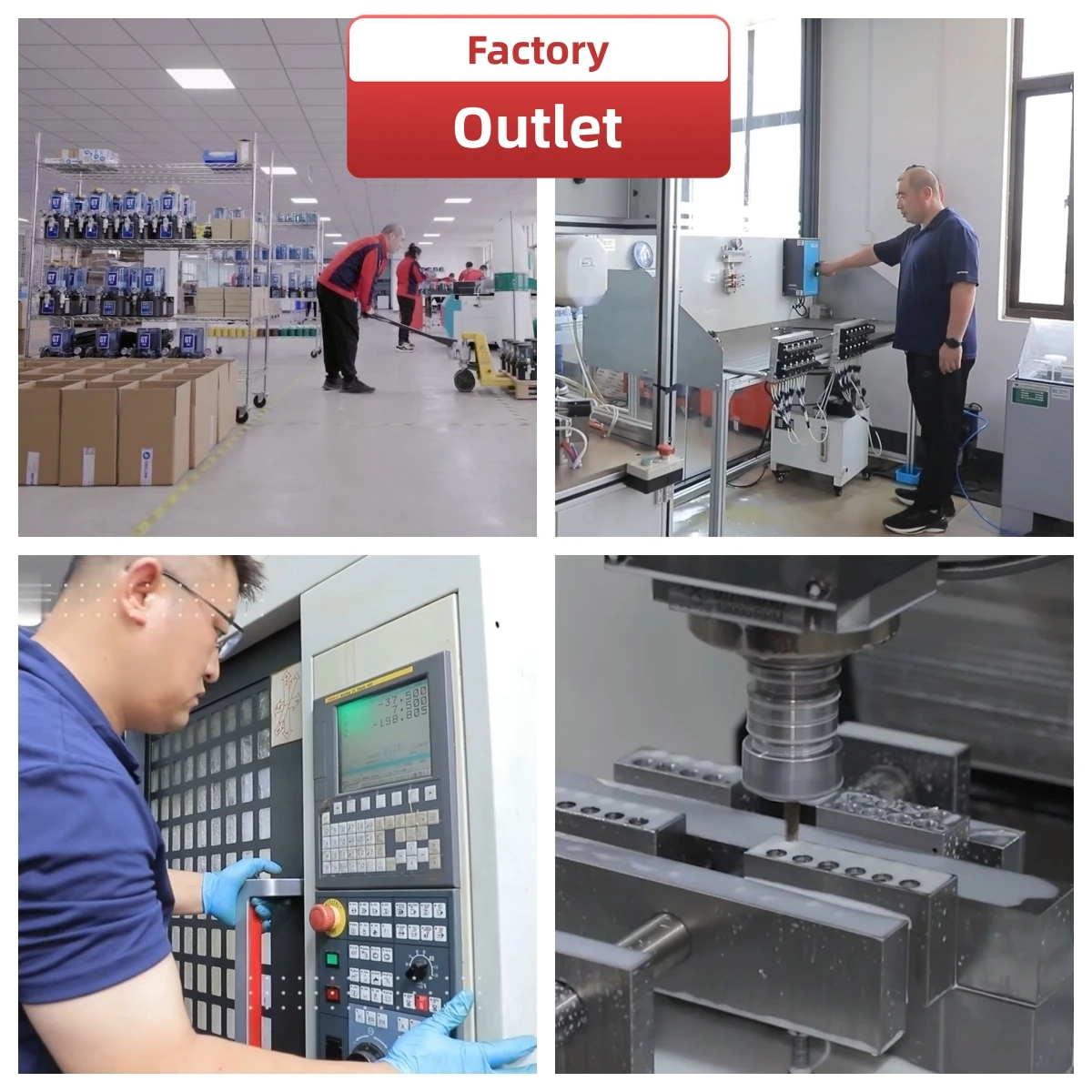

A:We have factory to produce lubrication pump.
2.What's your delivery time?
A: Generally,we can delivery in 3-7 days after we get the deposit.
3.What is the payment terms?
A: We accept T/T , 30% as the deposit,the balance payment should be paid before delivery the goods.
4.What's your MOQ?
A:Our MOQ is 10 pcs.
5.Can I be your agent in my country ?
A: We looks forward to long-term cooperation,if you have an idea,we can communicate in detail.
6.Can i have my own customized product?
A:Of course.We accept OEM and ODM.
A:We have factory to produce lubrication pump.
2.What's your delivery time?
A: Generally,we can delivery in 3-7 days after we get the deposit.
3.What is the payment terms?
A: We accept T/T , 30% as the deposit,the balance payment should be paid before delivery the goods.
4.What's your MOQ?
A:Our MOQ is 10 pcs.
5.Can I be your agent in my country ?
A: We looks forward to long-term cooperation,if you have an idea,we can communicate in detail.
6.Can i have my own customized product?
A:Of course.We accept OEM and ODM.
Похожие товары
Манометр для холодильного инструмента
237,22-296,53 ₽

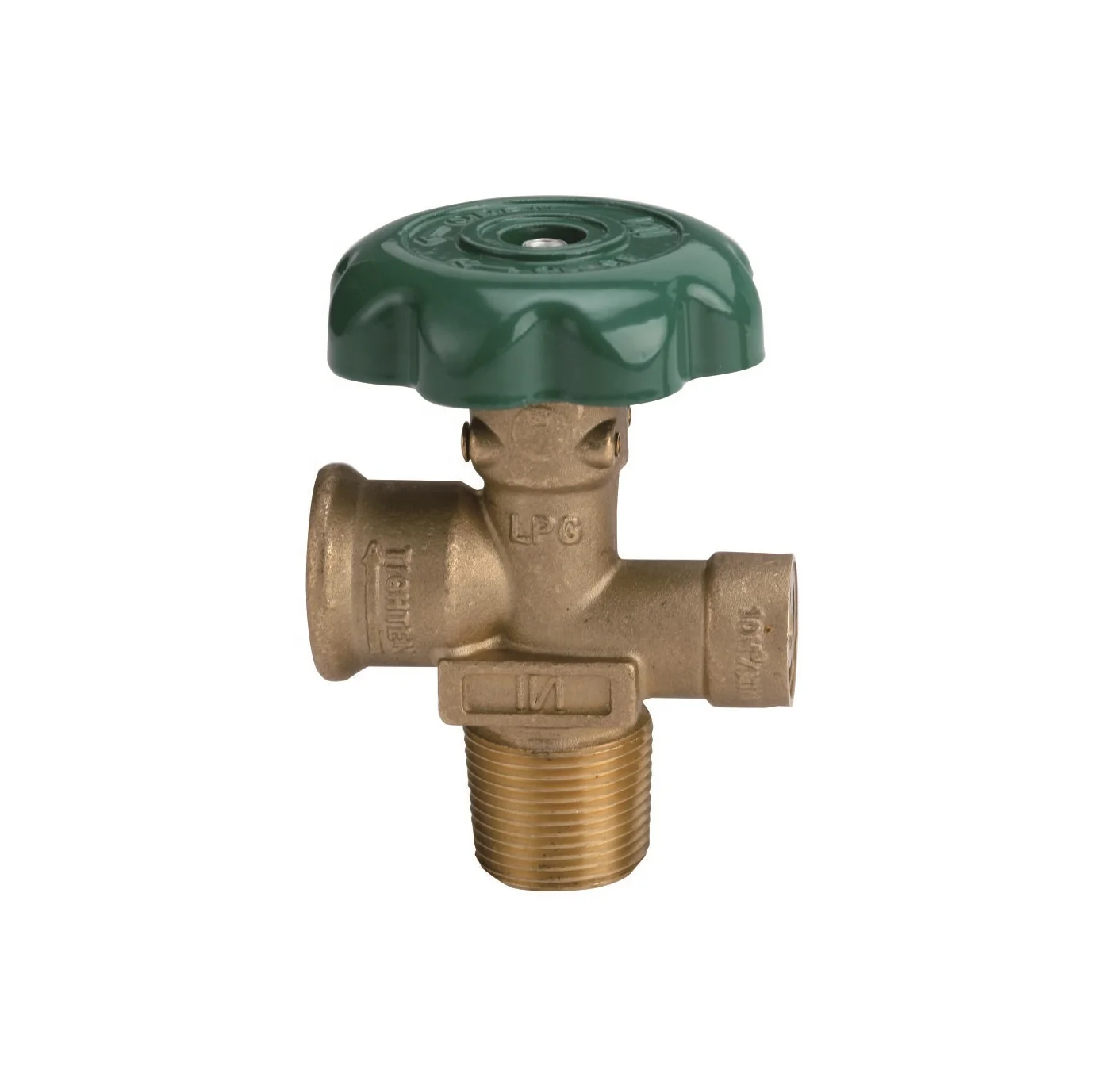

Высокое качество цилиндра со сжиженным клапан YSQ-6
355,83 ₽
Кованый шаровой клапан размером 1/2 'NPT концы из углеродистой стали регулирующий поток для промышленного использования
2 846,61-3 083,83 ₽
Registro Abre Fecha газ 1/2 Угловой 90 Npt Macho/femea
189,78-213,50 ₽

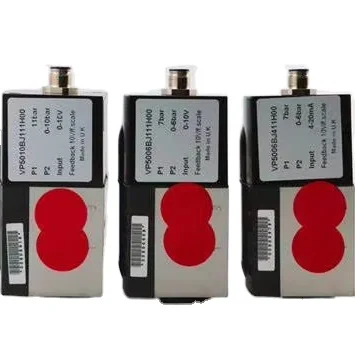

Новый оригинальный NORGREN VP5010BJ111H00 пропорциональный клапан контроля давления в наличии
35 582,55 ₽

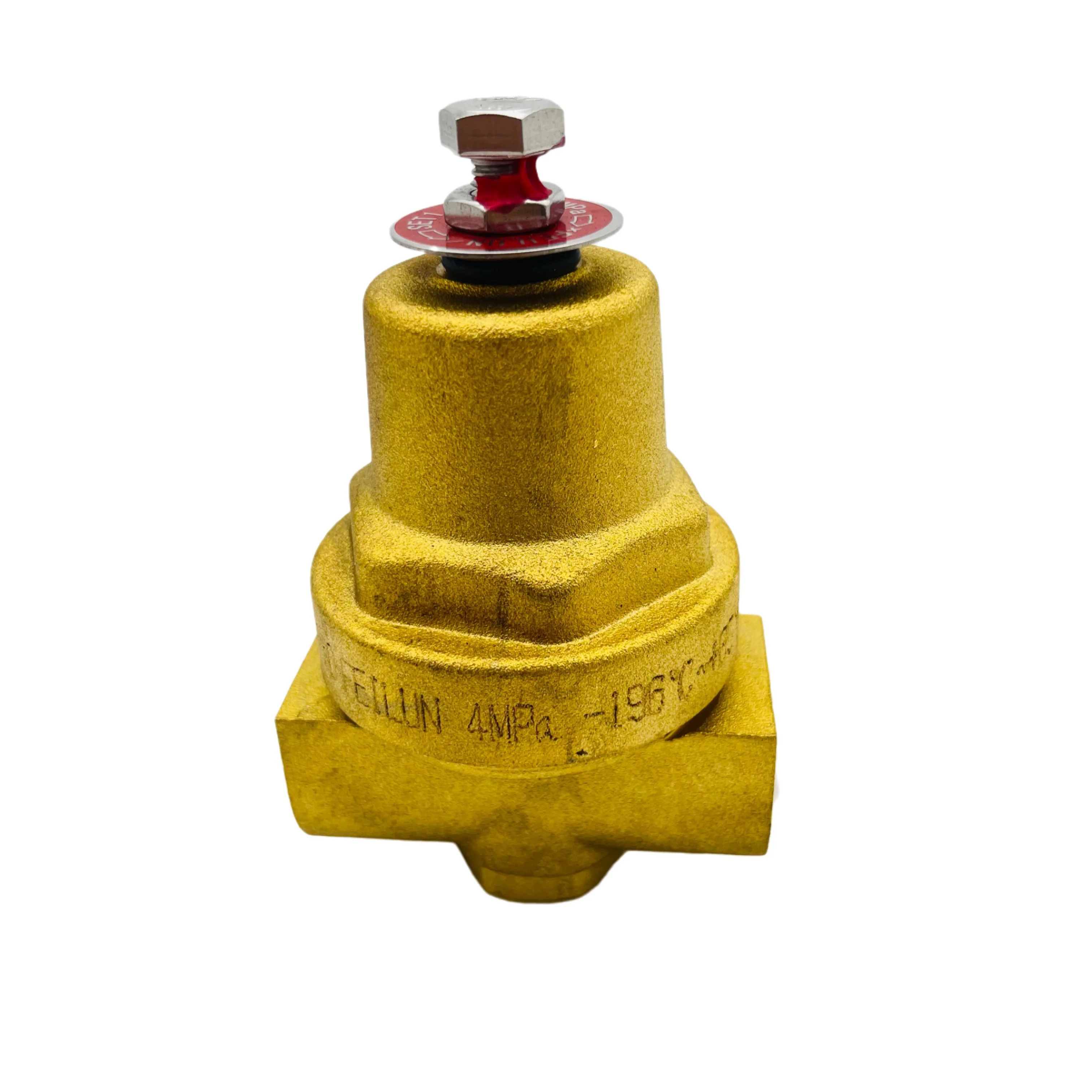

DYS-O6F криогенный гидравлический регулятор давления жидкости по лучшей цене
