DN1500 tuneladora tbm машина для балансировки шламовых труб туннельная Расточная

Сохранить в закладки 1601273840859:


Цена:29 147 569,92 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


Product Application

1. Introduction:
Remote controlled Slurry Balance Pipe Jacking Tunneling Machine is a new advanced non digging equipment with high technology.
Tunnel boring machine combines multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
Besides the high efficiency, micro pipe jacking machine also has no effect on the traffics on surface. Furthermore, TBM is good for the environment, and can lower the cost of the construction.
2. Application scope:
For trenchless underground pipe laying projects, eg. sewage, water supply, discharging projects, cables, tunnel.....

3. Specifications:
-3.1 Fit in soft soil, clay, sandy soil, gravel soil, hard soil, etc. wide range of soil body.
-3.2 Breakage ability strong, breakage particle size and number more.
-3.3 With independence water and slurry injection system and washing clean device for cutter in particular;fit for big N value hard soil.
-3.4 Jacking speed is very fast, theory max, speed is 120mm per min.
-3.5 Operation precision high, adjust the direction from up and down, left and right, Max. corrective angle is 2.5 degree.
-3.6 jacking distance can be long.
-3.7 Adopt ground operation system, safe, intuition and convenient!
-3.8 Structure firm, use and maintain easy, convenient for dismantling in work tunnel receiving tunnel.



Model:DG1500-QNP
Parameter
Main machine dimension
Inner diameter (mm)
1500
Outer diameter (mm)
1820
Total length (mm)
3800
Cutting Part
Electromotor Power (kW)
45
Cutterhead Torque (kN·m)
81.8
Cutterhead Rotating Speed (r/min)
5.25
oil cylinder of rectifying
Qty
4
Thrust Force (kN)
1000
Stroke (mm)
60
Rectifying Angle (°)
±2
Hydraulic System
Electromotor Power (kW)
1.5
Work Pressure (MPa)
25
Slurry system
Water Supply Pump Power (kW)
22
Mud Pump Power (kW)
37 KW (22KW+15KW)
Diameter of Side Mud pipes (mm)
100
Main Jacking system
Jacking Speed (mm/min)
0--80
Work Pressure (MPa)
31.5
Rated Jacking Force (kNm)
2000×4
Timing Way
Adopt Frequency Control
Total Power (KW)
18.5KW






Main Features

Our Products Advantages:
Pipe-Jack Machine.
Fit for trenchless underground pipe laying.
Easily control above ground, continuous work underground.
Fast speed safe!
Diameter from 250-5000mm.



Certifications

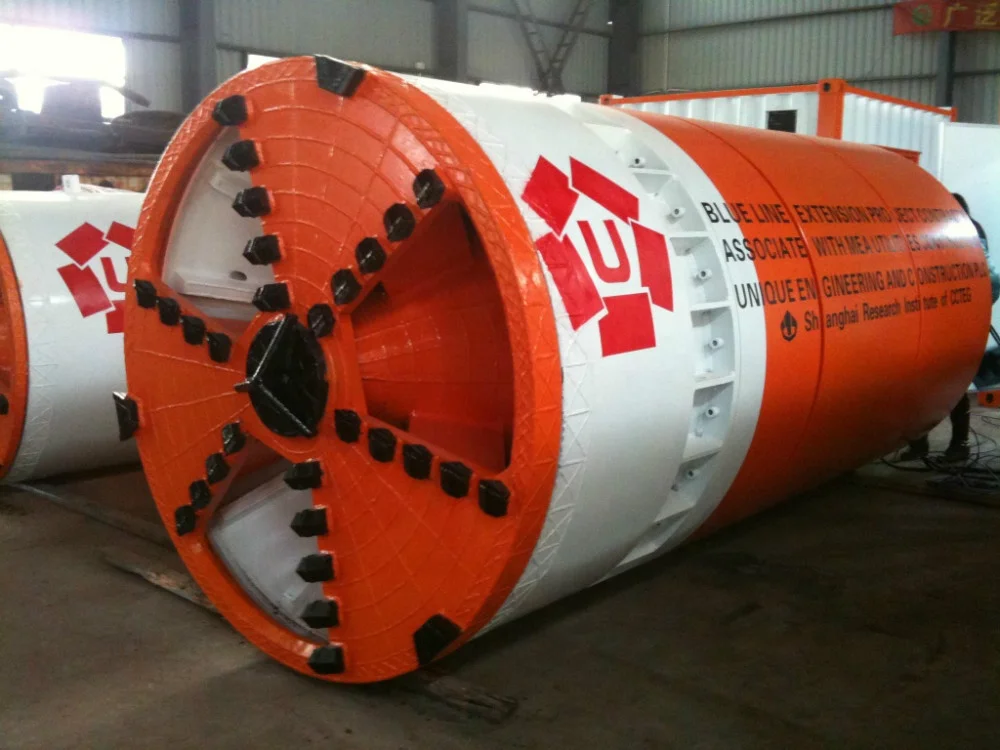

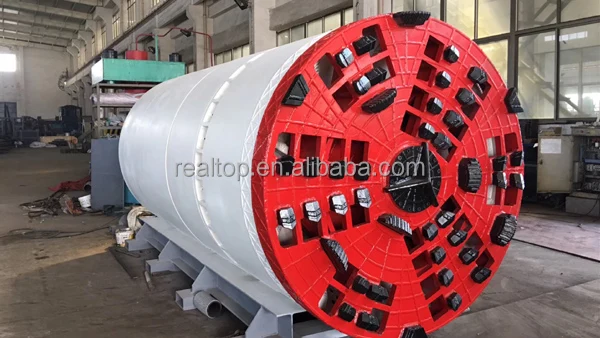

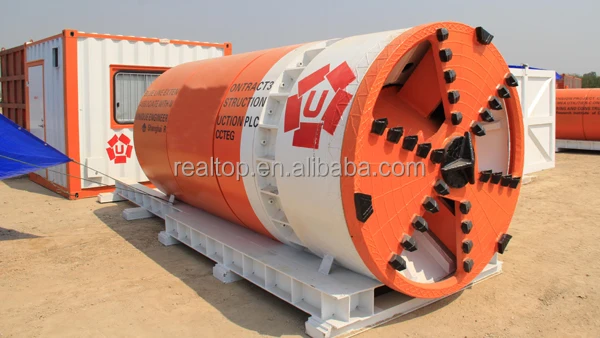

Detailed Images


Main operation station.


Pipe jacking monitoring system.




Main jacking pump.


Main cylinder.




Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* We will send professional technicist to project site to operate the machine and train operators for the first section of the project, usually 100m/150/200m etc. (free of charge)

* Longer distance service is available in charge.



Information needed for quotation accordingly:

1. Project total length, distance for one section, how many sections will be built?
2. Pipe type: concrete or steel etc, single length of the pipe? outer and inner diameter ?
3. Projects information: for water supply, sewage project?

4. Underground water level.
5. Soil type? sol report is needed.

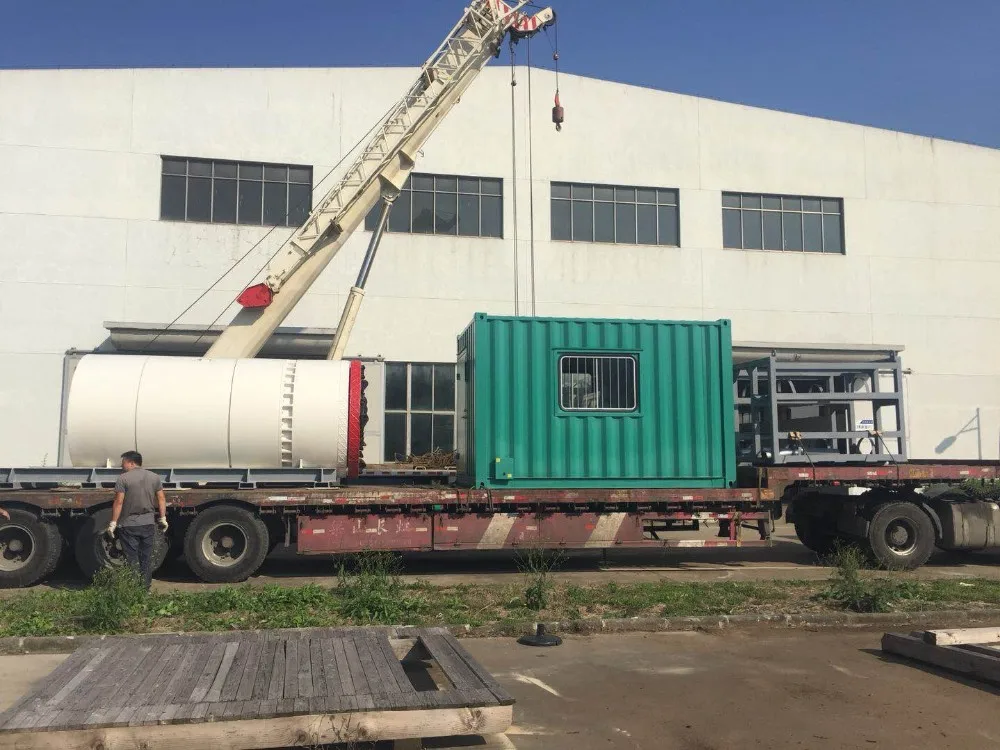

Packing & Delivery


Packaging
Size
1810* 3900 mm + parts
Weight
9T ~ 19T

Packaging Details
Normally delivery by FR, or small size pipe jacking machine will be delivery by normal containers.
