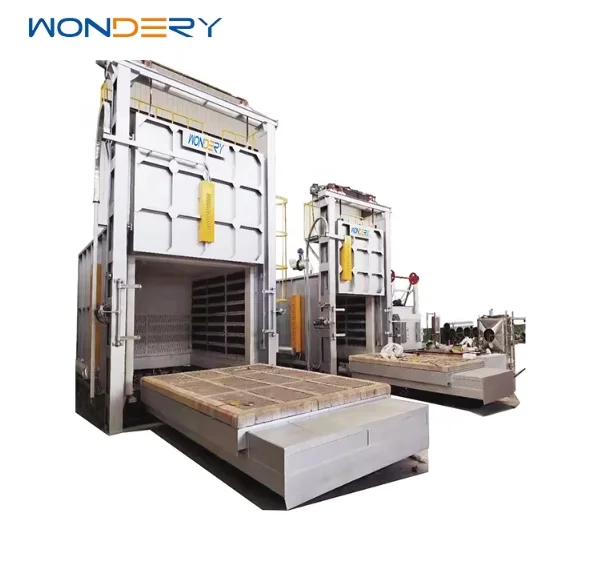

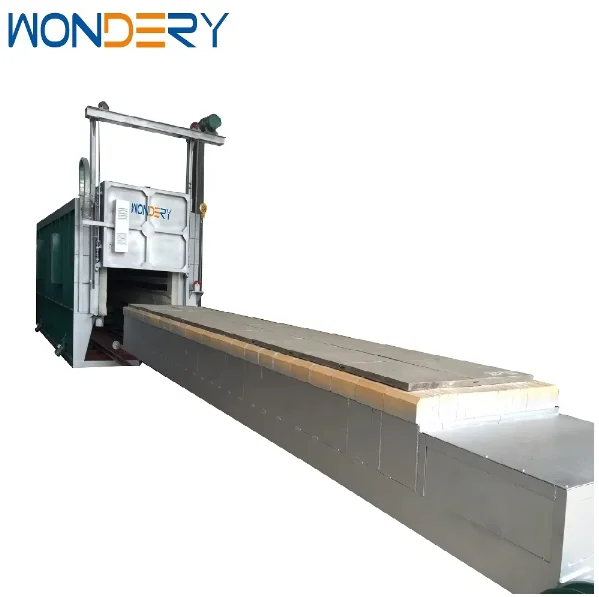

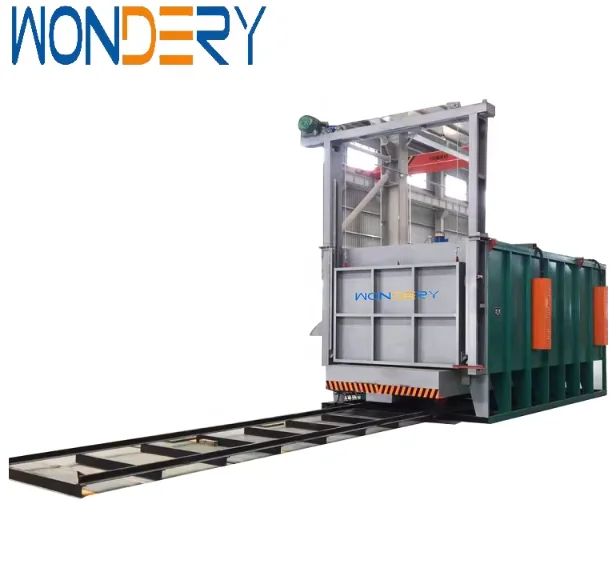

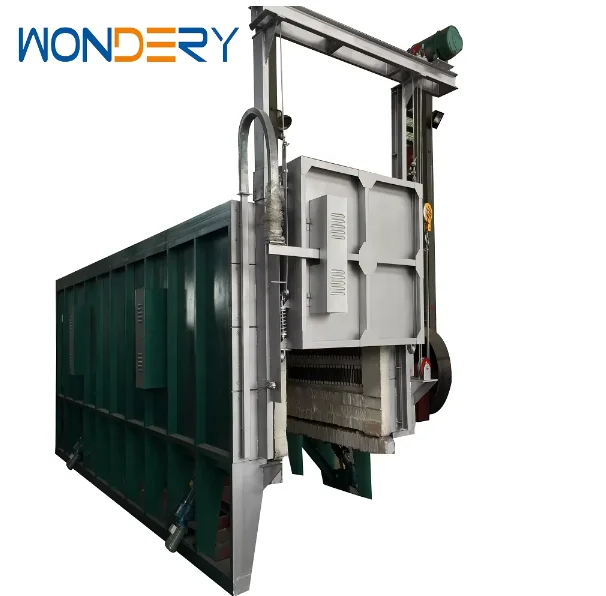

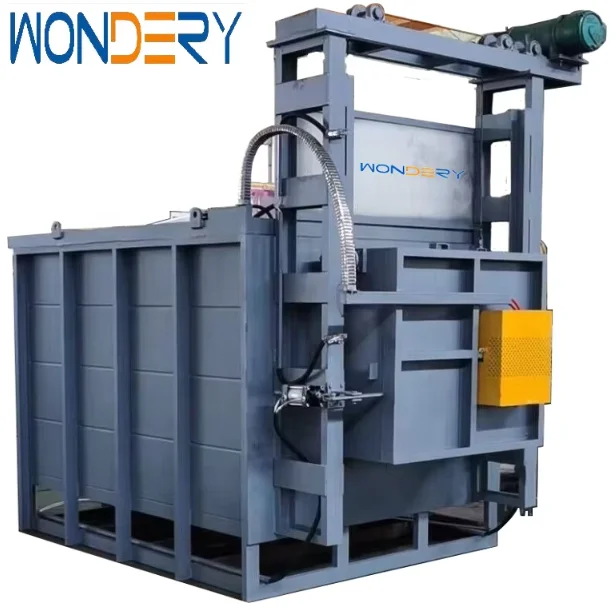

WONDERY China Manufacturer Industrial Electric Car Bottom Bogie Hearth Furnace Oven For Quenching Heat Treatment
Product Application
RTQ Series Trolley Type Resistance Furnace is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.
bogie hearth furnace for quenching bogie hearth furnace for quenching bogie hearth furnace for quenching
SPECIFICATIONS FOR WONDERY China Manufacturer Industrial Electric Car Bottom Bogie Hearth Furnace Oven For Quenching Heat Treatment | ||||||
Temperture contral system | Rated Temperature | ℃ | 1300 | |||
common heating temperature | ℃ | 400-1250 | ||||
Furnace body exterior temperature | ℃ | ≤ 55 + room temperature | ||||
Temperature control system precision | ℃ | ≤±1 | ||||
Uniformity of furnace temperature | ℃ | ≤±10 | ||||
Mechanical system | door lifting mechansim | electric hoist | ||||
bogie driving system | reducing motor | |||||
door and bogie moving speed | m/min | 6-8 | ||||
Refractory lining | hearth lining | aluminum silicate fiber | ||||
bogie lining | refractory brick | |||||
Main Features
1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
Detailed Images
Furnace Lining
The furnace lining empolys all fiber structure. The silicate aluminum fiber resists a maximum temperature of 1200℃.
Heating Elements On The Wall
The heating elements adopt 0Cr25AL5 resistance spiral-shape alloy resistance strips.
They are installed on both sides of the furnace body, the furnace door, the rear wall, and the furnace bottom. The installation method of the
resistance strip adopts dedicated ceramic screws to fix it.
Heating Elements On Bogie
The heating elements on the bogie are laid flat in the grooves of refractory brick masonry and fixed with shaped hooks. Their surface
load is smaller than that of other heating elements, making replacement and maintenance more convenient.
load is smaller than that of other heating elements, making replacement and maintenance more convenient.
Push Rod Sealing Mechanism
Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.
Control Cabinet
Name: GGD type electrical control cabinet
Brand: CHINT, SIEMENS, Schneider, Omron, etc.
Original: China, Germany, French, Japan, etc.
Model Table
Model | Hearth Size(mm) L*W*H | Rated Power (KW) | Empty Furnace Rising Time (h) | Max Loading Capacity |
RT2-30-9 | 950*500*450 | 30 | 2.5 | 500 |
RT2-45-9 | 1100*600*400 | 45 | 2.5 | 800 |
RT2-65-9 | 1200*600*450 | 65 | 2.5 | 1000 |
RT2-75-9 | 1500*750*600 | 75 | 2.5 | 1500 |
RT2-90-9 | 1800*900*600 | 90 | 2.5 | 2500 |
RT2-105-9 | 1800*900*650 | 105 | 2.5 | 3500 |
RT2-120-9 | 2000*900*700 | 120 | 2.5 | 4000 |
RT2-135-9 | 2000*1000*750 | 135 | 2.5 | 4200 |
RT2-150-9 | 2200*1000*800 | 150 | 2.5 | 5000 |
RT2-180-9 | 2200*1050*750 | 180 | 2.5 | 6000 |
RT2-200-9 | 2400*1200*900 | 200 | 2.5 | 6500 |
RT2-220-9 | 2500*1300*900 | 220 | 2.5 | 7000 |
RT2-240-9 | 2500*1400*900 | 240 | 2.5 | 8000 |
RT2-250-9 | 2800*1500*900 | 250 | 2.5 | 9000 |
RT2-280-9 | 3000*1500*950 | 280 | 2.5 | 10000 |
RT2-300-9 | 3000*1530*950 | 300 | 2.5 | 11000 |
RT2-320-9 | 3200*1530*950 | 320 | 2.5 | 12000 |
RT2-350-9 | 3500*1500*1200 | 350 | 2.5 | 15000 |
RT2-380-9 | 4000*1500*1200 | 380 | 2.5 | 18000 |
RT2-400-9 | 4500*1500*1200 | 400 | 3 | 20000 |
RT2-420-9 | 4500*1600*1200 | 420 | 3 | 22000 |
RT2-450-9 | 5200*1500*1200 | 4450 | 3 | 25000 |
RT2-480-9 | 5500*1500*1200 | 480 | 3 | 28000 |
RT2-500-9 | 6000*1500*1200 | 500 | 3 | 30000 |
RT2-540-9 | 6500*1800*1200 | 540 | 3 | 35000 |
RT2-600-9 | 7000*1800*1200 | 600 | 3 | 38000 |
RT2-650-9 | 7200*2000*1200 | 650 | 3 | 40000 |
RT2-700-9 | 7500*1800*1800 | 700 | 3 | 42000 |
RT2-750-9 | 8000*2000*2000 | 750 | 3 | 48000 |
RT2-800-9 | 8500*2000*1500 | 800 | 3.5 | 52000 |
RT2-900-9 | 9000*2200*1600 | 900 | 3.5 | 60000 |
Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
