Product Description
We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspections are carried out by highly trained inspection engineers as per the defined procedures from raw material stage to finished product and delivery. Prototype assembly of towers is carried out in the plant.
Pole’s height | 5m to 15m |
Shape of pole | Round conical; Octagonal tapered; Straight square; Tubular stepped; |
Brackets/ Arm | Single or double brackets/ arm are in the shape and dimension as per customers requirement |
Length | Within 14m once forming without slip joint |
Wall thickness | 2.5mm to 20mm |
Welding | Internal and external double welding |
Jointing | insert mode,innerflange mode,face to face joint mode. |
Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
Powder coating | Pure polyester powder painting, color is optional according to RAL Color stardand. |
Wind Resistance | Aganist wind pressure of 160Km/h |
Manufacturing | According to GB/T 1591-1994. |
Application
• Road• Expressway• Stadium• Outdoor parking lot• Square• Airport• Garden
Production process
Step 1
Material
Step 2
Cutting
Step 3
Cutting Material With Size
Step 4
Bending
Step 5
Cutting Flange
Step 6
Cutting Pipe
Step 7
Welding
Step 8
Assembling
Step 9
Welding By Hand
Step 10
Polishing
Step 11
Galvanization
Step 12
Post -Processing
Product Inspection

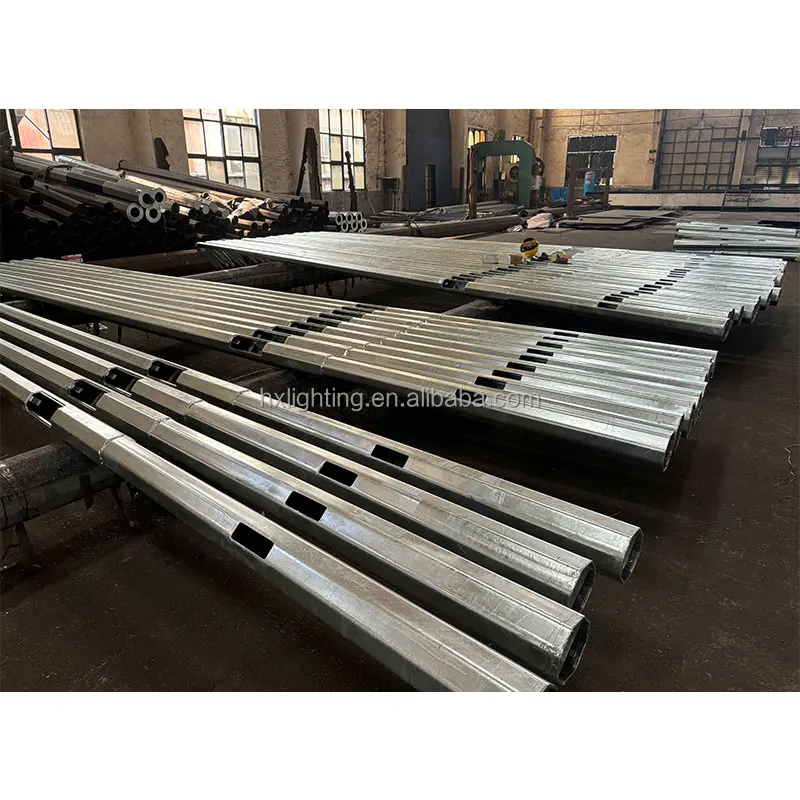

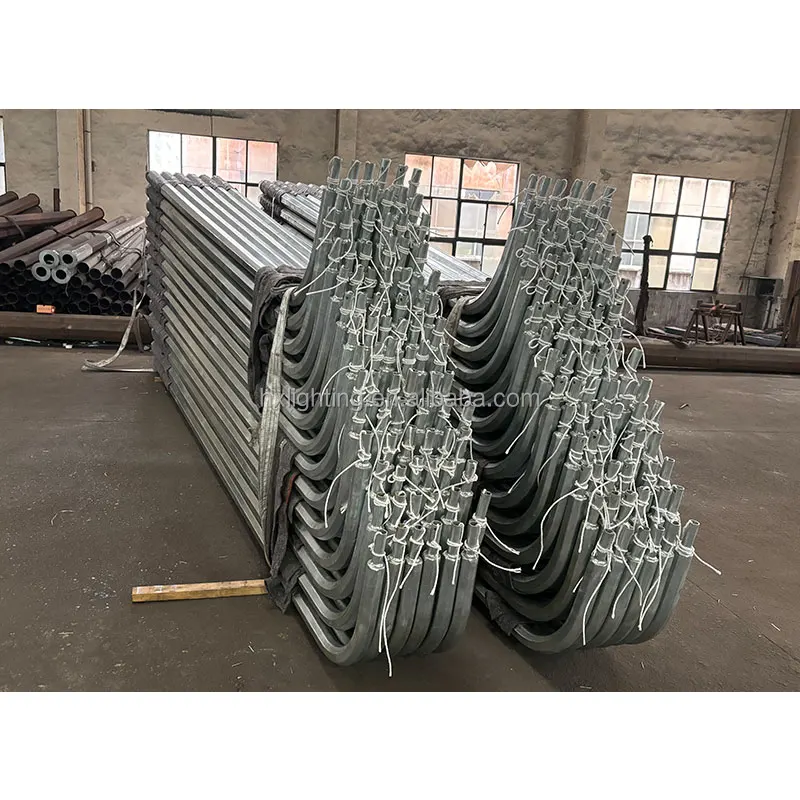

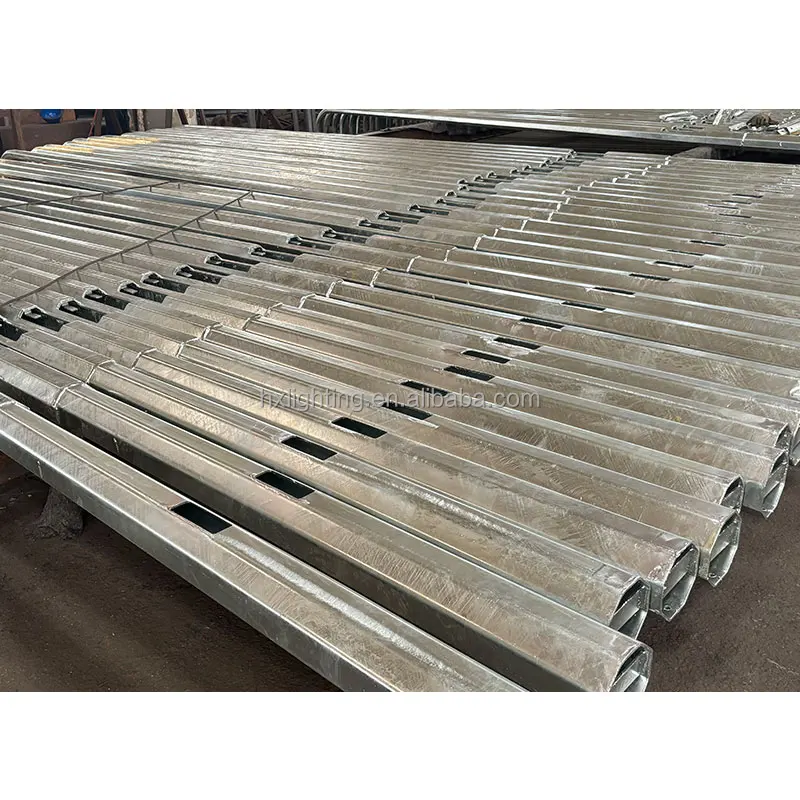

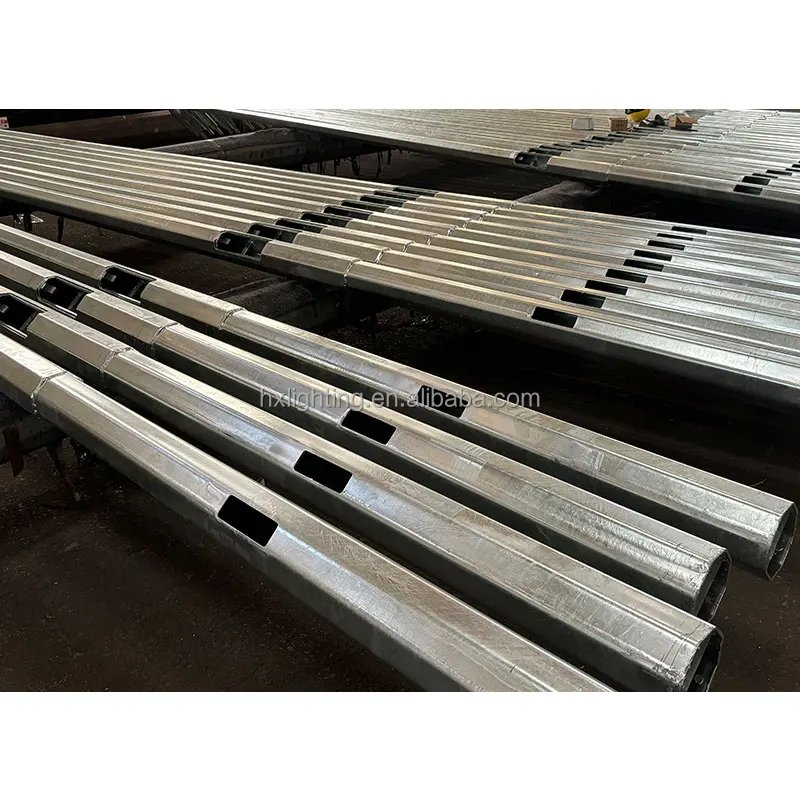

Detailed Images
Base plate mounted
Base plate is square or round in shape with slotted holes for anchor bolt and dimension as per customers requirement.
Ground mounted
The length buried underground as per customers requirement.
Company Introduction
Yixing Hongxin Lighting Equipment Co., Ltd. is located in Wanshi Town, adjacent to the beautiful Taihu Lake, convenient transportation.
Our main products are: street light pole, power pole, traffic signal pole, solar light pole, steel pole, high mast lamp pole and so on.
We take customer requirements as our development direction. It is our responsibility to provide quality service to your customers. The factory covers an area of 15,000 square meters. With professional equipment, advanced technology, strong capital and perfect management, we can not only produce the existing products on the market, but also carry out new designs according to customer requirements. We firmly believe that "science and technology is the first productive force". In the new product development, energy conservation, new energy, green lighting product quality and other aspects of long-term cooperation with a number of scientific research institutes, has achieved fruitful results.
We take customer requirements as our development direction. It is our responsibility to provide quality service to your customers. The factory covers an area of 15,000 square meters. With professional equipment, advanced technology, strong capital and perfect management, we can not only produce the existing products on the market, but also carry out new designs according to customer requirements. We firmly believe that "science and technology is the first productive force". In the new product development, energy conservation, new energy, green lighting product quality and other aspects of long-term cooperation with a number of scientific research institutes, has achieved fruitful results.

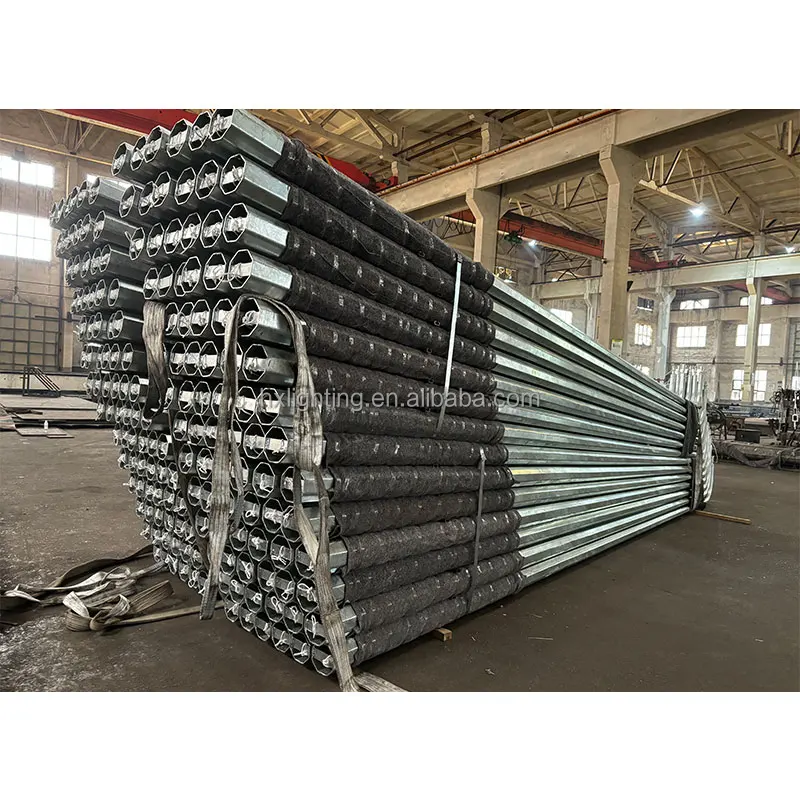

Packing&Shipping
FAQ
Q1:How can I get the price of needed pole?
A:1.Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler,we would like to grow up with you together.
Q3:I am a designer, can you help me to produce the sample which I designed?
A:Our mission is to help customers to be successful.So it's welcome if we can help you solve problem and make your design come true.
Q4:Tell me about your company?
A:Yixing Hongxin Lighting Equipment Co., Ltd.,we have been a manufacturer and exporter of all kinds of steel poles,including street lighting pole,solar energy light pole,mid-hinged light pole,high mast pole and other steel products.
Q5:Do you have some special policies for Brand company?
A:Yes,we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q6:Can you make Door to Door service? Because I don't know how to do customs clearance.
A:Yes.We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
A:1.Please give the exactly dimensions such as height, thickness, material, top and bottom dia. We can give you a similar price according to your specification.
2.You can give a drawing.We can give you the price according to your drawing.
Q2:I am a small wholesaler, do you accept small order?
A:It's no problem if you are a small wholesaler,we would like to grow up with you together.
Q3:I am a designer, can you help me to produce the sample which I designed?
A:Our mission is to help customers to be successful.So it's welcome if we can help you solve problem and make your design come true.
Q4:Tell me about your company?
A:Yixing Hongxin Lighting Equipment Co., Ltd.,we have been a manufacturer and exporter of all kinds of steel poles,including street lighting pole,solar energy light pole,mid-hinged light pole,high mast pole and other steel products.
Q5:Do you have some special policies for Brand company?
A:Yes,we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market.
Q6:Can you make Door to Door service? Because I don't know how to do customs clearance.
A:Yes.We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time and money.
