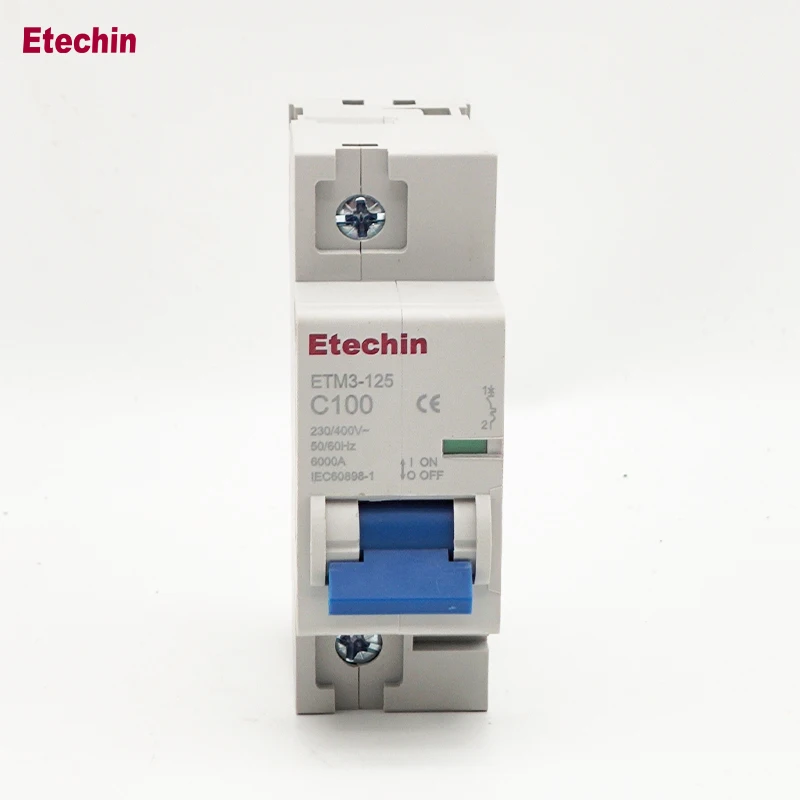

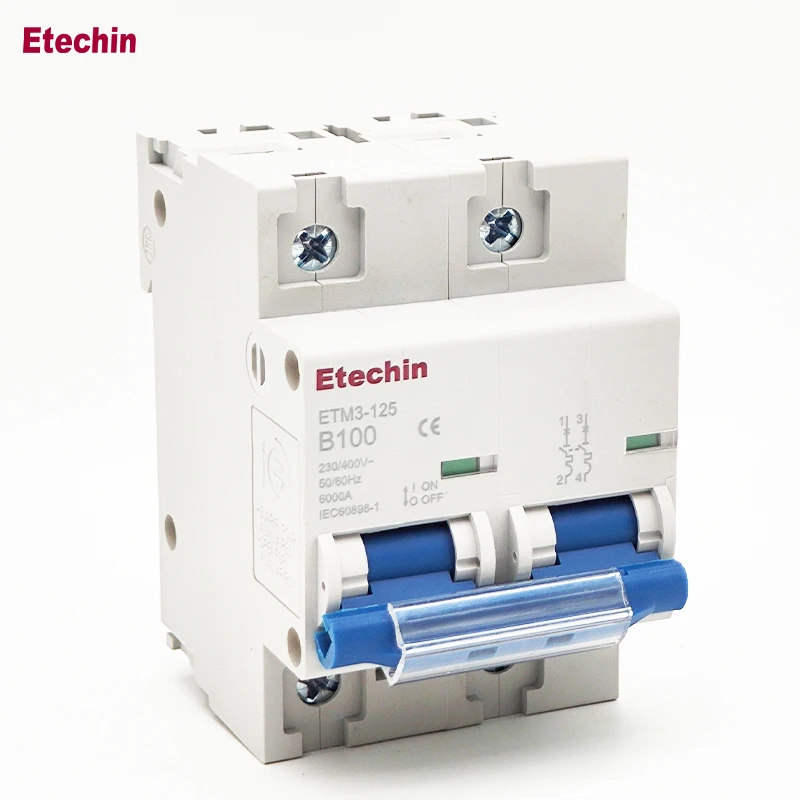

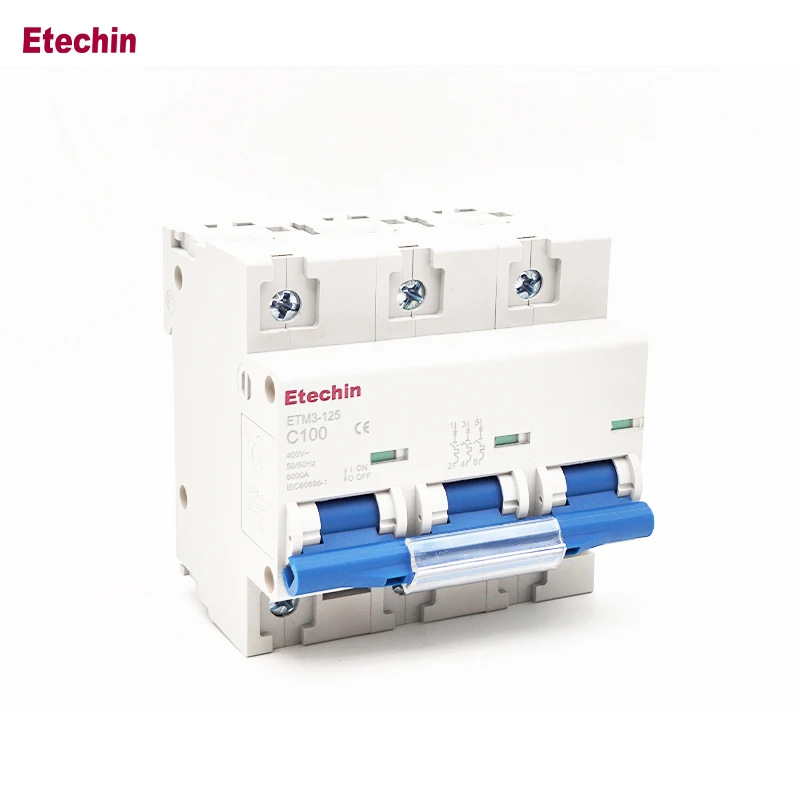

Этечин 2P 80A 100A 125A DC MCB 600V Автоматический выключатель для PV системы C кривой главный батареи
- Категория: >>>
- Поставщик: Wenzhou Etechin Electric Co. Ltd.
Сохранить в закладки 1601274037002:
Описание и отзывы
Характеристики
Product Description
ETM3 series MCB is in complied with IEC 60898-1 standard. It has the certification of Dekra / KEMA, CE and CB .
The breaking capacity of ETM3 is 10KA, or 6KA.
The tripping type is B, C, D curve.
The rated current is (1A, 2A, 3A, 4A) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A. The rated current is related to different areausing for example one pole 10 to 16 ampere is normally used for lighting, 20 ampere to 33 ampere is normally used for kitchen andbathroom area, also used for air conditioner and other line equipment. Some customers will choose 2 pole, 40ampere to 63 ampere asmain switch instead of isolator.
The tripping type is B, C, D curve.
Rated insulation voltage: AC, 230V, 240V, 230 / 240V (1 Pole); 400 / 415V (2 poles, 3 poles). DC, 250V 1P, 500V 2P, 750V 3P, 1000V4P.

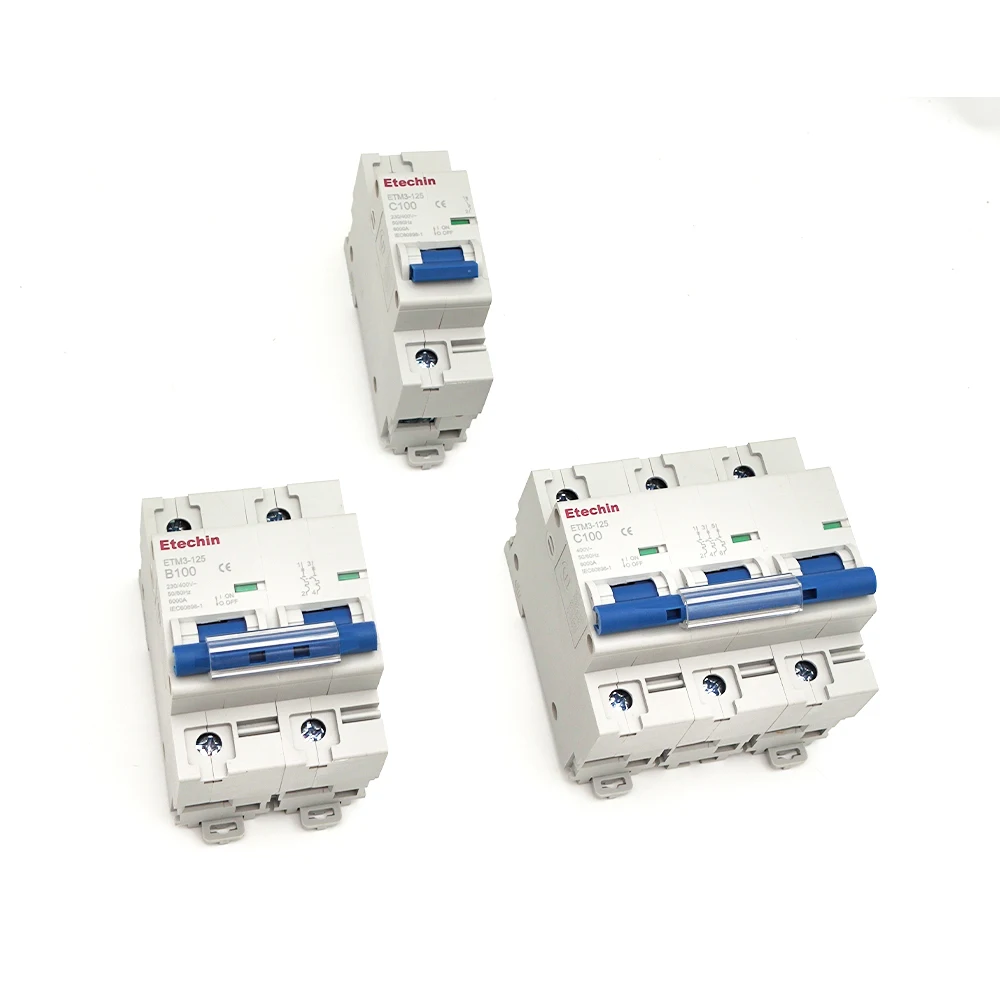

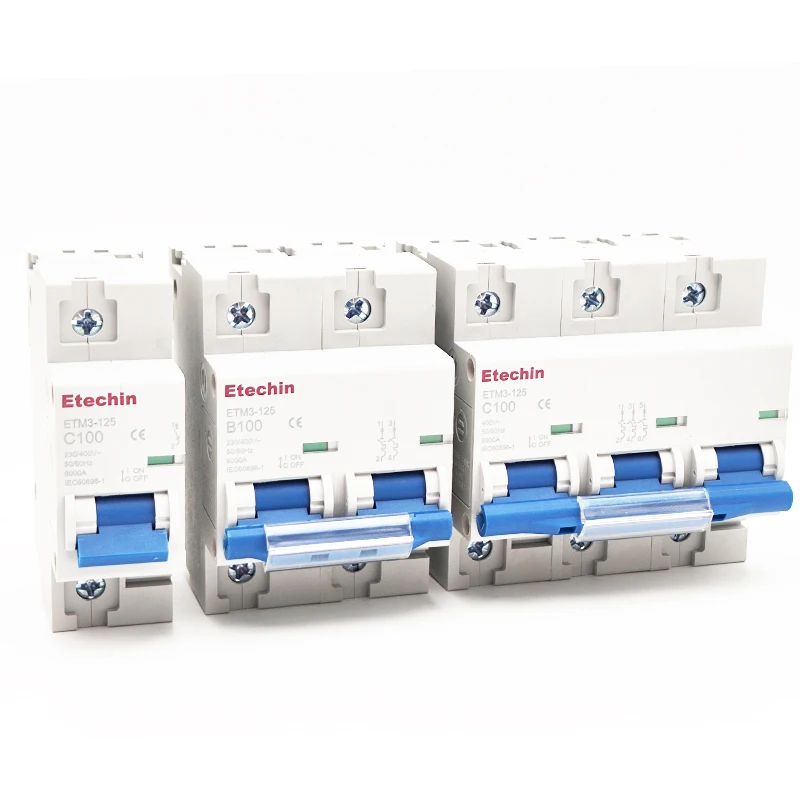

It has single pole (1p), double poles (2p), three poles (3p), and four poles(4p).
There is a position indicator equipped on the products, Red is on, Green is off.
The MCB terminals are IP20 protection which is designed for finger and hand touch safe to keep the safety during installation.
The ETM3 MCB can work reliably in harsh environment, in ambient temperature from -5°C to 50°C.
The electrical life can be up to 8000 operations and mechanical life up to 20000 operations, while the IEC requirement is only4000 operations and 10000 operations.
It’s mounting type is to be mounted on din rail EN60715 35mm.
The breaking capacity of ETM3 is 10KA, or 6KA.
The tripping type is B, C, D curve.
The rated current is (1A, 2A, 3A, 4A) 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A. The rated current is related to different areausing for example one pole 10 to 16 ampere is normally used for lighting, 20 ampere to 33 ampere is normally used for kitchen andbathroom area, also used for air conditioner and other line equipment. Some customers will choose 2 pole, 40ampere to 63 ampere asmain switch instead of isolator.
The tripping type is B, C, D curve.
Rated insulation voltage: AC, 230V, 240V, 230 / 240V (1 Pole); 400 / 415V (2 poles, 3 poles). DC, 250V 1P, 500V 2P, 750V 3P, 1000V4P.
It has single pole (1p), double poles (2p), three poles (3p), and four poles(4p).
There is a position indicator equipped on the products, Red is on, Green is off.
The MCB terminals are IP20 protection which is designed for finger and hand touch safe to keep the safety during installation.
The ETM3 MCB can work reliably in harsh environment, in ambient temperature from -5°C to 50°C.
The electrical life can be up to 8000 operations and mechanical life up to 20000 operations, while the IEC requirement is only4000 operations and 10000 operations.
It’s mounting type is to be mounted on din rail EN60715 35mm.
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | Etechin |
Model Number | ETM3 |
Breaking Capacity | 6kA, 10kA |
Rated Voltage | AC, 230V, 240V, 230 / 240V (1 Pole); 400 / 415V (2 poles, 3 poles). DC, 250V 1P, 500V |
BCD Curve | bCd |
Type | MCB |
Rated Frequency (Hz) | 50/60 |
Protection | no |
Product name | Mini Circuit Breaker |
Certificate | KEMA |
Color | White |
Function | Short-circuit Protection |
Pole | 1P/2P/3P/4P |
Standard | IEC60898-1 |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Wenzhou Etechin Electric Co., Ltd. is one of the leading electric manufacturers in China. As an experienced manufacturer in the low-voltage electric field, we specialize in manufacturing advanced circuit breakers, distribution boards and electric accessories. In order to meet the increasing needs of customers, we persist in the development of new items according to market trend. Meanwhile, OEM items are also welcome.
Our company has kept continuous development for many years based on strong technical force and sincere attitude to business partners. We own modern product lines, high quality testing equipment, scientific administration, professional engineers, highly-trained technicians and skilled workers. All these merits promote our products to tally meet the international standards.
Our products sell well in more than 20 countries and regions around the world and gain a high reputation. It is no doubt that we satisfy our customers with high quality products, considerate service and favorable price. We are confident to be your trustable partner based on our everlasting efforts. Please feel free to contact us for further information.
Our company has kept continuous development for many years based on strong technical force and sincere attitude to business partners. We own modern product lines, high quality testing equipment, scientific administration, professional engineers, highly-trained technicians and skilled workers. All these merits promote our products to tally meet the international standards.
Our products sell well in more than 20 countries and regions around the world and gain a high reputation. It is no doubt that we satisfy our customers with high quality products, considerate service and favorable price. We are confident to be your trustable partner based on our everlasting efforts. Please feel free to contact us for further information.
FAQ
Похожие товары
Микро-выключатели от профессионального производителя 1-63A Micro MCB переключатель RCCB/RCBO/ELCB/MCCB/DZ47-63 1P 2P 3P 4P Медь 1000V
108,01 ₽ - 129,61 ₽

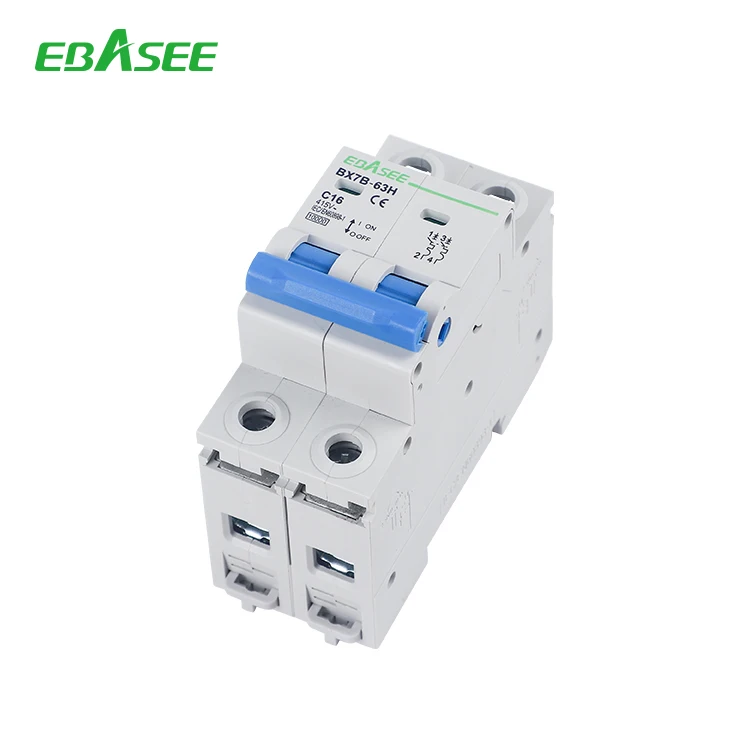

EBASEE высокое качество 6KA BX7B-63N 1P 2P 3P 4P MCB
73,45 ₽ - 297,02 ₽

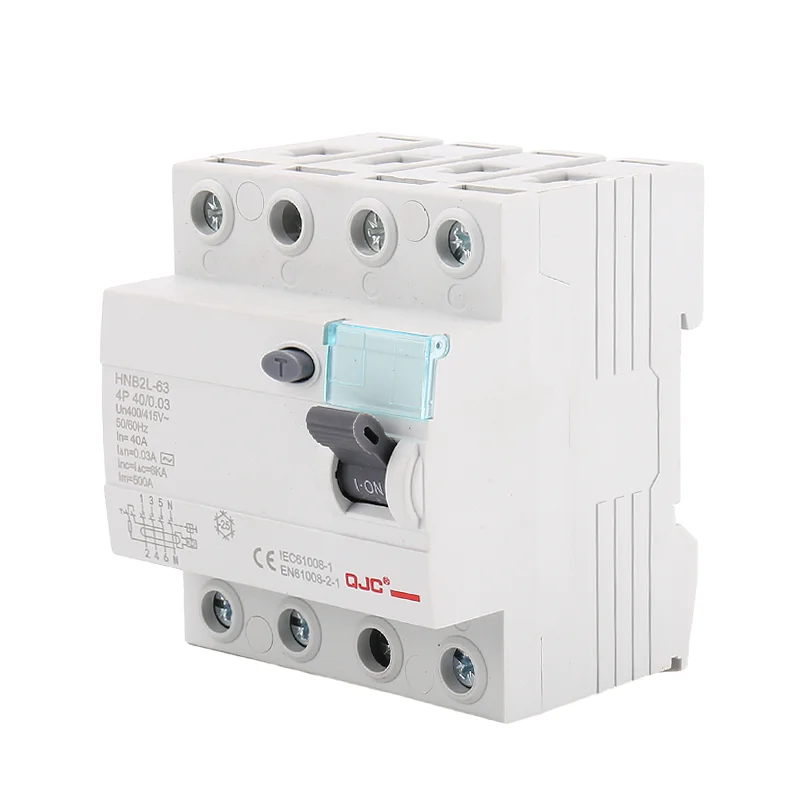

Электронные автоматические выключатели QJC MCB RCB RCBO RCD 4 p 4 полюс 6 КА 6 ка 10/16/20/32/40/50/63/80/100/125 Ампер 30 мА
561,64 ₽ - 808,97 ₽
Сертификат EBASEE CE 1P 2P 3P 4P 30A 40A вилка выключателя переменного тока qo mcb
105,85 ₽ - 140,41 ₽

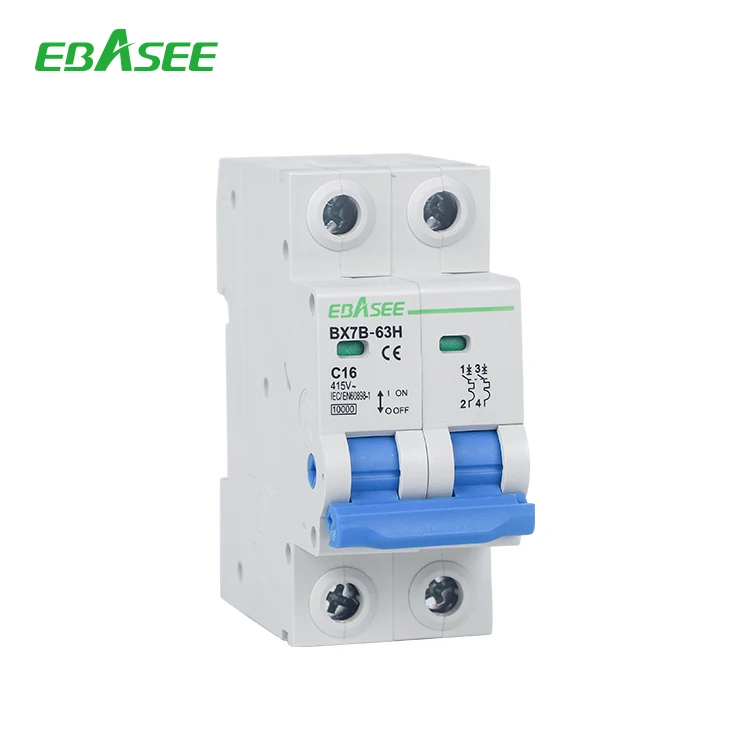

EBASEE высокое качество 4,5/6/10KA BX7B-63 1P 2P 3P 4P MCB
