Сильфонные полипропиленовые ПВХ гофрированные сильфонные водопроводные электрические трубы для производства труб машины обработки машина

Сохранить в закладки 1601274218925:


Цена:3 252 860,13 ₽ - 3 253 077,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



product properties


Equipment list


MAIN EQUIPMENT
NO.
Description
Qty
1
Auto Feeder
1 set
2
SJ65/30 Single Screw Extruder
1 set


3
New Design Die head
    1 set
4
Mouth mould、core bar、gas nose and pull rod
1 set


5
Corrugated pipe forming mould
1 set


6
High speed forming machine
1 set


7
Double station winding machine
1 set




SAMPLE DISPLAY




High Speed corrugated pipe production line

High speed single wall corrugated pipe making machinery for electrical wire conduit pipe tube.
QINGHANG plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used as wires of up-market cars, cable protection pipe, water smoking pipe and so on.
Production speed :20-30m/min.


Qing hang high speed corrugated pipe nachine

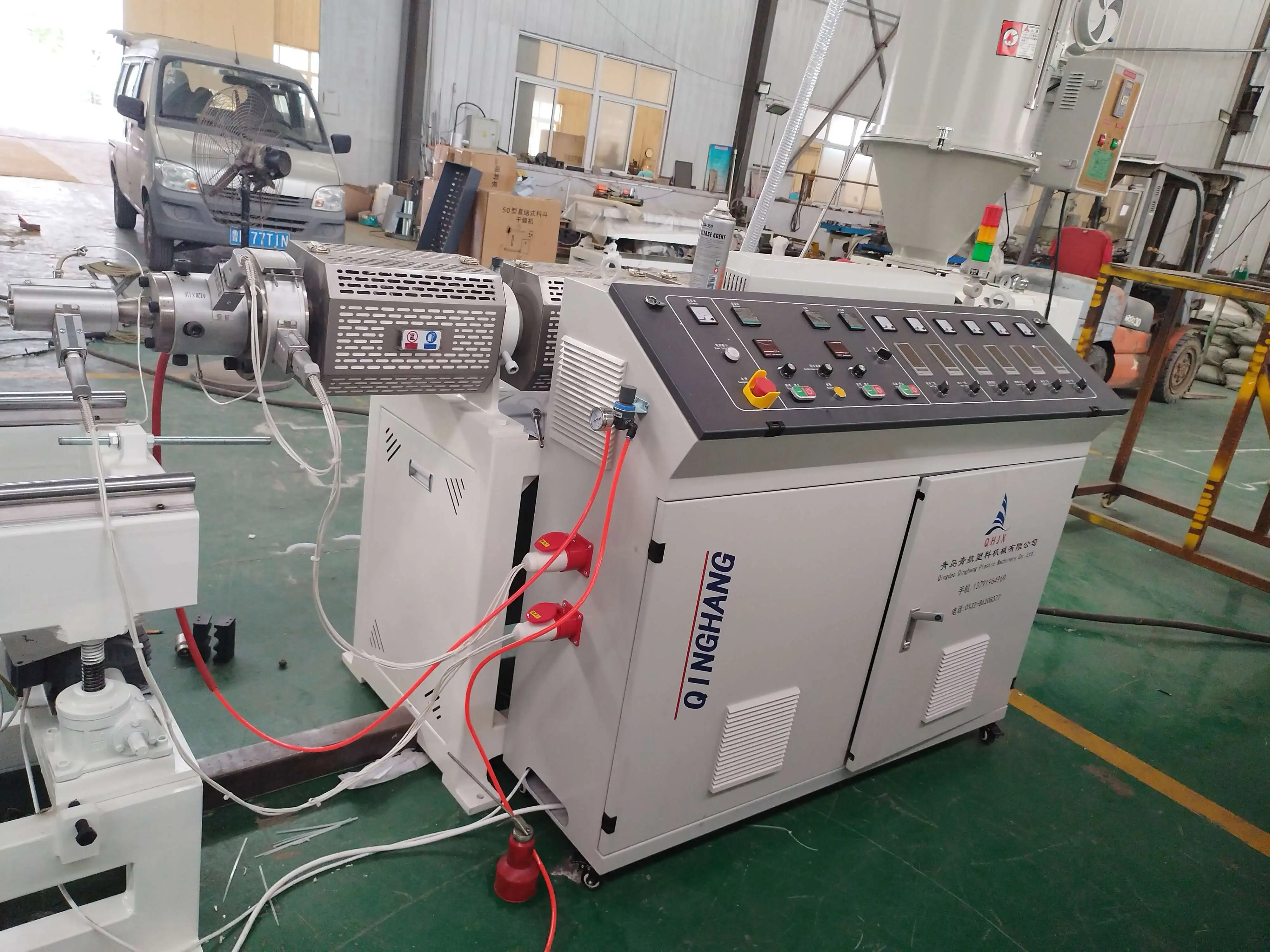

SINGLE-SCREW EXTRUDER
The high-efficiency single screw extruder adopts a two-stage overall design, strengthening the plasticizing function, ensuring high-speed, high-performance, and stable extrusion. The special barrier comprehensive mixing design ensures the mixing effect of the material, and the high shear and low melting plasticizing temperature ensures the high-performance, low-temperature, and low-pressure metering extrusion of the material.




DIE HEAD WITH ENERGY SAVING HEATING RING

The function of die head and mold the rock wool in the heating ring and die head can hold heat, then save about 30%electrical costs for customer.
QINGHANG new design, the core bar and mouth mold fit together, when change size, no like the old design change the core bar and mouth
separately,it will be save more than 1h for the clean the waste material.

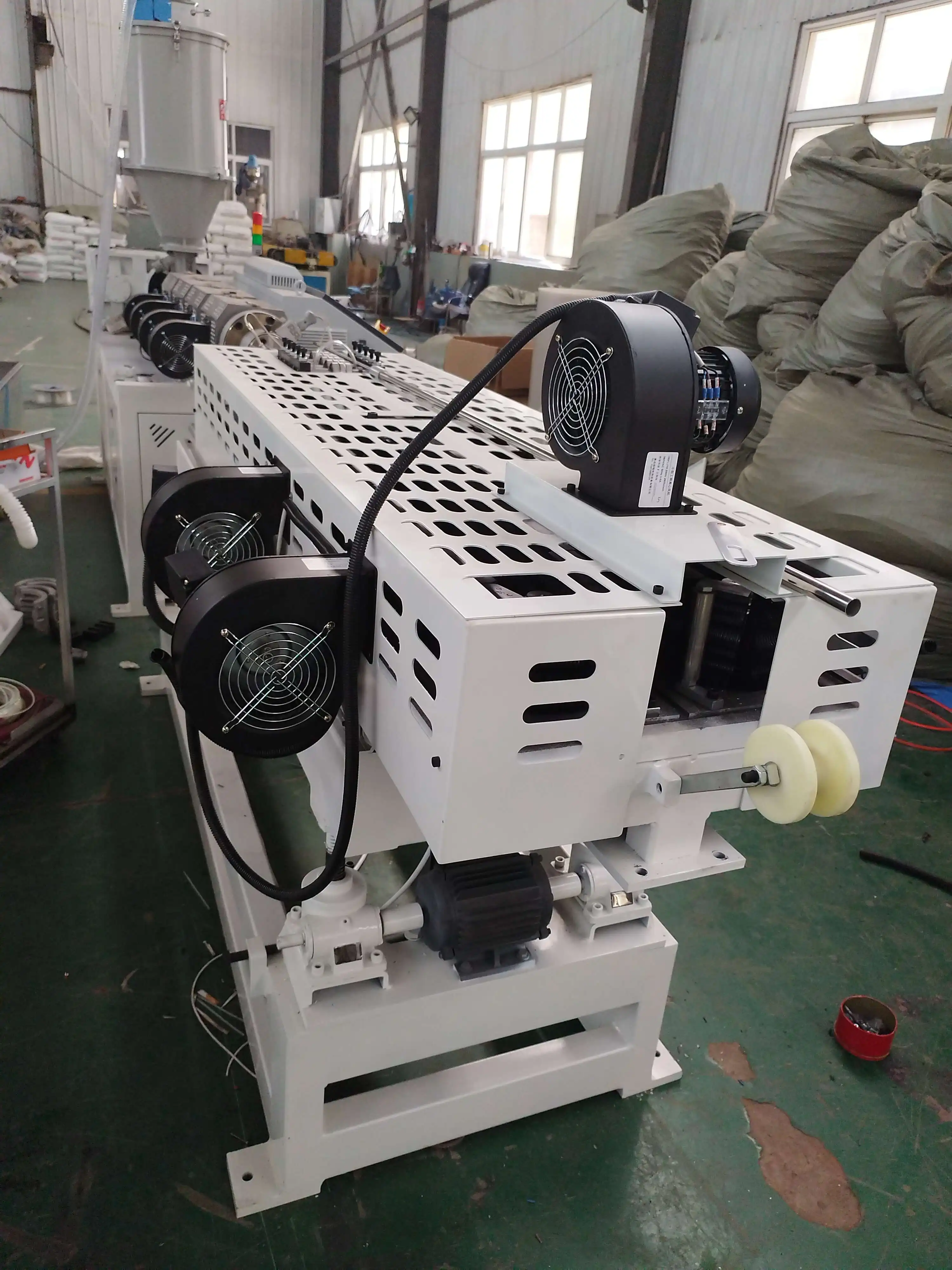

FORMING MACHINE AND MOULD

High-speed forming speed:20-30 m/min.
The forming machine plate and high-speed forming mould use 38CrMoAIA material, has High hardness, high wear resistance. And the forming mould can carve customer logo,can choose double cavity or three cavity in one set mould,when change the size, just up and down forming machine,no need put out all set mould. it can save more long time for customer.
Forming machine adjustment manual control left and right, Electric control up and down.

.

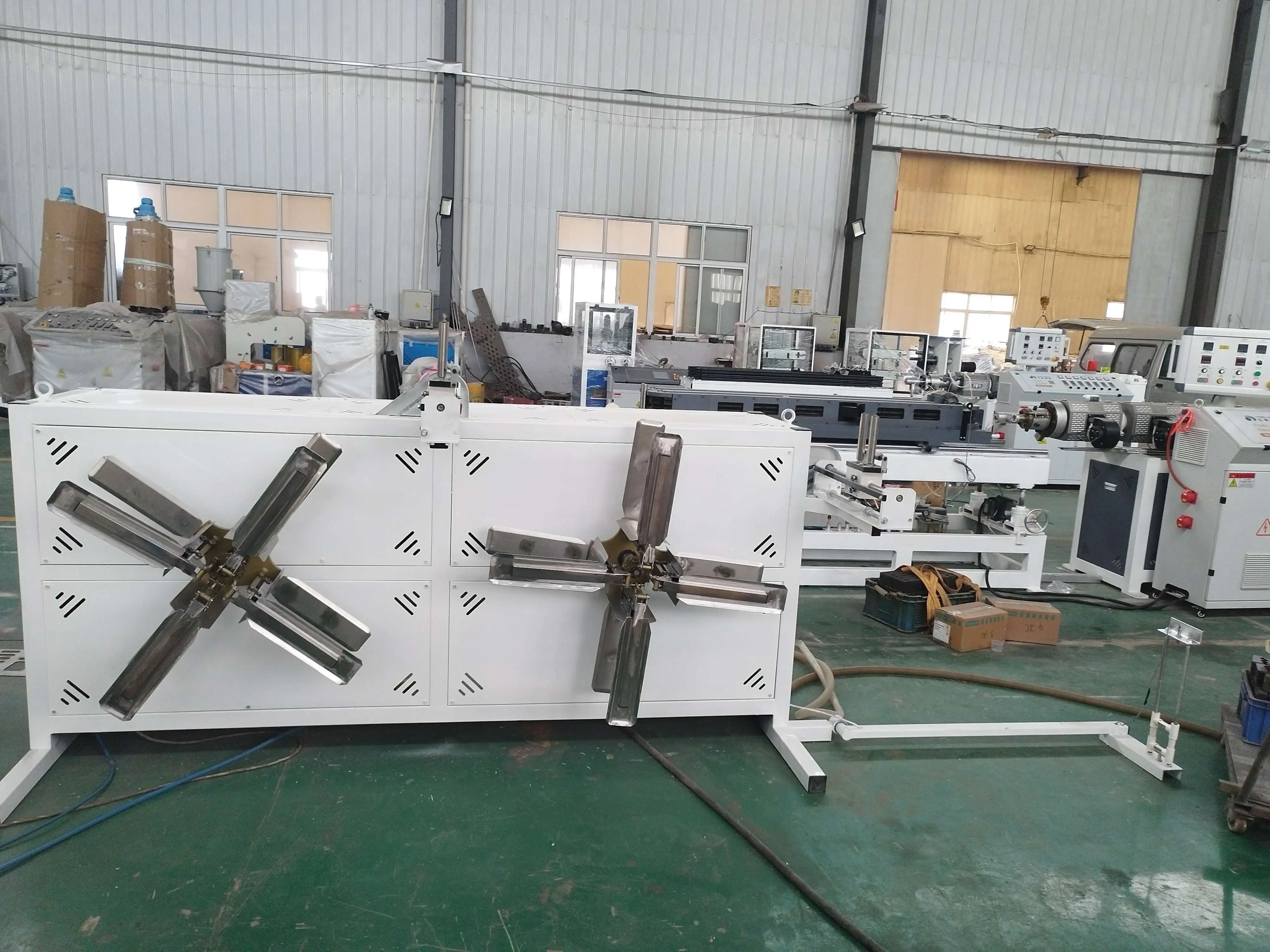

WINDING MACHINE

It is used in conjunction with the pipe production line produced by our factory to achieve online automatic winding.
It can be rolled online and arranged neatly. It can be fully digitized by a computer, with a PLC integrated control system or a light rod cable arrangement mechanism. There are two types, single station and dual station.






Company Profile










Qingdao Qinghang Plastic Machinery Co., Ltd. is a high-tech joint-stock company, which is relevant to high-molecule materials, and engaged in developing, designing and manufacturing all kinds of plastics and machinery.Based on the development tactic of "high quality and efficient products, fast and sincere service", we become larger and larger, and our technique power is stronger and stronger. Our company has an independent research & development team.Our competitive equipment is valued by all fields. Presently, the products of our company are popularly used all over the world, which are especially exported to Southeast Asia, the Middle East and Africa. products list: 1.HDPE/PP pipes production line 2.PVC pipe production line 3.PE/PP/PVC corrugated pipes production line 4.Plastic PE/PP/PVC sheet making machine 5.Plastic PE/PP/PVC board making machine 6.Plastic profile extrusion line 7.And other kinds of plastic machine.


Production Process




Partner




Product packaging




FAQ


1.Are you manufacturer or trading company?
We are manufacturer.

2. What price terms you offer?
FOB, CIF, EXW and other price terms based on your kind request.

3.Is installation and stuff training available from you?
Yes, our engineers will guide machine installation and train your workers.

4. How long will I receive the quotation?
Once we know the raw material, final product dimension and the special requirements, we will provide you a detailed quotation within 24 hours.

5. How do I get response quickly?
If you send email, whatsApp, WeChat to contact us, we promise to reply to you within 8 hours!
