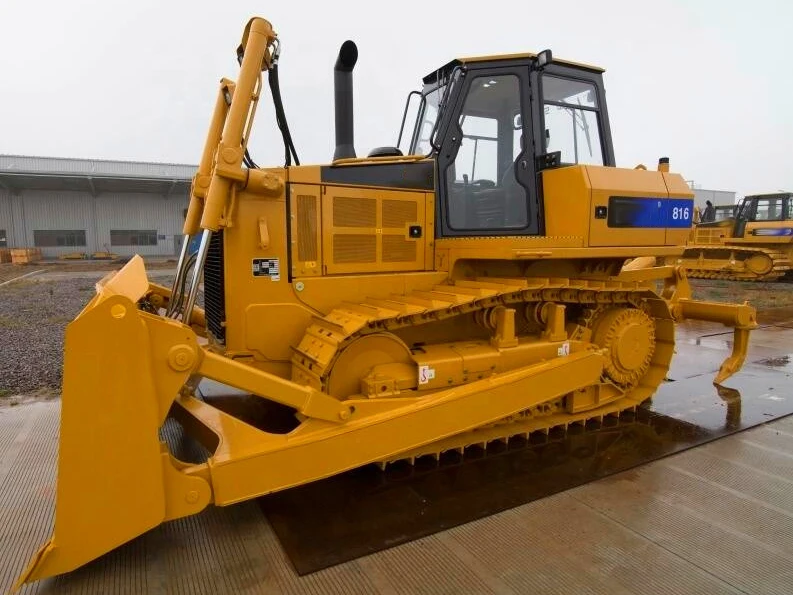

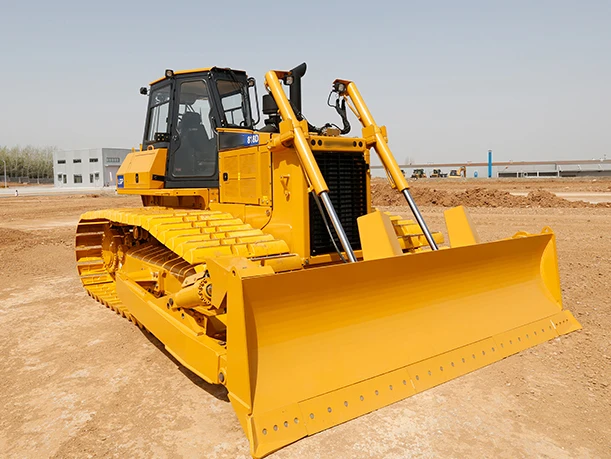

Китайский бренд 131kW 66.8kPa гусеничный бульдозер 816D с рыхлителем и запасными частями

Китайский бренд 131kW 66.8kPa гусеничный бульдозер 816D с рыхлителем и запасными частями

Категория: >>>
Поставщик: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.

Цена:8 241 128,40 ₽ - 9 650 795,10 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Overview

China Brand 131kW 66.8kPa Crawler Bulldozer SEM816D with Ripper and Spare Parts

* The whole machine features advanced performance, effective matching of the power transmission system, and high working efficiency
* With the fuel tank positioned on the left side of the machine body, the ultra-large rear space makes the care and maintenance of steering and brake systems easy.
* The front arrangement of the working cylinder improves the load- carrying performance, delivering more uniform and safe load-carrying from the frame and front hood. This prevents damage of the transmission system due to the frame being deformed by torsion force, while promoting the performance and reliability of the whole machine.

FEATURES AT A GLANCE

ENGINE POWER
120kW/1800rpm

OVERALL WEIGHT
17,200kg (Standard)

ENGINE MODEL
WP12

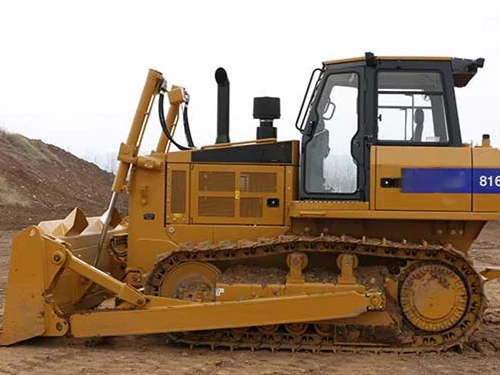

Right elevation

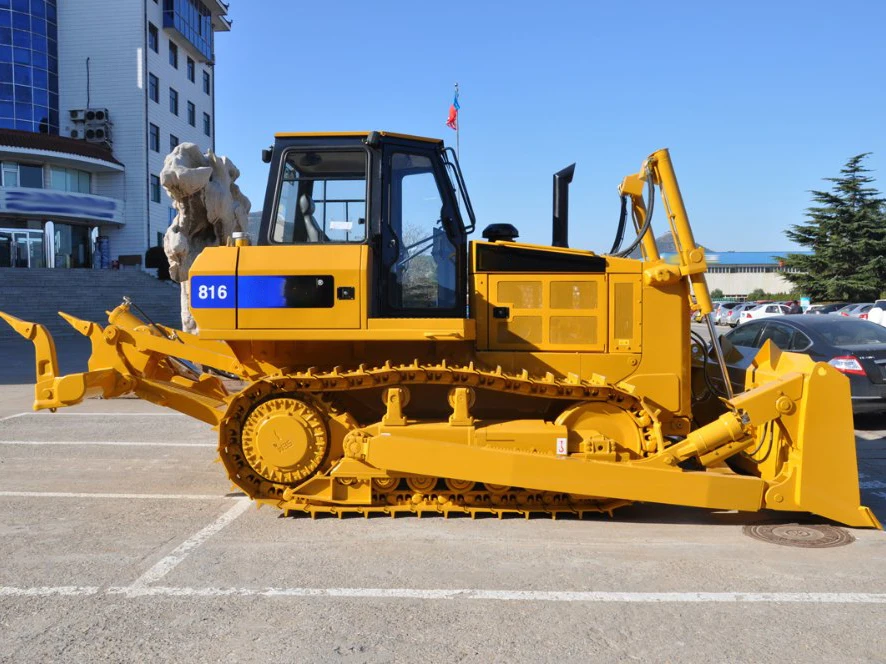

Left elevation

Rear elevation

PRODUCT SPECIFICATIONS

Model	816	816 LGP	822	822LGP
Operating Weight	17230kg	19720kg	23680kg	25400kg
Ground Pressure	68 kPa	31.5 kPa	70 kPa	39 kPa
Ground Clearance	410 mm	435 mm	394 mm	394 mm
Max. Slope	30°	30°	30°	30°
Engine
Model	Weichai WD10G178E25	Weichai WD10G178E25	Weichai WD12G240E26	Weichai WD12G240E26
Flywheel Power	120Kw/160Hp	120Kw/160Hp	162Kw/220Hp	162Kw/220Hp
Work Tool
Blade Type	SU	S	SU	S
Blade Capacity	4.3 m³(S 3.4 m³)	3.4 m³	6.4 m³(U 7.5 m³)	5.5 m³
Blade Width	3140 mm(S 3490 mm)	4227 mm	3720 mm(U 4015 mm)	4617 mm
Blade Height	1240mm(S 1165 mm)	1000 mm	1511 mm	1345 mm
Max.Blade Lift Ground Clearance	1041 mm	1055mm	1140mm	1165mm
Max. Blade Digging Depth	430mm	470mm	563mm	600mm
Max.Output Rimpull	280KN	280KN	350KN	350KN
Maximum Clearance Under Tip	615mm	N/A	640mm	N/A
Maximum Digging Depth Of Ripper	584mm	N/A	650mm	N/A
Powertrain
Type	Electric control,Dual-path,Hydrostatic Drive
Travel Speed-F/R	0-10km/hr(Infinitely Variable Speed Control)			0-11.5km/hr(Infinitely Variable Speed Control)
Streeing & Brake	Hydrostatic Streeing,Wet,Multiple-Disc Brakes
Minimum Streeing Radius	3610mm	3740 mm	4225mm	4300mm
Undercarrige
Track Shoe Width	510mm	1050mm	560mm	915mm
Track Shoe Quantity	37 piece	42 piece	40 piece	45 piece
Length Of Track On Ground	2430mm	2925mm	2948mm	3488mm
Track Gauge	1880mm	2300mm	2000mm	2340mm
Track Roller Quantity	6/Side	7/Side	7/Side	8/Side
Carrier Roller Quantity	2/Side	2/Side	2/Side	2/Side
Hydraulic System
Type	Pilot Control
Implement Hydraulic System Pressure	19 Mpa
Service Refill Capacities
Cooling System	45L
Hrdrostatic Oil	40L			62L
Implement Oil	60L			110L
Fuel	320L			460L
Pivot Shaft Case(Eash side)	1.2L			0.8L
