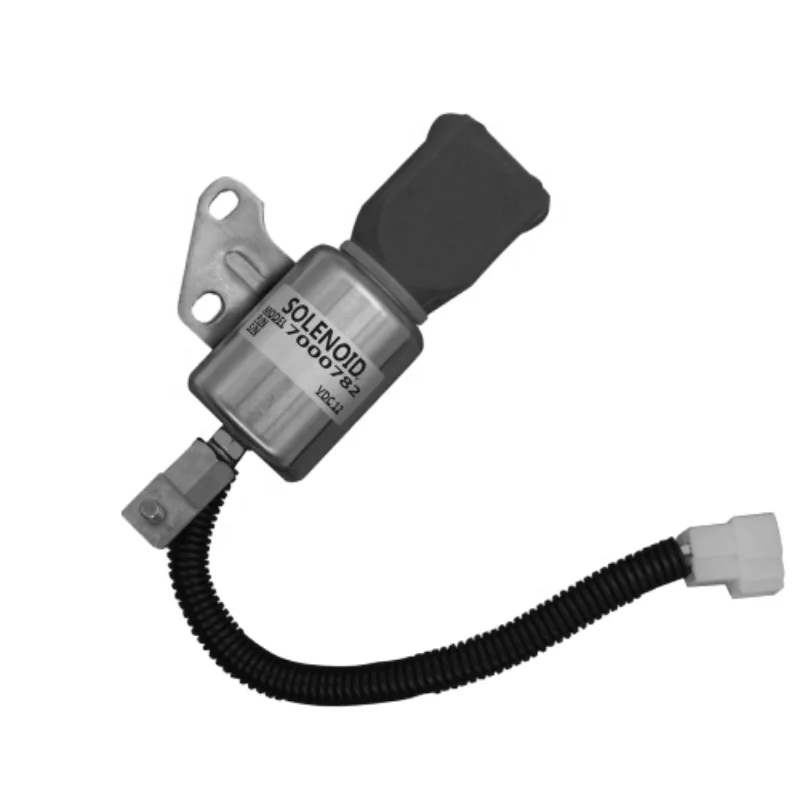

Новинка соленоидный 7000782 отсечки топлива 12 В 102729001CC для экскаватора Bobcat E08 E20 E19 E17 E10 418 UTV 2200
3 085,84 ₽ - 3 636,88 ₽
WEITAI новый дизайн гидравлический привод для сельскохозяйственной техники высокомощный поворотный серии WL20
- Категория: >>>
- Поставщик: Qingdao Weitai Hydraulic Co. Ltd.
Сохранить в закладки 1601274734862:
Описание и отзывы
Характеристики

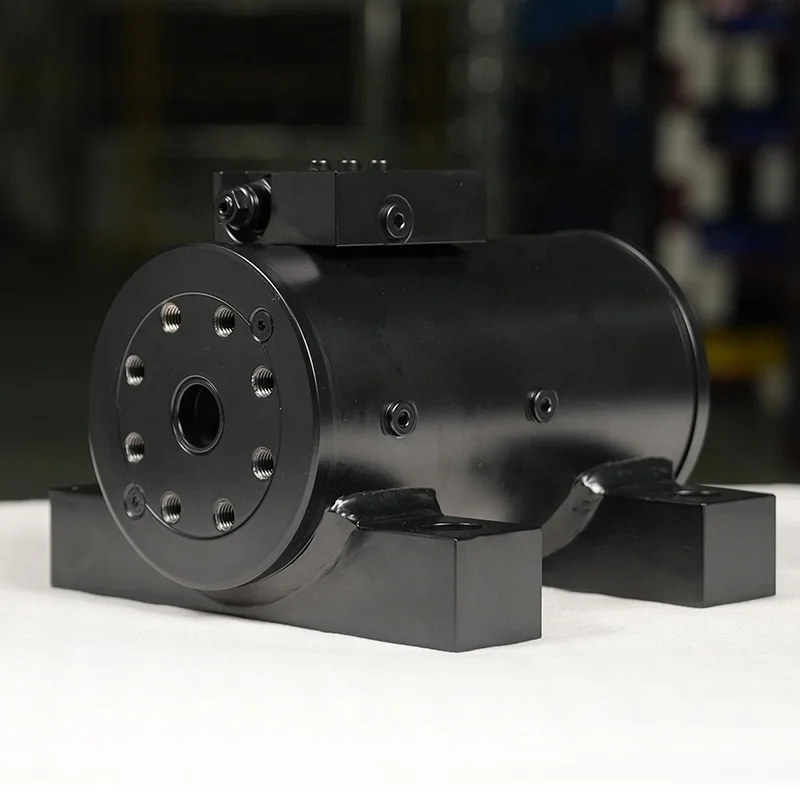

WEITAI New Design hydraulic actuator for Agricultural Machinery WL20 Series High power hydraulic rotary actuator
WEITAI Interchangeable Product
WEITAI | PARKER |
WL10 Series | Helac L10 |
WL20 Series | Helac L20 |
WL30 Series | Helac L30 |
WL40 Series | Helac T20/T30 |
WL50 Series | Customized |
* HKS and Moveco aftermarket solutions are also available
The WL20 Series is a cost-effective helical hydraulic rotary actuator, easily designed into a wide range of applications.
WEITAI’s hydraulic rotary actuators feature extremely high thrust capacity and high shock resistance with 180° rotation.
WEITAI’s hydraulic rotary actuators feature extremely high thrust capacity and high shock resistance with 180° rotation.
High Power Density: WL20 hydraulic drive rotary actuator provides high torque in a compact size due to the incompressibility of hydraulic fluid and the high-pressure capabilities of hydraulic systems. They can generate substantial force without requiring a large physical footprint, making them suitable for space-constrained applications.
Smooth Operation: The smooth flow of hydraulic fluid results in smooth and consistent motion, reducing vibrations and wear on components. Hydraulic systems allow for precise control over position, speed, and torque through the regulation of fluid flow and pressure.
Robust Construction & Long Lifespan: It is built to withstand harsh environments, including extreme temperatures, high pressures,and dirty or corrosive conditions. With proper maintenance, it has a long operational life due to their durable materials and construction.
Load Holding & Controlled Descent: For this hydraulic drive rotary actuator, a counterbalance valve is optional for your selection. It holds securely in position when the hydraulic system is not in operation. It prevents the actuator from moving due to gravity or other external forces. In addition, when lowering a load, the counterbalance valve ensures a controlled and smooth descent by regulating the hydraulic fluid flow. It prevents the load from dropping too quickly, which can lead to instability or damage.
Smooth Operation: The smooth flow of hydraulic fluid results in smooth and consistent motion, reducing vibrations and wear on components. Hydraulic systems allow for precise control over position, speed, and torque through the regulation of fluid flow and pressure.
Robust Construction & Long Lifespan: It is built to withstand harsh environments, including extreme temperatures, high pressures,and dirty or corrosive conditions. With proper maintenance, it has a long operational life due to their durable materials and construction.
Load Holding & Controlled Descent: For this hydraulic drive rotary actuator, a counterbalance valve is optional for your selection. It holds securely in position when the hydraulic system is not in operation. It prevents the actuator from moving due to gravity or other external forces. In addition, when lowering a load, the counterbalance valve ensures a controlled and smooth descent by regulating the hydraulic fluid flow. It prevents the load from dropping too quickly, which can lead to instability or damage.
Product Parameter
Model | WL20-005 | WL20-009 | WL20-016 | WL20-027 | WL20-042 |
Drive Torque (Nm@21Mpa) | 500 | 900 | 1600 | 2680 | 4200 |
Holding Torque (Nm@21Mpa) | 1300 | 2400 | 4400 | 7100 | 10500 |

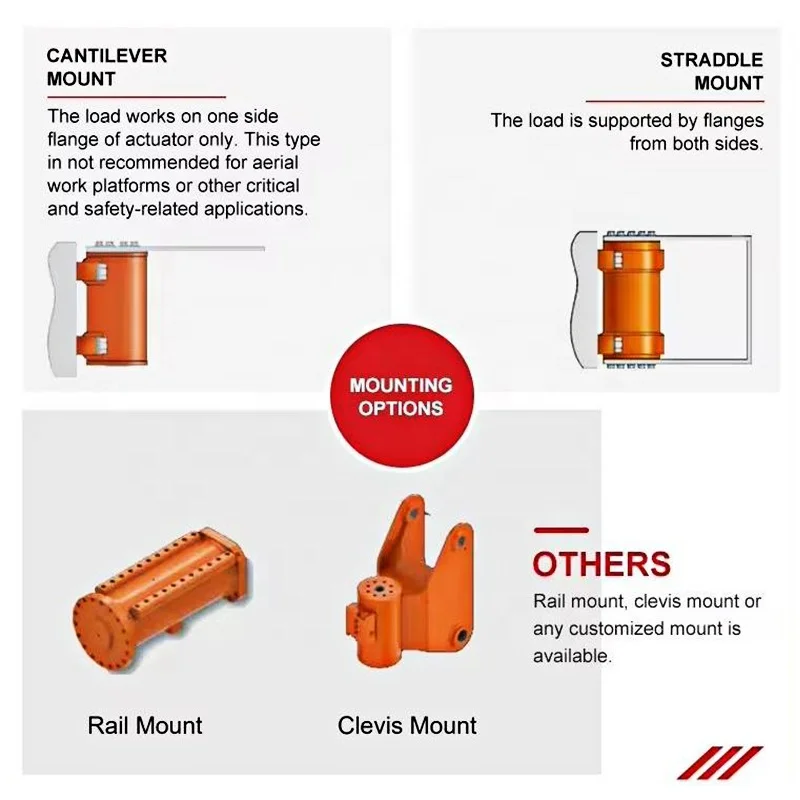

Max Straddle Moment Capacity (Nm) | 2500 | 4500 | 10200 | 16400 | 31600 |
Max Cantilever Moment Capacity (Nm) | 1360 | 2480 | 5420 | 11300 | 15800 |
Radial Capacity (Kg) | 1380 | 2130 | 4190 | 5580 | 9530 |
Axial Capacity (Kg) | 500 | 680 | 1000 | 1400 | 1770 |
Displacement 180°(Cc) | 132 | 234 | 436 | 726 | 1070 |
Weight 180°(Kg) | 12.5 | 17 | 30 | 51 | 77 |

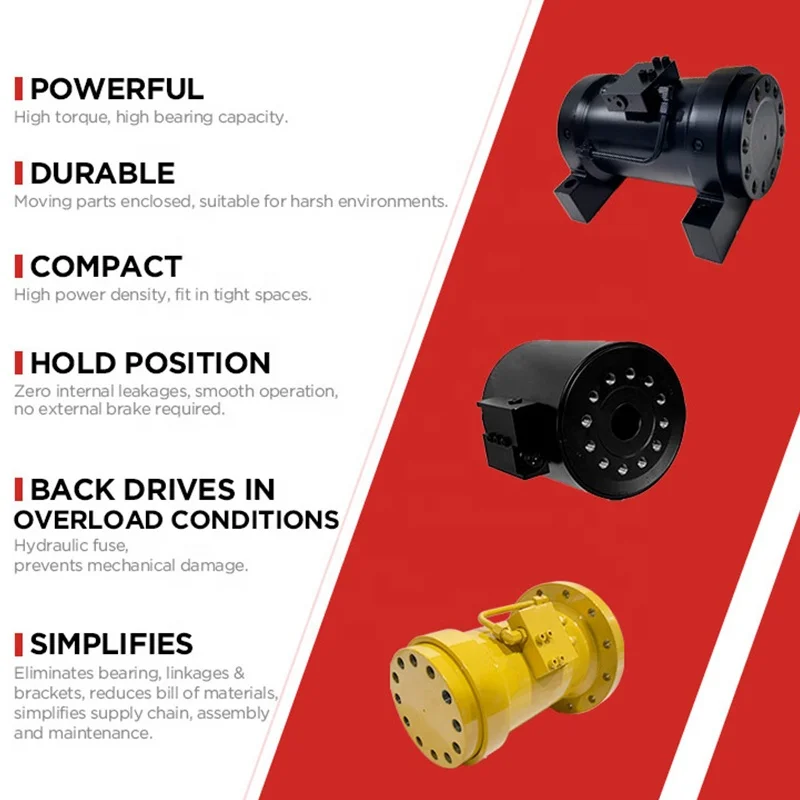

Product Advantages
Torque Versus Hydraulic Pressure and Loads
The driving torque and holding torque are approximately linear with hydraulic pressure. As moment loads increase, drive torque may be reduced by up to 15%.
Manufactured from aluminum, the valve blocks are bolted to a flat mounting pad on the actuator housing. Three bolts secure the valve block to the actuator. See specification pages for valve location.
The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ±21 bar).
The pilot ratio is 3:1. The valves are set to relieve at 3300 psi ± 300 psi (228 bar ±21 bar).
Product Application
Related Products
COMPANY PROFILE

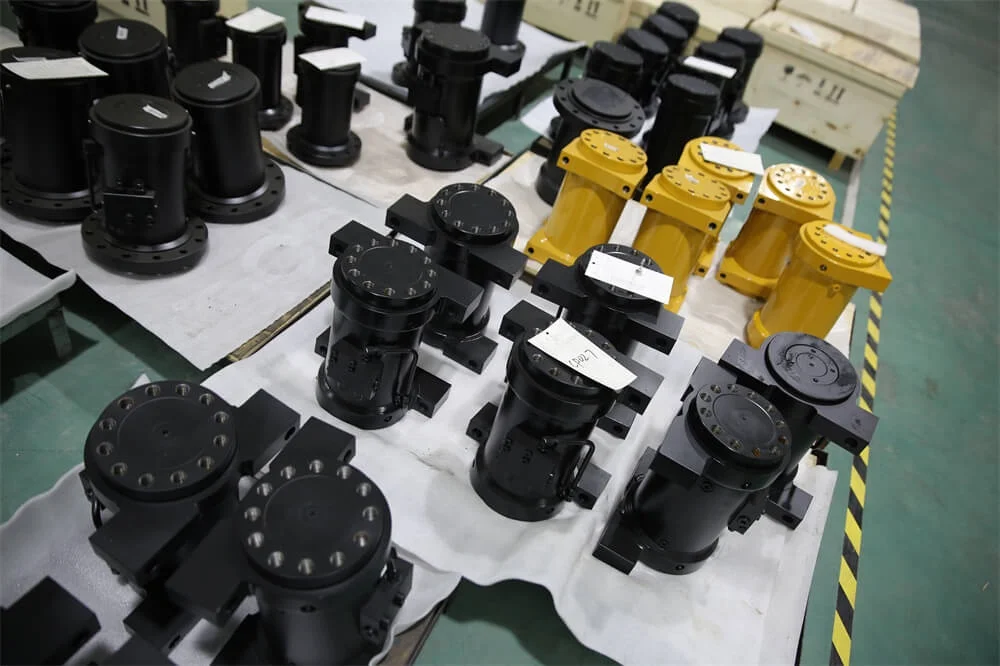

OUR FACTORY
Why Choose WEITAI
Certifications
FAQ
Q1 what are your prices?
A:Our prices are subject to change depending on supply and other market factors. We will send you an updated price list right after your company contacts us.
Q2 What's your terms of packing?
A:Generally, we will pack the goods on sturdy fumigated wooden pallets for bulk shipments. We can pack the goods in your branded boxes if you have a legally registered patent after getting your official authorization letter.
Q3 Can you supply the relevant documentation?
A:Yes, we can provide most documentation including Certificates of Analysis/Certificate of Conformance, Insurance, Certificate of Origin, and other required documents.
Q4 What is the average lead time?
A:For samples, the lead time is about 7 days.
For mass production, the lead time is 20-30 days after receiving the deposit payment.
For mass production, the lead time is 20-30 days after receiving the deposit payment.
Q5 what kinds of payment methods do you accept?
A:You can make the payment to our bank account, Western Union or PayPal.30% deposit in advance,70% balance against the copy of B/L.
Q6 What is the product warranty?
A:1 year. Specific products can be 2.
Q7 What services would you offer if l buy from you?
A:Our trained Professional service team offers high-quality in-time service in a very friendly way. For a good customer experience,the content of pre-sales includes recommendations based on the right products in physical condition. All you have to do is toinform us of your needs.
Q8 What should I do if I got a problem with the product I have purchased?
A:Don't worry about that. We will talk with you about the problem the first time, and then decide whether we help you fix it or deliver you a new product.
Q9: Howcan I choose the right product for my project?
A:Once receiving your inquiry, we will recommend the proper models according to your requirements. So, the more detailed your requirement is, the more accurately we recommend.
Похожие товары

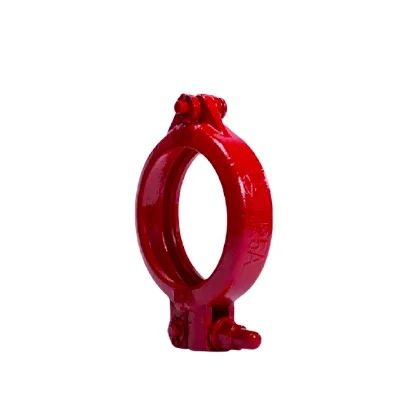

Бетононасос соединительная муфта детали для бетонных насосов Строительная техника зажим болтов l125abcw46d. 3.1.10

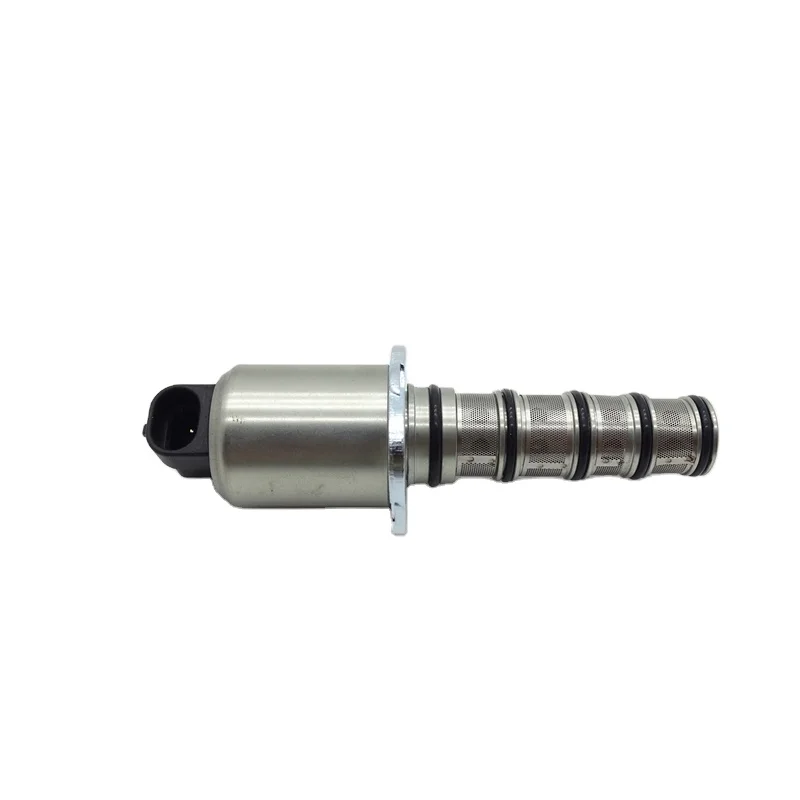

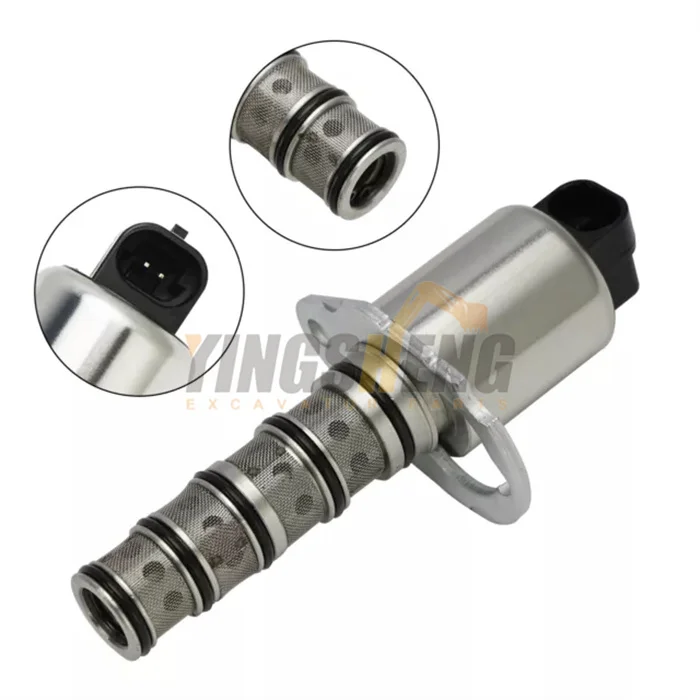

Гидравлический электромагнитный клапан для экскаватора-погрузчика 10K 315SJ 310L 310SK 325K 410K 410L Соленоидный AT310586
2 975,63 ₽ - 4 959,38 ₽

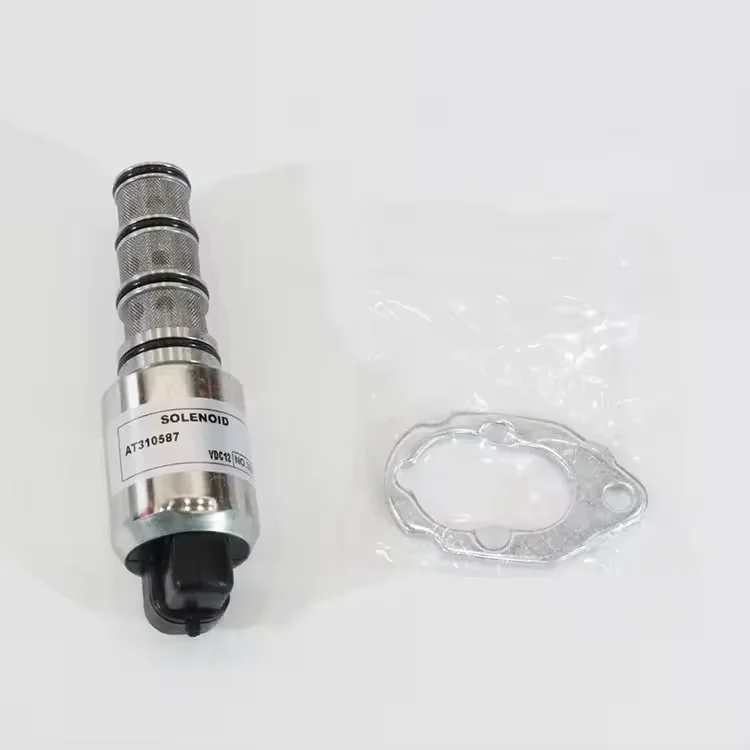

Гидравлические детали экскаватора VDC12 NO.3651 AT310587 электромагнитный клапан 0501320205 210LE 310K 325J Электромагнит управления переключением передач
2 755,21 ₽ - 3 857,30 ₽

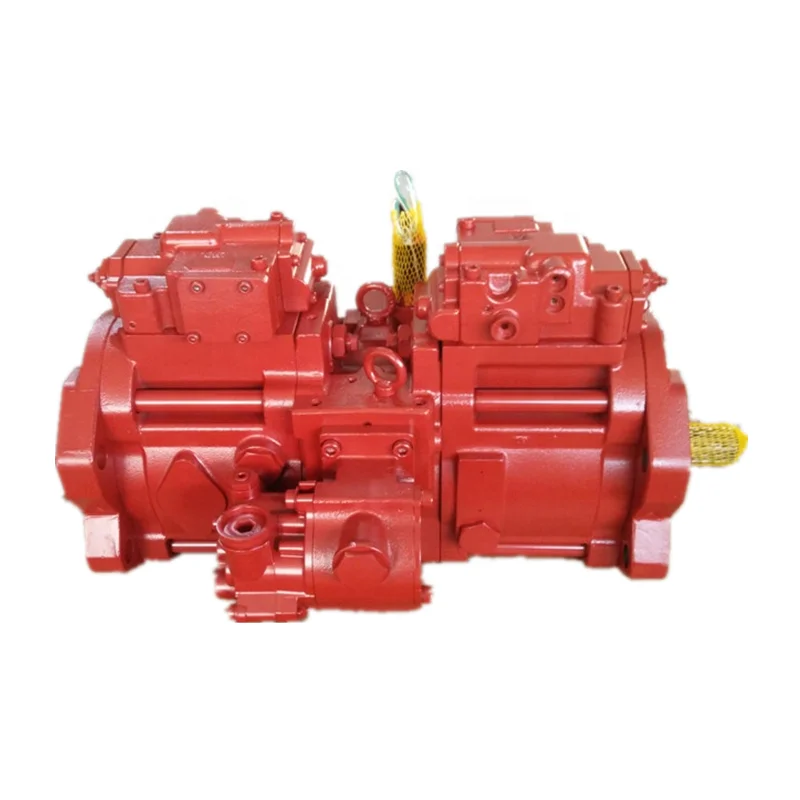

Экскаватор DX260LC DX260LCA главные насосы Doosan DX260 гидравлический насос Pto K3V112DT-9N14
143 270,92 ₽ - 214 906,38 ₽
Shantui SD13 Seat 10Y-53B-00000 10Y-53B-20000
14 437,31 ₽ - 15 318,97 ₽
Высококачественный гидравлический соленоид для экскаватора AT310586 погрузчиков John Deere 410K 210K 410L 310L 310SK 325K 325J 315SJ
3 857,30 ₽ - 4 408,34 ₽

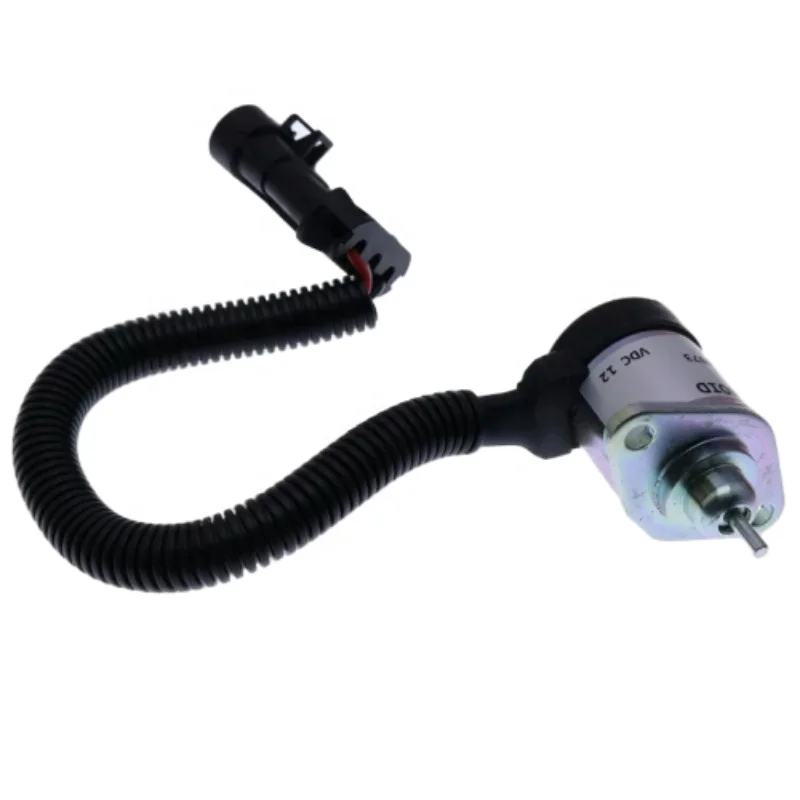

Электромагнитный 6689034 для топливного отсечки Bobcat
