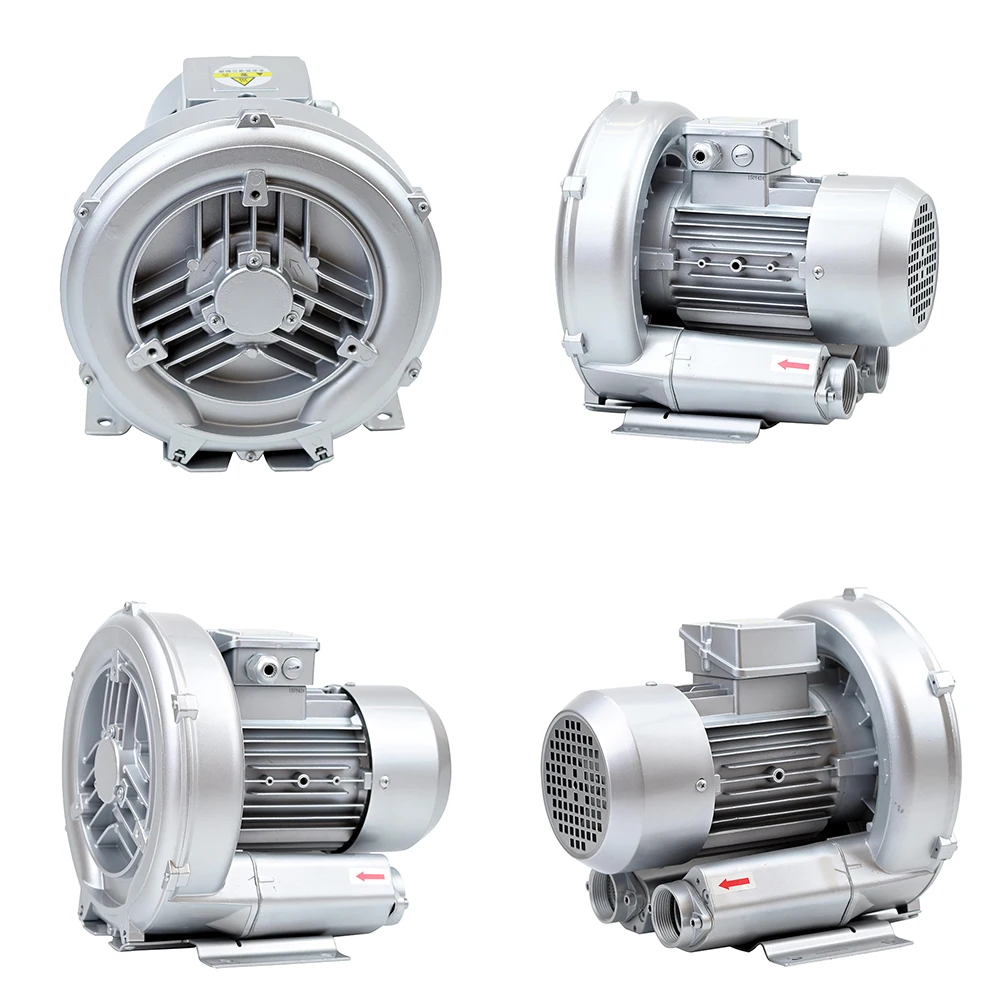

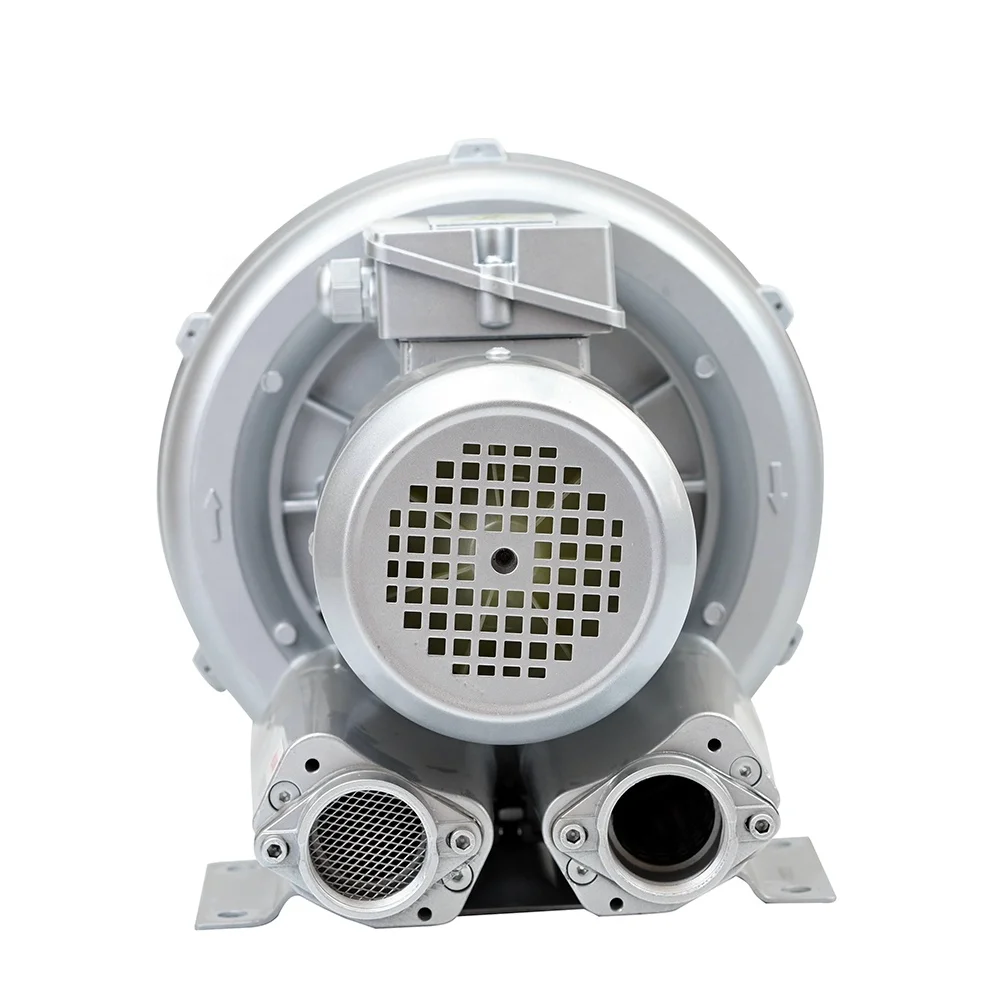

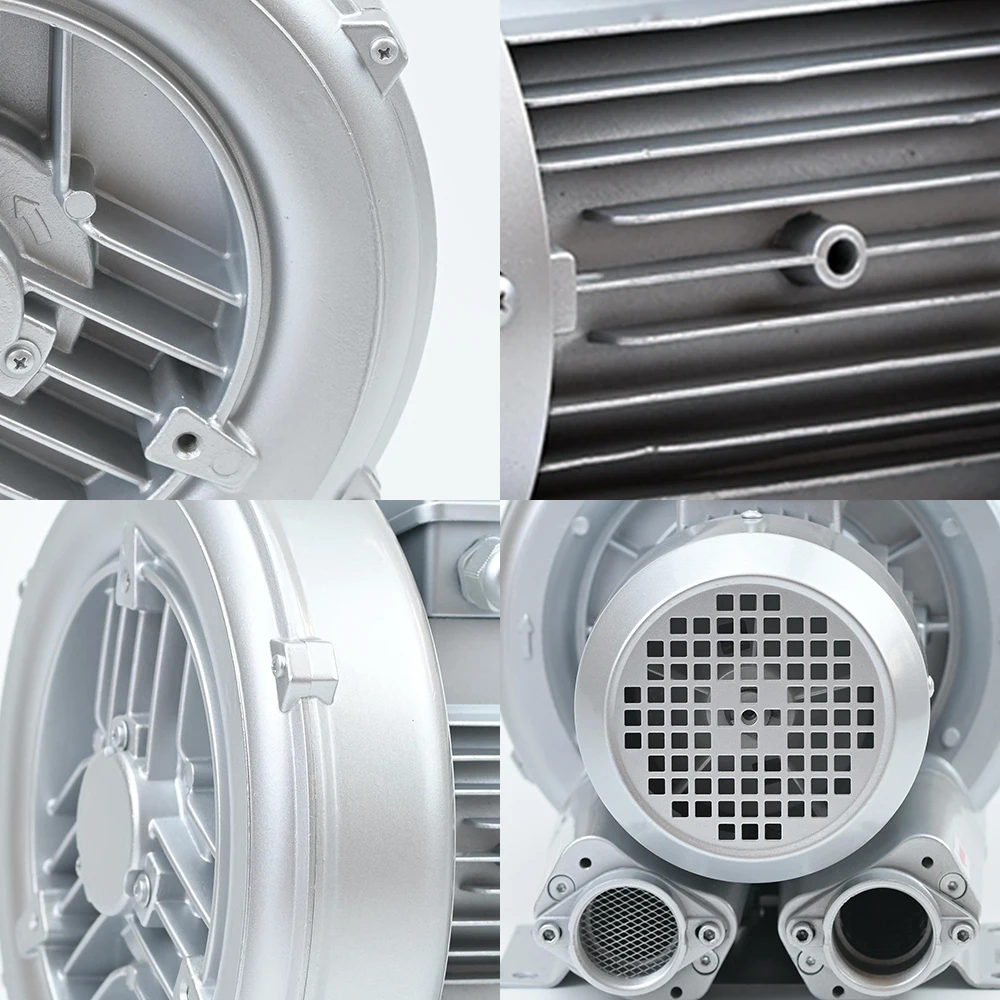

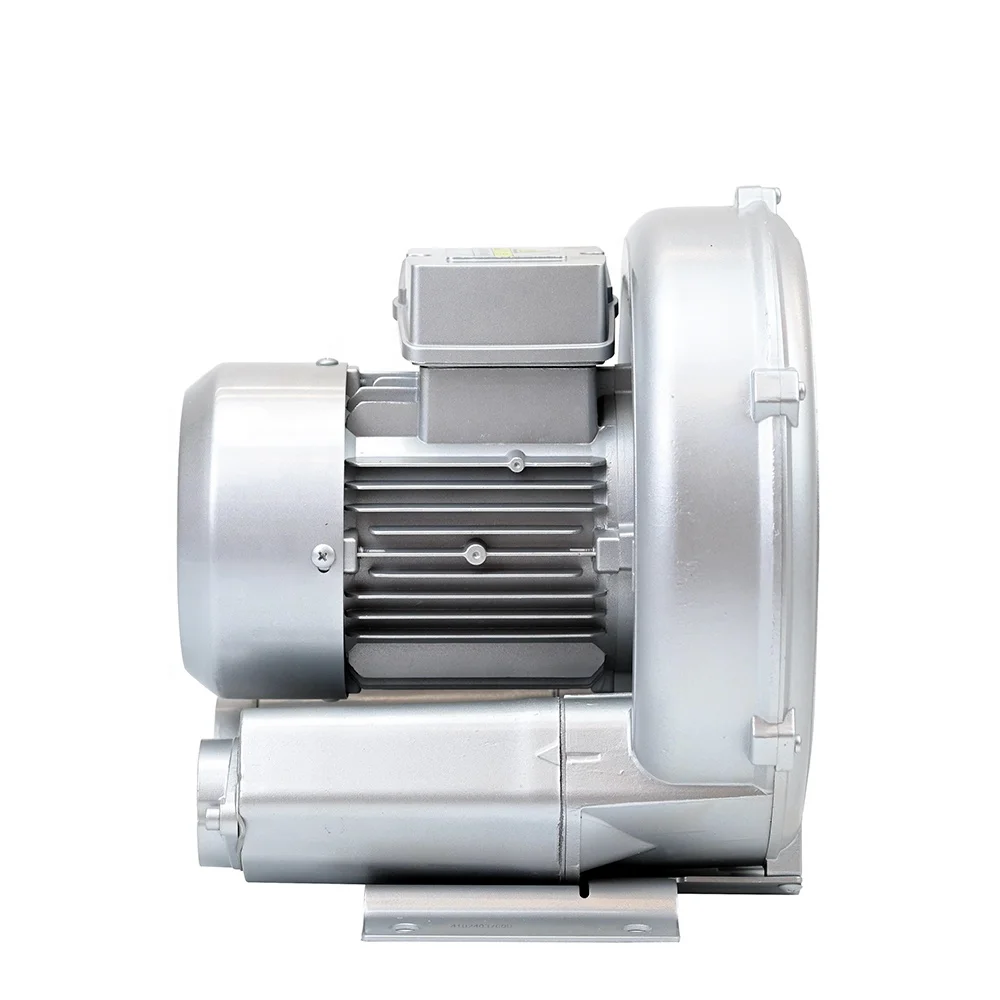

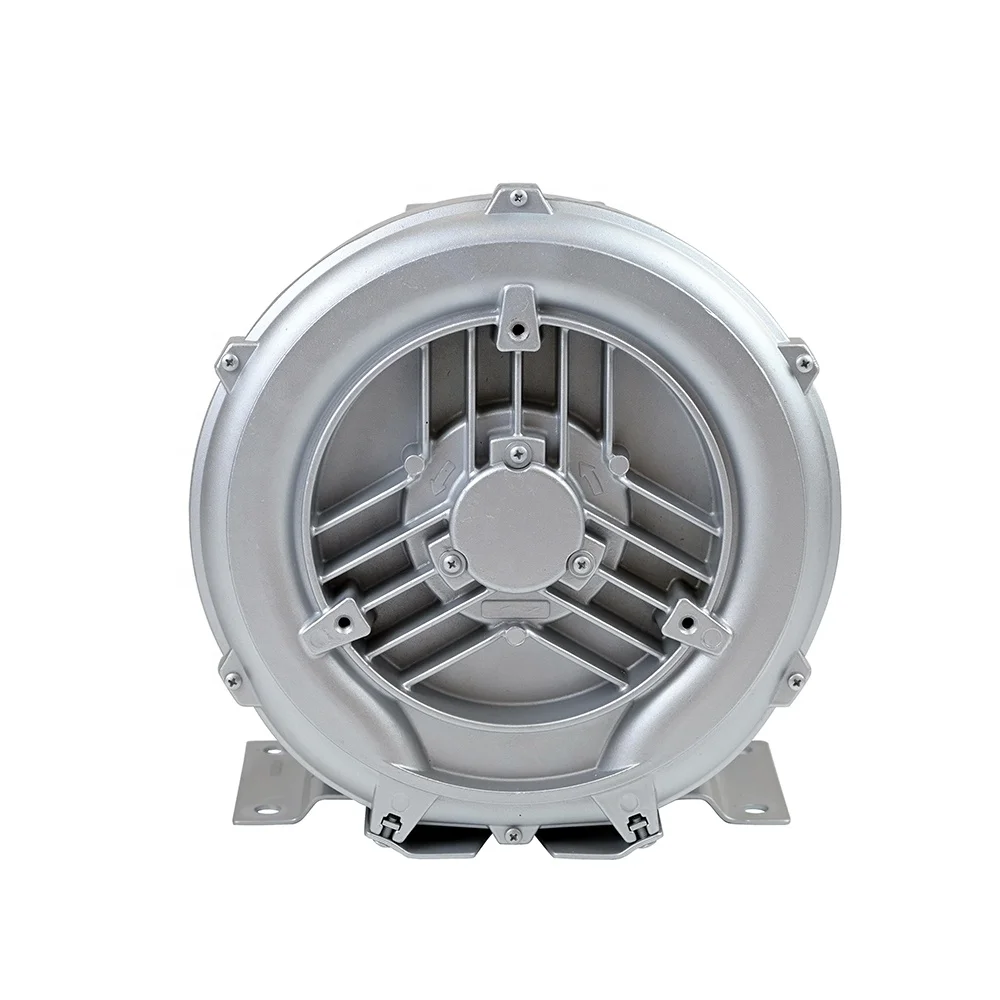

50 Гц/60 Гц JQT 0.7KW 1HP 2GH 510 A21 кольцевые воздуходувки с частотным преобразователем для бассейна технологии/джакузи/газовый бустер
- Категория: >>>
- Поставщик: Jinan Golden Bridge Precision Machinery Co. Ltd.
Сохранить в закладки 1601274837416:
Описание и отзывы
Характеристики
Products Description
Operation
If the rated current of the motor is exceeded during operation, the voltage and frequency of the power supply should be checked and compared with data on the unit rating plate. Some blowers can’t be operated over the whole range of the performance curve. Overload of the motor may occur due to excessive system back-pressure. In applications where over-pressure conditions may occur, a relief valve must be installed. The ring blower must not be subjected to shock or vibration loads.
Maintenance
The ring blower has a non-contact operation and does not normally require maintenance. Wearing parts are subject to the recommended maintenance intervals and are a constituent part of the applicable warranty claims. The service life of bearing parts depends on the operating hours, load, and other Influences such as temperature and operating pressure.
Installation
A. Transportation
Check all parts from damage during transport.
B. Installation assembly
The blowers are to be installed weather protected and are not to be stored outdoors unprotected. When the blowers are installed outdoors they must be covered. Install ring blower horizontally or vertically. Do not subject blowers to vibrations or shocks. Blower with base should be secured tightly at the site of operation on solid, even ground. The Ring Compressors can be installed in any direction, but when mounted vertically, the motor side should be upward.
Check all parts from damage during transport.
B. Installation assembly
The blowers are to be installed weather protected and are not to be stored outdoors unprotected. When the blowers are installed outdoors they must be covered. Install ring blower horizontally or vertically. Do not subject blowers to vibrations or shocks. Blower with base should be secured tightly at the site of operation on solid, even ground. The Ring Compressors can be installed in any direction, but when mounted vertically, the motor side should be upward.
C. Electrical connection
Note! Work described here must be executed by a qualified electrician only. Connect the motor in accordance with the wiring diagram to be found in the terminal box. The blower has a single or three-phase motor as described on the motor plate. The motor should be protected with an overload switch.
D. Control of rotation direction
Startup the blower for a short moment, Check the rotation direction. The rotation direction on the impeller must be in accordance with the arrows on the motor. If incorrect rotation is experienced, then check the wiring circuit in the terminal box.
Note! Work described here must be executed by a qualified electrician only. Connect the motor in accordance with the wiring diagram to be found in the terminal box. The blower has a single or three-phase motor as described on the motor plate. The motor should be protected with an overload switch.
D. Control of rotation direction
Startup the blower for a short moment, Check the rotation direction. The rotation direction on the impeller must be in accordance with the arrows on the motor. If incorrect rotation is experienced, then check the wiring circuit in the terminal box.
Accessories
Air filter
Filter the dust particles, apply to a bad environment
Pressure relief valve
Control gas pressure, prevent excessive pressure, damage the machine.
Silencer
Reduce blower noise 5-10db(A), apply to a quiet environment.
Application
Wastewater treatment, Water Treatment Solutions, Industrial vacuum cleaners, Enhance and maintain the material, Plastics industry, Soil treatment, Packaging industry, Laser printers, Textile industry, Drying outbuildings, Ventilation of sewage treatment plants, Printing and paper industry, Filling system, Industrial pipeline, Dental vacuum equipment, Swimming pool technology /Jacuzzi, Gas analysis, Gas booster, Increases oxygen fishpond, Vacuum package system, CNC Router
Company Profile
Jinan Golden Bridge Precision Machinery Co., Ltd was established in 2007 with a registered capital of RMB 1 million. Our factory is in Dezhou, and our office is in Jinan, both in Shandong Province.
Since its establishment, our company has been committed to developing and innovating the national industry. We adhere to the enterprise spirit of "efficient, pragmatic, rigorous, and innovative" and are committed to creating precision machinery and equipment.
We have had dozens of imported machining centers, CNC lathes, drilling centers, CNC cutting, and other advanced machining equipment. We have been focusing on researching, developing, producing, and selling precision parts and vacuum equipment.
At present, the main products include aluminum alloy and steel couplings, ring blowers, high-pressure blowers, rotary vane vacuum pumps, oil vacuum pumps, vacuum systems, air compressors, voltage stabilizers, and other series of products.
Since its establishment, our company has been committed to developing and innovating the national industry. We adhere to the enterprise spirit of "efficient, pragmatic, rigorous, and innovative" and are committed to creating precision machinery and equipment.
We have had dozens of imported machining centers, CNC lathes, drilling centers, CNC cutting, and other advanced machining equipment. We have been focusing on researching, developing, producing, and selling precision parts and vacuum equipment.
At present, the main products include aluminum alloy and steel couplings, ring blowers, high-pressure blowers, rotary vane vacuum pumps, oil vacuum pumps, vacuum systems, air compressors, voltage stabilizers, and other series of products.
Certifications
Our company has a clear corporate system, including the general manager's office, finance department, technical department, production department, sales department, after-sales department and human resources department, The total number of people reached 63.
Our company has import and export rights, and the Foreign Trade Department was established in 2009. Our products are not only adopted by major domestic enterprises, but also exported to Europe, America, Africa, Southeast Asia, and other regions, and are deeply welcomed by clients. Annual turnover is 10 million US dollars. We have dozens of product patent certificates and various CE certificates.
Our company has import and export rights, and the Foreign Trade Department was established in 2009. Our products are not only adopted by major domestic enterprises, but also exported to Europe, America, Africa, Southeast Asia, and other regions, and are deeply welcomed by clients. Annual turnover is 10 million US dollars. We have dozens of product patent certificates and various CE certificates.
Exhibition
Our company's foreign trade staff have more than five years of work experience. We are online 24 hours a day.
We participate in foreign exhibitions all year round, including Germany, the USA, South Korea, Turkey, Mexico, Vietnam, Thailand, Indonesia, Russia, etc.
We participate in foreign exhibitions all year round, including Germany, the USA, South Korea, Turkey, Mexico, Vietnam, Thailand, Indonesia, Russia, etc.
Contact Us
