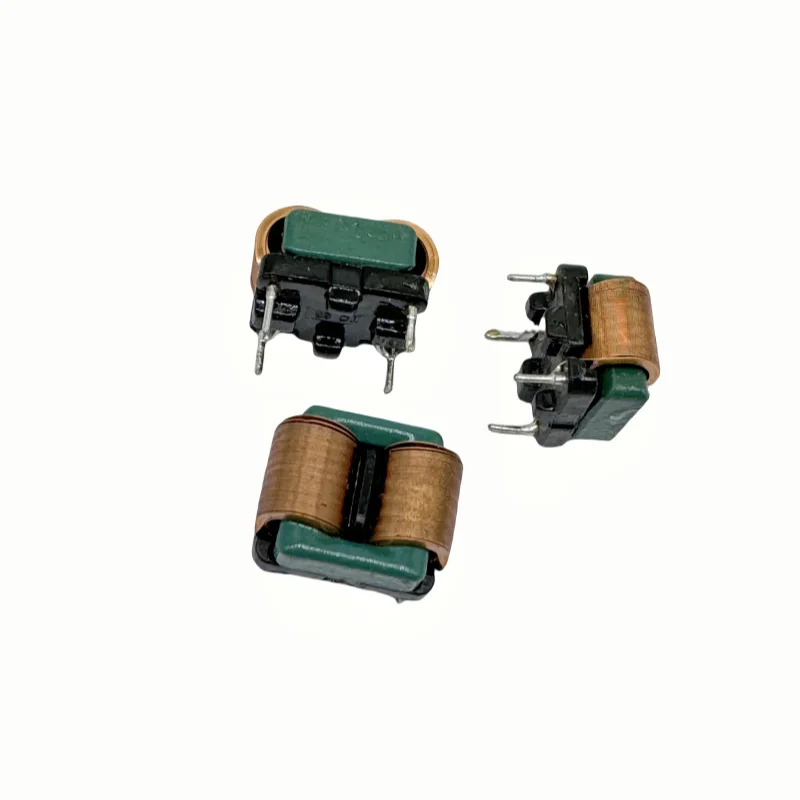

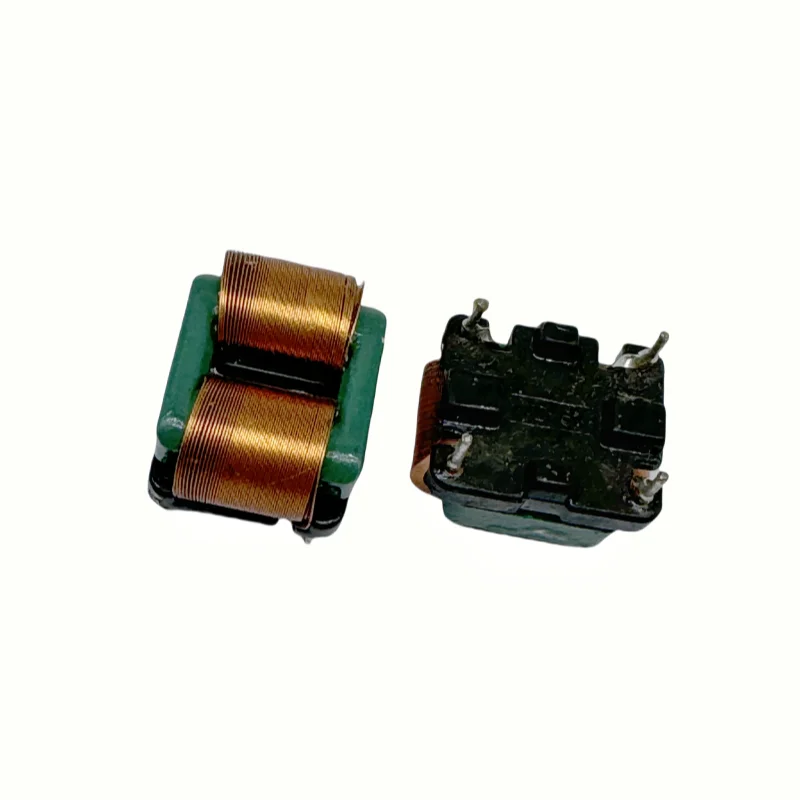

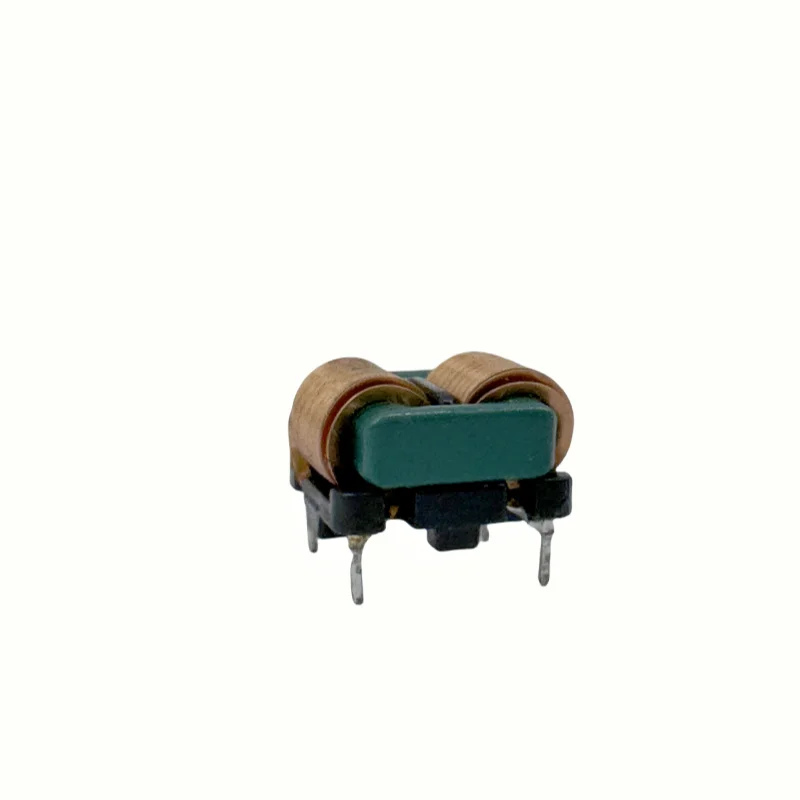

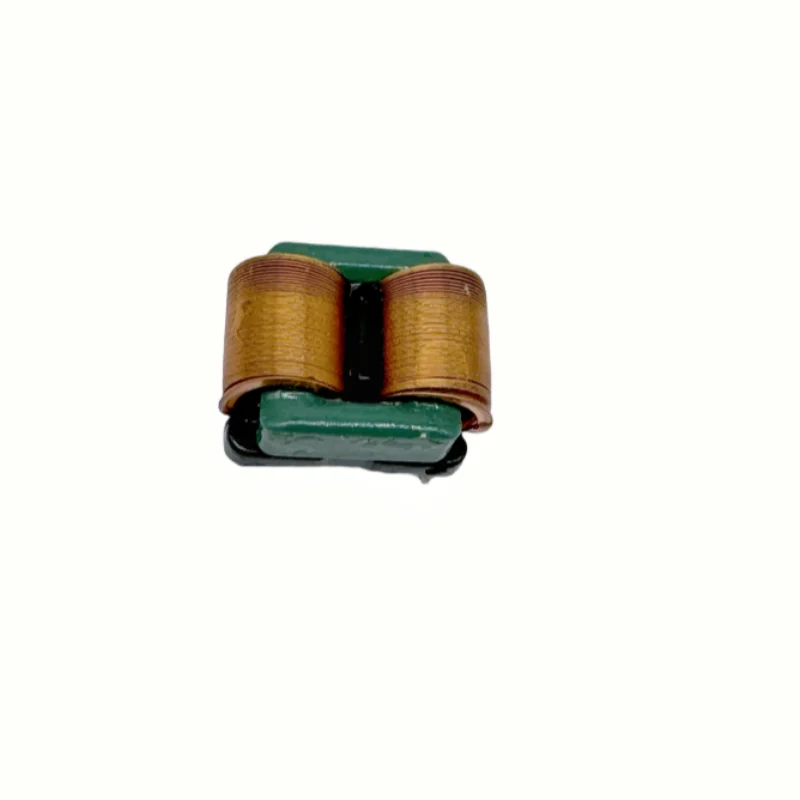

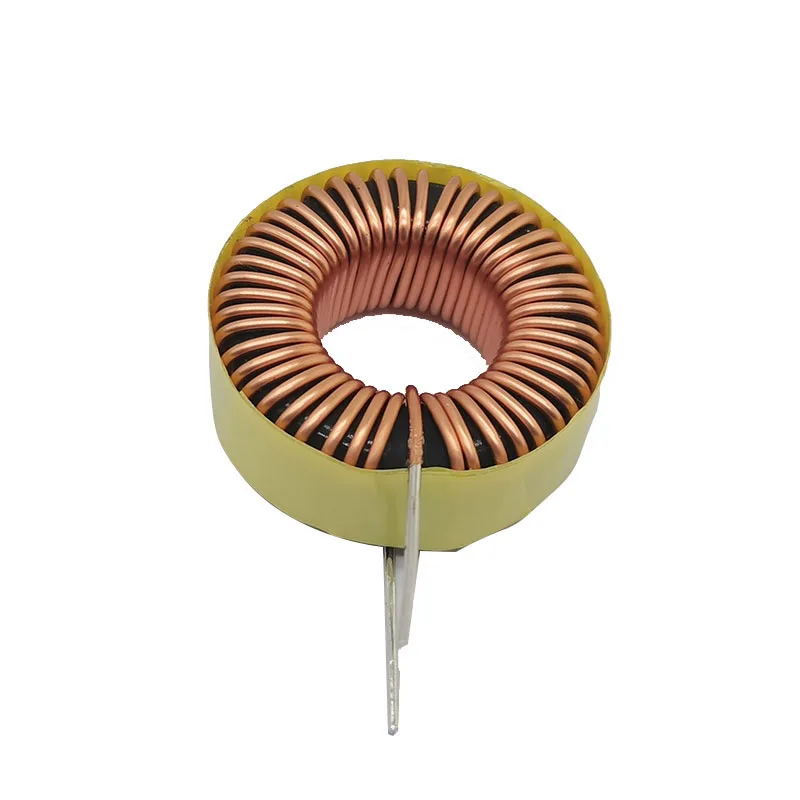

Катушка индуктивности горизонтального типа с плоской линией общего режима для индуктора медной проволоки индукционный Магнитный кольцевой индуктор

Катушка индуктивности горизонтального типа с плоской линией общего режима для индуктора медной проволоки индукционный Магнитный кольцевой индуктор

Категория: >>>
Поставщик: Shenzhen Zhixiangyuan Electronics Co. Ltd

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

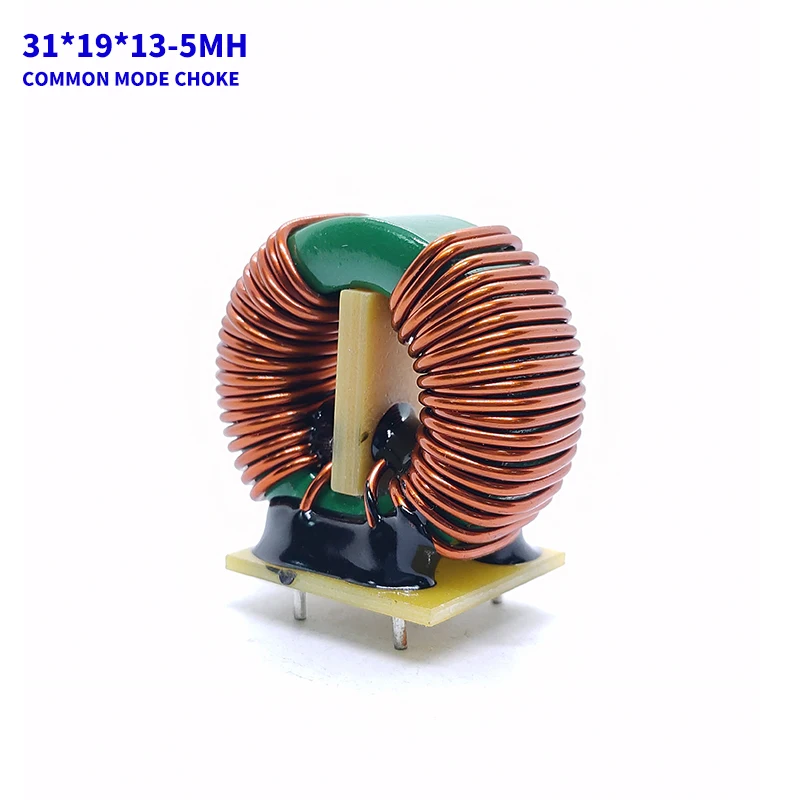

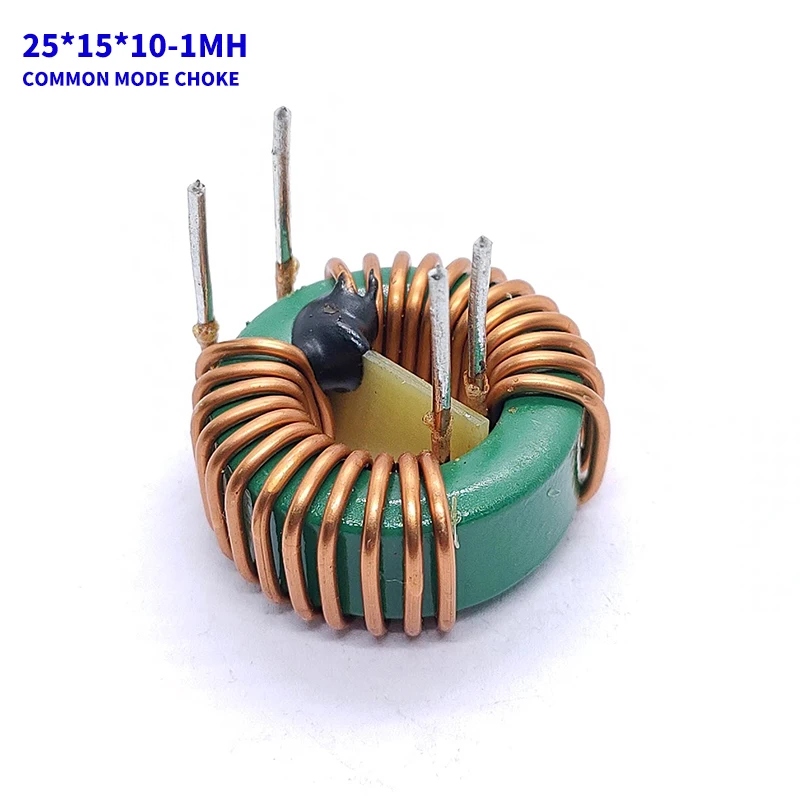

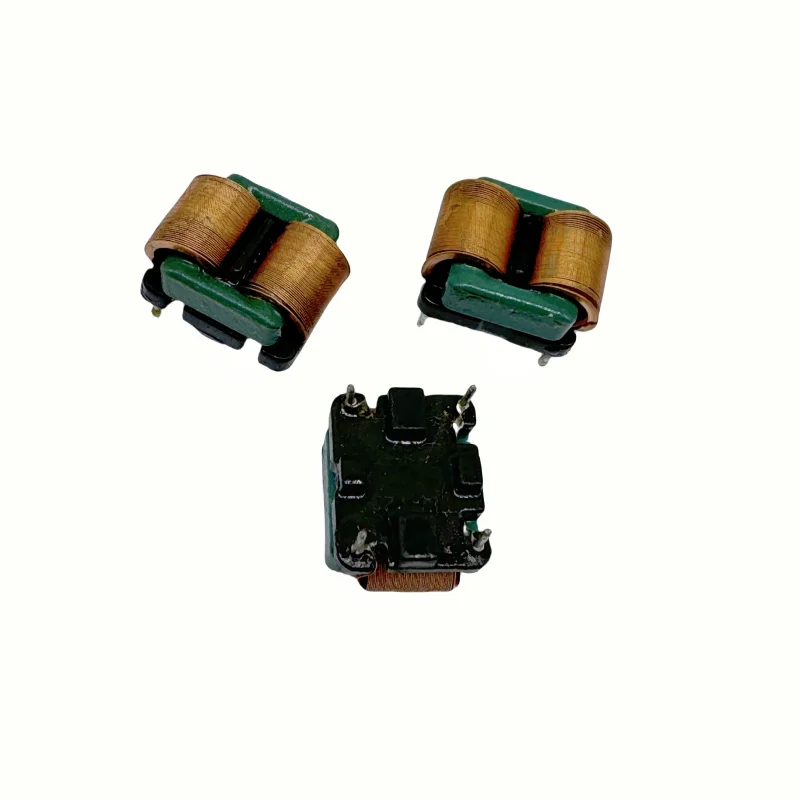

1. Common mode inductors description:

* Common mode inductors, also known as common mode chokes, are often used in switching power supply EMI filtering, filtering electromagnetic interference signals, it is composed of two coils wound at the same time on a ferrite, the number of turns of the two coils is the same, when the coil flow interference signals, the two opposite direction of the magnetic field will be offset for the common mode signal through, The superimposed magnetic flux coils in the magnetic ring exhibit high impedance characteristics and produce strong damping effect to suppress the common mode current, and the final result is to suppress the electromagnetic interference signal generated by the common mode signal.

2.Application:
* Switching power supply, CNC power supply, industrial power supply, adapter PC chassis power supply, UPS power supply, and other power supplies,switching power supply, CNC power supply, industrial power supply, adapter PC chassis power supply, UPS power supply, and other power supplies.

3.Characteristics:

Test condition	1KHz 0.3V 25℃±5
Nominal voltage	DC/AC 90V-250V
Voltage withstandatility	AC1.5KV 60sce
Operating temperature range	-25℃-125℃

Model Number	ZXY1212-0.1*1.0-15MH
Place of Origin	Guangdong, China
Brand Name	ZXY
Certification	ISO9001 RoHS CE
Operating Temperature	-25℃-125℃
Material	Mn-Zn Core+copper Wire
Usage	Electronic equipments
Dimension	Customized
DC Resistance (mΩ)	Customized
Material	UEW
Exports	Worldwide

Specification

OEM/ODM According Customer's Requirement
Customized	Power(capacity) W/VA	Parameters are required
			Input Voltage,Output Voltage
			Multiple groups, each group of Current shall be provided
			Dimensions, and other requirment

Company Profile

FAQ

Q1: Who are you?
We are based in Guangdong, China, start from 2011,sell to North America(40.00%),Southeast Asia(30.00%),South
America(10.00%),Western Europe(10.00%),Mid East(10.00%). There are total about 51-100 people in our office.

Q2: How can you guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

Q3: What can we buy from you?
Toroidal Transformers, Audio Transformers, High/Low Frequency Transformers, Power Inductors, Wireless Charging Coils.

Q4：What's your products‘ MOQ?
We provide you small MOQ for each item, it depends your specific order!

Q5: For the first time working with you, what guarantees do you have?
Please rest assured that we will conduct our transactions through Alibaba's transaction assurance service.

Q6: Why should we buy from you not from other suppliers?
TEAM:Independent engineer team ,to check drawings, provide quotation, write machining process,guide production. OEM:Advanced production technology,accept OEM customization.

DELIVERY: Independent PMC department to make production plan and manage delivery.
