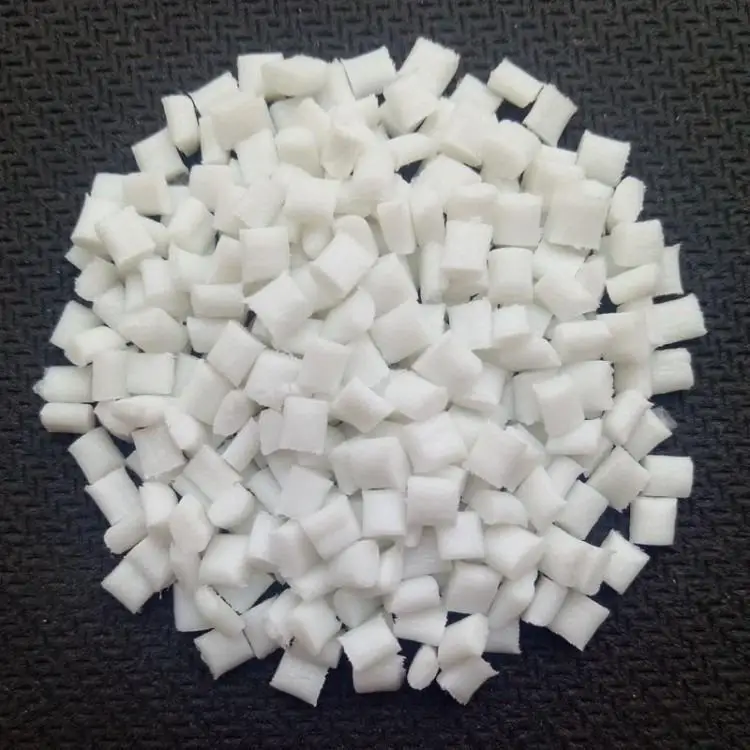

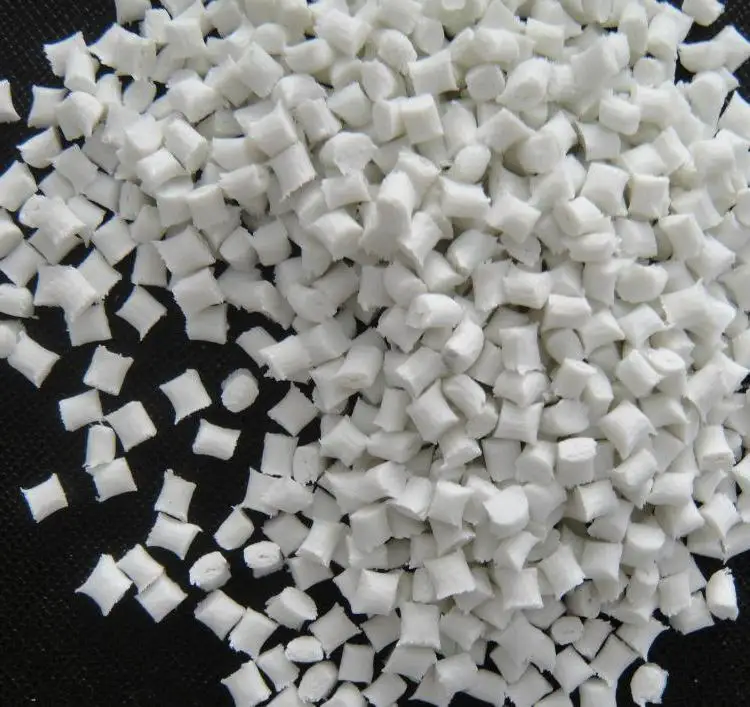

PBT B 4406 G4 гранулы PBT пластиковое сырье Смола PBT гранулы
118,20 ₽ - 140,97 ₽
PBT гранулы пластиковое сырье PBT NPG30 смолы
- Категория: >>>
- Поставщик: Shanxi Aojiang Technology Co. Ltd.
Сохранить в закладки 1601275295239:
Описание и отзывы
Характеристики
Products Description
Polybutylene terephthalate (PBT) is a crystalline material that belongs to the general engineering plastics category. PBT is a polyester made from terephthalic acid and 1,4-butanediol that has many excellent properties, including strong chemical resistance, desirable electrical properties, and high adaptability to molding and other industrial processes, which makes it a common material of choice in a wide range of applications, including electrical and electronic equipment, automotive parts, and film extrusion. On the other hand, the prevalence of ester bonds in PBT makes it susceptible to degradation in the presence of strong bases and easy hydrolysis in warm, humid environments.
Physical property | Standard | Vaule | Unit |
Density | ASTM D792 | 1.63 | g/cm³ |
Shrinkage Flow | ASTM D995 | 0.3 | % |
Shrinkage xFlow | ASTM D995 | 0.9 | % |
Water Absorption 23℃24hr | ASTM D570 | 0.07 | % |
Hardness | Standard | Vaule | Unit |
Rockwell Hardness R(Scale) | ASTM D785 | 120 | |
Mechanical behavior | Standard | Vaule | Unit |
Tensile Strength 23℃ | ASTM D638 | 120 | MPa |
Elongation 23℃ | ASTM D638 | 2.5 | % |
Flexural Strength 23℃ | ASTM D790 | 185 | MPa |
Flexural Modulus 23℃ | ASTM D790 | 8800 | MPa |
Izod Notch Impact 23℃ | ASTM D256 | 85 | J/m |
Thermal | Standard | Vaule | Unit |
HDT Unannealed 0.45MPa | ASTM D648 | 220 | ℃ |
HDT Unannealed 18MPa | ASTM D648 | 210 | ℃ |
Flammability | Standard | Vaule | Unit |
Flame Rating BK WT 0.8mm | UL 94 | V-0 | |
Flame Rating BK WT 1.5-1.65mm | UL 94 | V-0 | |
UL | Standard | Vaule | Unit |
UL FlameRating BK WT 0.8mm | UL 94 | V-0 | |
UL FlameRating BK WT 1.5-1.65mm | UL 94 | V-0 | |
RTI Elec BK WT 0.8mm | UL 746B | 75 | ℃ |
RTI Elec BK WT 1.5-1.65mm | UL 746B | 75 | ℃ |
RTI Imp BK WT 0.8mm | UL 746B | 75 | ℃ |
RTI Imp BK WT 1.5-1.65mm | UL 746B | 75 | ℃ |
RTI Str BK WT 0.8mm | UL 746B | 75 | ℃ |
RTI Str BK WT 1.5-1.65mm | UL 746B | 75 | ℃ |
Details Images
Application
PBT of application:
(1) Connectors
Connectors are bridges between signals and are indispensable components for transmitting electronic signals and power connections. The balanced physical properties and price of PBT meet the needs of connectors. PBT is usually mixed with 30% glass fiber as a connector. PBT is widely used due to its mechanical properties, solvent resistance, good molding processability and low price. PBT cannot be used in SMT type connectors due to its poor solder heat resistance.
(2) Cooling fans
The second largest use of PBT is in cooling fans. Cooling fans are placed in machines and rotate for a long time to help dissipate heat. The physical properties of plastics are required to be heat resistant, flame retardant, insulating and mechanically strong. PBT is usually used in the form of 30% fiber addition as the outer frame and fan blades of cooling fans.
(3) Bobbin
The third use of PBT is as a winding shaft in transformers and relays. It is generally injection molded with 30% fiber addition of PBT. The physical properties required for winding shafts include insulation, heat resistance, solder resistance, fluidity, strength, etc. Applicable materials include phenolic resin, PBT, PA6, and PET. Phenolic resin has good properties, but its moldability is not as good as PBT. Therefore, small-sized and complex-shaped products all use PBT resin. Although PBT has poor solder resistance, countries such as Europe, the United States, and Japan, which have a high awareness of environmental protection, have a tendency to increase the use of recyclable PBT.
(4) Automobile Industry
The amount of PBT consumed in the automobile industry is about 2,200 metric tons, of which half of PBT is formed into PBT/PC alloy with PC and can be used as car bumpers. In addition, PBT can also be used for window motor housings, motorcycle motor parts, and automobile transmission gear boxes.
(5)Others
Other uses of PBT, such as adding 15% glass fiber to the inner and outer shell of the base of energy-saving light bulbs, using PBT/PC composite glue as the sole of skates, and others such as relay housings, sockets, switches, and tuner housings.
Connectors are bridges between signals and are indispensable components for transmitting electronic signals and power connections. The balanced physical properties and price of PBT meet the needs of connectors. PBT is usually mixed with 30% glass fiber as a connector. PBT is widely used due to its mechanical properties, solvent resistance, good molding processability and low price. PBT cannot be used in SMT type connectors due to its poor solder heat resistance.
(2) Cooling fans
The second largest use of PBT is in cooling fans. Cooling fans are placed in machines and rotate for a long time to help dissipate heat. The physical properties of plastics are required to be heat resistant, flame retardant, insulating and mechanically strong. PBT is usually used in the form of 30% fiber addition as the outer frame and fan blades of cooling fans.
(3) Bobbin
The third use of PBT is as a winding shaft in transformers and relays. It is generally injection molded with 30% fiber addition of PBT. The physical properties required for winding shafts include insulation, heat resistance, solder resistance, fluidity, strength, etc. Applicable materials include phenolic resin, PBT, PA6, and PET. Phenolic resin has good properties, but its moldability is not as good as PBT. Therefore, small-sized and complex-shaped products all use PBT resin. Although PBT has poor solder resistance, countries such as Europe, the United States, and Japan, which have a high awareness of environmental protection, have a tendency to increase the use of recyclable PBT.
(4) Automobile Industry
The amount of PBT consumed in the automobile industry is about 2,200 metric tons, of which half of PBT is formed into PBT/PC alloy with PC and can be used as car bumpers. In addition, PBT can also be used for window motor housings, motorcycle motor parts, and automobile transmission gear boxes.
(5)Others
Other uses of PBT, such as adding 15% glass fiber to the inner and outer shell of the base of energy-saving light bulbs, using PBT/PC composite glue as the sole of skates, and others such as relay housings, sockets, switches, and tuner housings.
Main products
Company Profile
Shanxi Aojiang Technology Co., Ltd. is located in Taiyuan City, Shanxi Province. It is a diversified service company integrating domestic trade and international trade. Our goal is to provide customers with high-quality solutions and a one-stop purchasing experience. Our vision is to make plastic more accessible to everyone. Our products include general plastics, engineering plastics, special engineering plastics, injection molds and injection molding machines. Products are widely used in automobiles, home appliances, office supplies, mobile phone accessories, routers, food, medical and other fields.
Packaging & Shipping
Why Choose Us
FAQ
1. Are you trading company or Manufacturer ?
We are factory.
2.About Sample
Under 500g we provide free of charge.
3. About Material
We can customize the material according to customers' requirement.
4. About Quality
All the products must be tested strictly according to the testing procedure before shipment.
5. About Delivery Period
Small goods within 7 working days, large goods can be negotiated.
We are factory.
2.About Sample
Under 500g we provide free of charge.
3. About Material
We can customize the material according to customers' requirement.
4. About Quality
All the products must be tested strictly according to the testing procedure before shipment.
5. About Delivery Period
Small goods within 7 working days, large goods can be negotiated.
