KA-H5G

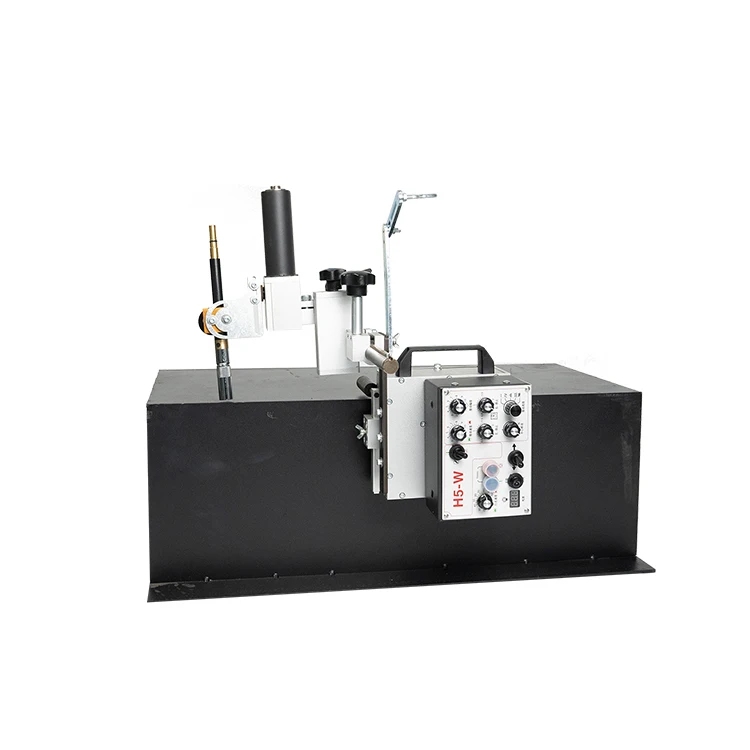

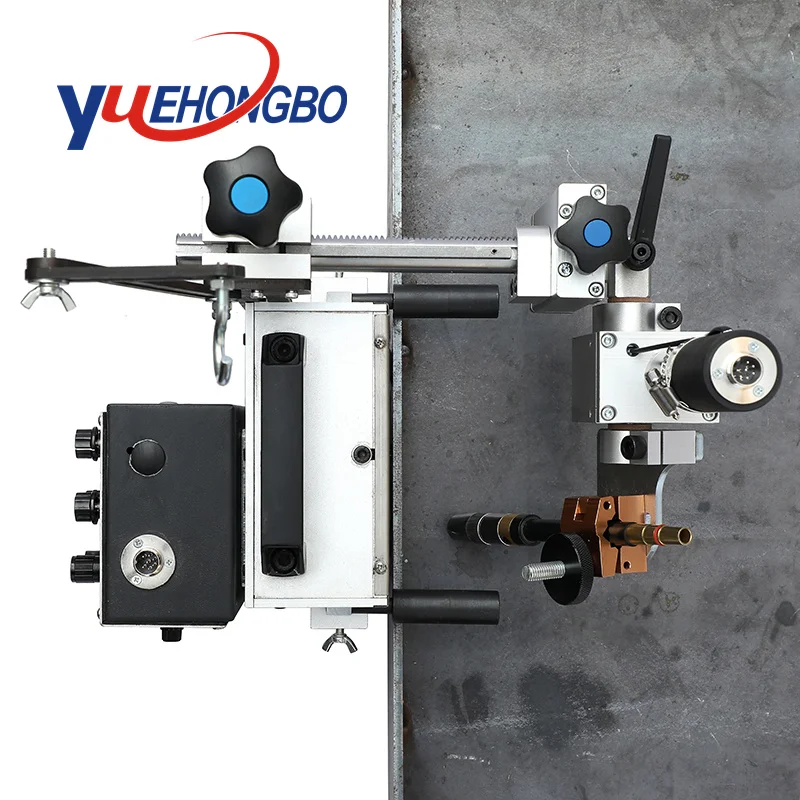

The KA-H5G side suction-hanging automatic welding car is modified on the basis of the KA-H5-side suction automatic welding car. It is mainly used for narrow and small H-shaped steel, and the box-shaped beam corner weld. Side -sucking method is suitable for certain special welding forms.
(2) The swing speed, swing range, center position and left and right stays can be adjusted, suitable for various specifications of welding channels.
(3) Install a permanent powerful magnet to prevent the car from falling off during welding. The permanent powerful magnet can also prevent the car damaging accident caused by the loss of the electromagnet loss during power outages.
(4) It is suitable for the corner welding of the box beam, with a small size, light weight, walking without track and convenient movement. In addition, it can be moved in the tilt surface and narrow space.
(5) The drive wheel itself is designed to towards the welding site. The bottom of the car is equipped with a friction limit wheel to better ensure that the car is walking along the welding line. The side suction type installation method is suitable for some special welding forms.
Items | Event item | Instructions | ||
Dolly | Walking method | Four-wheel drive | ||
Range of torch adjustment | Vertical orientation | 55mm | ||
Horizontal orientation | 55mm | |||
Job Angle adjustment range | 360 ° | |||
Make the Angle adjustment range | 0 ° | |||
Exterior dimensions | 350mm× 350mm×400mm | L× W ×H | ||
Weight | 16Kg | Wiggler included | ||
Magnet suction | 60Kg | Permanent magnet | ||
Motor matters | DC24V 18RPM | |||
Control box | Adjustment function | Power supply ON/OFF selection; Power light | ||
Welding/non-welding options | ||||
Walk starts; Walking stops; | ||||
Walking direction selection | Left or right | |||
Walking speed adjustment | 0~1200mm/Min | |||
Swing speed adjustment | 0~30RPM | |||
Swing amplitude adjustment | 0~30mm | |||
Left and right residence time adjustment | 0~2s | |||
Use power | AC110-220 | Optional lithium DC24V | ||

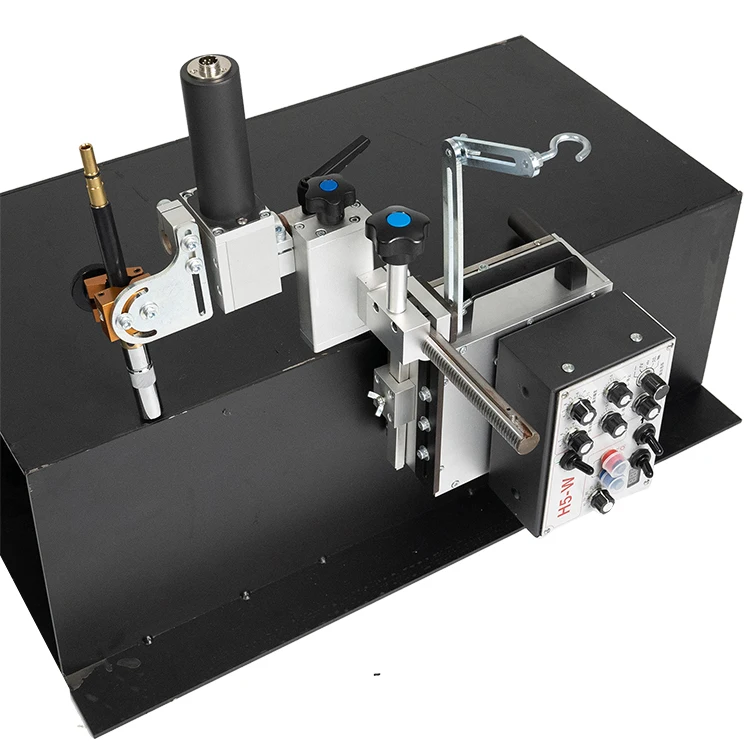

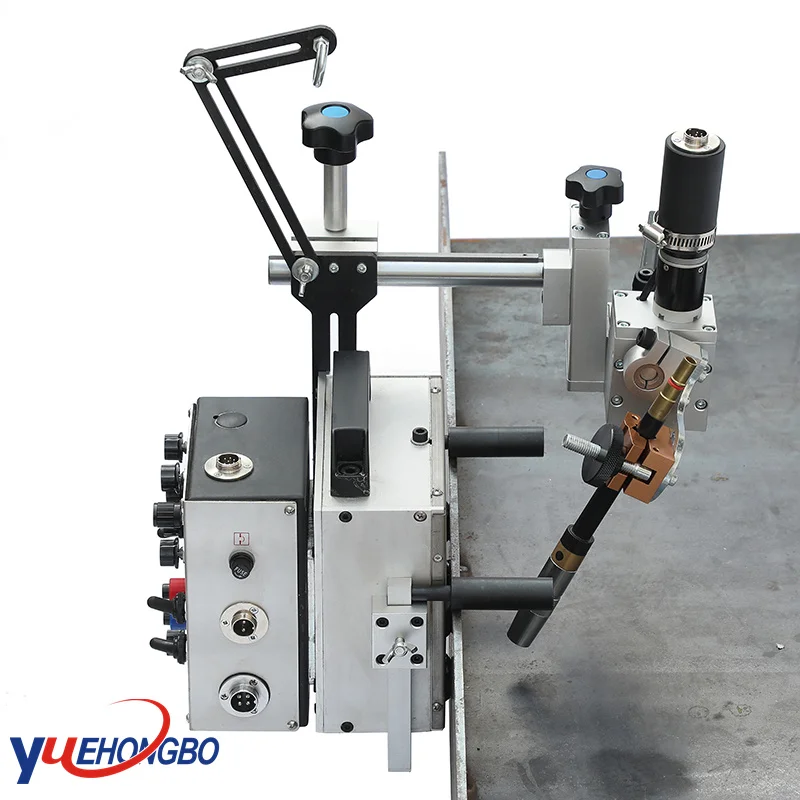

1.XY slider: adjust the position of the welding gun
2. Oscillator: drives the welding gun to perform pendulum-style swing welding
3. Welding gun clamp: The clamping device of the welding gun can adjust the angle of the welding gun.
4. Guide wheel: a device that guides the car along the welding line
5. Driving part: The power device for the trolley to travel, consisting of four rubber wheels, helical gears, chains, and sprockets.
6. Control box; all movements of the car can be adjusted. For details, please refer to the control panel operation method.
7. Barrel holder: used to fix the barrel
2. Oscillator: drives the welding gun to perform pendulum-style swing welding
3. Welding gun clamp: The clamping device of the welding gun can adjust the angle of the welding gun.
4. Guide wheel: a device that guides the car along the welding line
5. Driving part: The power device for the trolley to travel, consisting of four rubber wheels, helical gears, chains, and sprockets.
6. Control box; all movements of the car can be adjusted. For details, please refer to the control panel operation method.
7. Barrel holder: used to fix the barrel
