Машина для лазерной резки CO2 арамидный материал двойная станция пяти осей спасательный шлем

Сохранить в закладки 1601275508420:


Цена:25 714,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики

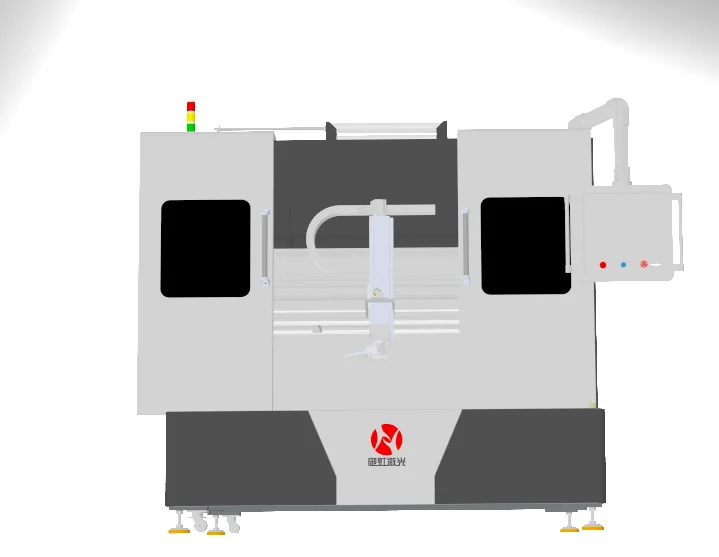

Five Axis Helmet Machine




Laser type
Sealed CO2 lasers
 Laser power
800w
 Number of laser heads
 Single-headed
 Cutting area
1300*700*500mm
 Operating voltage
AC 220V±10%,50-60HZ
Cutting thickness
7-23mm
 Repeatability accuracy
±0.01mm
 Operating temperature
0-45℃
 Operating humidity
5-95%
Total power
7.2KW
Guide rail
recision screw guides
 Motor
Imported servo motor
 Drive mode
Servo drive
 Power supply
 Switching power supplies
Lens
2.5 inches
Reflector
 SI medium
Cutting platform
Aluminum tooling platform (tooling provided by customer)
Blow protection
Dry compressed air
Filter
EMI FILTER
Water cooler
INDUSTRIAL CHILLER
 Weight
1500kg

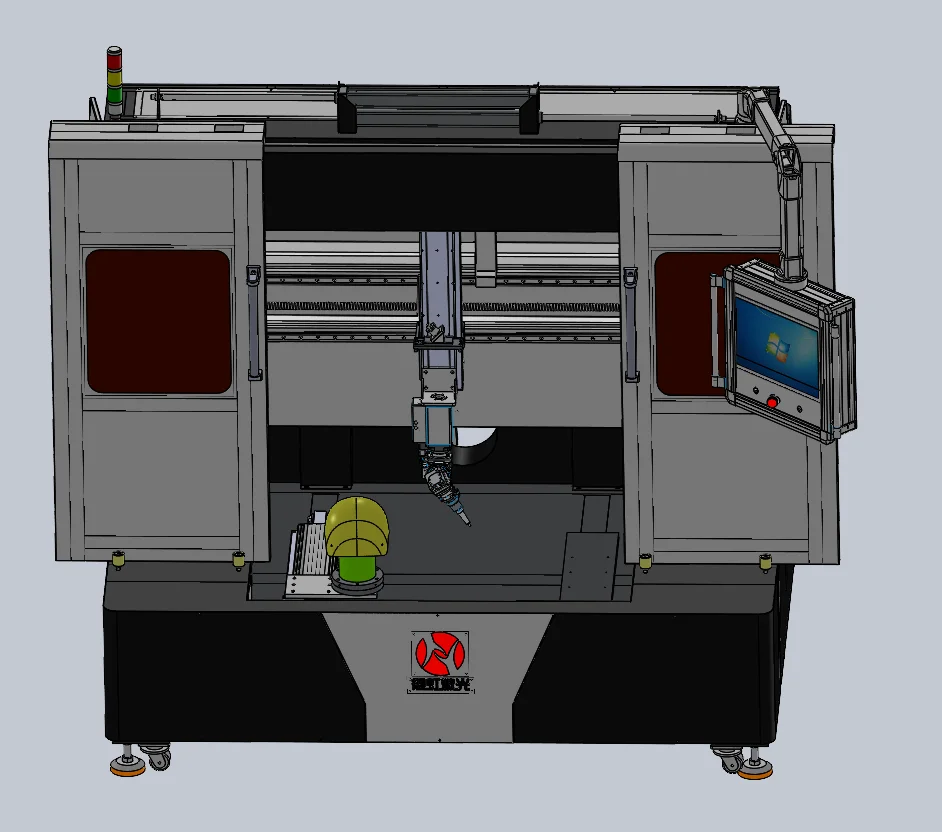

Five Axis Helmet Machine Main Features

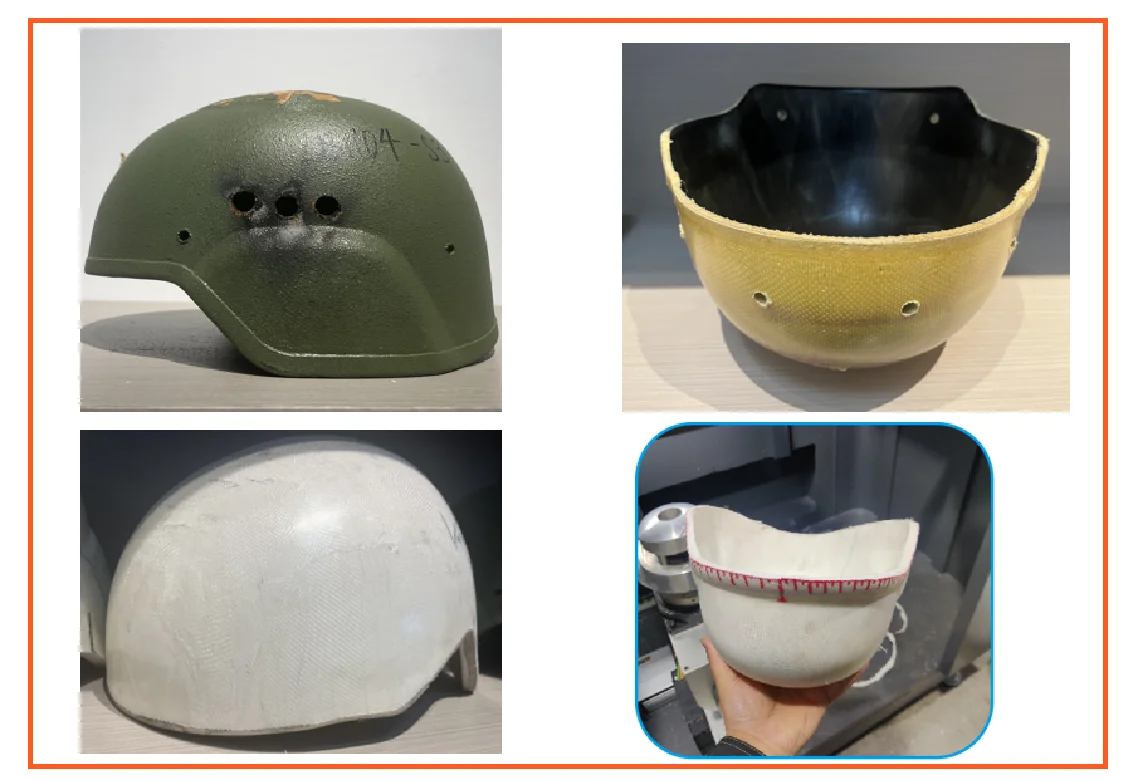

Specialized for bulletproof helmets, using professional three-dimensional five-axis numerical control system, it can realize high-speed cutting of three-dimensional parts with complex curved surfaces to adapt to the diversity of products
The anti-collision protection design of the cutting head avoids excessive stress on the spindle of the equipment, which makes the accuracy deteriorate or damaged, and the laser cutting edge of the helmet is smooth and fine, no dust, no burrs, no drawing, and no secondary treatment is required
Infrared indication positioning, easy to operate, equipped with manual control teach pendant, simple operation, or unmanned management with signal and robot PLC, simple training can be started
Using fully automatic cutting, the processing process does not require manual intervention, the whole process is fast and good, the cutting is accurate and stable, saving a lot of labor and reducing the production process






Nanjing Yuhong Laser Equipment Co., Ltd. is a professional laser equipment manufacturing enterprise that integrates scientific research, development, production, sales, and service. The company has always been committed to applying high-tech in the laser industry to China's national industry, making laser technology suitable for production and achieving mechanical automation applications. The company has collaborated with several well-known large enterprises to develop products suitable for electronics and solar energy The automated laser assembly line in industries such as energy and automobiles has received unanimous recognition from customers. The latest model developed by the company has collaborated with South Korea to improve its appearance design, and has received advanced foreign technology support, which has significant advantages compared to similar products. The company adheres to the business philosophy of "people-oriented, customer-oriented, striving for progress, and common development", and meets the constantly changing market demands with high-quality and efficient services. It has been established in Beijing, Shanghai, Henan, Chongqing, Nanjing, Xuzhou Multiple offices have been established nationwide, forming a nationwide after-sales service network. We will prioritize integrity and ensure quality in the laser industry explore new horizons in the industry.
















Q1:: How can I choose suitable machine?
A1: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:
1) .What work table size you will need?
2) .What material do you need to cut
Q2: Will the laser machine be safe during transport?
A2: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
Q3:How can we guarantee quality?
A3:Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q4:How about the guarantee and after-sale service?
A4:(1) 1- year warranty for the whole machine.
(2) Technical support by video, manual, pictures or online.
(3) In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.

Q5: Why should you buy from us not from other suppliers?
A5: We focus on laser research and development for 15 years, and our products are exported to more than 100 countries and regions. We have a strong after-sales service team to escort you.
