Небольшая угольная шахта подземная туннель скальный погрузчик машина для продажи
1 190 250,72 ₽ - 1 267 396,60 ₽
Электрический подземный угольный погрузчик с гидравлическим двигателем
- Категория: >>>
- Поставщик: Qingdao Gudao Andes Machinery Co. Ltd.
Сохранить в закладки 1601275638207:
Описание и отзывы
Характеристики
Product Overview

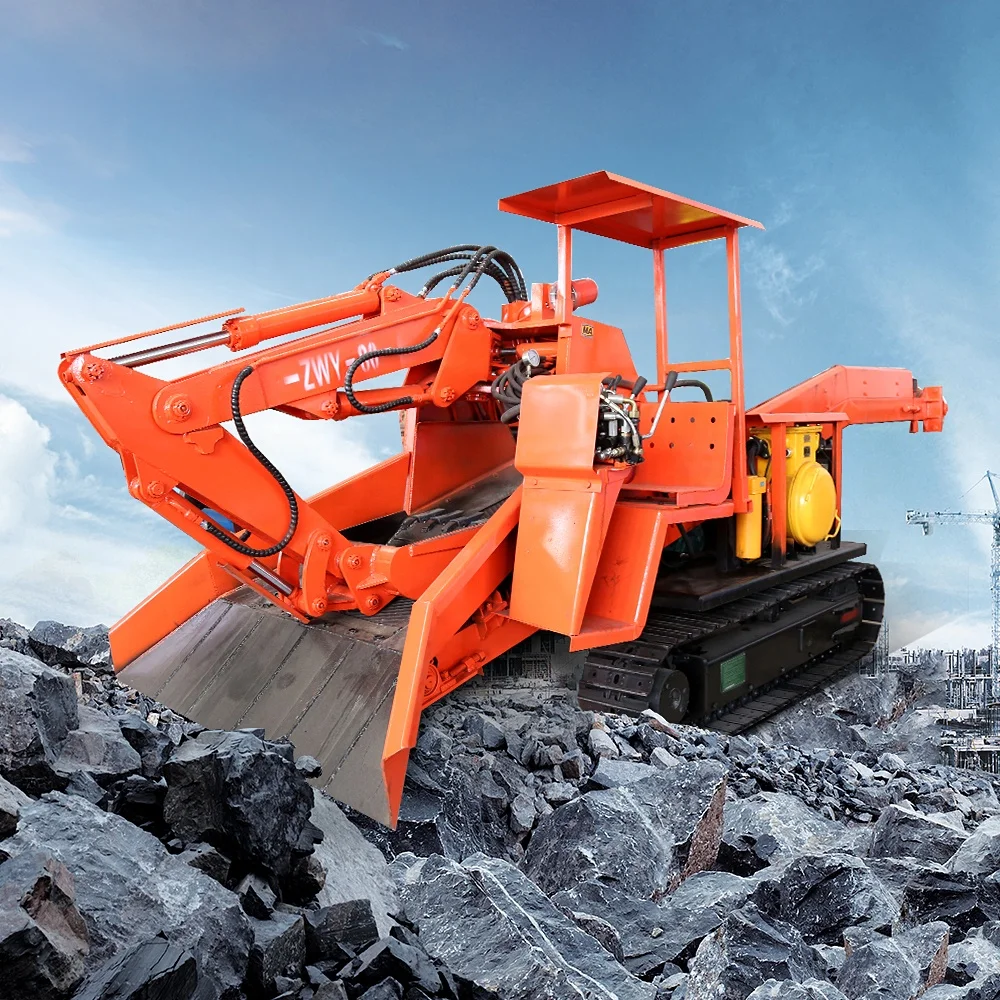

Mucking Loader For Mining
The ore loader is also called excavating loader. It is the bounding of manipulator and conveyor,the combination of collection and transportation.The ore loader as the main product of our factory is using Electric hydraulic control system. Contain five functions: hydraulic walking, mining acquisition,transportation,loading and bottom clearing . Our mucking loader has dualdrive device , electrical installation and diesel Installation.
Quality is the soul of our company, custmer satisfaction is our eternal pursuit. At present , our products are sold widely to Southeast Asia, The Middle East, Africa, Eastern Europe, South America, and other countries and regions.
Tecnicial Information
Project | Technical Parameter |
Product Model | ZWY-80/45L |
Total weight | 11960KG |
Loading capacity | 80m3/h |
Excavation width | 4800 3200mm |
Excavation distance | 1820 1530mm |
Excavation height | 2570 2300mm |
Excavation depth | 480 320mm |
Unloading height | 1470-1646 mm(variable) |
Unloading distance | 1600mm (variable) |
Walking speed | 0.54±5%m/s |
Scraper chain speed | 44m/min |
Applicable roadway slope | ≤34(o) |
Maximum working pressure | ≤38mpa |
Ground pressure | ≤ 0.1mpa |
Ground clearance | ≤ 320mm |
Total power | 47KW |
Track inner width | 941mm (can be widened) |
Our Client
Packing and Delivery
Packing and Delivery FCL
Packing and Delivery FCL
Exhibition
Company Profile
Qingdao Gudao Andes Machinery Co.,ltd. a factory of underground mining transportation tricycles and trucks with 25 years experience.Our tricycles and trucks are one of the best qualities in China and exported to more than 40 countries all over the world, like Malaysia, Ecuador, Peru,Chile, Bolivia and Ghana, South Africa. Quality first is always our first principle.With our products, we will help you create more value in your future business with our best quality and service.
We are factory of origianl mining truck factory,such as tricycle,four wheel truck, dump truck for small o midium scale mining!Our tricycles o 4 wheel dumpers has been approvded by clients from Peru, Bolivia,Ecudoar, Malaysia Mongolia and etc over 40 countries!
Diesel or electrical three o 4 wheel mining cargo dumper is our main product, mainly used in mining, brickyard,sanitation,palmryand pasture. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road. We have the types of cargo tricycles dumpr truck and 4-wheel dumper trucks from 1ton to 30 tons for you to choose. We could help you choose the suitable model for you!
FAQ
Do you have the following questions:
1. What is the scope of application and operation of vehicles in your factory?
Our car can be used for underground mine transportation, agricultural construction and other transportation work. At the same time, our factory also has palm oil special operation vehicles and small electric forklifts, which can be used to shovel snow and farm.
2. What is the loading capacity of your vehicles?
Our vehicle loading capacity ranges from 1 ton to 30 tons, which can meet different customer needs.
3. Which drive type of vehicle do you need?
We have electric vehicles and diesel vehicles for customers to choose from. At the same time, we can customize the engine according to customer needs.
4. What about after-sales service and parts after purchasing your car ?
Our factory has rich foreign sales experience, and we havemature parts manuals. When customers buy vehicles, we will provide some free parts. In addition, our vehicle parts can also be purchased in the customer's country. So after-sales service customers need not worry.
You don't need to worry. We will provide you with a complete set of pre-sale and after-sales services.
Recommend Products
Похожие товары

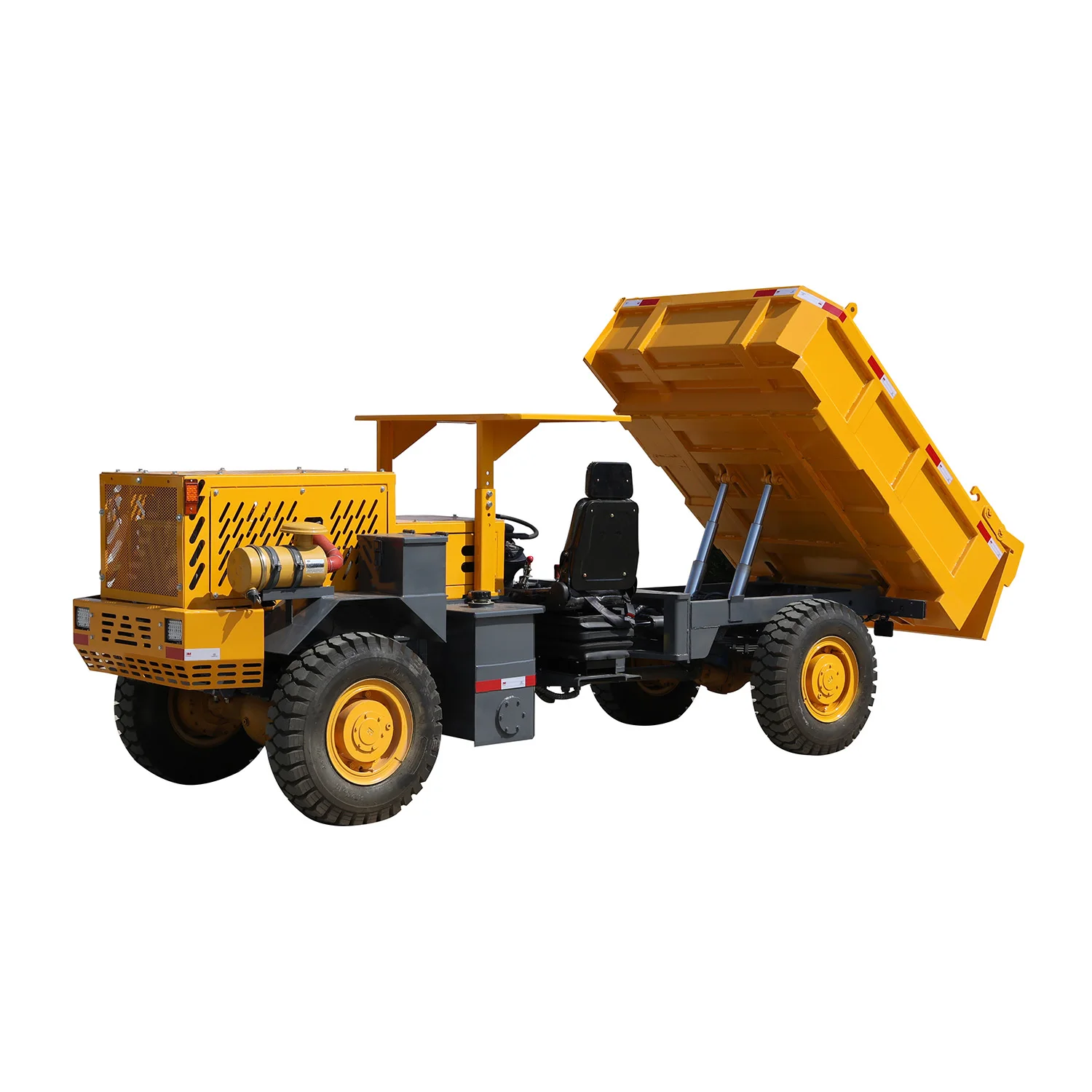

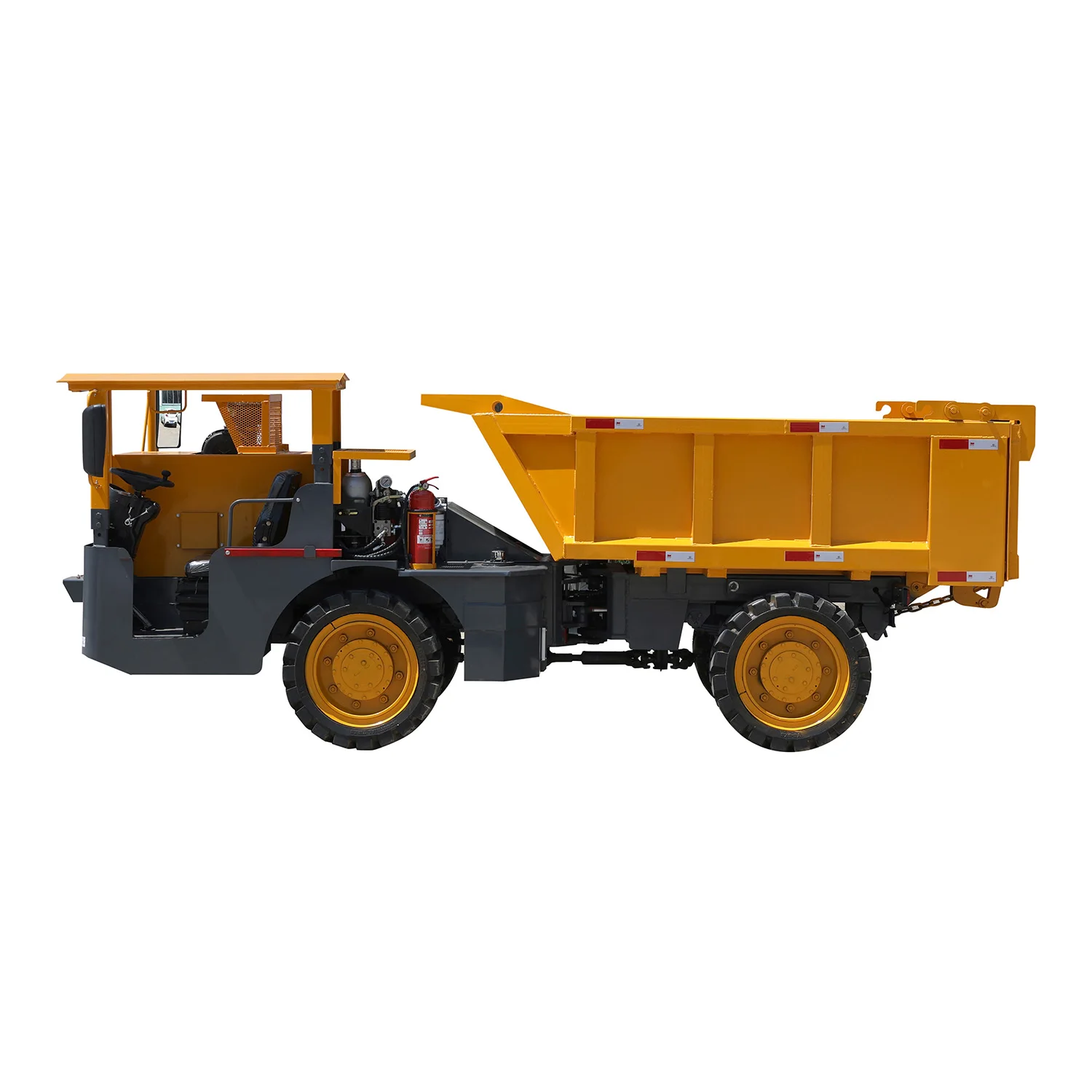

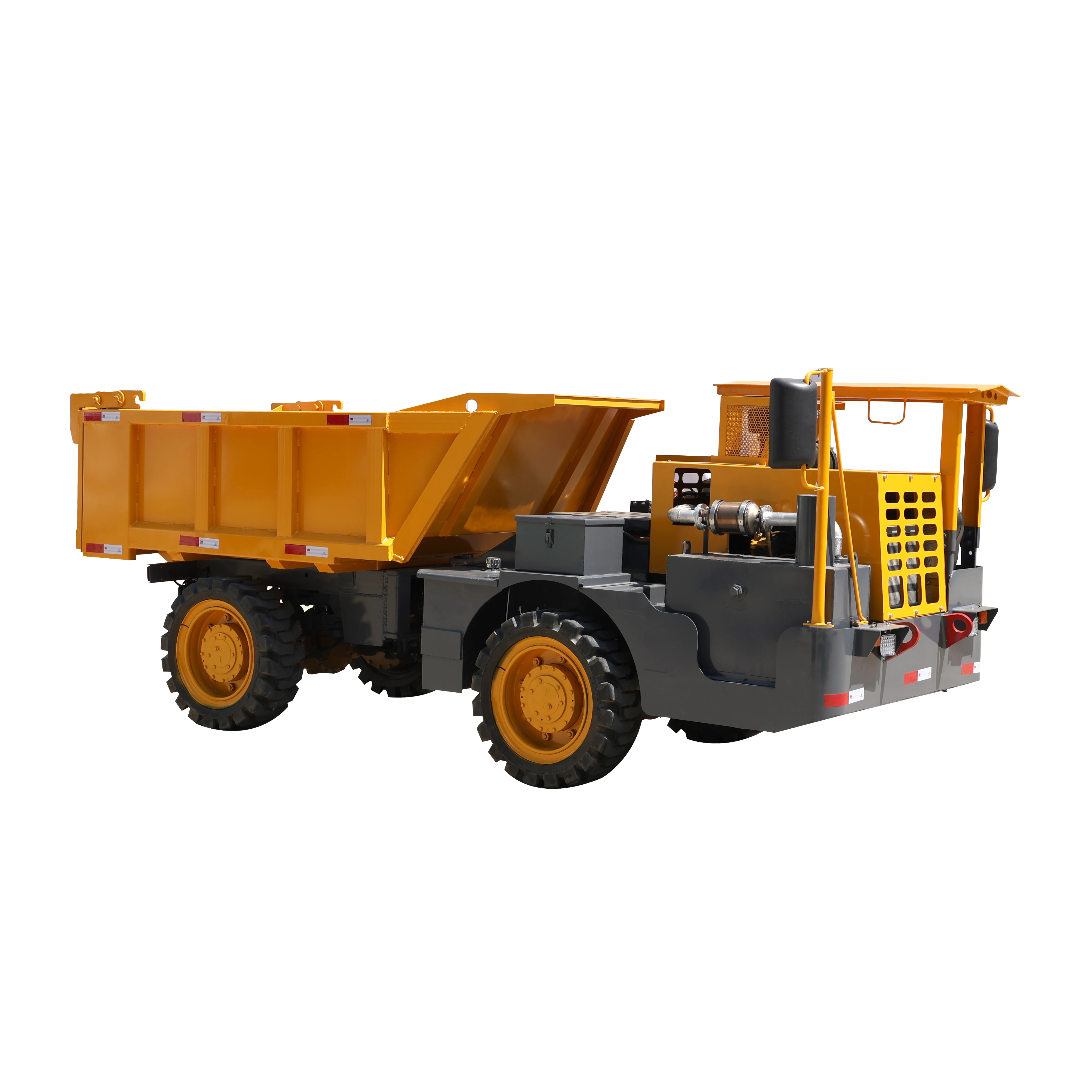

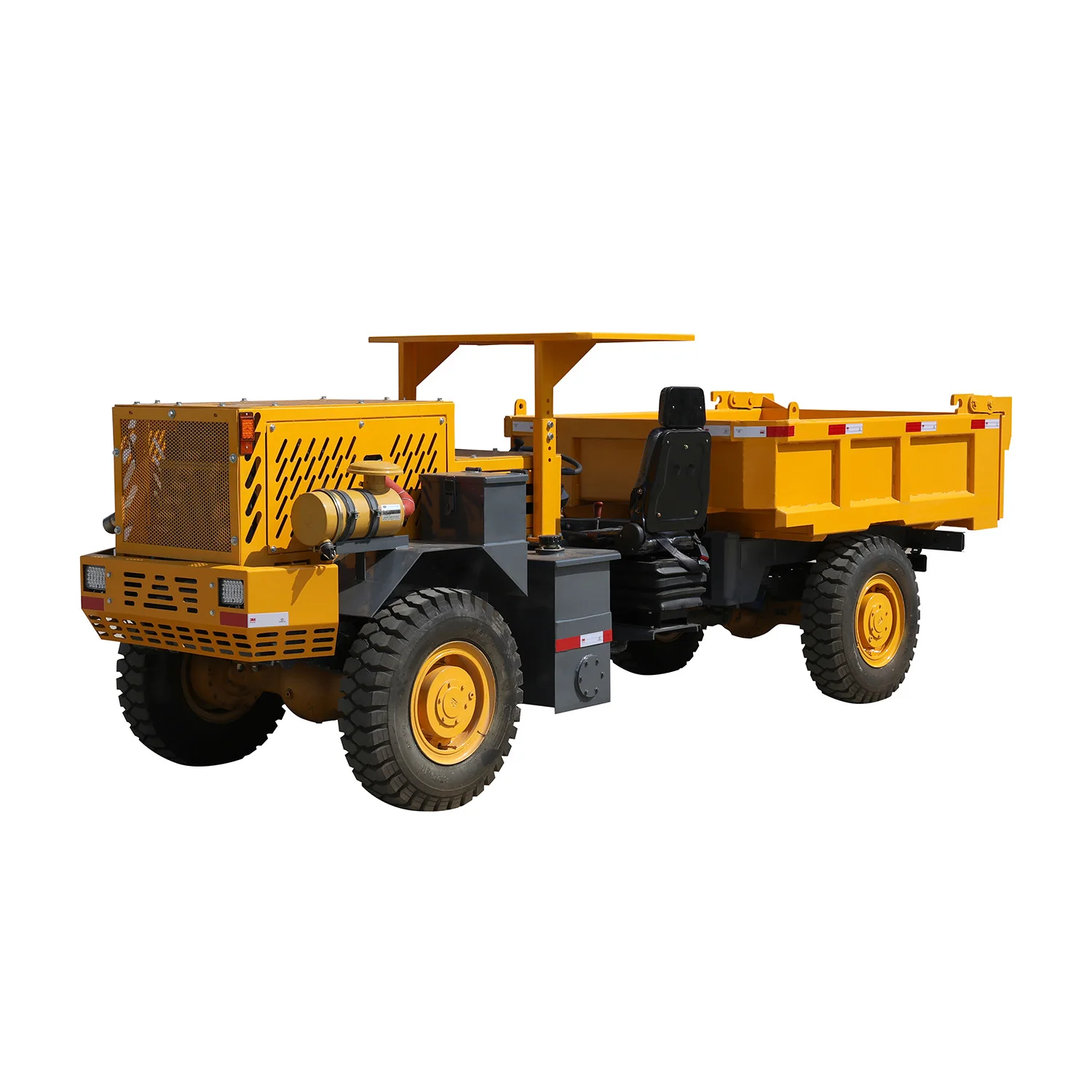

Хит продаж новый 5-тонный карьерный самосвал 6x4 12 тонн 15-тонный
1 631 084,32 ₽ - 1 818 438,60 ₽

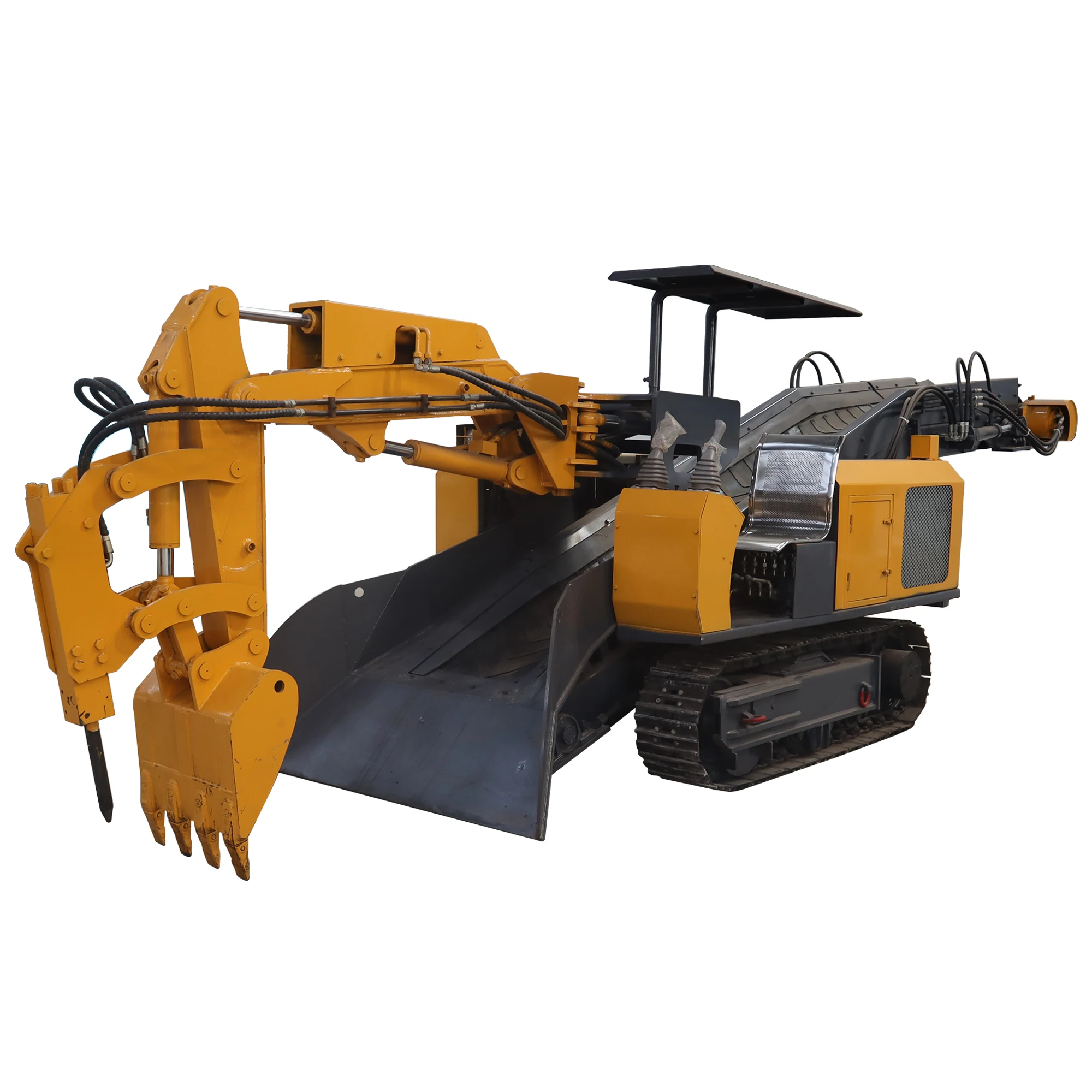

Высококачественный телефон машина для загрузки камней туннельный погрузчик угольной шахты гусеничный добычи
749 417,12 ₽ - 881 667,20 ₽
Экскаватор дробилка и транспортер для шахтных туннелей высокоэффективный экскаватор
539 910,96 ₽ - 550 931,80 ₽

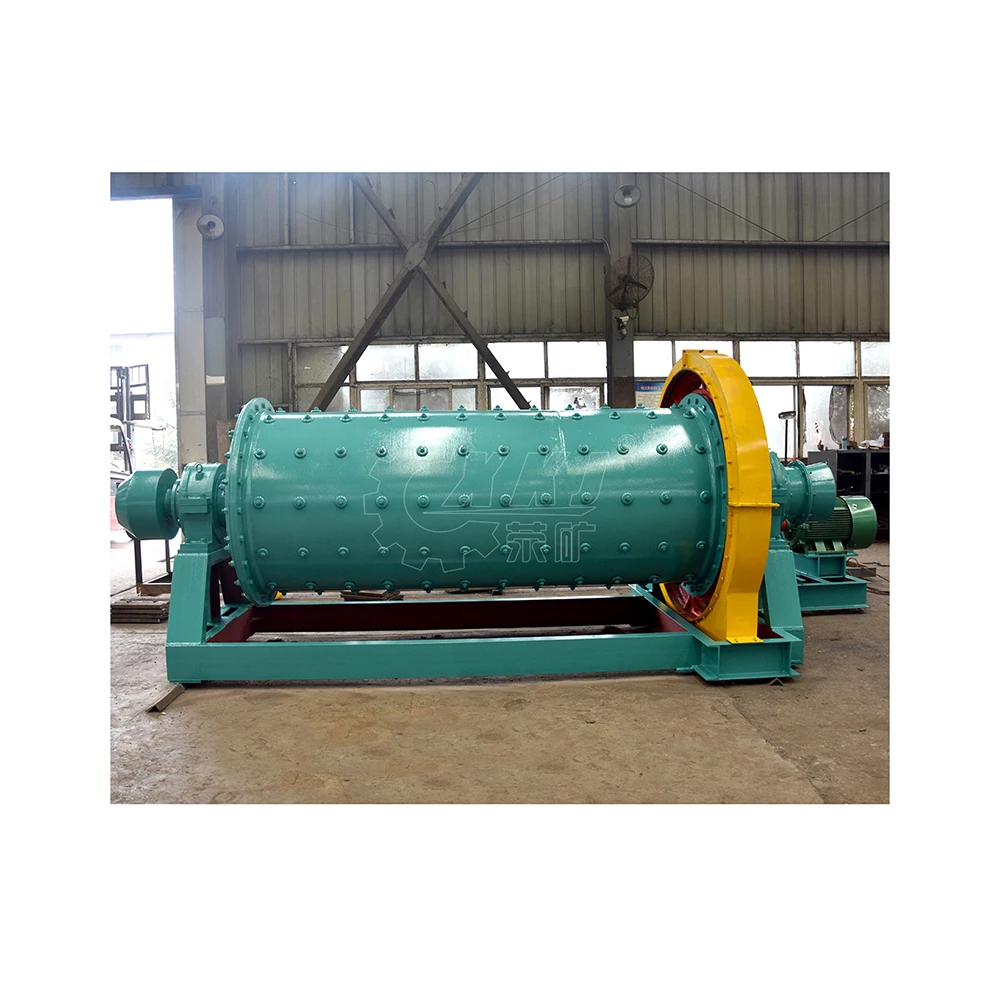

Мельница Henan 1200x4500 БОКСИТОВАЯ РУДА шаровая мельница оборудование по заводской цене
2 622 959,92 ₽ - 2 645 001,60 ₽

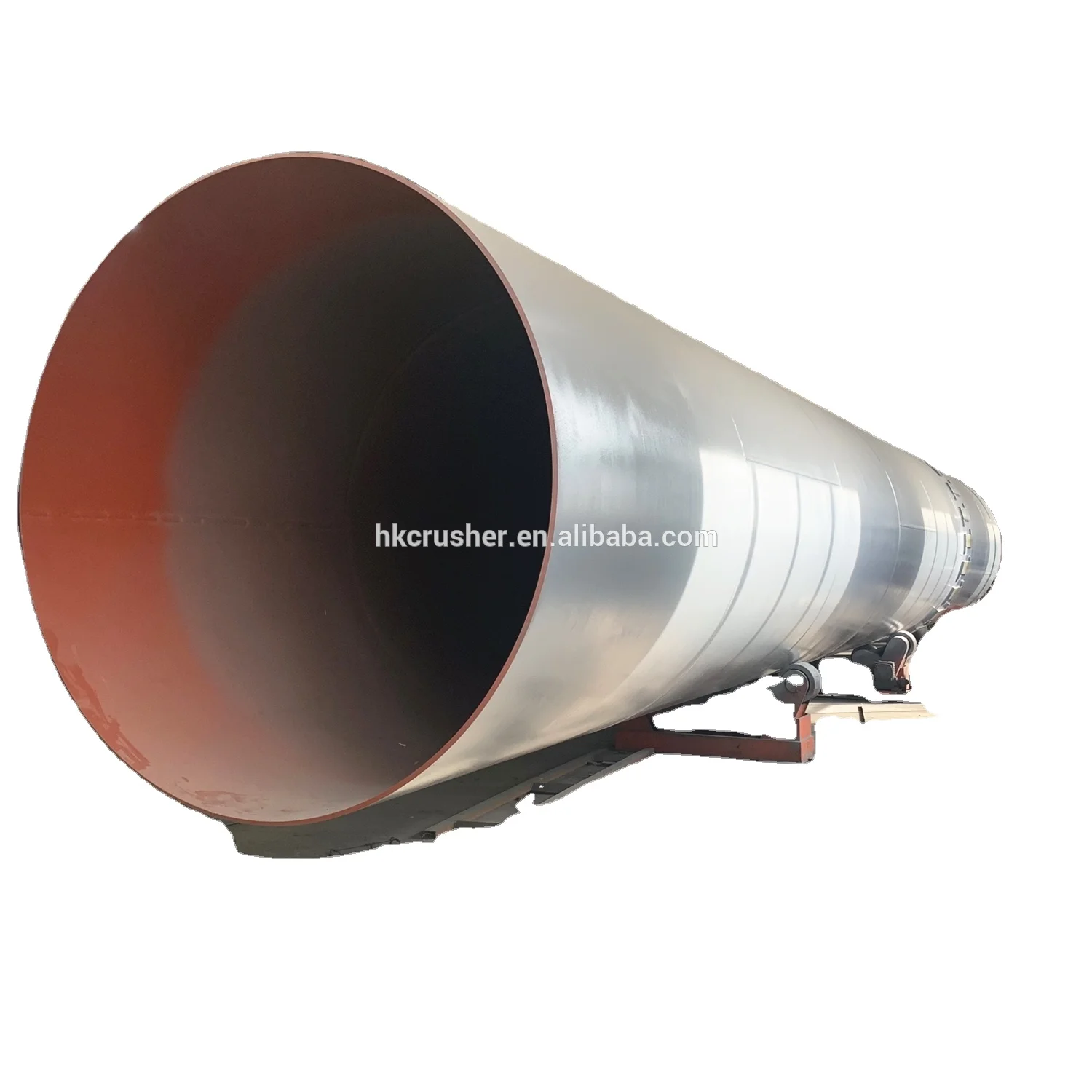

Высококачественная глина обжига керамическая роторная печь Цена
2 755 210,00 ₽

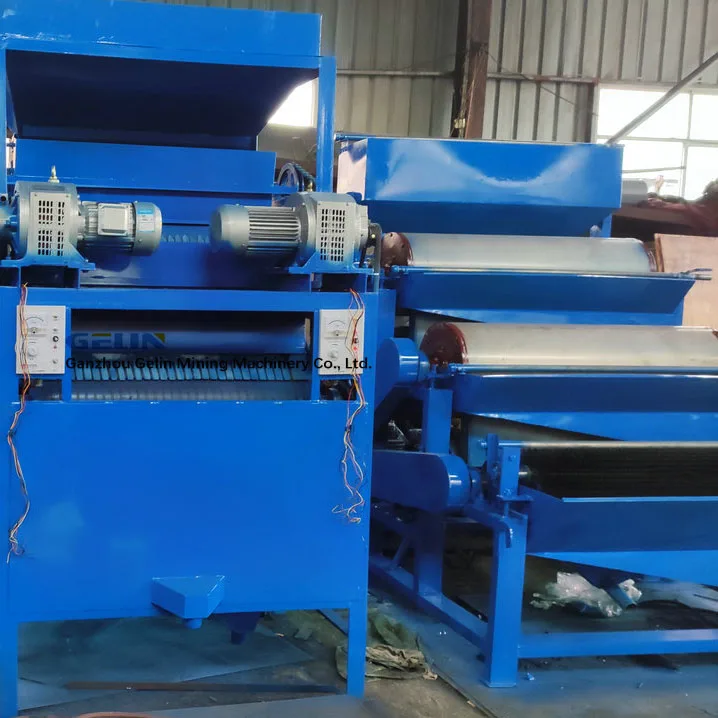

Сухой сепаратор циркон титан-ниобий высокоинтенсивный дисковый магнитный
