Китайский производитель тепловых насосов воздушный источник evi тепловой насос моноблок 5 кВт Инверторные тепловые насосы для домов
369 601,51-492 674,87 ₽
Насос нагревательный R290 AIO Mute 1600 Вт 300 Power Top COP л эмалированный резервуар 80d горячая вода нагревается свободный холодный воздух все в одном насос
- Категория: >>>
- Поставщик: Guangdong SumAir Energy Technology Co. Ltd.Guangdong Ltd.
Сохранить в закладки 1601275744341:
Описание и отзывы
Характеристики
R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
Product Features
LCD Intelligent control
Large panel LCD intelligent control multi-function mode selection, easy to operate, save time.
First class energy efficiency
Built-in electronic expansion valve, intelligent control of refrigerant flow, precise temperature control,energy saving and environmental protection.
Super mute
Sound insulation board sealed cabin, optimized design of noise reduction system of the whole machine, library-level mute.
Micro-Channel Heating Pipe to achieve heat exchanging.
Ensure high effecient heat exchanging rate, while decrease the abrasion of gas circulation to enamelled inner water tank.
Large panel LCD intelligent control multi-function mode selection, easy to operate, save time.
First class energy efficiency
Built-in electronic expansion valve, intelligent control of refrigerant flow, precise temperature control,energy saving and environmental protection.
Super mute
Sound insulation board sealed cabin, optimized design of noise reduction system of the whole machine, library-level mute.
Micro-Channel Heating Pipe to achieve heat exchanging.
Ensure high effecient heat exchanging rate, while decrease the abrasion of gas circulation to enamelled inner water tank.
R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
Durable (Enamelled Water Tank)
Extra corrosion resistance+ Anti-bacterial properties
International well-known brand heat pump compressor, stable operation at high and low temperature, safe and reliable.
Wire control + Wifi App
Beautiful and delicate control panel, which can be installed anywhere on the wall, easy to use and full of high-end style.
Durable (Enamelled Water Tank)
Extra corrosion resistance+ Anti-bacterial properties
International well-known brand heat pump compressor, stable operation at high and low temperature, safe and reliable.
Wire control + Wifi App
Beautiful and delicate control panel, which can be installed anywhere on the wall, easy to use and full of high-end style.
Parameter
Model No. | ADC-08-200 | ADC-08-300 | ||||||
Power supply | 220-240V~, 1Ph, 50Hz | 220-240V~, 1Ph, 50Hz | ||||||
Nominal tank volume | L | 200 | 300 | |||||
ErP level (7/6℃ Average ) 55℃ HW | A+ | A+ | ||||||
Heating capacity (20/15℃ Indoor air) | W | 1130 | 1600 | |||||
Heating capacity (7/6℃ Average climate) | W | 850 | 1210 | |||||
EBH (Electric backup heater) | W | 1500 | 1500 | |||||
Input (Heat pump only) | W | 276 | 395 | |||||
COP @ 20/15 ℃ Indoor air | 4.10 | 4.05 | ||||||
COP @ 7/6 ℃ Average climate | 3.10 | 3.20 | ||||||
Current (Heat pump only) | A | 1.2 | 1.8 | |||||
Max. input（Heat pump+EBH） | W | 1913 | 2093 | |||||
Max. current | A | 8.5 | 9.3 | |||||
Air flow | m3/h | 270 | 360 | |||||
Max. water temperature outlet | °C | 70 | 70 | |||||
Hot water yield @ 20/15 ℃ Indoor air | L/h | 24 | 34 | |||||
Available | About 2-3 peoples | About 3-5 peoples | ||||||
Working ambient temperature | -10°C-43°C | -10°C-43°C | ||||||
Sound pressure level | dB(A) | 48 | 49 | |||||
Sound power level | dB(A) | 57 | 59 | |||||
Max. operating water pressure | MPa | 0.8 | 0.8 | |||||
Water resistance | IPX1 | IPX1 | ||||||
Refrigerant type / Factory charged | R290 /150g | R290 /150g | ||||||
Throttling type | Electric expansion valve | Electric expansion valve | ||||||
Compressor | ||||||||
Model | 5.8CC | 8.18CC | ||||||
Type ×Quantity | Rotary ×1 | Rotary ×1 | ||||||
Brand | GMCC | GMCC | ||||||
Capacitor | 15μF/450V | 20μF/450V | ||||||
Oil type / charged | ESTEL oil XS-601C1 / 140ml | ESTEL oil XS-601C1 / 140ml | ||||||
Evaporator | ||||||||
Fin material | Hydrophilic aluminum | Hydrophilic aluminum | ||||||
Tube | Material | Inner groove copper tube | Inner groove copper tube | |||||
Outside diameter | mm | Φ5 | Φ5 | |||||
Fan motor | ||||||||
Motor model | BLDC | BLDC | ||||||
Brand | Welling (Foshan) | Welling (Foshan) | ||||||
Quantity | 1 | 1 | ||||||
Speed | rmp | 800-900 | 950-1100 | |||||
Protection | Internal | Internal | ||||||
Fan type ×Quantity | Centrifugal ×1 | Centrifugal ×1 | ||||||
Fan diameter×Height | mm | Φ192×82 | Φ192×82 | |||||
Tank | ||||||||
Inner tank material | Enamel | Enamel | ||||||
Inner tank outside diameter | mm | Φ470 | Φ540 | |||||
Usable storage volume | L | 192.6 | 293.5 | |||||
Inner tank thickness | mm | 2.0/2.5 | 2.0/3.0 | |||||
Max. inner tank pressure | bar | 8 | 8 | |||||
Insulation | Polyurethane | Polyurethane | ||||||
Outer tank material | Galvanized steel | Galvanized steel | ||||||
Outer tank thickness | mm | 0.6 | 0.6 | |||||
Condenser coil | Standard type | Micro Channel Heat Exchanger wrapped the external of inner tank | ||||||
Corrosion proof | Magnesium anode | Magnesium anode | ||||||
Solar coil (Customized) | Inlet water pipe connection | \\ | \\ | |||||
Outlet water pipe connection | \\ | \\ | ||||||
Material | \\ | \\ | ||||||
Heat-exchange area | \\ | \\ | ||||||
Max. pressure | bar | 10 | 10 | |||||
Dimensions | ||||||||
Inlet water pipe connection | mm | DN20 | DN20 | |||||
Outlet water pipe connection | mm | DN20 | DN20 | |||||
Condensing water connection | mm | 1/4‘, internal thread | 1/4‘, internal thread | |||||
Unit dimension (ΦD×H) | mm | Φ570×1900 | Φ640×2,010 | |||||
Packing dimension (L×W×H) | mm | 645*645*(1880+110)（enclude Bracket） | 740*740*(2090+110)（enclude Bracket） | |||||
Weight | ||||||||
Net / Gross weight | kg | 90/ 101 | 105/ 117 | |||||
Notes: | ||||||||
The specification may be changed for product improvement, please refer to the nameplate of product. | ||||||||
Condition - Ambient: 20°C DB/15°C WB, initial water temperature is 15°C, ending water temperature is 55°C. | ||||||||

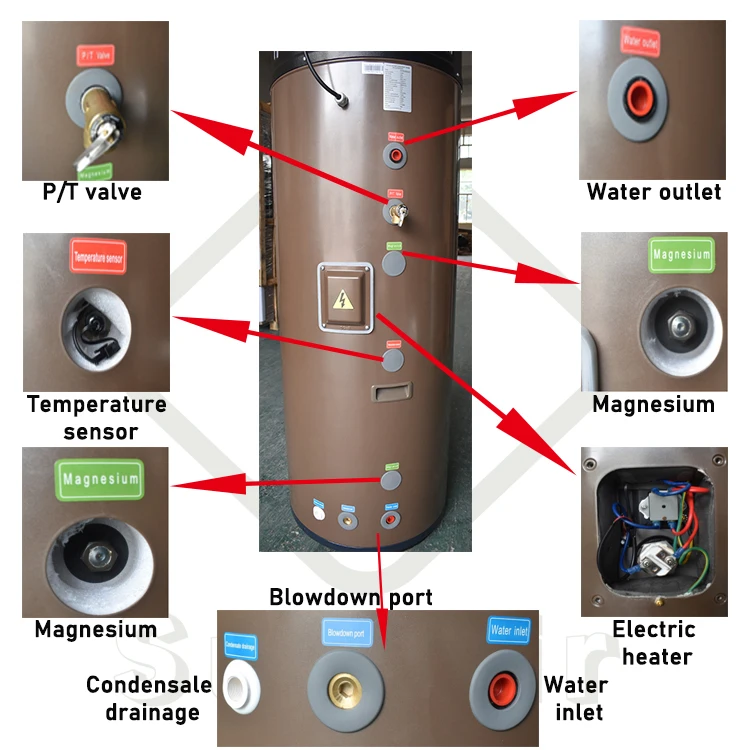

Detailed Image
R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
Certificates
Performance
ErP Energy Labels on R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
Products in Line
Packages & Shipment

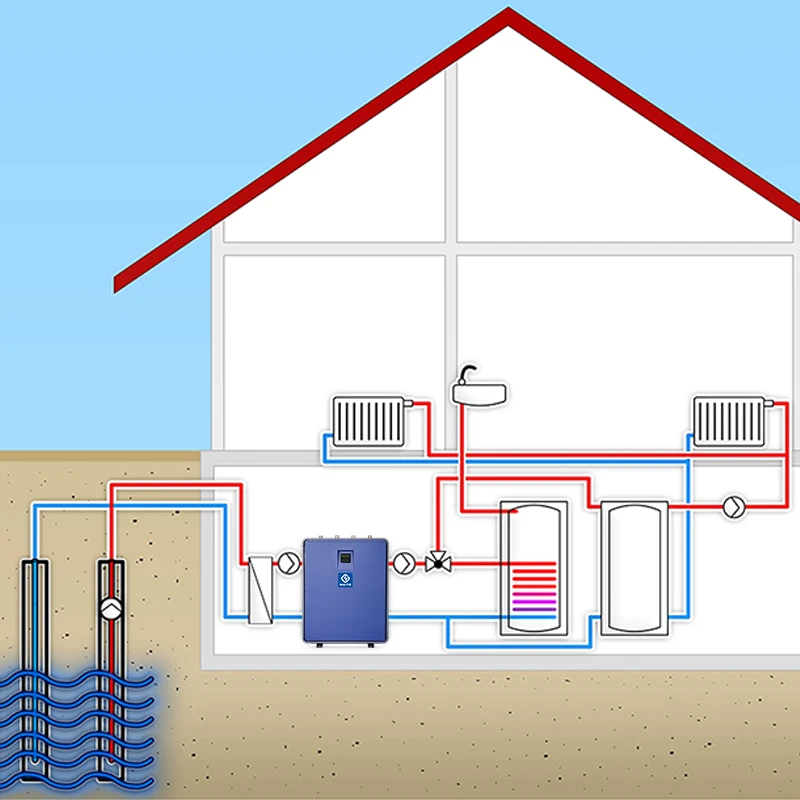

Application
SG-Ready Control/Installation Principle: R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
(1) Waste heat is useful heat
The standard hear exchanger of the hot-water heat pump enables direct connection to a second heat generator,e.g. a solar heating system or a boiler.
(2) Dehumidification in the recirculating air mode
Dehumidified air in the laundry room supports laundry drying and prevents moisture-induced damage.
(3)Cooling in the recirculating air mode
The room air is extracted from the storage room or a wine
cellar,subsequently cooled and dehumidified in the heat pump and finally re-introduced into the room.Recreation rooms,boiler rooms or utility rooms are ideal installation sites. The air ducts leading through warm sections must be insulated to prevent the formation of condensation.
cellar,subsequently cooled and dehumidified in the heat pump and finally re-introduced into the room.Recreation rooms,boiler rooms or utility rooms are ideal installation sites. The air ducts leading through warm sections must be insulated to prevent the formation of condensation.
(4)Variable change over of intake air
A duct system with integrated bypass flaps allows for variable utilization of the heat contained in the outside air or room air for the production of hot water.
R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
Installation attentions
①Choose the right path to move the unit;
②Try to move the unit as original case;
③If the unit installed in the building of the metal part,it must work for electrical insulation and comply with the relevant technical standards of electrical equipment.
①Choose the right path to move the unit;
②Try to move the unit as original case;
③If the unit installed in the building of the metal part,it must work for electrical insulation and comply with the relevant technical standards of electrical equipment.
Further concerns on installation, optional heat exchanger coil built-in, shipment, leadtime, promotional price etc, just feel free to send us an inquiry on R290 AIO Mute 1600W Heating 300W Power Top COP 300L Enamelled Tank 80d Hot Water Heated A+ Free Cool Air All In One Heater Pump
