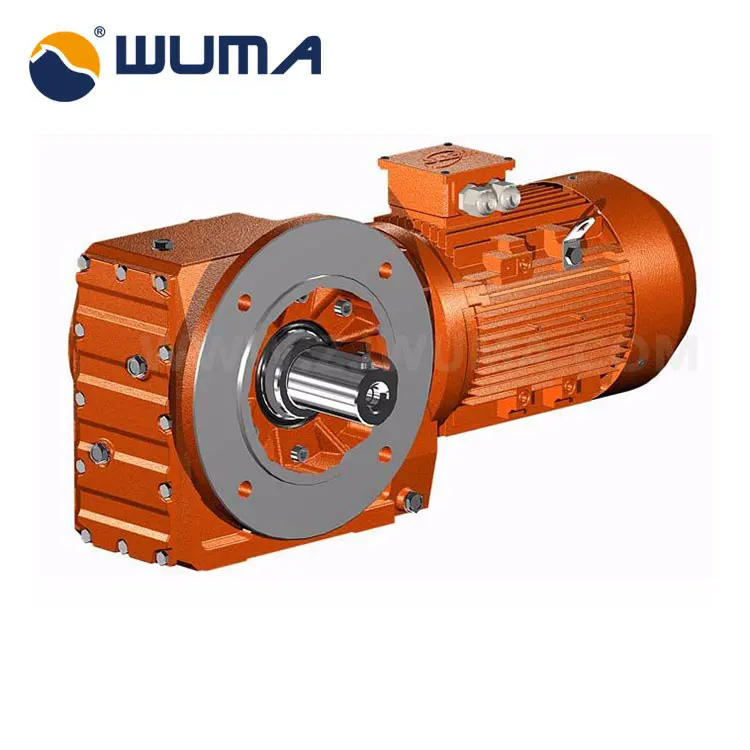

Редуктор переменного тока Шестерня серии K Винтовая Коробка передач спиральная коническая коробка передач для механической трансмиссии
16 265,39 ₽

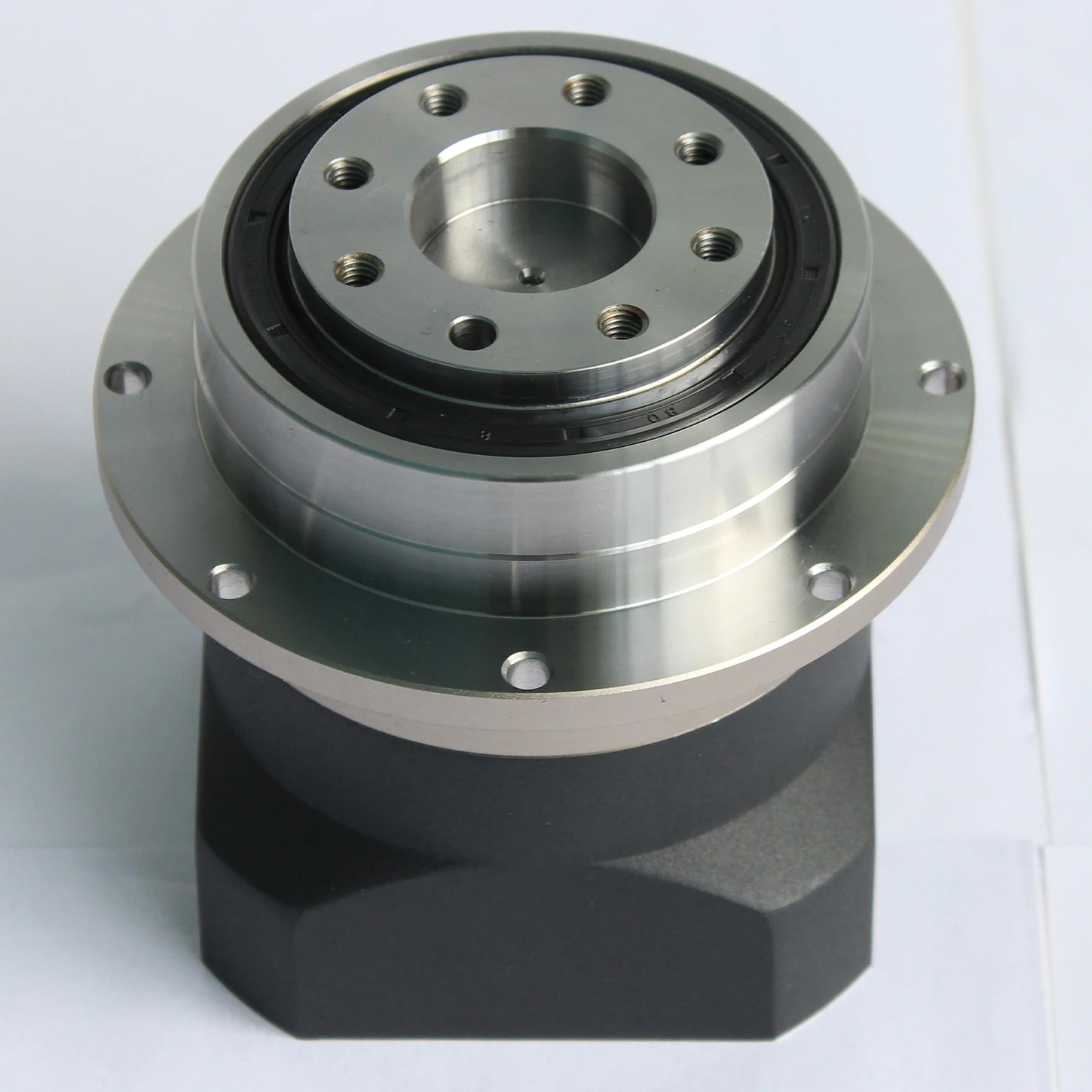

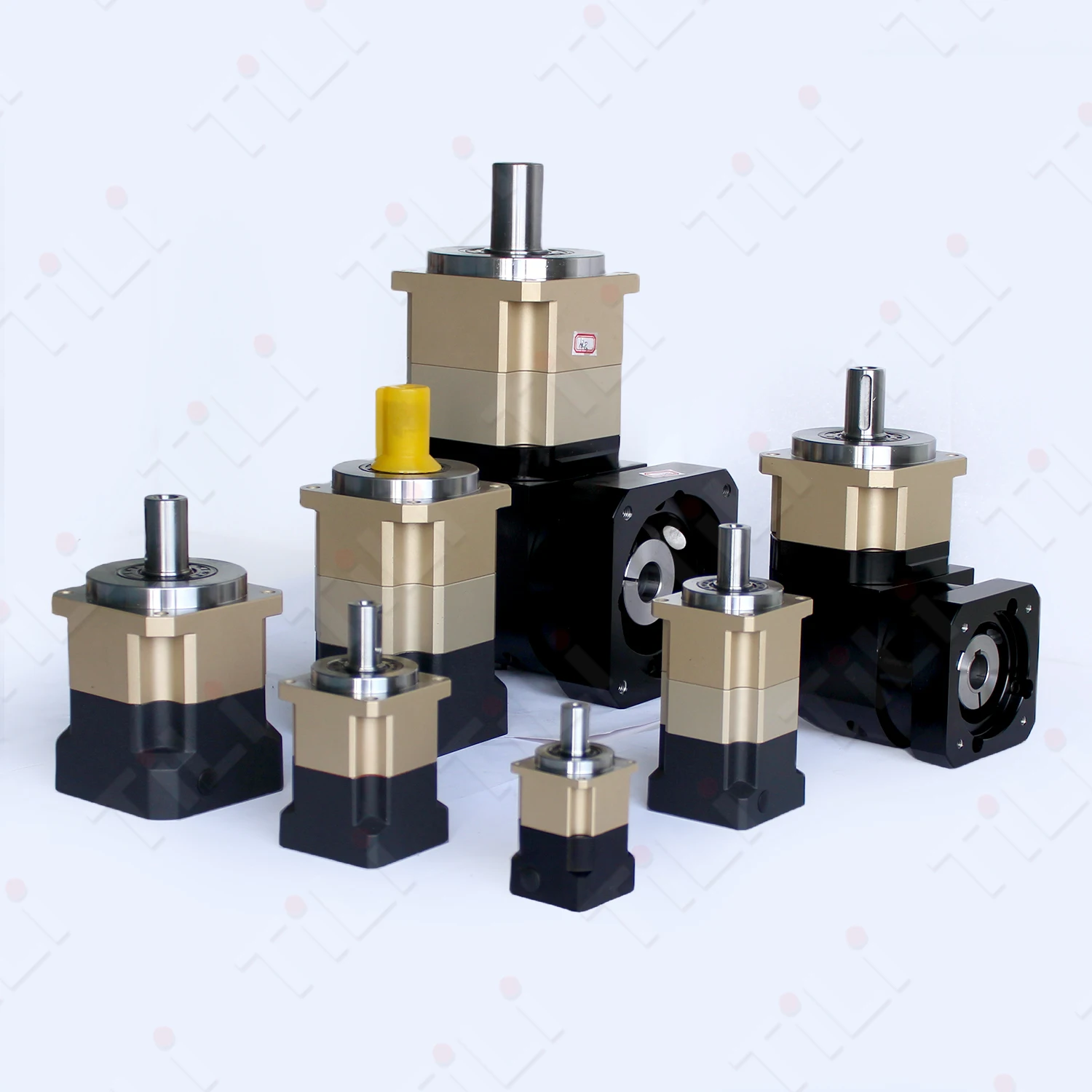

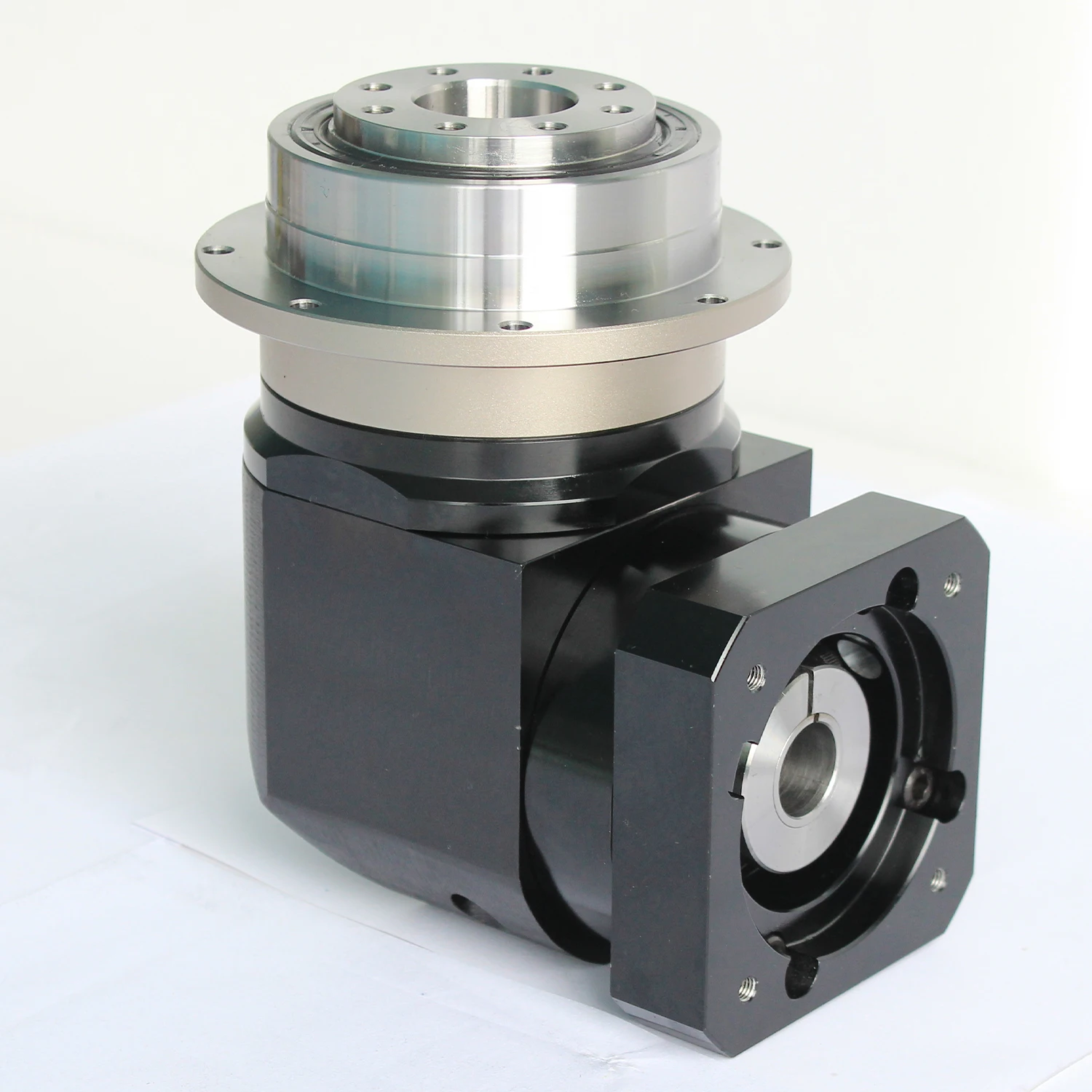

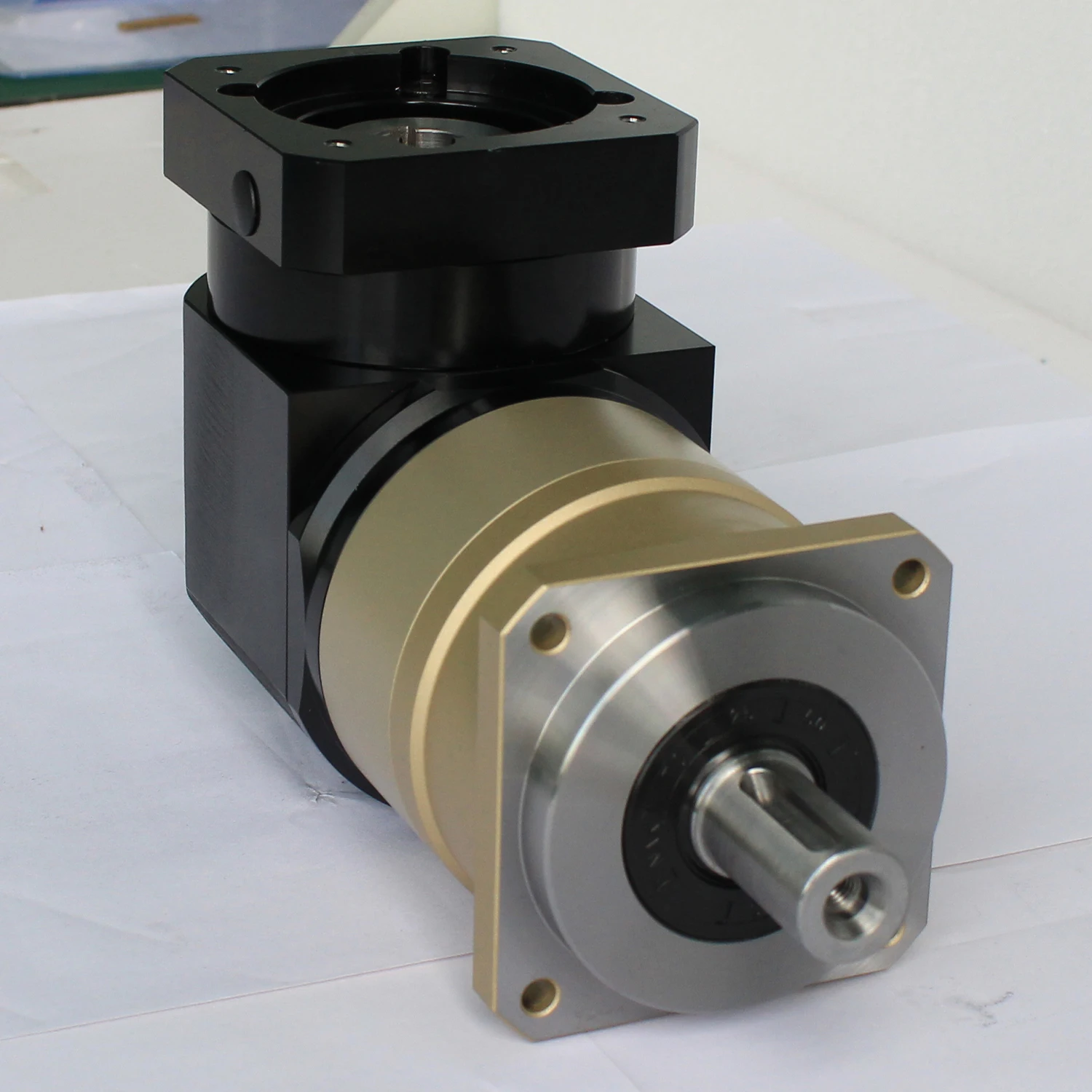

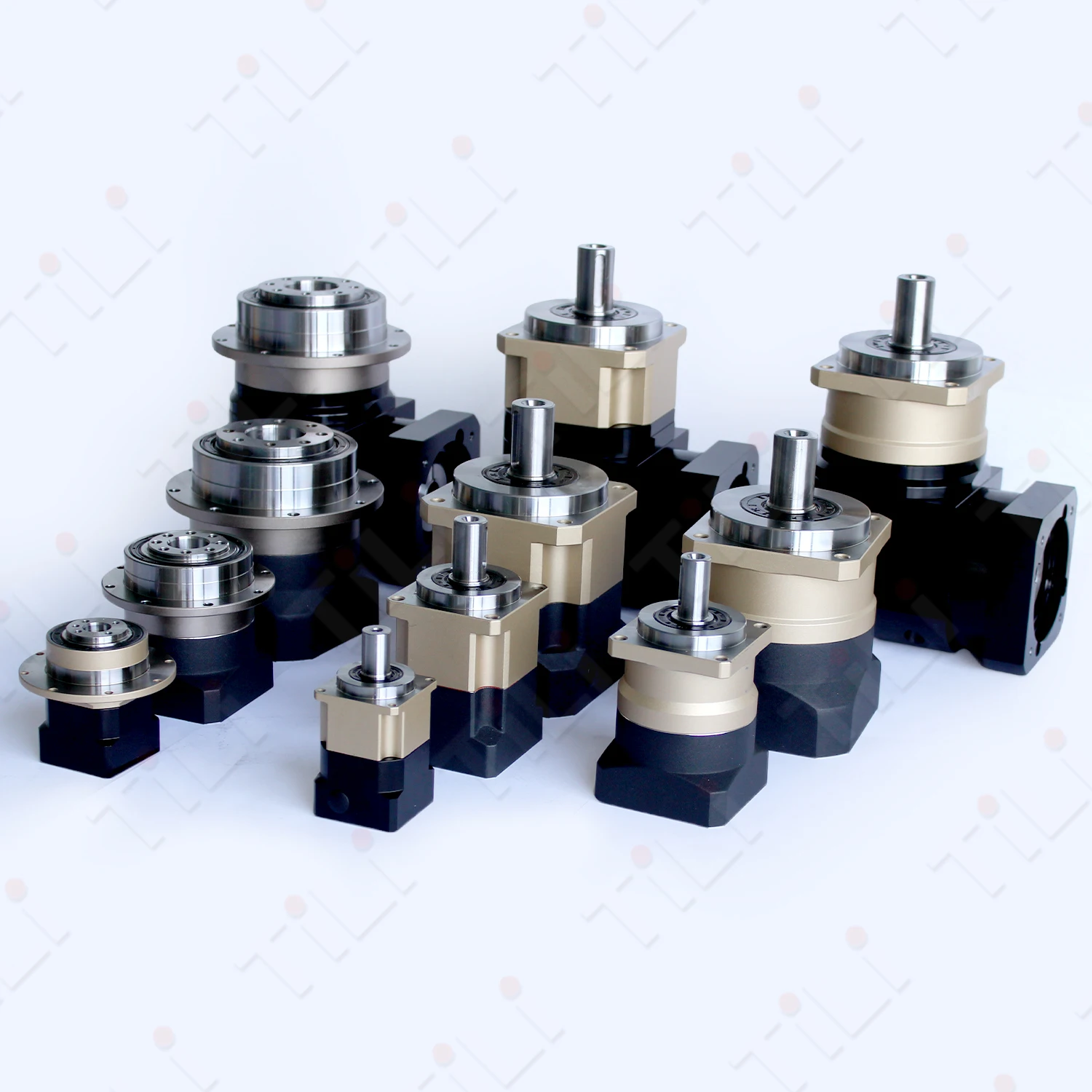

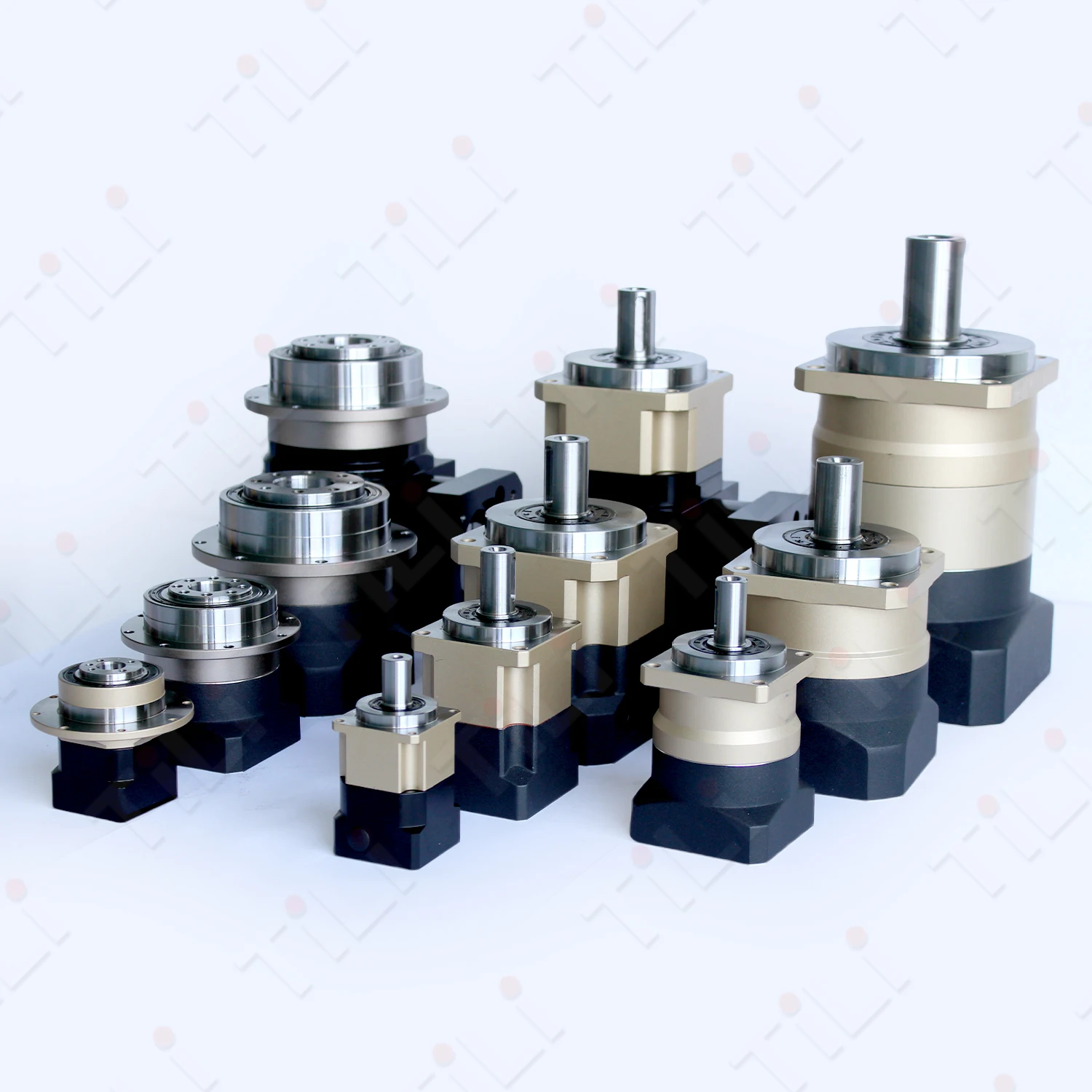

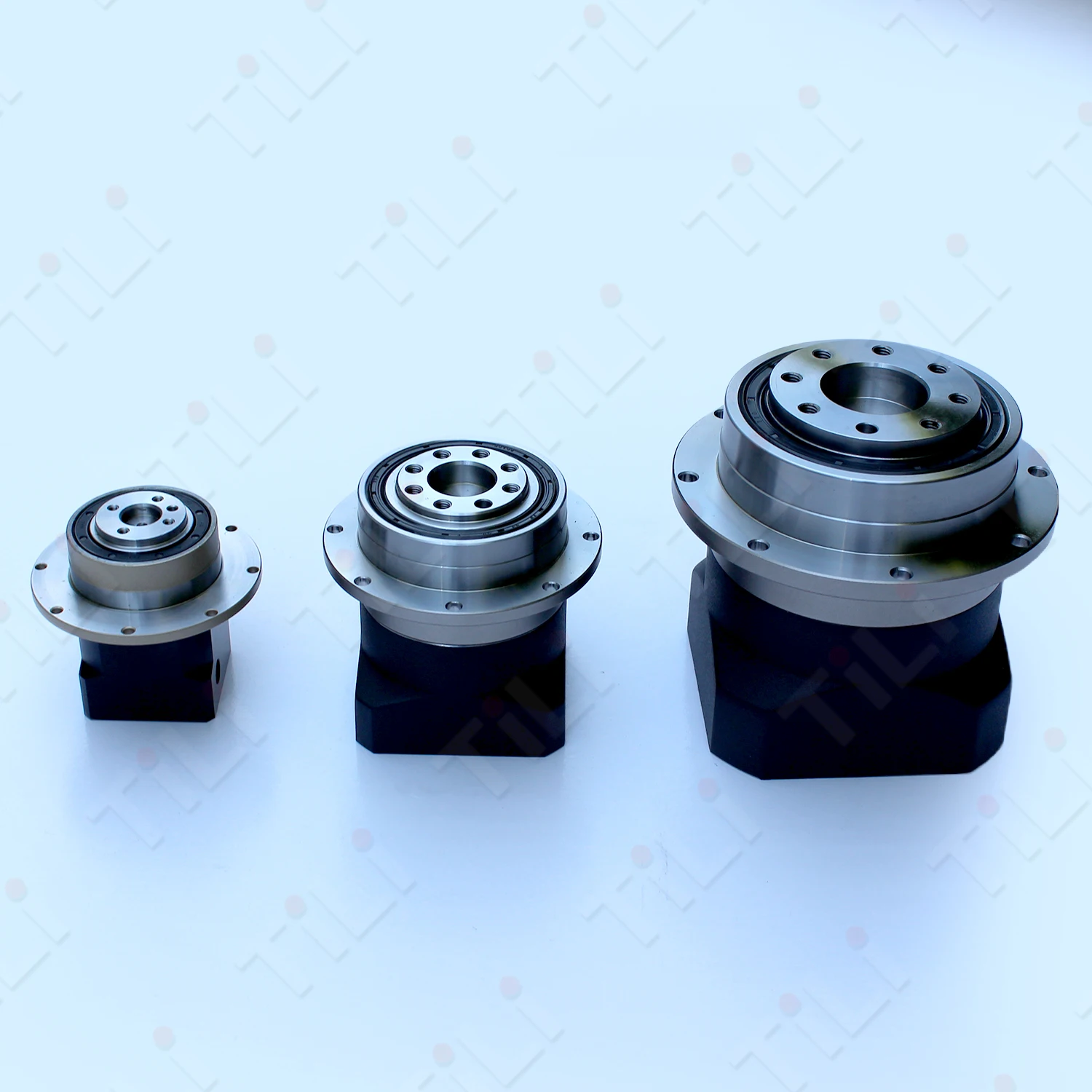

Tili Высокая жесткость радиальная осевая сила ударопрочность спиральный планетарный конический редуктор
- Категория: >>>
- Поставщик: Changzhou Tili Reducer Co. Ltd.
Сохранить в закладки 1601275781120:
Описание и отзывы
Характеристики
Product Overview
Product Paramenters
Gear Box Performance Information | ||||||||||||||||
Specification | Stage Level | Speed Ratio | TD-047 | TD-060 | TD-090 | TD-110 | TD-140 | TD-200 | ||||||||
Rated Output Torque (Nm) | L1 | 4 | 19 | 50 | 130 | 270 | 560 | 750 | ||||||||
5 | 22 | 60 | 160 | 330 | 700 | 750 | ||||||||||
7 | 19 | 50 | 140 | 300 | 700 | 750 | ||||||||||
10 | 14 | 40 | 100 | 230 | 460 | 500 | ||||||||||
L2 | 20 | 20 | 48 | 140 | 290 | 542 | 750 | |||||||||
25 | 20 | 60 | 160 | 330 | 650 | 750 | ||||||||||
35 | 20 | 50 | 140 | 300 | 550 | 750 | ||||||||||
40 | 20 | 45 | 120 | 230 | 500 | 750 | ||||||||||
50 | 20 | 60 | 160 | 330 | 650 | 750 | ||||||||||
70 | 19 | 50 | 140 | 300 | 550 | 750 | ||||||||||
100 | 14 | 40 | 100 | 230 | 450 | 500 | ||||||||||
Scram Torque (Nm) | L1＊L2 | 3~100 | 2.5 Times Rated Output Torque | |||||||||||||
Rated Input Speed (RPM) | L1＊L2 | 3~100 | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 | ||||||||
Maximum Input Speed (RPM) | L1＊L2 | 3~100 | 10000 | 10000 | 8000 | 8000 | 6000 | 6000 | ||||||||
Return High Precision Clearance (Arc/Min) | L1 | 3~10 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ||||||||
L2 | 15~100 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | |||||||||
Return Standard Clearance (Arc/Min) | L1 | 3~10 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ||||||||
L2 | 15~100 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | |||||||||
Torsional Rigidity (NM/arcmin) | L1＊L2 | 3~100 | 3 | 7 | 14 | 25 | 50 | 145 | ||||||||
Maximum Radial Force (N) | L1＊L2 | 3~100 | 780 | 1200 | 2450 | 4000 | 9000 | 15000 | ||||||||
Maximum Axial Force (N) | L1＊L2 | 3~100 | 350 | 1 050 | 2200 | 4000 | 8300 | 14000 | ||||||||
Work Efficiency (%) | L1 | 3~10 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ≥97 | ||||||||
L2 | 15~100 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | ≥94 | |||||||||
Working Life (H) | L1＊L2 | 3~100 | ≥20000 | |||||||||||||
Ambient Temperature (℃) | L1＊L2 | 3~100 | -10℃ ~＋45℃ | |||||||||||||
Lubrication Mode | L1＊L2 | 3~100 | Lifetime Lubrication | |||||||||||||
Class Of Protection | L1＊L2 | 3~100 | IP65 | |||||||||||||
Mounting Direction | L1＊L2 | 3~100 | Any Direction | |||||||||||||
Noise (db) | L1＊L2 | 3~100 | ≤58 | ≤60 | ≤64 | ≤67 | ≤72 | ≤75 | ||||||||
Moment Of Inertia Part (kg·cm2) | L1 | 4 | 0.03 | 0.14 | 0.48 | 2.74 | 7.54 | 54 | ||||||||
5 | 0.03 | 0.13 | 0.47 | 2.71 | 7.42 | 39 | ||||||||||
7 | 0.03 | 0.13 | 0.45 | 2.62 | 7.25 | 25 | ||||||||||
10 | 0.03 | 0.13 | 0.45 | 2.57 | 7.14 | 18 | ||||||||||
L2 | 20 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 17 | |||||||||
25 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 16 | ||||||||||
35 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 16 | ||||||||||
40 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 12 | ||||||||||
60 | 0.03 | 0.03 | 0.13 | 0.47 | 2.71 | 12 | ||||||||||
70 | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 12 | ||||||||||
100 | 0.03 | 0.03 | 0.13 | 0.44 | 2.57 | 12 | ||||||||||
Company Profile
About TILI
Changzhou TiLi reducer Co., Ltd. is located in Buyi Industrial Park, Zouqu Town, Zhonglou Changzhou Jiangsu China. The company specializes in the production of DJYG high torque series extruder gearbox (reducer), ZLYJ series single screw extruder gearbox, SZ, SZL series conical twin-screw extruder gearbox, R, K, F, S series helical gear motor, BX series cycloid pin gear reducer. Products are exported to Europe, America, Japan, India, Brazil and other countries and regions. The products are mainly used in plastics, rubber, metallurgy, mining, petrochemical, lifting transportation, light industry, food and other fields.
Mission & Vision
In the era of rapid progress of Industrial Science and technology, only constant change and innovation can meet the needs of customers. TiLi reducer company adheres to the corporate vision of "sustainable operation" and attaches importance to the concept of quality, service and marketing. In the global competitive environment, it is a firm belief to meet the quality requirements of customers and strive for stable growth and continuous improvement. Hope to uphold the principle of integrity, grow together with customers and share with employees.
Our Vision is to be a respected & innovative driven company.
Our Value is to be professional, reliable & innovative.
Our Value is to be professional, reliable & innovative.
WORKSHOP
CNC CENTER
QUALITY CONTROL
Certifications
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of reducer.
A: We are a professional manufacturer specializing in manufacturing various series of reducer.
Q2: Can you do OEM?
A: Yes, we can. We can do OEM for all the customers .if you want to order NON-STANDERD speed reducers, pls provide Drafts, Dimensions, Pictures and Samples if possible.
Q3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Q6: How to choose a gearbox? What if I don't know which gear reducer I need?
A: You can refer to our catalogue to choose the gearbox or we can help to choose when you provide, the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q7: What information shall we give before placing a purchase order?
A: a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color. c) Purchase quantity. d) Other special requirements.
Q8: What is the payment term?
A: You can pay via T/T(30% in advance as deposit before production +70% before delivery.
A: Yes, we can. We can do OEM for all the customers .if you want to order NON-STANDERD speed reducers, pls provide Drafts, Dimensions, Pictures and Samples if possible.
Q3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.
Q6: How to choose a gearbox? What if I don't know which gear reducer I need?
A: You can refer to our catalogue to choose the gearbox or we can help to choose when you provide, the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q7: What information shall we give before placing a purchase order?
A: a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color. c) Purchase quantity. d) Other special requirements.
Q8: What is the payment term?
A: You can pay via T/T(30% in advance as deposit before production +70% before delivery.
Похожие товары
Редуктор конический алюминиевый небольшой миниатюрный прямоугольный для электроинструмента
16 265,39 ₽

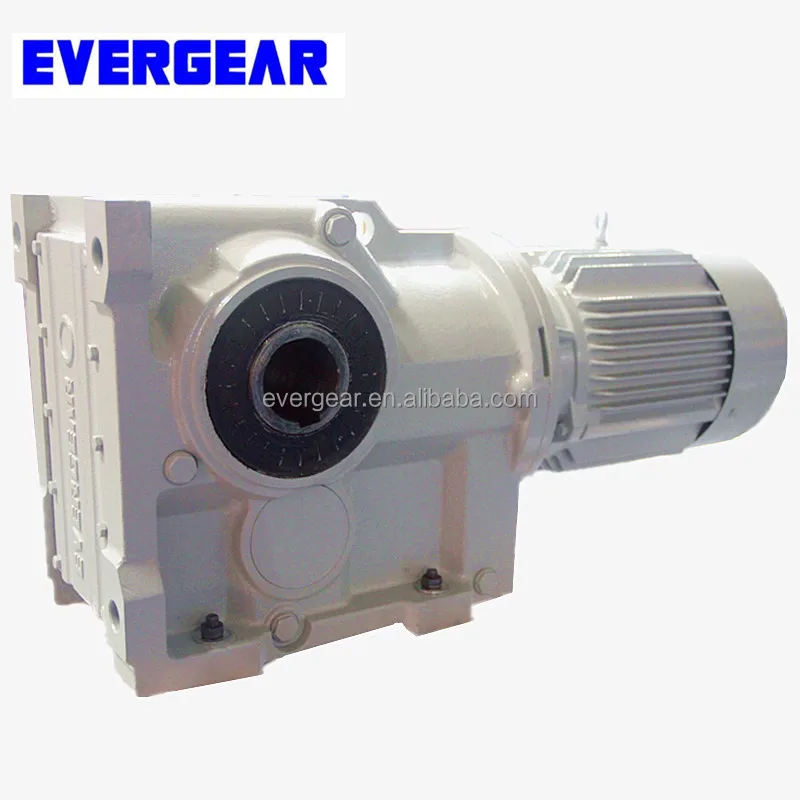

Серии K промышленных винтовых передач конические шестерни
Серии K винтовой шестерни конические шестерни редуктор, конические редуктора, двигатель переменного тока редуктор

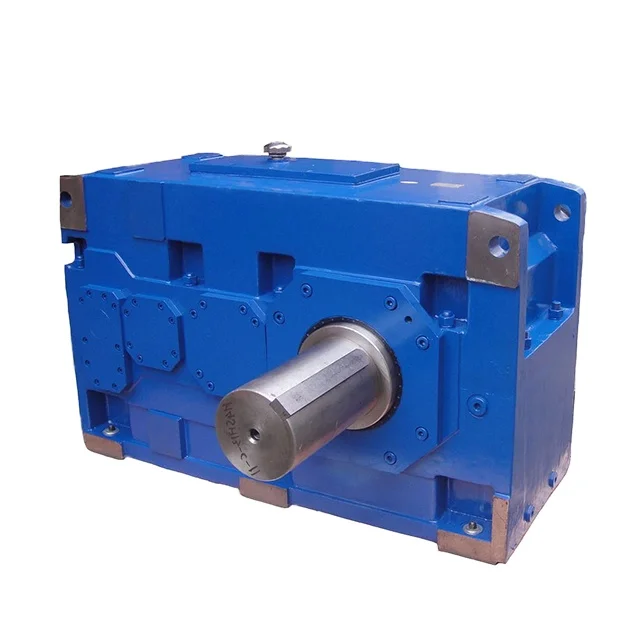

передач для кормосмеситель промышленные коробки передач коробка передач конические шестерни редуктора

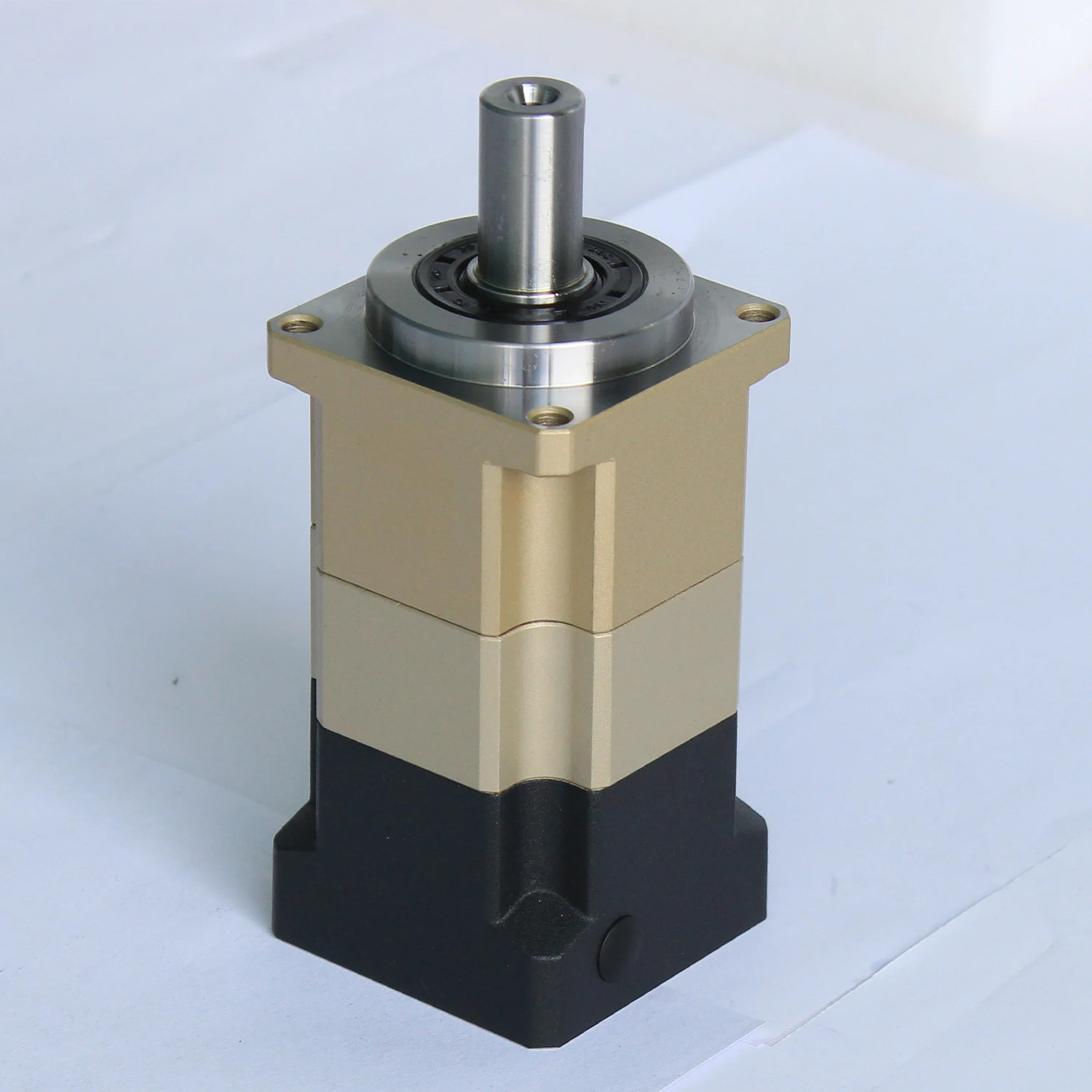

Стандартный планетарный редуктор для серводвигателя
