Маленькая молотковая дробилка из Китая
160 719,44 ₽
Горное оборудование хорошее качество 500*750 дробилка горного камня щековая
- Категория: >>>
- Поставщик: Henan Early Bird Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1601275921841:
Описание и отзывы
Характеристики
Rock Crushing Stone Jaw Crusher Machine High Capacity Portable Concrete Stone Diesel Engine Machinery Engines

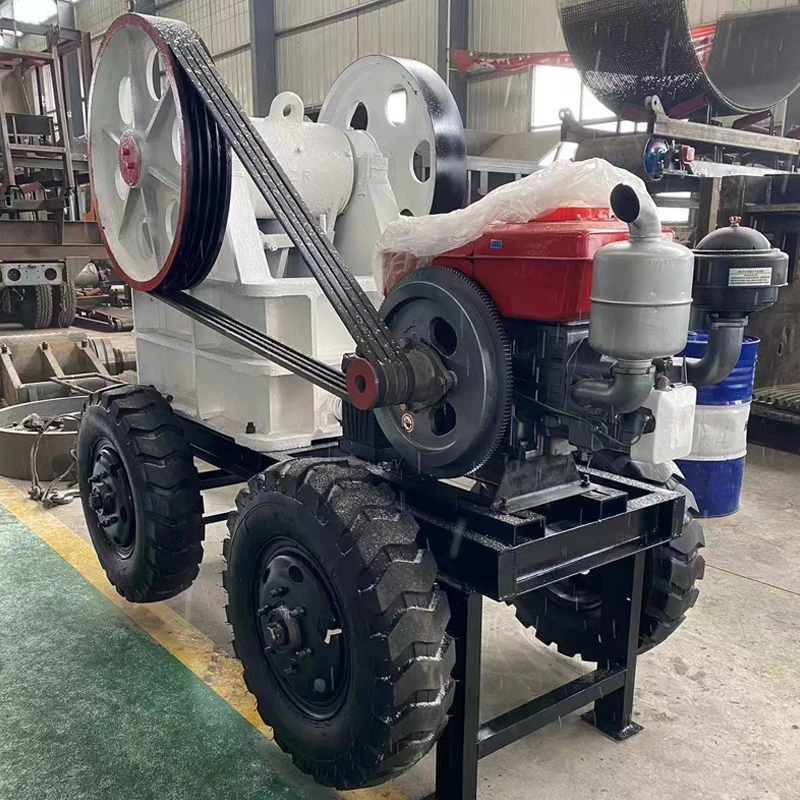

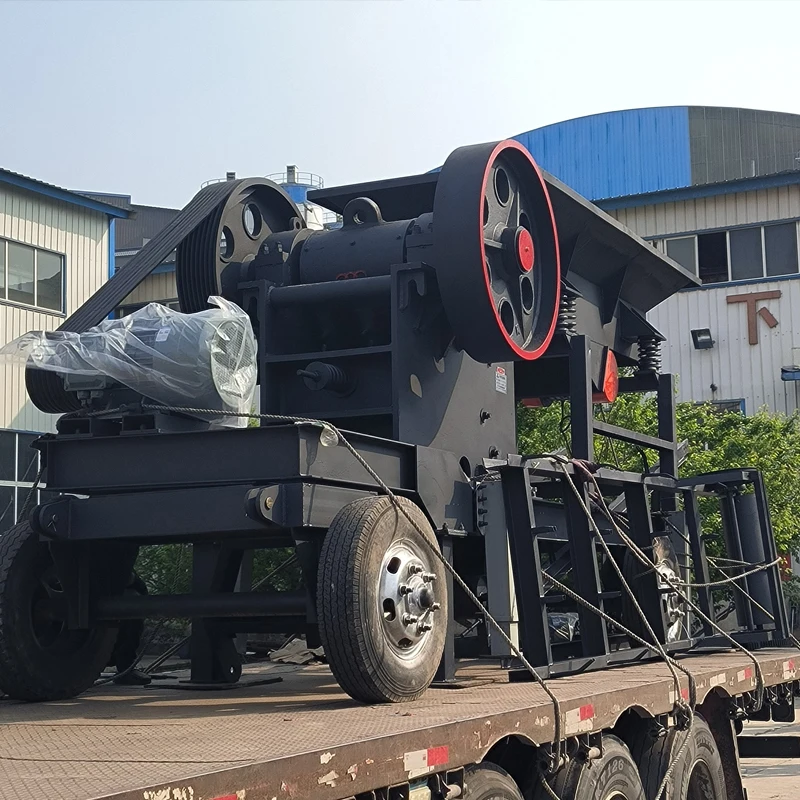

Mobile electric / diesel engine stone jaw crusher
Applications: sand and gravel yard, mining, coal mining, concrete mixing plant, dry mortar, power plant desulfurization, quartzsand, etc.

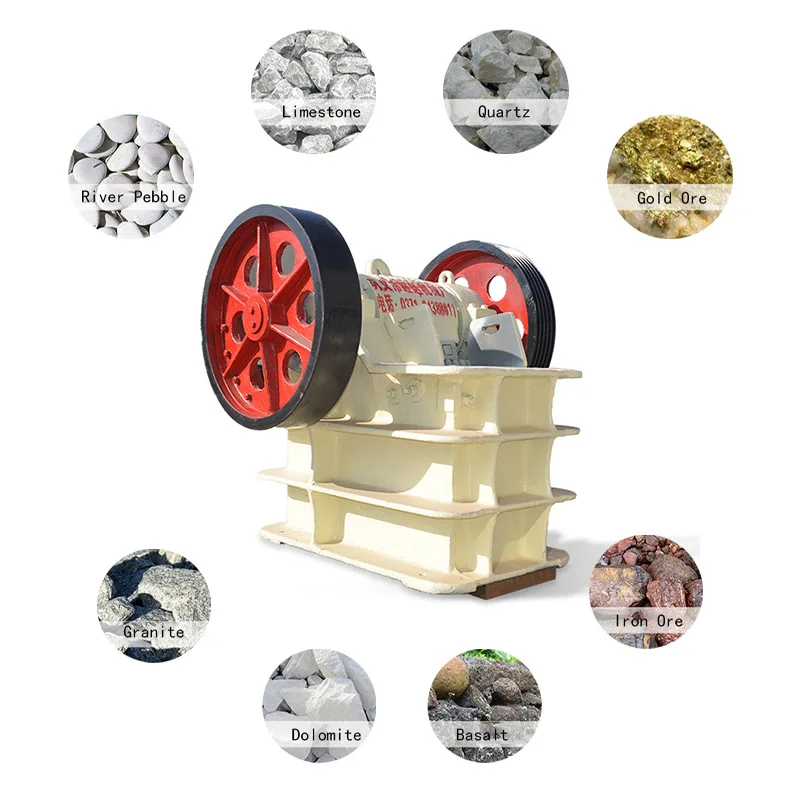

Applicable materials: river pebble, granite, basalt, iron ore, limestone, quartz, coal gangue, construction waste, etc.

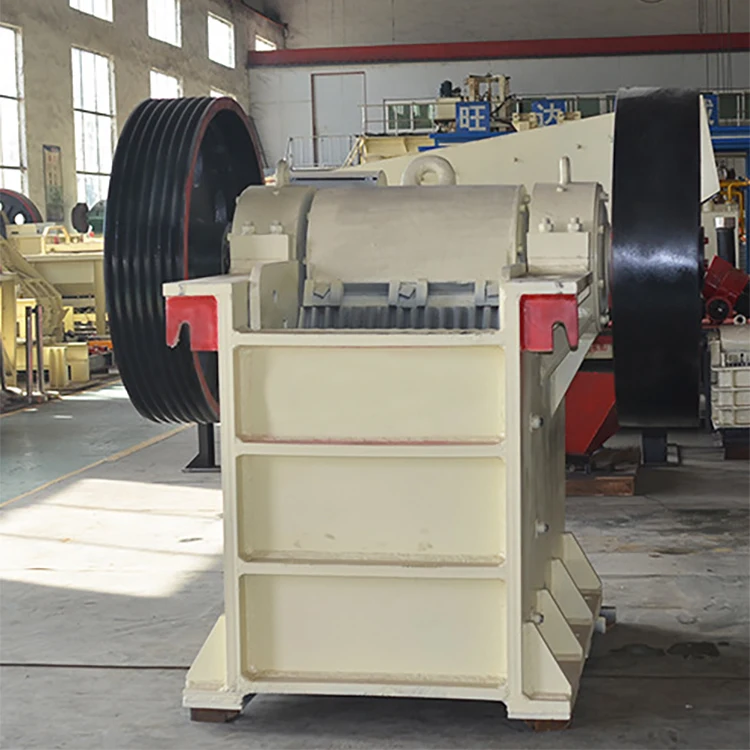

The jaw crusher is powered by an electric motor. The eccentric shaft is driven by the V-belt and the sheave by the motor pulley,so that the movable cymbal reciprocates according to the predetermined trajectory, thereby entering the fixed raft, the movable raft and the side lining. The material in the crushing chamber is broken, and the finished material is discharged through the lower discharge port.
Applicable materials: river pebble, granite, basalt, iron ore, limestone, quartz, coal gangue, construction waste, etc.
The jaw crusher is powered by an electric motor. The eccentric shaft is driven by the V-belt and the sheave by the motor pulley,so that the movable cymbal reciprocates according to the predetermined trajectory, thereby entering the fixed raft, the movable raft and the side lining. The material in the crushing chamber is broken, and the finished material is discharged through the lower discharge port.
Working Principle of Portable Diesel Engine Crusher
The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft. When the movable jaw rises, the angle between the fixed jaw and movable jaw gets larger, and the materials can be crushed to reach the crushing target. When the movable jaw is down, the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing
cavity.
cavity.
Features of Portable Diesel Engine Crusher
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
2. Discharge opening of the jaw crusher is adjustable reliably within a wide range through the stuffing of shim, thus it is capable to meet various requirements of customers.
3. lubrication system of it is safe and reliable, which boasts an easy and convenient maintenance
4. simple structure, reliable performance, low maintenance cost.
5. little dust and low noise.
Model | Max feeding size (mm) | Capacity (t/h) | Output size (mm) | Power (kw) | Weight (kg) |
PE150×250 | 125 | 1-3 | 10-40 | 5.5 | 1160 |
PE200×300 | 180 | 2-6 | 15-50 | 7.5 | 1240 |
PE200×350 | 180 | 3-10 | 18-60 | 11 | 1520 |
PE250×400 | 210 | 5-20 | 20-80 | 15 | 2572 |
PE400×600 | 340 | 14-36 | 40-100 | 37 | 5800 |
PE500×750 | 425 | 30-80 | 50-120 | 45 | 9000 |
PE600×900 | 500 | 56-192 | 75-200 | 75 | 18900 |
PE750×1600 | 630 | 110-320 | 80-235 | 110 | 29300 |
PE900×1200 | 750 | 180-350 | 100-250 | 110 | 55000 |
PE1200×1500 | 1020 | 400-800 | 150-350 | 160 | 101000 |
PEX150×750 | 120 | 8-35 | 10-40 | 15 | 3350 |
PEX250×750 | 210 | 15-45 | 15-50 | 30 | 5000 |
PEX250×1000 | 210 | 15-50 | 20-50 | 30 | 6800 |
PEX250×1200 | 210 | 20-70 | 20-60 | 45 | 9000 |
PRODUCT CATEGORIES
BUYERS FEEDBACK
Henan early bird machinery co.,LTD. located in Zhengzhou, has kept its record in Administration Bureau for Industry and Commerce. The company is a lawful operation. Located in central China, transportation convenience, advanced technology and scientific management guarantee our steady development.We are a large engineering machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.
All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment.
WHY CHOOSE US
FAQ
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?
A: Generally it takes 7-10 workdays after we received your advance payment. The specific delivery time depends on the items and the quantity.
Q: What is the warranty?
A: We provide a 1-year warranty (except for the hammer) for the machines, during this period all broken accessories can be changed for a new one. And we provide instructions for machine install and operation.
Q: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. And we will send you the inspection report for every machine.
Q: Do you provide wear parts?
A: Yes, all kind of wear parts are available.
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?
A: Generally it takes 7-10 workdays after we received your advance payment. The specific delivery time depends on the items and the quantity.
Q: What is the warranty?
A: We provide a 1-year warranty (except for the hammer) for the machines, during this period all broken accessories can be changed for a new one. And we provide instructions for machine install and operation.
Q: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. And we will send you the inspection report for every machine.
Q: Do you provide wear parts?
A: Yes, all kind of wear parts are available.
