Высококлассный недорогой коаксиальный разъем N RF N-KY3 коаксиальный разъем с гнездовой головкой для кабельных сборок RG58 и RG142
49,60 ₽ - 55,11 ₽

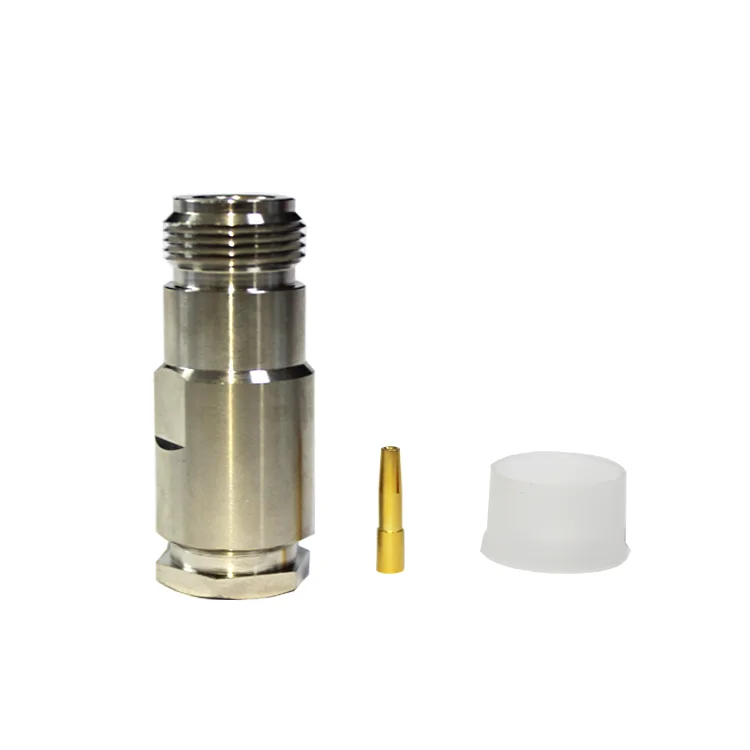

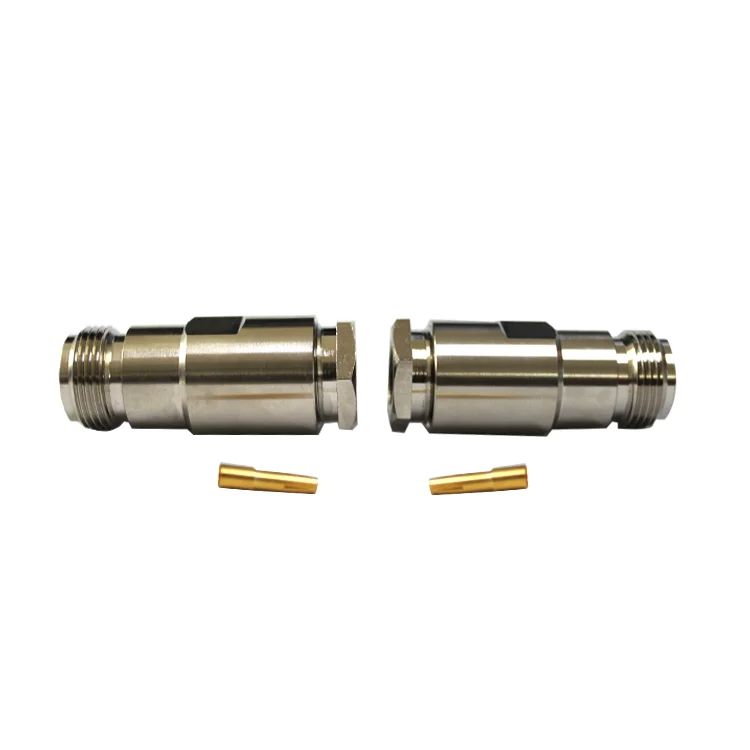

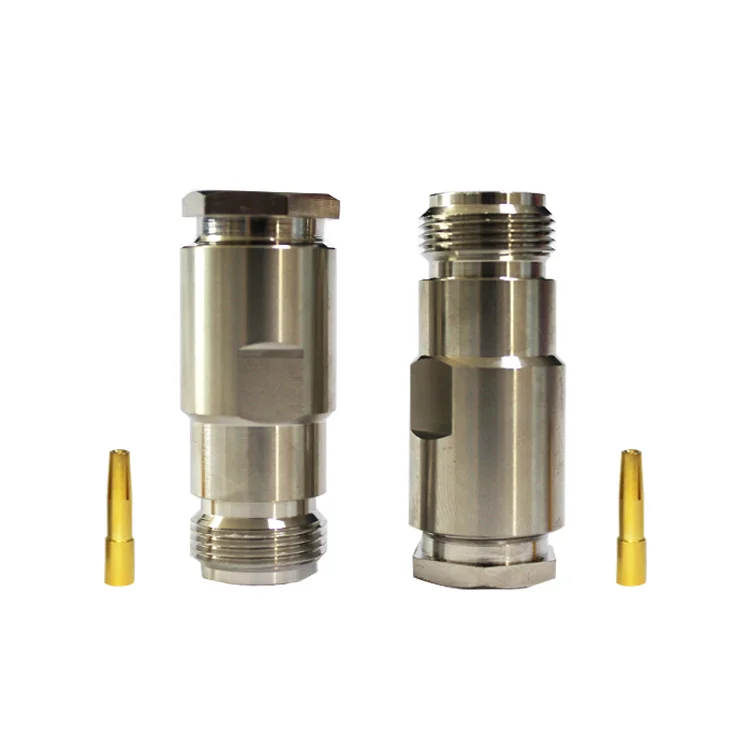

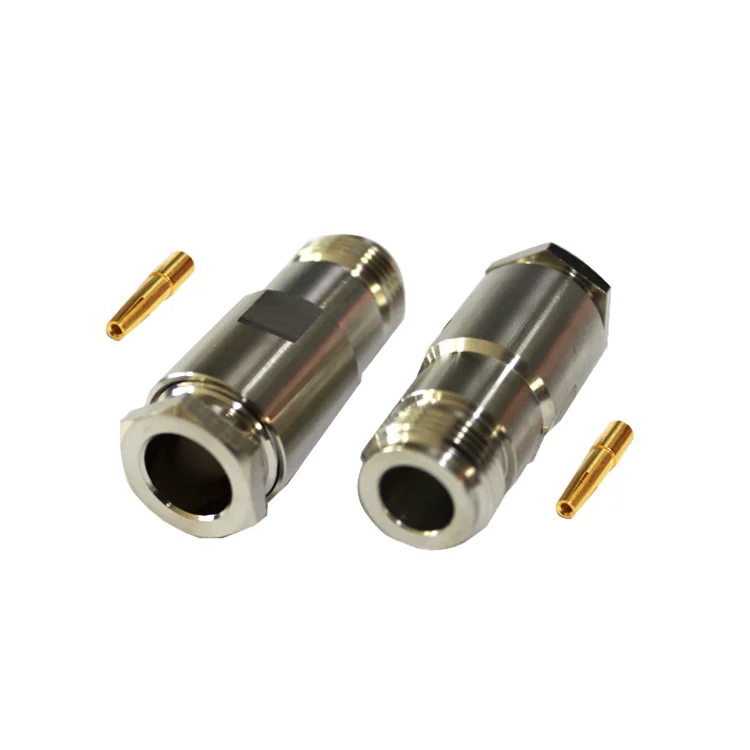

N K7D Разъем RF хорошего производителя N типа гнездовой разъем для сборки кабеля LMR400
- Категория: >>>
- Поставщик: Zhenjiang City Aoxun Electronic Technology Co. Ltd.
Сохранить в закладки 1601276558766:
Описание и отзывы
Характеристики
Products Description
RF Coaxial Connectors--N Type
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
The N series product is a type of small and medium-sized power connector with a threaded connection mechanism, widely used in wireless equipment and instruments to connect RF coaxial cables. It can be interchanged with similar N-type products internationally, and is divided into 50 ohms and 75 ohms according to characteristic impedance.
Product Paramenters
Model | N-K7D | ||
Temperature Range | -40~+125°C | ||
Impedance | 50Ω | ||
Frequency Range | 0-6GHz | ||
Execution standards | IEC60169 | ||
Insulation Resistance | ≥5000MΩ | ||
contact resistance | Between outer conductors<0.2mΩ Between inner conductors<1mΩ | ||
Axial retention force | ≥26.7 N | ||
If you are interested in our products, please don't hesitate to contact with us. we will reply you within 24 hours after receive your specific enquires.
Company Profile
Zhenjiang Aoxun Electronic Technology Co, Ltd.is located in the pic-turesque Jiangnan water town of Xinfeng Town, Zhenjiang City, eastof the Jinghang Dayun River. With convenient transportation andelegant environment, it belongs to the economically developedregion of the Yangtze River Delta. The company covers an area of 5000 square meters and currently has nearly a hundred employees,with various technical personnel accounting for 15%. Our company is specialized in the design, development, production, and sales of RFcoaxial connectors. The company has a strong production andbusiness entity, strong technical strength, complete process equip-ment, and complete testing methods.lt has passed the lOS9001quality system certification and obtained the certification certificatefrom authoritative institutions.
The company's main products include: SMA, SMB,SMC,N,TNC,BNCMCX, MMCX,IPEX head and seat series products produced accordingto international standards as well as various models of RF cables communication cables,etc.
The company's main products include: SMA, SMB,SMC,N,TNC,BNCMCX, MMCX,IPEX head and seat series products produced accordingto international standards as well as various models of RF cables communication cables,etc.
