Источник питания Eaton UPS 93E-30-N-MBS 30 кВА/27 кВт высокочастотный онлайн три и выхода
642 539,63 ₽ - 654 381,66 ₽
Лидер продаж литиевая батарея ups TA33 10 800K бескорнерептильные источники питания (ups) в наличии частота
- Категория: >>>
- Поставщик: Samu Taike (shanghai) Electronic Co. Ltd.
Сохранить в закладки 1601276838495:
Описание и отзывы
Характеристики

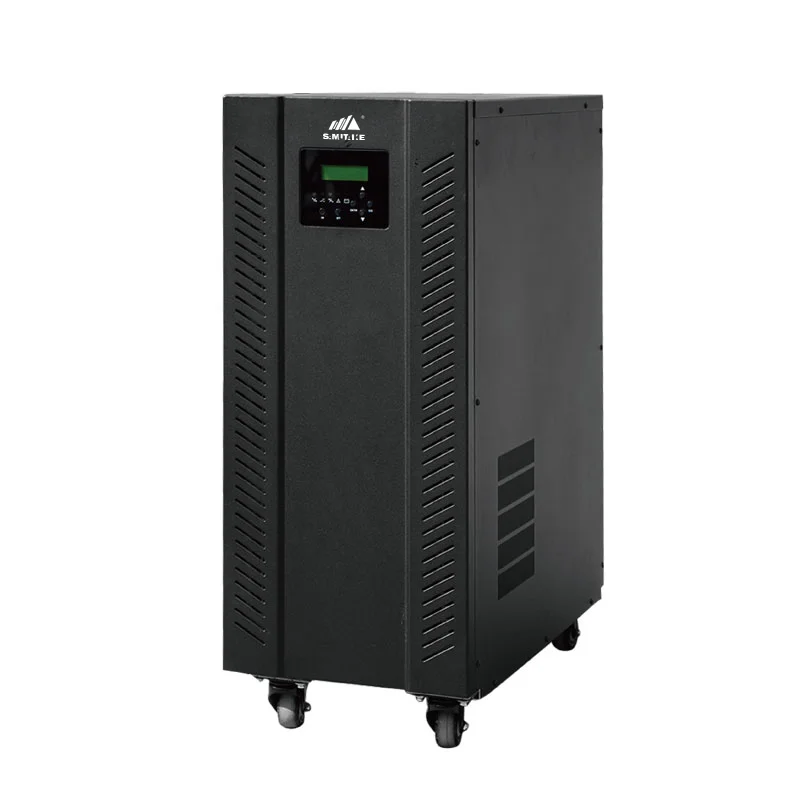

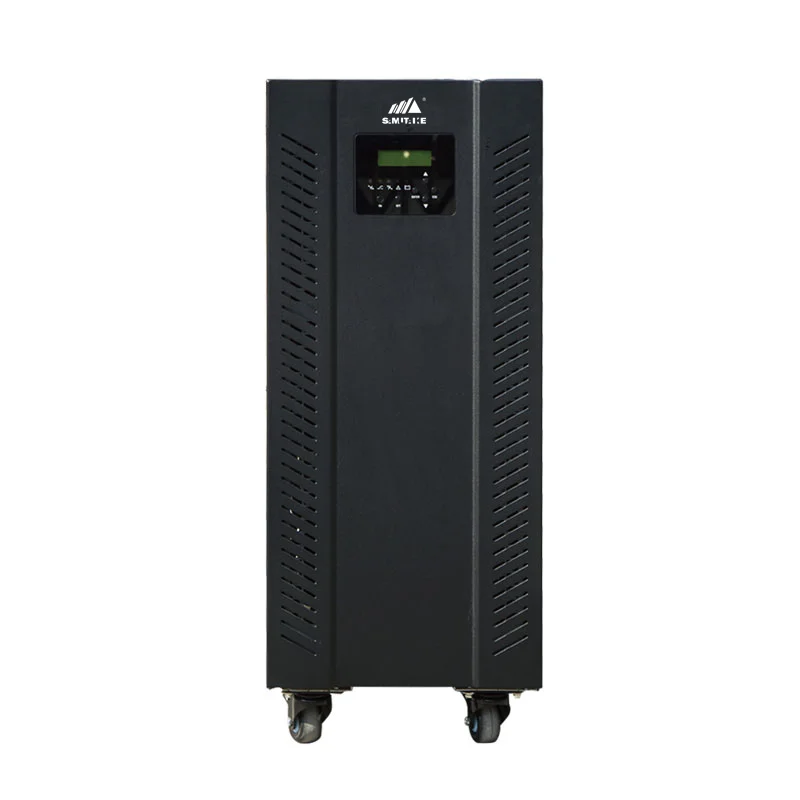

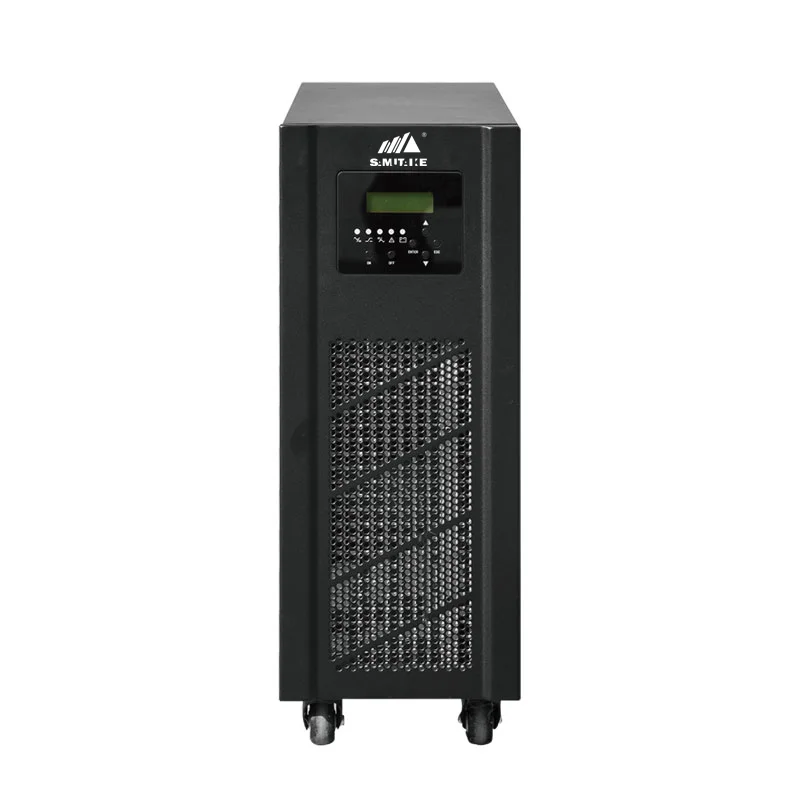

Product Introduction TA is a high-efficiency, high-performance dual conversion, pure online three in three out UPS product launched by Samtek. It provides a comprehensive power protection solution, which solves power supply problems such as power outages, high voltage and low voltage of the mains, instantaneous voltage drops, reduced oscillation, high voltage pulses, surge voltages, harmonic distortion, clutter interference, frequency fluctuations, etc. The product can be widely used in computer equipment, communication equipment, and other control devices, making it a high-quality choice for multiple industries or fields such as telecommunications, finance, transportation, government, manufacturing, and energy.
◆DSP technology guarantees high reliability
◆True galvanic isolation transformer design
◆Control designed to withstand all kinds of loads
◆Intelligent battery management to prolong battery lifecycle
◆Independent ventilation enhance durable operation under harsh environment
◆Accept dual-mains input
◆Parallel operation with up to 4 units (option)
◆Variety of communication options available
◆Reverse phase frequency operation and supports non-neutral input
MODEL | TA33-60K | TA33-80K | TA33-100K | TA33-120K | TA33-160K | |||||||
CAPACITY | 60KVA/48KW | 80KVA/64KW | 100KVA/80KW | 120KVA/96KW | 160KVA/128KW | |||||||
INPUT | ||||||||||||
Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph + N) | |||||||||||
Acceptable Voltage Range | 165VAC ~ 280VAC (Ph-N) 285VAC ~ 485VAC (Ph-Ph) | |||||||||||
Frequency | 50/60 Hz ± 10 % | |||||||||||
INVERTER | ||||||||||||
Nominal Voltage | 3 x 380VAC/400VAC/415VAC (3Ph + N) | |||||||||||
Precision | Stationary: ±1% Transitory: ±5% (load variations 100-0-100%) | |||||||||||
Frequency | 50/60 Hz synchronised ±1 % With mains absent ±0.1 Hz | |||||||||||
Max. Synchronisation Speed | ±1 Hz/s | |||||||||||
Wave Form | Pure Sine Wave | |||||||||||
Total Harmonic Distortion (THDv) | <2% (Linear Load) <5% (Non-linear Load) | |||||||||||
Phase Displacement | 120º ±1% (balanced load) 120º ±2% (imbalances 50% of the load) | |||||||||||
Dynamic Recovery Time | 3 cycles at 90 % of the static value | |||||||||||
Admissible Overload | 110% for 10min; 150% for 60sec ; >160% for 200ms | |||||||||||
Admissible Crest Factor | 0.125694444 | |||||||||||
Admissible Power Factor | 0.6~1 (inductive or capacitive) | |||||||||||
Imbalance Output Voltage @ 100% Unbalanced Load | <1% | |||||||||||
Current Limit | High overload, short-circuit: RMS Voltage Limit. High Crest-Factor current: Peak Voltage Limit. | |||||||||||
STATIC BYPASS | ||||||||||||
Type | Solid state | |||||||||||
Voltage | 176VAC ~ 264VAC (Ph-N) 304VAC ~ 456VAC (Ph-Ph) | |||||||||||
Frequency | 50/60 Hz ± 10 % | |||||||||||
Activation Criterion | Microprocessor control | |||||||||||
Transfer Time | Zero | |||||||||||
Admissible Overload | 150% for 1 hour; 180% for 30sec; >200% for 200ms | |||||||||||
Transfer to Bypass | Immediate, for overloads above 160% | |||||||||||
Retransfer | Automatic after alarm clear | |||||||||||
MAINTENANCE BYPASS | ||||||||||||
Type | Without interruption | |||||||||||
Voltage | Same as the bypass input | |||||||||||
Frequency | Same as the bypass input | |||||||||||
Overall Efficiency | Line Mode | 91% | 92% | 92% | ||||||||
Battery Mode | 92% | 93% | 93% | |||||||||
BATTERY & CHARGER | ||||||||||||
Battery Type and Numbers | 12VDC x 32 pcs (29~32 pcs adjustable) | 12VDC x 32 pcs (29~32 pcs adjustable) | ||||||||||
Nominal Battery Voltage | 384 VDC (Based on 32pcs batteries) | 384 VDC (Based on 32pcs batteries) | ||||||||||
Charging Method | CC/CV | |||||||||||
Precision | ±1% | |||||||||||
Charging Current | Default 10A; Maximum 40A; 5A@ full load | Default 10A; Maximum 40A; 5A@ full load | ||||||||||
Charging Voltage | 432 VDC (Based on 32pcs batteries) | |||||||||||
PHYSICAL | ||||||||||||
Dimensions, D x W x H(mm) | 821×432×1159 | 975×554×1286 | 975×554×1286 | 975×635×1326 | 1051×705×1646 | |||||||
Net Weight (Kgs) | 365 | 471 | 573 | 650 | 735 | |||||||
Note: The above data is for reference and subject to change without prior notice.Communicate with engineers for special
customization requirements.
customization requirements.
Samutaike (Shanghai) Electronic Co, Ltd. was established in 2015 and is a national high-tech enterprise. It is a supplier of smart city. cloud computing,intelligent microgrid engineering, big data system solutions, and green energy. The company specializes in lithium battery energy storage PACK integration, household energy storage solutions, and solutions for large-scale energy storage applications in domestic and foreign markets. The company provides one-stop services to address peak shaving and valley filling. photovoltaic and energy storage integration. wind-solar-diesel-storage integration. etc. The company has a solid foundation in the research. manufacturing, and development of high-tech electrical products such as photovoltaic, energy storage. UPS uninterruptible power supply, emergency power supply. micro module integrated data center, intelligent microgrid, and embedded software. The company always adheres to "technology + quality + service" as the cornerstone of its core competitiveness, pro- viding high-efficiency, intelligent, and integrated quality products and comprehensive services for global users.
Samutaike has a complete management system, and the company has successively passed the ISO9001 quality management system certification. ISO14001 environmental manage- ment system certification, iSO45001 occupational health and safety management system certification, and ISO27001 information security management system certification: it has also passed the China Energy Saving Product Certification, Tel Certification, Public Security Bureau Fire Certification (3C). European CE Certification. and Goods Transport Conditions Identifica- tion.
SMTK always aims to meet customer needs, is committed to improving service quality and value, takes customer service as the ultimate concept, and establishes an all-round. high-quality and standardized customer service system.
It has formed a service structure from pre-sales telephone consultation,on-site environ- mental survey. power supply scheme design. to after-sales installation and commissioning. use and maintenance, technical training, and spare parts support.
A number of professional and skiled engineers are ready to provide you with one-stop service and support at any time, helping customers to truly obtain a power supply solution with high practicability and reliability, maximizing investment value, and allowing custom- ers to enjoy the high-quality service level.
It has formed a service structure from pre-sales telephone consultation,on-site environ- mental survey. power supply scheme design. to after-sales installation and commissioning. use and maintenance, technical training, and spare parts support.
A number of professional and skiled engineers are ready to provide you with one-stop service and support at any time, helping customers to truly obtain a power supply solution with high practicability and reliability, maximizing investment value, and allowing custom- ers to enjoy the high-quality service level.
Q1. Are you a manufacturer?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.
Q4. Do you have any MOQ limit?
A. Yes, but low MOQ. 1~10pcs sample order is available.
Q5. How do you ship the goods and how long does it take to arrive?
Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quota-
tion. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We
produce your order.
Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.
Q8. How about after-sales service?
A. Yes, sir, we have our own factory, the price is factory direct.
Q2. Can I have a sample order?
A. Yes,welcome sample order to test and check quality.
Q3. What about the lead time?
A. Sample 5-10 days, mass production time 3-5 weeks depending on order quantity.
Q4. Do you have any MOQ limit?
A. Yes, but low MOQ. 1~10pcs sample order is available.
Q5. How do you ship the goods and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Bigger
order shipped by sea.
order shipped by sea.
Q6. How to proceed with an order?
A. 1st, please let us know your requirements or application. 2nd, We offer our quota-
tion. 3rd, customer confirms the samples and make a deposit for formal order. 4th, We
produce your order.
Q7. Can you print my logo on the product?
A. Yes. Please supply us the artwork before mass production.
Q8. How about after-sales service?
A. We will provide you with a 3 years warranty. If there are any problems, please let us know and we will provide you with a positive solution.
