C U образная металлическая шпилька и гусеничная машина для производства строительных материалов оборудование на продажу
- Категория: >>>
- Поставщик: Sussman Modular House (wuxi) Co. Ltd.Sussman Ltd.
Сохранить в закладки 1601276891896:
Описание и отзывы
Характеристики
Product Description
Material Thickness: 0.8-1.6mm galvanized sheet
Rolling Speed:0-12m/min
Roller Stations: About 15 stations
Roller Material: 45# Steel with quenching 60mm shaft
Maim Motor Power :7.5 kw
Hydraulic cutting Power: 5.5 kw
Material Of Cutting :CR12 with quench treatment, hardness HRC58-62
Tolerance:+-1.5mm
Electric Source: 220V, 60HZ,3 phase (Also can satisfy Customer's require)
Way Of Drive 1 inch single chain
Size of machine: Length 5500mm* Width 800mm* Height 1000m
Rolling Speed:0-12m/min
Roller Stations: About 15 stations
Roller Material: 45# Steel with quenching 60mm shaft
Maim Motor Power :7.5 kw
Hydraulic cutting Power: 5.5 kw
Material Of Cutting :CR12 with quench treatment, hardness HRC58-62
Tolerance:+-1.5mm
Electric Source: 220V, 60HZ,3 phase (Also can satisfy Customer's require)
Way Of Drive 1 inch single chain
Size of machine: Length 5500mm* Width 800mm* Height 1000m
Machine List:
No. | Equipment | Quantty |
1 | Manual decoiler | 1 set |
2 | Main forming machine | 1 set |
3 | PLC control system | 1 set |
4 | Hydraulic pump station | 1 set |
5 | Hydraulic cutting | 1 set |
7 | output table | 1 set |
### Metal Studs and Tracks: Essential Components in Modern Construction
Metal studs and tracks are fundamental components in modern construction, particularly in the framing of interior and exterior walls, ceilings, and partitions. They are often made of galvanized steel and provide a durable, fire-resistant, and versatile alternative to traditional wood framing.
#### Metal Studs
**Definition:**
Metal studs are vertical framing members used to create the skeleton of a wall. They are typically made from cold-formed steel and come in various sizes and gauges to accommodate different structural requirements.
**Types of Metal Studs:**
1. **C-Studs**: The most common type, with a "C" shape that provides rigidity and strength. Used in most wall and partition systems.
2. **U-Studs**: Similar to C-studs but with a different flange shape, often used for specific design requirements.
3. **Box Studs**: Have a box-like shape for increased load-bearing capacity, used in heavy-duty applications.
**Sizes and Gauges:**
- **Sizes**: Metal studs come in various widths (e.g., 1-5/8", 2-1/2", 3-5/8", 4", 6") and lengths (e.g., 8', 10', 12', 14').
- **Gauges**: The thickness of the steel can vary, with common gauges including 25, 20, 18, and 16. Lower gauge numbers indicate thicker and stronger studs.
**Advantages:**
1. **Durability**: Resistant to rot, warping, and insects.
2. **Fire Resistance**: Non-combustible, providing better fire resistance than wood.
3. **Consistency**: Uniform dimensions and straightness, reducing construction errors.
4. **Lightweight**: Easier to handle and transport compared to wood.
**Applications:**
- Interior non-load-bearing partitions
- Exterior wall framing (with appropriate sheathing)
- Load-bearing walls (with thicker gauge studs)
- Ceilings and soffits
#### Metal Tracks
**Definition:**
Metal tracks, also known as bottom or top tracks, are horizontal framing members that serve as a base or cap for metal studs. They are typically U-shaped and made from the same galvanized steel as studs.
**Types of Metal Tracks:**
1. **Top Tracks**: Installed at the ceiling level to hold the top of the studs.
2. **Bottom Tracks**: Installed at the floor level to secure the bottom of the studs.
**Sizes and Gauges:**
- Match the sizes and gauges of the corresponding studs to ensure compatibility and structural integrity.
**Advantages:**
1. **Ease of Installation**: Provide a straightforward method for aligning and securing studs.
2. **Flexibility**: Can be cut to fit any wall length.
3. **Durability**: Resistant to environmental factors like moisture and pests.
**Applications:**
- Forming the top and bottom framework for walls and partitions
- Securing studs in place to create stable wall assemblies
### Installation Process
1. **Layout and Measurement**: Mark the location of the walls on the floor and ceiling. Measure and cut the metal tracks to fit these dimensions.
2. **Track Installation**: Secure the bottom track to the floor and the top track to the ceiling using appropriate fasteners (e.g., screws, nails, or concrete anchors for masonry surfaces).
3. **Stud Placement**: Insert the metal studs into the tracks at regular intervals, typically 16" or 24" apart, depending on the design requirements.
4. **Fastening**: Secure the studs to the tracks using self-tapping screws or other suitable fasteners.
5. **Additional Support**: Install additional bracing or blocking if needed for added stability or to support heavy loads (e.g., shelves, cabinets).
### Conclusion
Metal studs and tracks have become essential in modern construction due to their many advantages over traditional wood framing. They offer durability, fire resistance, and ease of installation, making them a preferred choice for builders and contractors. Whether used in residential, commercial, or industrial projects, metal studs and tracks provide a reliable and efficient solution for creating strong and lasting structures.
Metal studs and tracks are fundamental components in modern construction, particularly in the framing of interior and exterior walls, ceilings, and partitions. They are often made of galvanized steel and provide a durable, fire-resistant, and versatile alternative to traditional wood framing.
#### Metal Studs
**Definition:**
Metal studs are vertical framing members used to create the skeleton of a wall. They are typically made from cold-formed steel and come in various sizes and gauges to accommodate different structural requirements.
**Types of Metal Studs:**
1. **C-Studs**: The most common type, with a "C" shape that provides rigidity and strength. Used in most wall and partition systems.
2. **U-Studs**: Similar to C-studs but with a different flange shape, often used for specific design requirements.
3. **Box Studs**: Have a box-like shape for increased load-bearing capacity, used in heavy-duty applications.
**Sizes and Gauges:**
- **Sizes**: Metal studs come in various widths (e.g., 1-5/8", 2-1/2", 3-5/8", 4", 6") and lengths (e.g., 8', 10', 12', 14').
- **Gauges**: The thickness of the steel can vary, with common gauges including 25, 20, 18, and 16. Lower gauge numbers indicate thicker and stronger studs.
**Advantages:**
1. **Durability**: Resistant to rot, warping, and insects.
2. **Fire Resistance**: Non-combustible, providing better fire resistance than wood.
3. **Consistency**: Uniform dimensions and straightness, reducing construction errors.
4. **Lightweight**: Easier to handle and transport compared to wood.
**Applications:**
- Interior non-load-bearing partitions
- Exterior wall framing (with appropriate sheathing)
- Load-bearing walls (with thicker gauge studs)
- Ceilings and soffits
#### Metal Tracks
**Definition:**
Metal tracks, also known as bottom or top tracks, are horizontal framing members that serve as a base or cap for metal studs. They are typically U-shaped and made from the same galvanized steel as studs.
**Types of Metal Tracks:**
1. **Top Tracks**: Installed at the ceiling level to hold the top of the studs.
2. **Bottom Tracks**: Installed at the floor level to secure the bottom of the studs.
**Sizes and Gauges:**
- Match the sizes and gauges of the corresponding studs to ensure compatibility and structural integrity.
**Advantages:**
1. **Ease of Installation**: Provide a straightforward method for aligning and securing studs.
2. **Flexibility**: Can be cut to fit any wall length.
3. **Durability**: Resistant to environmental factors like moisture and pests.
**Applications:**
- Forming the top and bottom framework for walls and partitions
- Securing studs in place to create stable wall assemblies
### Installation Process
1. **Layout and Measurement**: Mark the location of the walls on the floor and ceiling. Measure and cut the metal tracks to fit these dimensions.
2. **Track Installation**: Secure the bottom track to the floor and the top track to the ceiling using appropriate fasteners (e.g., screws, nails, or concrete anchors for masonry surfaces).
3. **Stud Placement**: Insert the metal studs into the tracks at regular intervals, typically 16" or 24" apart, depending on the design requirements.
4. **Fastening**: Secure the studs to the tracks using self-tapping screws or other suitable fasteners.
5. **Additional Support**: Install additional bracing or blocking if needed for added stability or to support heavy loads (e.g., shelves, cabinets).
### Conclusion
Metal studs and tracks have become essential in modern construction due to their many advantages over traditional wood framing. They offer durability, fire resistance, and ease of installation, making them a preferred choice for builders and contractors. Whether used in residential, commercial, or industrial projects, metal studs and tracks provide a reliable and efficient solution for creating strong and lasting structures.

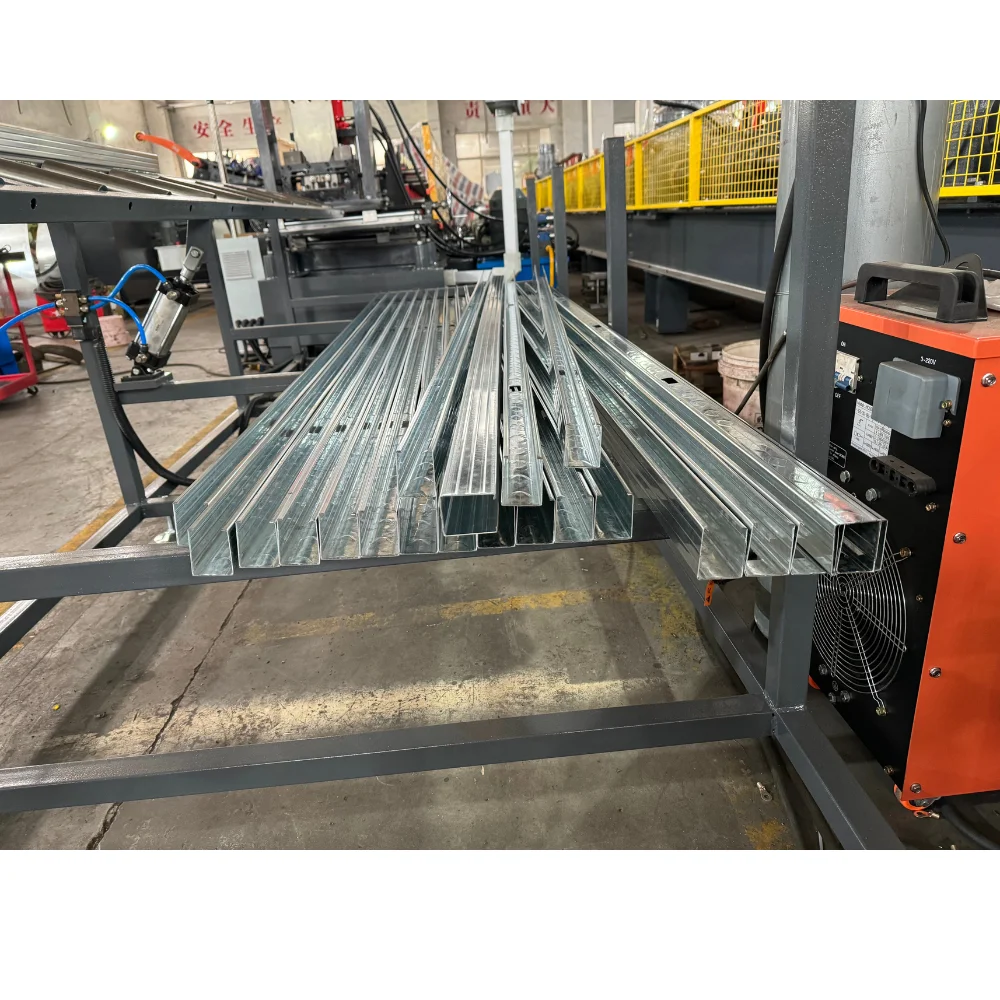

Product Display

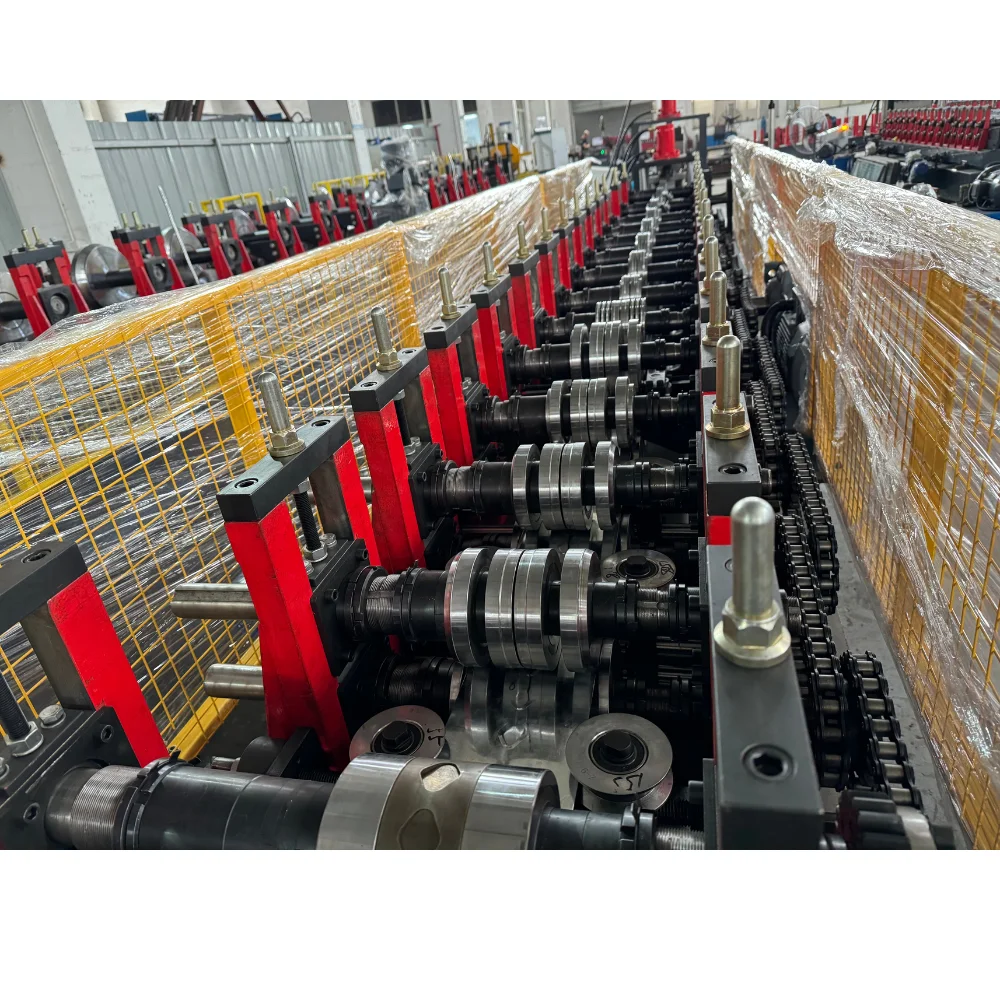

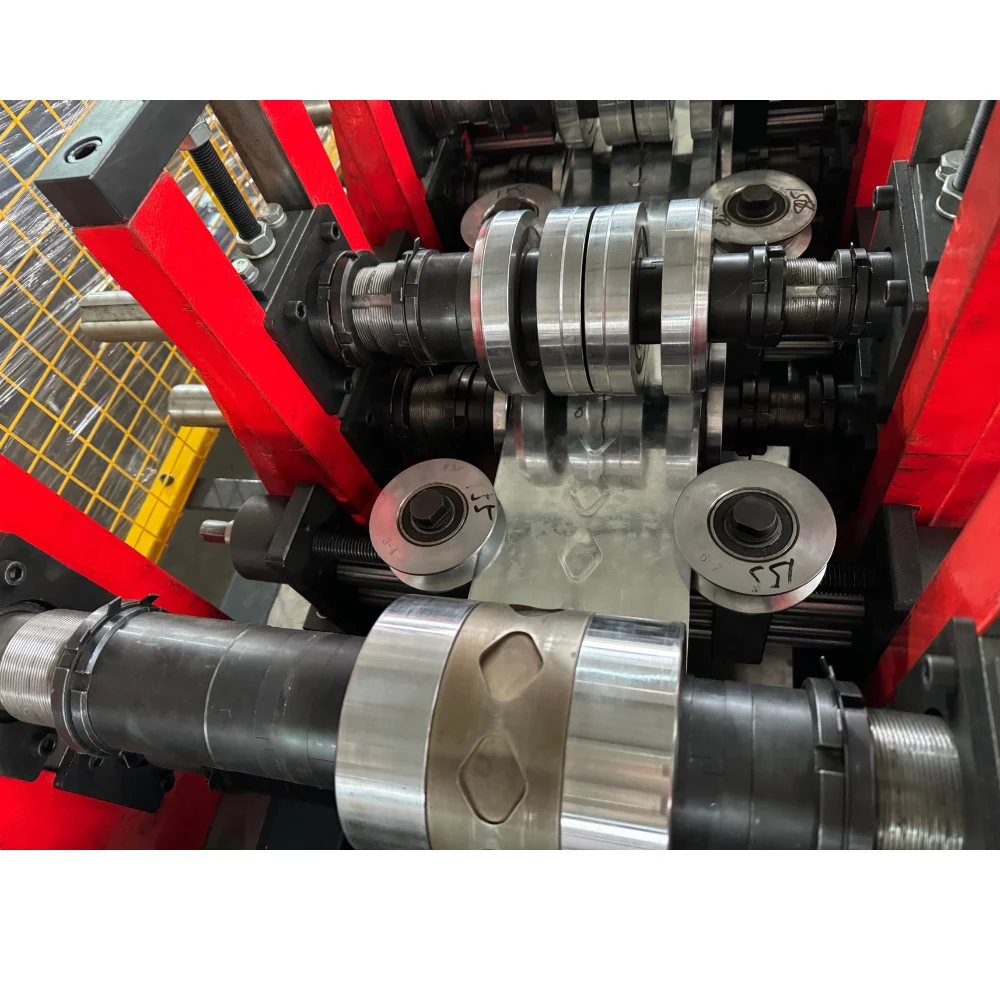

Roll Forming Machine
Application
Company Profile
We Sussman Modular House is located in Wuxi City, Jiangsu Province, China. We are roll forming machine manufacture over 20 years.
Main products are light gauge steel framing machine, CU stud and track drywall roll forming machine, upright rack and box beam roll forming machine, cable tray roll forming machine, strut channel roll forming machine, roof sheet roll forming machine, etc.
We produce roll forming machines for a lot of industries, such as farming system, storage system, roofing system, electric system, steel structure, and so on. If you want to buy the roll forming machine, welcome to give us an inquiry! We will provide different solutions for you.
Main products are light gauge steel framing machine, CU stud and track drywall roll forming machine, upright rack and box beam roll forming machine, cable tray roll forming machine, strut channel roll forming machine, roof sheet roll forming machine, etc.
We produce roll forming machines for a lot of industries, such as farming system, storage system, roofing system, electric system, steel structure, and so on. If you want to buy the roll forming machine, welcome to give us an inquiry! We will provide different solutions for you.
Certifications
Our Customers
Feedback
Packing & Delivery
Before loading to the container, we will check the machine first
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery
Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.
At last, we will take photos for customer when loading to container
