Прямая Продажа с фабрики Электрический сварочный аппарат тележка KA H4 двухсторонний угловой автомобиль в наличии
- Категория: >>>
- Поставщик: Qingdao Yuehongbo Welding And Cutting Equipment Co. Ltd.
Сохранить в закладки 1601276928257:
Описание и отзывы
Характеристики
KA-H4

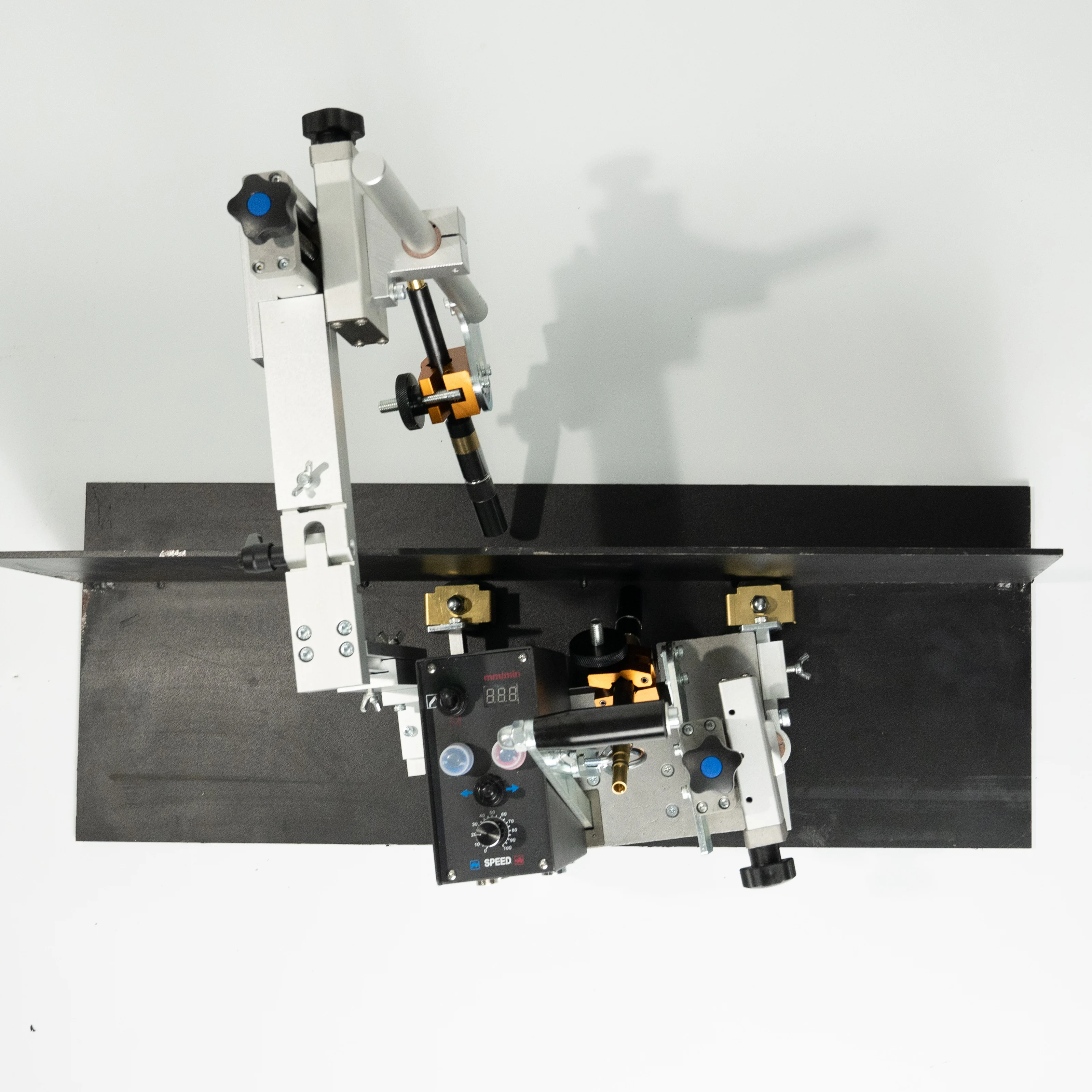

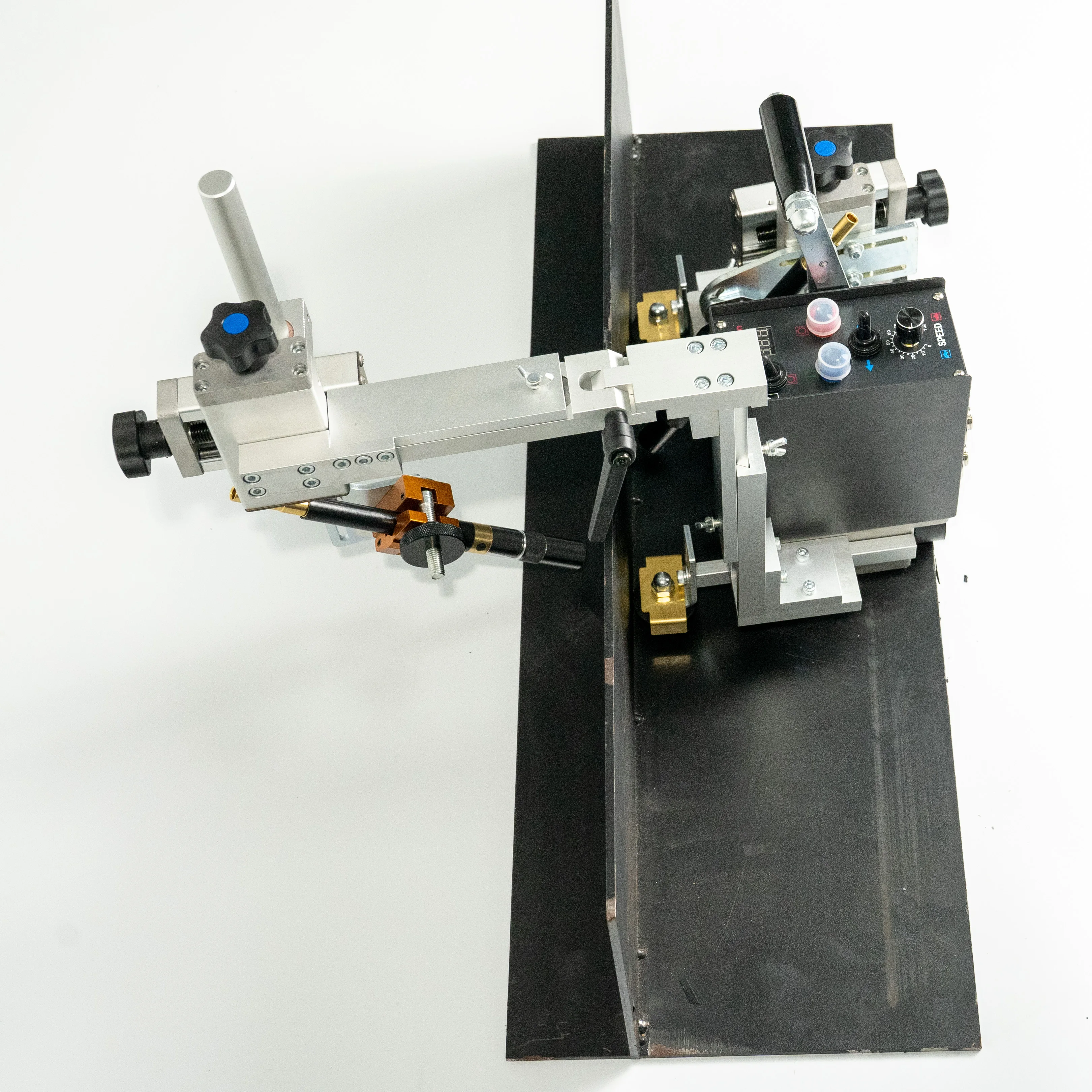

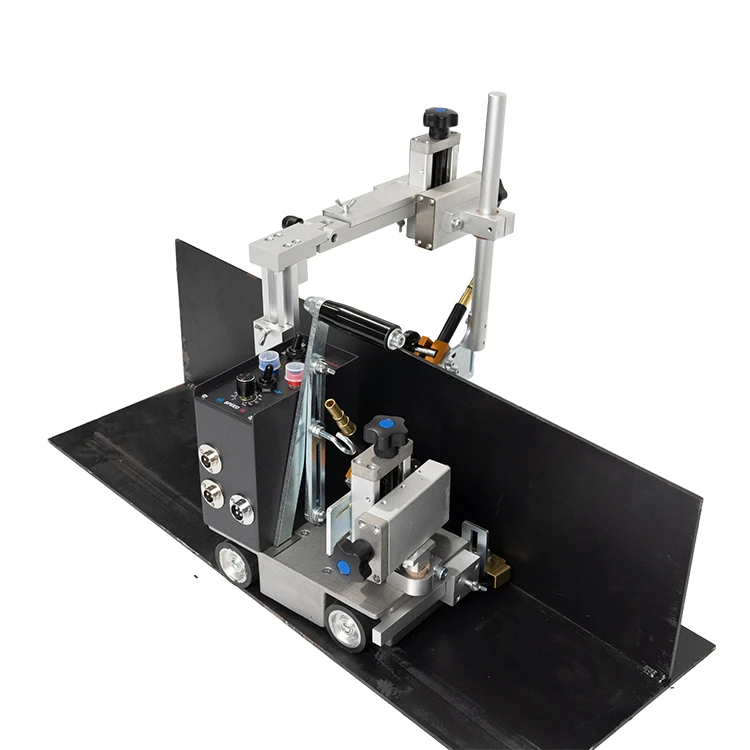

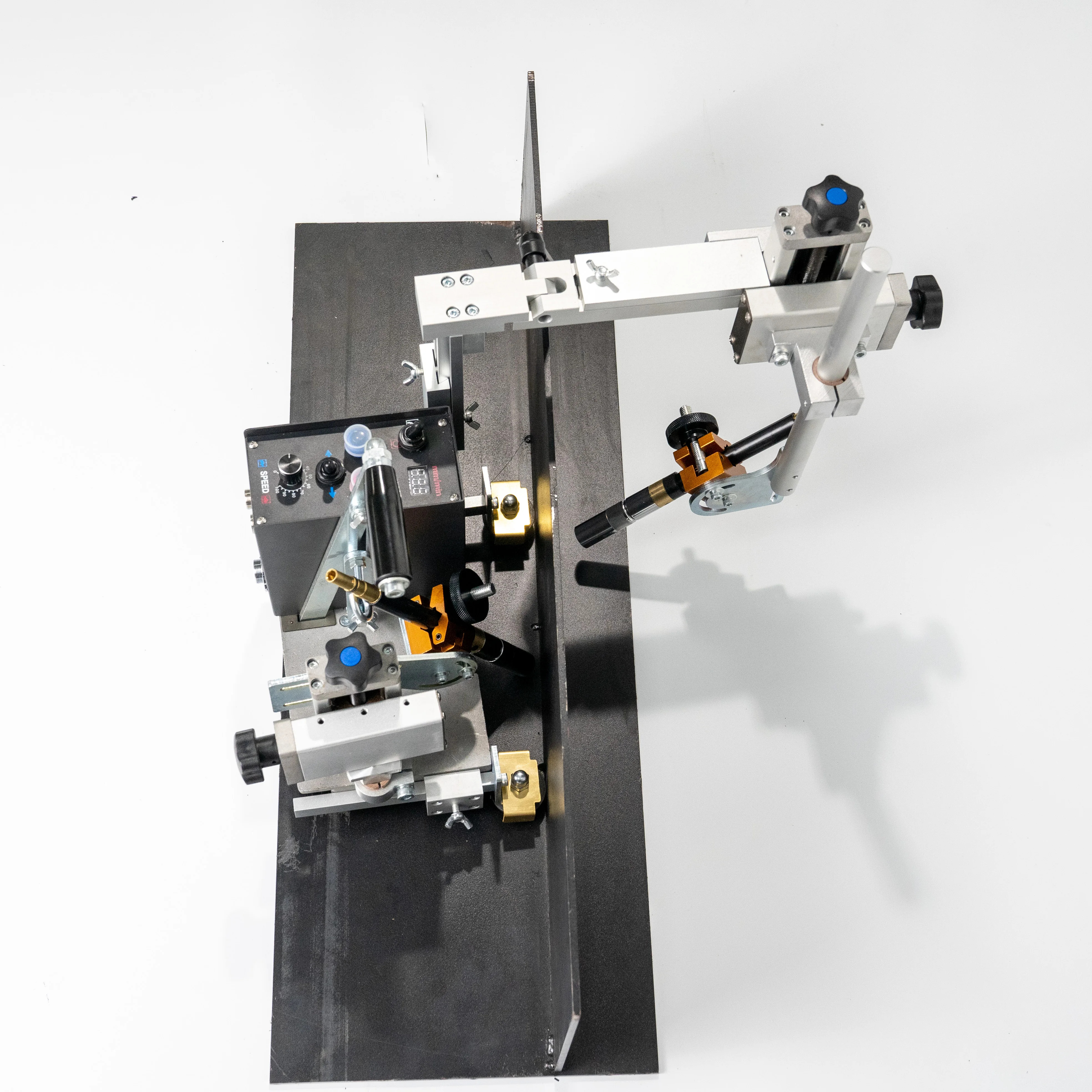

The KA-H4 double-sided angle welding car is designed to adapt to double-sided welding. It can not only perform double-sided welding of the same welding seam, or simply weld symmetrical welding to reduce the deformation of the workpiece.
(1) KA-H4 is a horizontal double-sided angle welding automatic device
(2) The automatic stop sensor is installed on both sides of the car, and automatically stops after welding
(2) The automatic stop sensor is installed on both sides of the car, and automatically stops after welding
(3) One or double -sided welding can be performed and the height of the car is adjusted according to the height of the workpiece.
(4) Use both sides to welded at the same time to avoid deformation of general single -sided welding
(5) Simple movement and operation, non -skilled workers can also weld
Projects | Content | remark | ||||
Buggy | Power supply | 24~220V | AC | |||
Size | 340 * 460 * 290 | L×W×H | ||||
Weight | 11Kg | |||||
Drive | Four-wheel drive | Rubber wheels | ||||
Walking speed | 0 to 960 mm /min | Denoted by scale | ||||
Welding gun adjustment range | Up and down | 40mm | ||||
Front and rear | 40mm | |||||
Job Angle adjustment range | Plus or minus 45 | |||||
Make the Angle adjustment range | 360。 | |||||
Control box | Power light | |||||
Start of walk | ||||||
Walking stops | ||||||
Walking direction selection | Left or right | |||||
Travel speed regulation | Increase clockwise | |||||
No.1 Welding/non-welding options | ||||||
No.2 Welding/non-welding options | ||||||
1. The body part: X-Y block, sensor, handle and other attachments composed
2.Drive part: The device of the driver's car part is composed of rubber wheels, oblique gear, chain, sprocket wheels, spindle, etc.
3.Welding torch 1 adjust the slider: adjust the welding tool 1 position device. In the welding, you can also use the handle, lower, left, and the right to fine -tune
4. Welding torch 2 adjust the slider: adjust the location of the welding gun 2
5. Welding torch fixing rack: The device of fixed welding gun is used in order to check and adjust the design and production of the convenient welding gun.
6.Guide wheel part: walk along the welding workpiece, accurately guide the welding site
7.Control box: Control all the movements of the car, refer to the control panel operation method for details
2.Drive part: The device of the driver's car part is composed of rubber wheels, oblique gear, chain, sprocket wheels, spindle, etc.
3.Welding torch 1 adjust the slider: adjust the welding tool 1 position device. In the welding, you can also use the handle, lower, left, and the right to fine -tune
4. Welding torch 2 adjust the slider: adjust the location of the welding gun 2
5. Welding torch fixing rack: The device of fixed welding gun is used in order to check and adjust the design and production of the convenient welding gun.
6.Guide wheel part: walk along the welding workpiece, accurately guide the welding site
7.Control box: Control all the movements of the car, refer to the control panel operation method for details
1. Walking start switch: The switch is turned on and the car starts to walk
2.Walking stop switch: If the car is walking, if the stop switch is pressed and switch, all the action will be stopped
3. Walking direction select switch: choose to walk to the left or right
4.Walking speed: adjust the car to walk speed knob, increase clockwise
5.NO.1 Welding/non -welding: NO.1 Welding/non -welding selection switch of welded torch, press the switch when placed in a non -welding position, only walking and not welding in the car
6. NO.2 welding/non -welding: NO.2 Welding/non -welding selection switch of welding guns, press the switch when placed in a non -welding position, only walking and not welding in the car
2.Walking stop switch: If the car is walking, if the stop switch is pressed and switch, all the action will be stopped
3. Walking direction select switch: choose to walk to the left or right
4.Walking speed: adjust the car to walk speed knob, increase clockwise
5.NO.1 Welding/non -welding: NO.1 Welding/non -welding selection switch of welded torch, press the switch when placed in a non -welding position, only walking and not welding in the car
6. NO.2 welding/non -welding: NO.2 Welding/non -welding selection switch of welding guns, press the switch when placed in a non -welding position, only walking and not welding in the car
Qingdao Yuehongbo Welding and Cutting Equipment Co., Ltd. was established in 2012. It is an entity company integrating design, research and development, manufacturing and sales.
The company's products include automatic welding trolleys, special trolleys for all-position pipeline welding, weld seam laser trackers, visual tracking systems, welding oscillators, special equipment for corrugated board welding, special machines for straight seam plate welding, etc. The products are mainly aimed at large and medium-sized welding companies, and the scope of use includes: steel structure, shipbuilding, bridge, automobile industry and other manufacturing companies. It can realize different welding processes such as horizontal butt joint, right angle joint, vertical butt joint, vertical angle joint, circumferential pipe welding, horizontal butt joint, horizontal angle welding, etc.
The products are sold in more than 20 domestic autonomous regions in China, and exported to more than 20 countries and regions such as Southeast Asia, Europe and the United States. Comprehensive economic indicators (including productivity, sales, and profits) have been leading in the welding equipment industry.
We will follow the purpose of creating value for customers and providing opportunities for employees, and in the corporate style of "pursuing transcendence, harmonious development" and "unity and cooperation, integrity and truthfulness".
We look forward to cooperating with friends at home and abroad to create a brilliant future.
Q1:Is your company a trading one or a factory?
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
A:Factory and trade (we have our own factory site.)
Q2:How many years have you been producing welding equipment?
A:We have been in this industry for more than 10 years
Q3:Which payment terms are you accepted?
A:T/T
Q4:When to deliver the goods after the order is placed?
A:It depends on the quantity of the products. Generally we can arrange shipment after 15 to 20 days.
Q5. Does your company accept customization?
We have excellent design team, and we accept OEM.
Q6.:What's the shipping method?
A: International express and sea transportation,Depends on the customer
Q7: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.
Q8: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.
Похожие товары

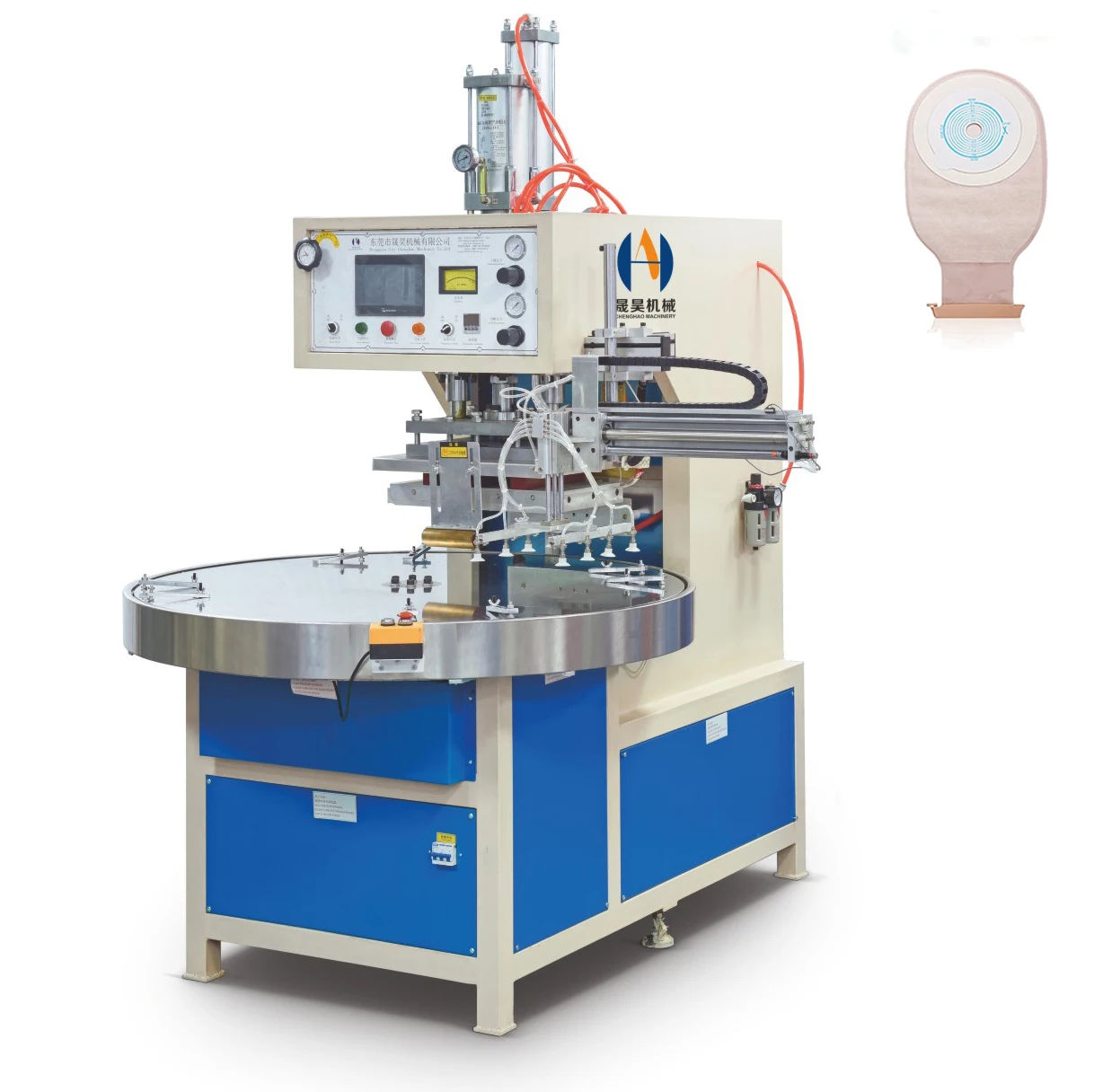

Машина для производства мешков стомы автоматическая машина
1 774 840,00 ₽ - 1 863 582,00 ₽

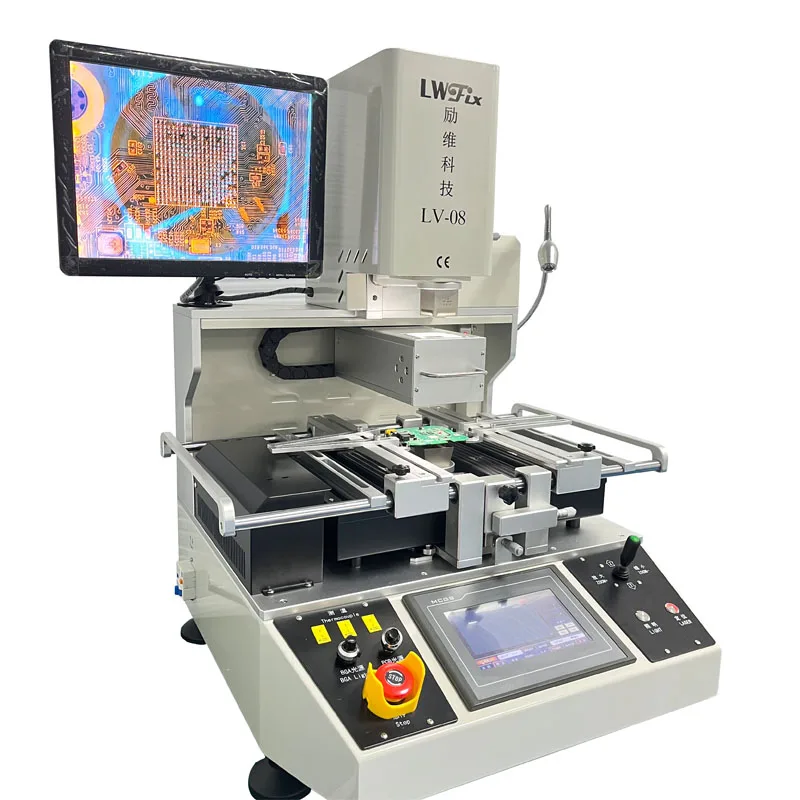

Экстремально Качественная новая 2024 версия lv-08 универсальная полуавтоматическая промышленная станция для переоборудования BGA серверных ноутбуков
388 246,25 ₽

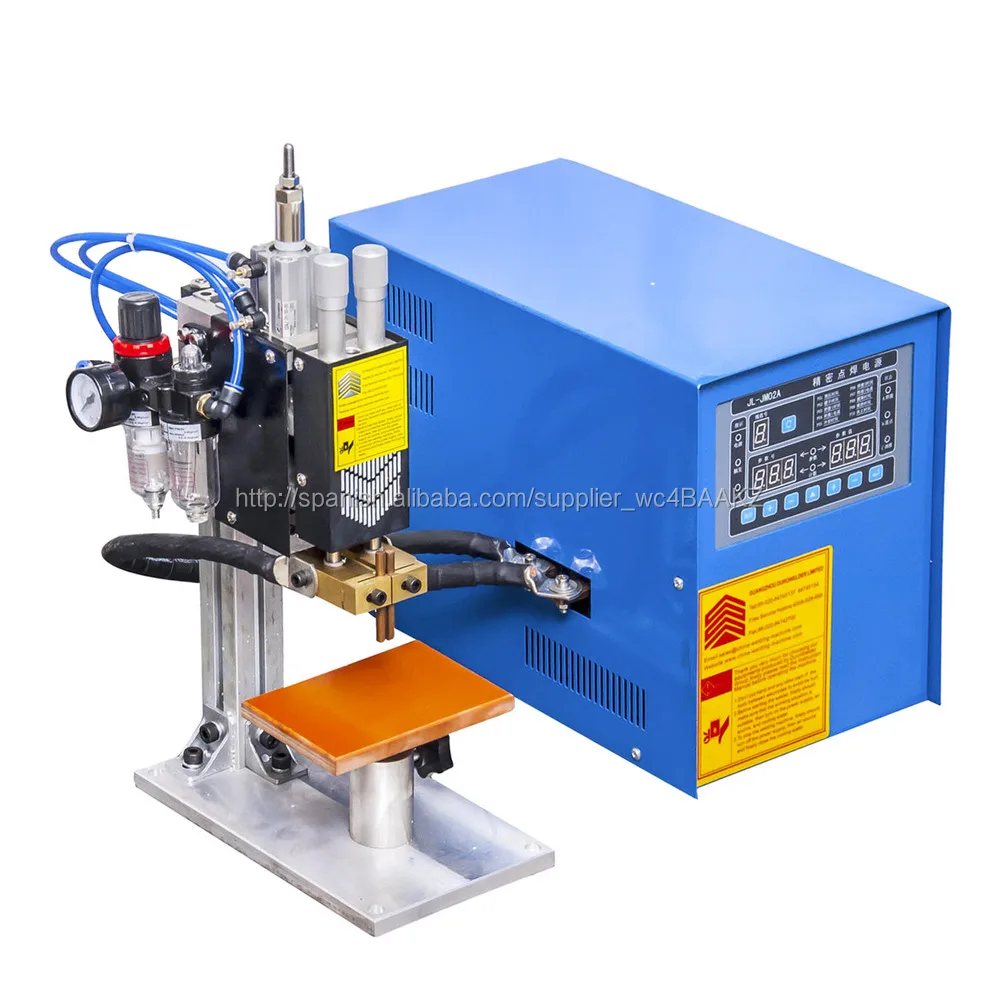

Аппарат для точечной сварки с противоположным и параллельным зазором

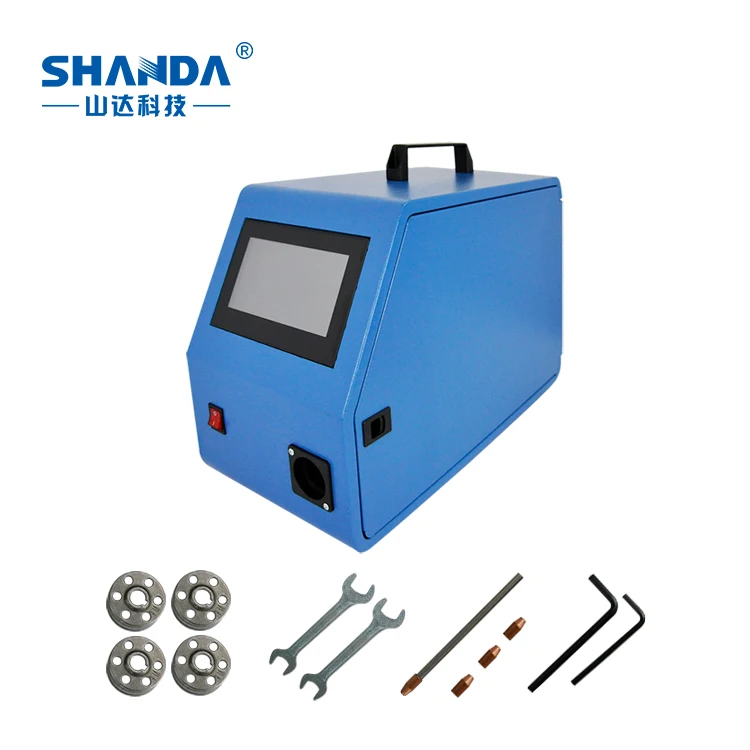

TIG сварочная проволочная Фидер для наполнения труб аргонно-дуговая машина mig Сварочная проволока реле платы
22 074,58 ₽ - 24 293,13 ₽

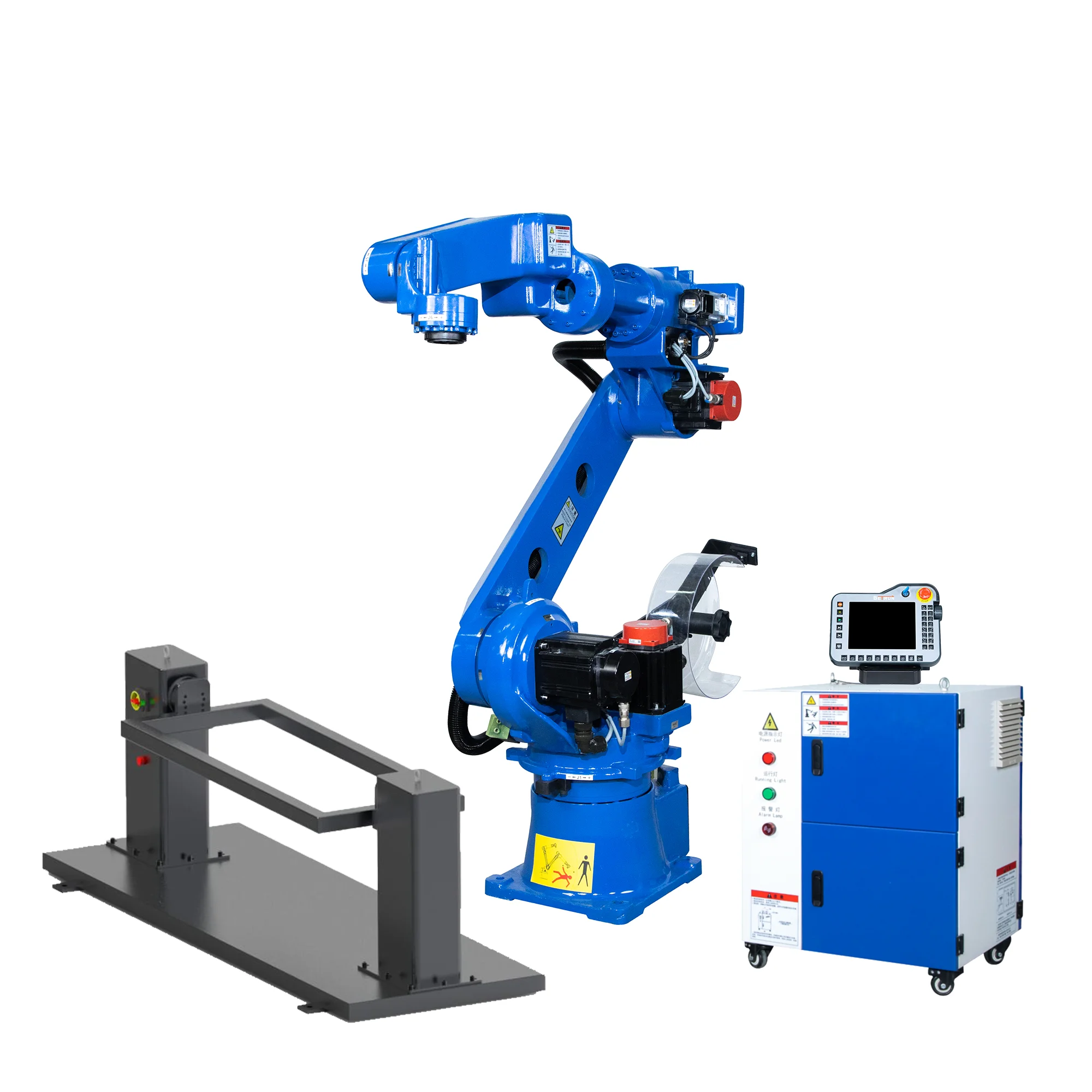

Интеллигентая (ый) робот-манипулятор набор высокого качества 6 оси Тиг Миг промышленный для лист
887 420,00 ₽ - 1 386 593,75 ₽
Китайская Фабрика экспортирует различные высококачественные лазерные ручки для сварки Комплект ручек mig tig по лучшей цене
554 526,58 ₽ - 1 174 722,23 ₽

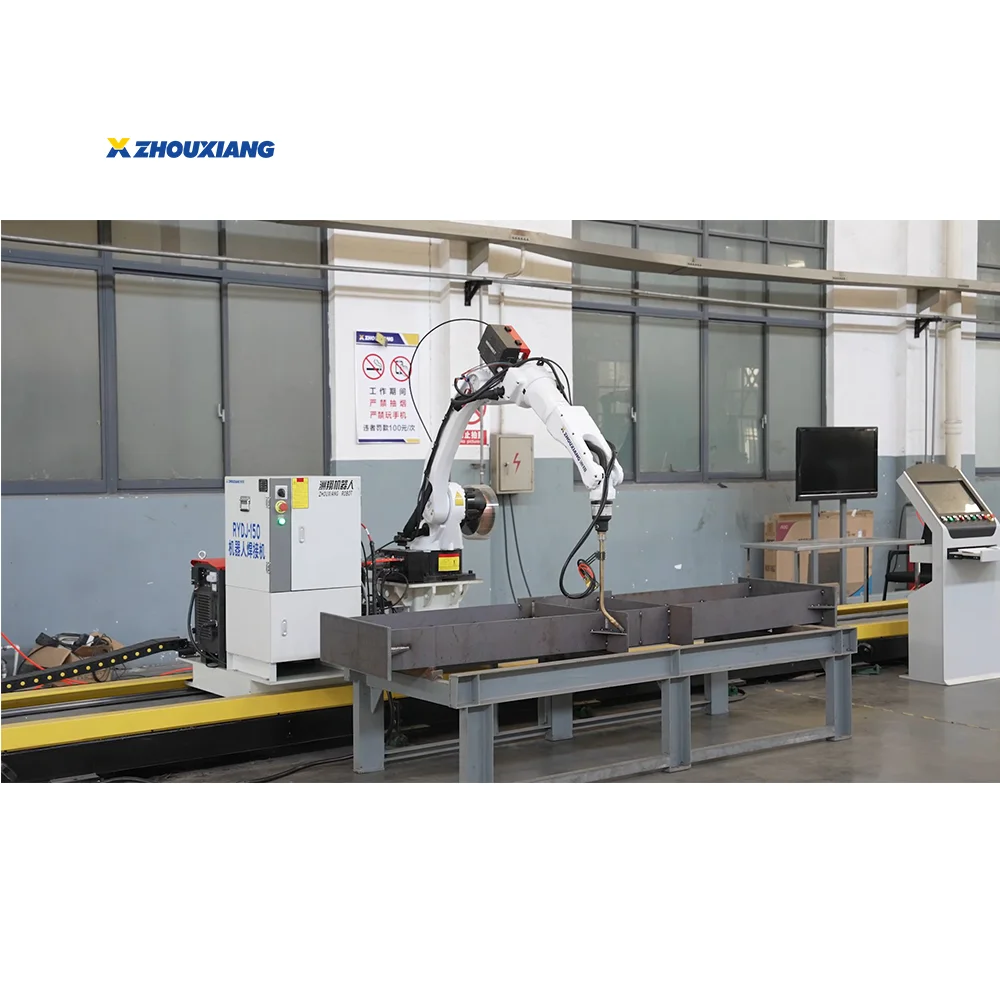

Промышленная Автоматизация видение сварочный робот автоматический с отслеживанием шва
