Фабричная материнская плата H81 Haswell 1150 4 го поколения i7 4790 CPU PCIE X16 2 * PC DDR3 16 г MSATA SATA 24Pin ATX

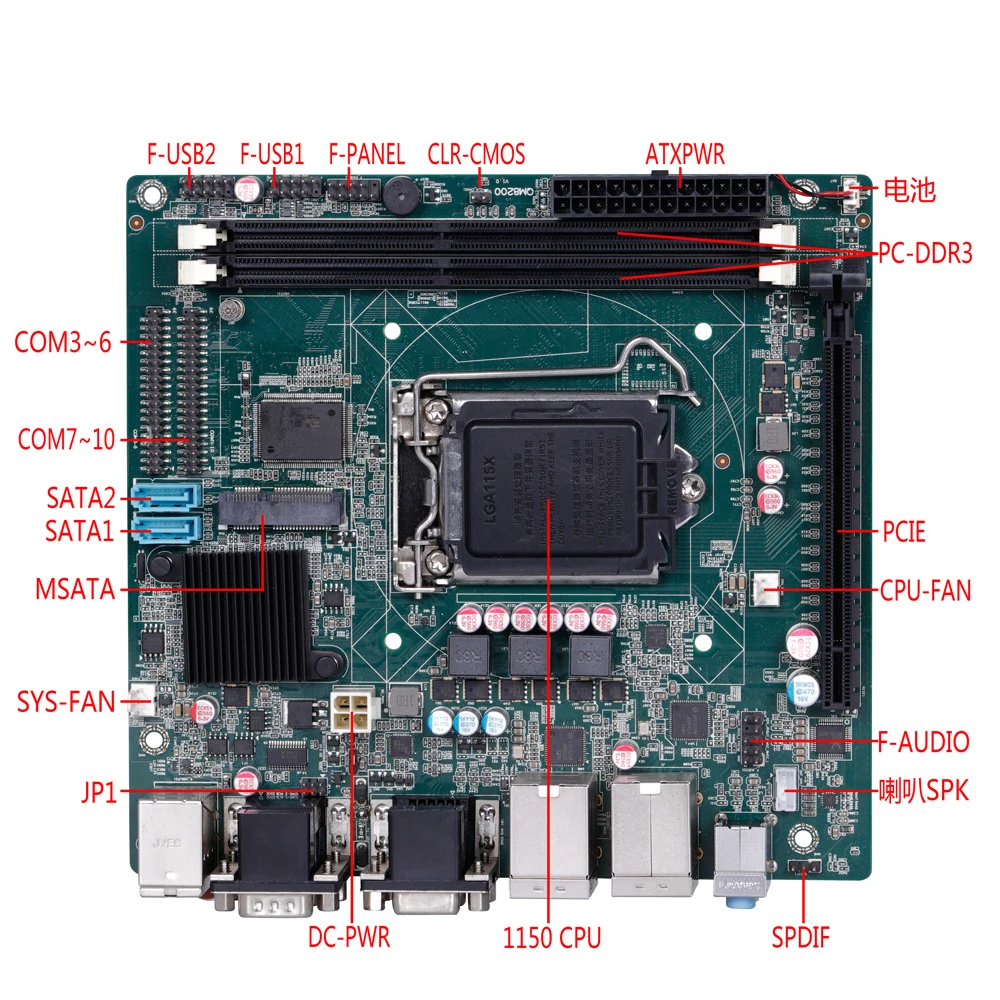

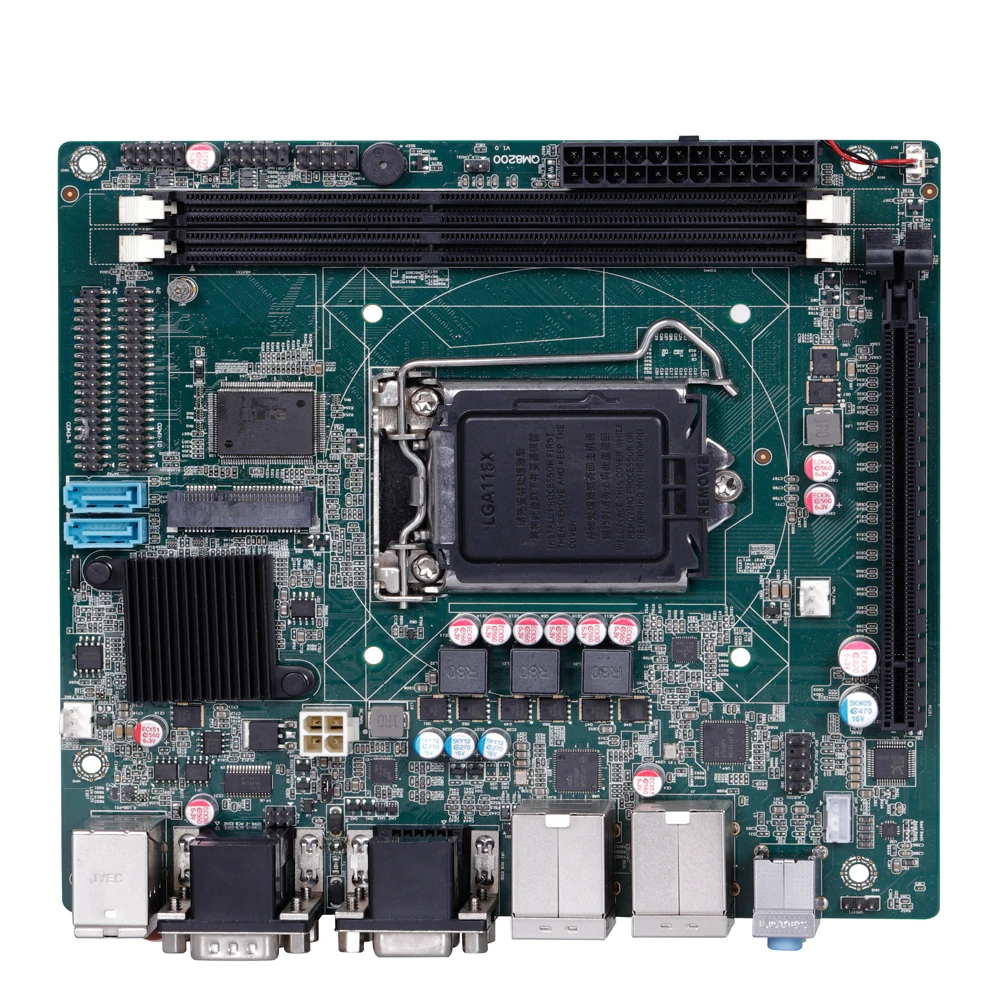

QM8200 Motherboard Specification:

Form Factor(Size)

Mini-Itx,(L*W)170*180mm

Processor

Support Intel 4^th Gen.Haswell platform LGA1150 Socket,Core i3/i5/i7 processor:

G3220,i3-4330,i5-4430,i5 4440,i5-4460,i7-4770,i7-4790,etc.

Chipset

Intel H81 Chipset

Memory

2*PC DDR3 SODIMM 1600MHz memory channels,up to 16GB RAM.

Power Supply

1*ATX_CON

Support standard desktop PC 20 pins,24 pins ATX power interface,and support +12V.

Display Function

2*standard VGA interface

Support Max resolution 1920*1200@60Hz

Network Function

2*Intel i211-AT Gigabit network chips,support wake on network,PXE function.

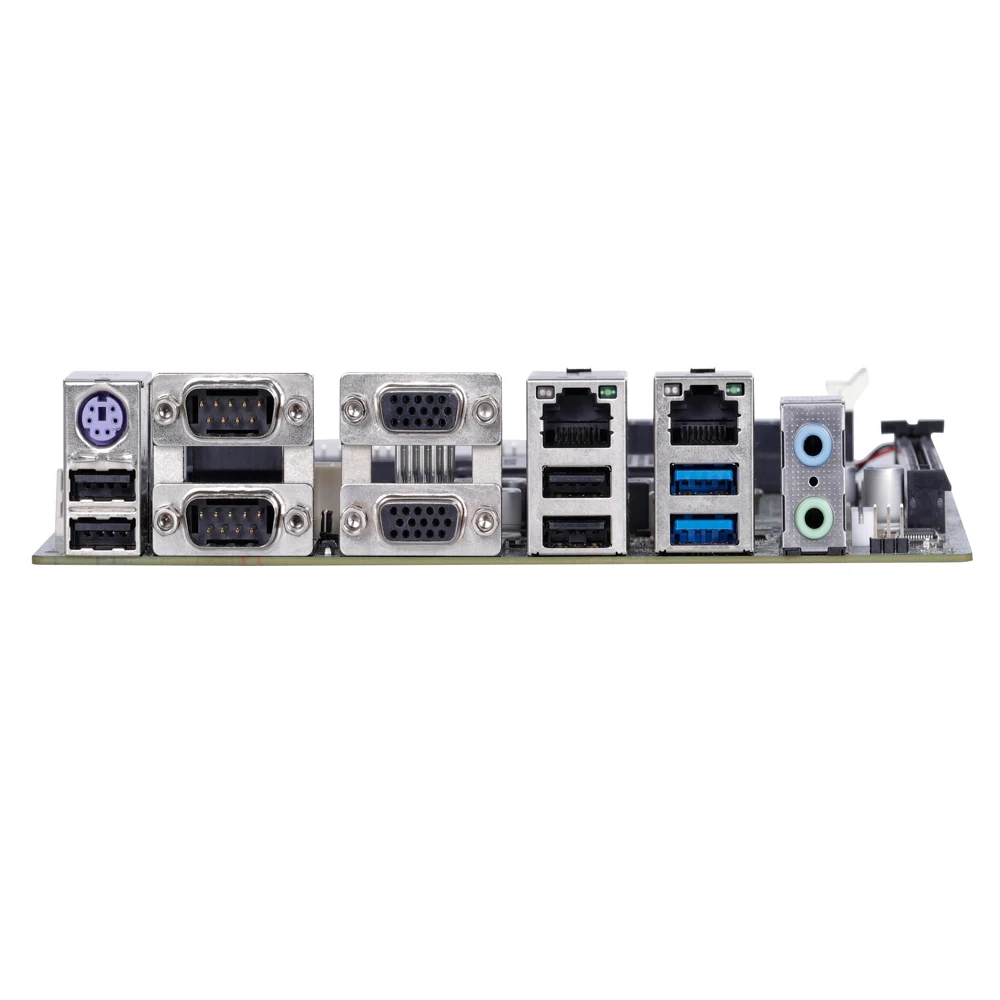

USB Function

4*USB2.0 interfaces

Rear standard USB2.0 interface

2*USB3.0 interfaces

Rear standard USB3.0 interface

1*F_USB1 pin

Front USB2.0 pin,one group has 2*USB2.0    (2*5Pin , 2.54mm)

1*F_USB2 pin

Front USB2.0 pin,one group has 2*USB2.0    (2*5Pin , 2.54mm)

Sound Function

1*AUDIO_JACK

Support Line-Out(Blue color),Mic-in(Green color).

1*F_AUDIO pin

Standard Audio Pin         (2*5Pin,2.54mm)

1*INT_SPK pin

Support 8Ω 5W Speaker output(Power Amplifier)      (1*4Pin , 2.0mm)

Hard Disk Function

1*SATA1 interface

Standard SATA3.0 hard disk interface,Max transmission rate 6.0Gbps

1*SATA2 interface

Standard SATA3.0 hard disk interface,Max transmission rate 6.0Gbps

1*MSATA interface

Support Mini SATA hard disk

Switch Function

1*F_PANEL pin

Switch, power light, hard disk light, restart pin          (2*5Pin , 2.54mm)

Other I/O

2*COM interfaces

These are built-out COM interfaces,support RS232. COM2 supports RS485.

COM3~10 pins

These are COM Pins.COM3 supports RS485.     (2*20Pin , 2.0mm)

1*MINI_PCIE interface

Support WIFI module,MSATA hard disk.

1*PS/2 interface

PS/2 interface,It is used for mouse,keyboard.

1*CLR_CMOS pin

This is clearing motherboard,discharge pin.      (1*2Pin , 2.54mm)

2*FAN pins

Fan pins.       (1*3Pin , 2.54mm)

1*PCIE X16 slot

Standard PCI-E x16 slot,It supports external Graphics card.

1*DC_PWR

Heat Sink

Thin,cool,mute fan.

Operating System

Windows XP,Windows 7(32bit,64bit),Windows 8.1,Windows 10,Linux.

Fitted Chassis
