Трехфазный солнечный инвертор Growatt MID 30KTL3 X на сетке 30 кВт с контроллером заряда mppt
- Категория: >>>
- Поставщик: Xiamen Kigienergy Technology Co. Ltd.
Сохранить в закладки 1601276981271:
Описание и отзывы
Характеристики
Product Description

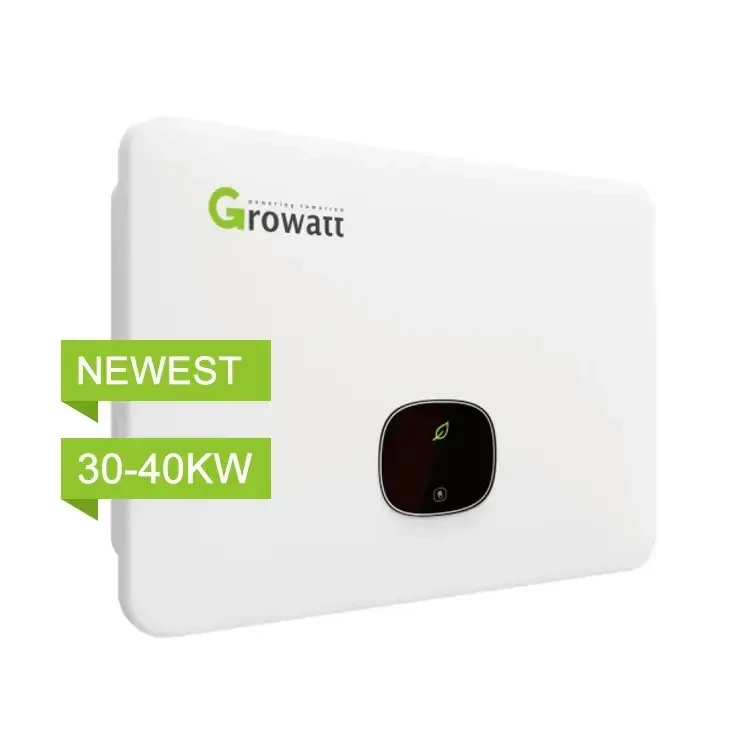

Growatt MID 25-40KTL3-X solar inverter
Growatt MID 25-40KTL3-X is an on grid inverter that integrates high efficiency, multifunctionality, and flexible configuration. It has the ability to work without batteries, supports multiple working modes, remote monitoring, and a wide voltage range. It is suitable for various climate conditions, stable and reliable, and is an ideal choice for photovoltaic off grid power generation systems.Growatt MID 30KTL3-X On Grid 30KW power three phase solar inverter with mppt charge controller
Features
Product Paramenters
Specifications | ||||||||||
Datasheet | MID 25KTL3-X | MID 30KTL3-X | MD 33KTL3-X | MD 36KTL3-X | MD 40KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power(for module STC) | 37500W | 45000w | 49500W | 54000w | 60000W | |||||
Max. DC voltage | 1100v | |||||||||
Start Voltage | 250V | |||||||||
Normal Voltage | 600v | |||||||||
MPPT voltage range | 200-1000V | |||||||||
No. of MPP trackers | 3 | 3 | 3 | 4 | 4 | |||||
No.of PV stings per MPP racker | 2 | |||||||||
Max.input current per MPP tracker | 26A | |||||||||
Max. short-circulit cuent perMPP tracker | 32A | |||||||||
Oufput data (AC) | ||||||||||
AC nominal power | 25000W | 30000W | 33000W | 36000W | 40000w | |||||
Max. AC apparent power | 27700vA | 33300VA | 36600VA | 39600VA | 44000VA | |||||
Nomind AC voltage(range*) | 220v/380v,230v/400v(340-440v) | |||||||||
AC grid frequency(range*) | 50/60 Hz(45-55Hz/55-65 Hz) | |||||||||
Max. output current | 40A | 50.5A | 55.5A | 60.0A | 66.6A | |||||
Adjustable power factor | 0.8leading..0.8lagging | |||||||||
THDi | <3% | |||||||||
AC gid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
Max.eficiency | 98.80% | |||||||||
European efficiency | 98.50% | |||||||||
MPPT efficiency | 99.90% | |||||||||
Protection devices | ||||||||||
DC reverse polarily protection | Yes | |||||||||
DC Switch | Yes | |||||||||
AC/DC surge protection | Type ll/ Typell | |||||||||
Insulation resistance monitoring | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
General dota | ||||||||||

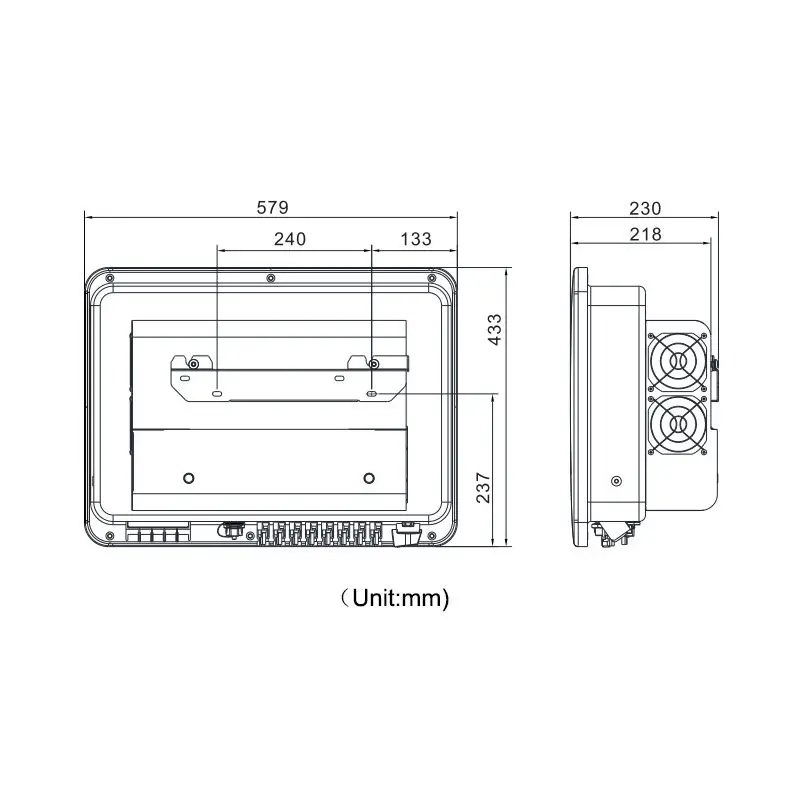

Dimensions (W/ H/ D) | 580/435/230mm | |||||||||
Weight | 29.5kg | 29.5kg | 29.5kg | 30.5kg | 30.5kg | |||||
Operating temperature range | -25C..+60C | |||||||||
Nighttime power consumption | <1W | |||||||||
opology | Transformerless | |||||||||
Cooling | Smart air cooling | |||||||||
Protection degree | IP66 | |||||||||
Relative humidiy | 0-100% | |||||||||
Afttude | 4000m | |||||||||
DC connection | H4MC4IOptional) | |||||||||
AC connection | Cable aland+OT terminal | |||||||||
Display | OLED+LED/WIFI+APP | |||||||||
CE, VDE0126, Greece, EN50549, C10/C11, UTE C 15-712, IEC62116,IEC61727, IEC 60068, IEC 61683, CEI0-21, CEI0-16, N4105, TOR Erzeuger, G98/G99, G100, AS/NZS 3100, AS4777, UNE217001, UNE206007, PO12.2, KSC8565 | ||||||||||
Certifications

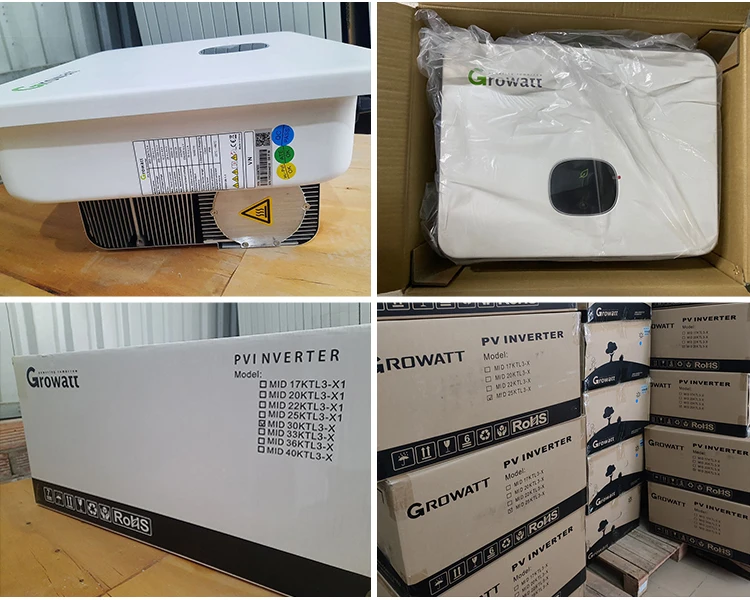

Packing & Delivery
Company Profile
The headquarters of Xiamen Kigienergy Technology Co., Ltd. Is located in Fujian, China.It is a high-tech enterprise specializing in the field of new energy. The core business includes the research and development, production, sales and service of solar panels, solar inverters, photovoltaic brackets, energy storage batteries, solar power generation systems, solar cleaning machines and other products, and undertakes large-scale photovoltaic power station projects to meet the requirements of different customers. Kigienergy's business covers more than 100 countries and regions and is widely praised around the world. Our company implements quality tracking management of its products, winning a high market reputation and being trusted by millions of customers around the world.
Employees: 160+
Professional R&D personnel: 50+
Production base area: 1,000 ㎡ Certificates: 30+
Patents: 60+
Patents: 60+
Enterprise government credit rating: AAA+
FAQ
Q: How long is the delivery time of your products?
A:Stock products need around 15days. Customized products will base on the quantity.
Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.
Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
A:Stock products need around 15days. Customized products will base on the quantity.
Q:Can you supply OEM &ODM service ?
A:Yes. The MOQ base on the service you need.
Q: Can you ship your battery products by sea or by air ?
A: We have long-term cooperated forwarders who are professional at battery shipment and can satisfy your demand.
Q: How can we guarantee quality?
A; Always a pre-production sample before mass production;
Always final Inspection before shipment;
Contact Us
Похожие товары
Afore Pv система США издание 20 кВт 25 30 инверторы для домашнего использования
227 541,82 ₽ - 228 535,46 ₽
Deye 30 кВт Sun-30K-Sg01Hp3-Eu-Bm3 600 В солнечный инвертор на автономной сети Гибридный умный со свинцово-кислотной батареей
393 036,82 ₽ - 402 973,14 ₽
350 Вт 1 кВт 3 5 10 20 30 40 инвертор 12 В 24 48 220 5000 dc-ac солнечные инверторы
7 176,24 ₽ - 8 169,87 ₽
Трехфазный инвертор INVT 30kw XG 30-40KTR на сетке Солнечный
309 130,08 ₽ - 329 002,73 ₽

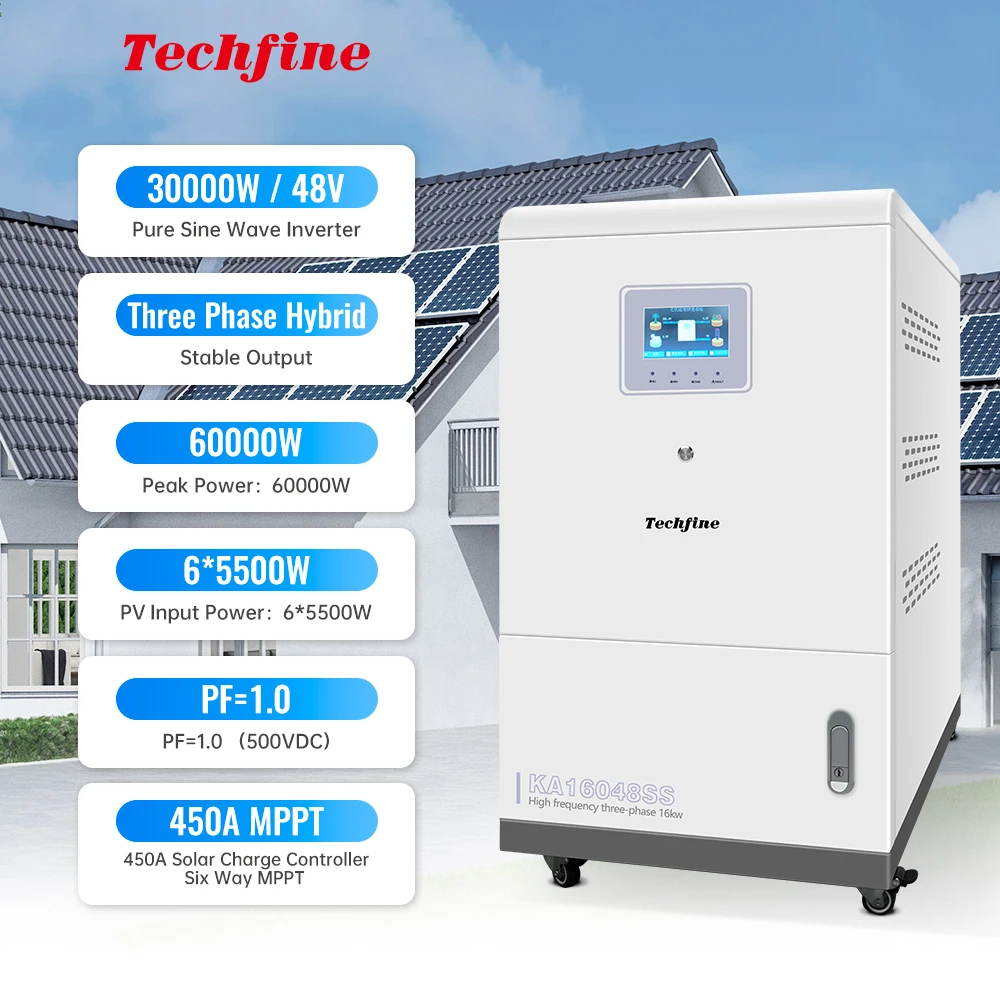

Трехфазный инвертор Techfine 30 кВт
