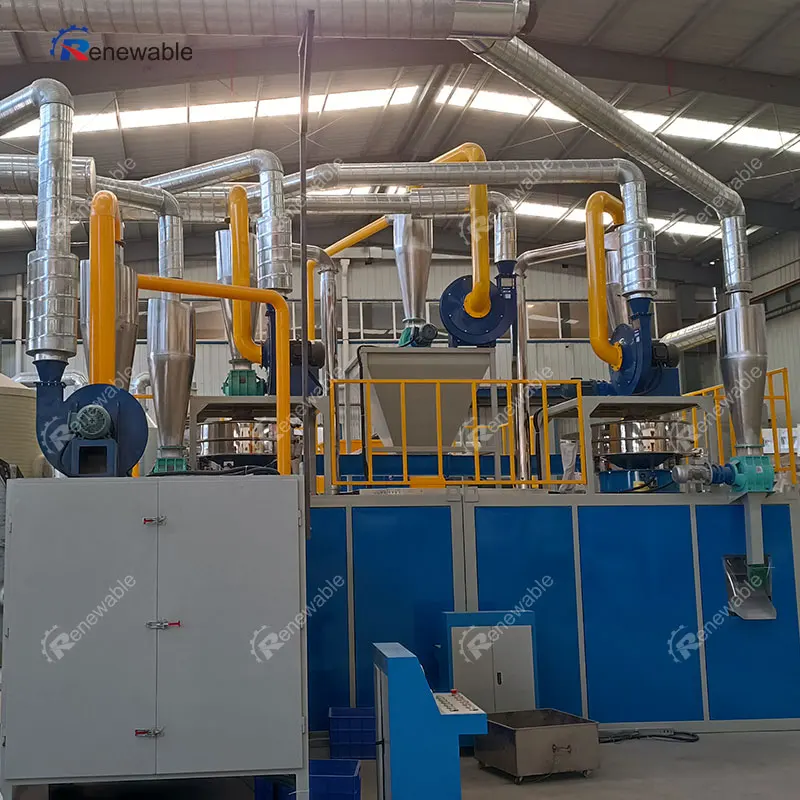

E WASTE RECYCLING PLANT
E-waste recycling machine is also called E-waste crushing and separating machine, printed circuit boards separator, electric waste process equipment, which is for recycling the circuit boards inside the TV, computer and other home appliances.
After the E-waste recycling process, it can separate the metal and nonmetal materials to get recycle use. E-waste recycling machine is apply to recycle all kinds of circuit boards, PCB boards, FPCB boards and other electric wastes.
Raw Materials
Various E waste materials such as:
Computer boards, Cell phone boards, TV boards, Copper-clad laminate

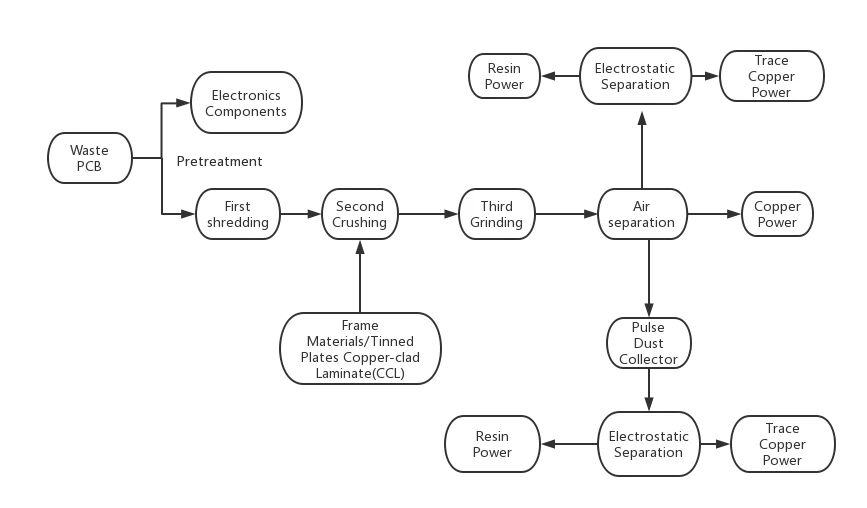

Technology Introduction

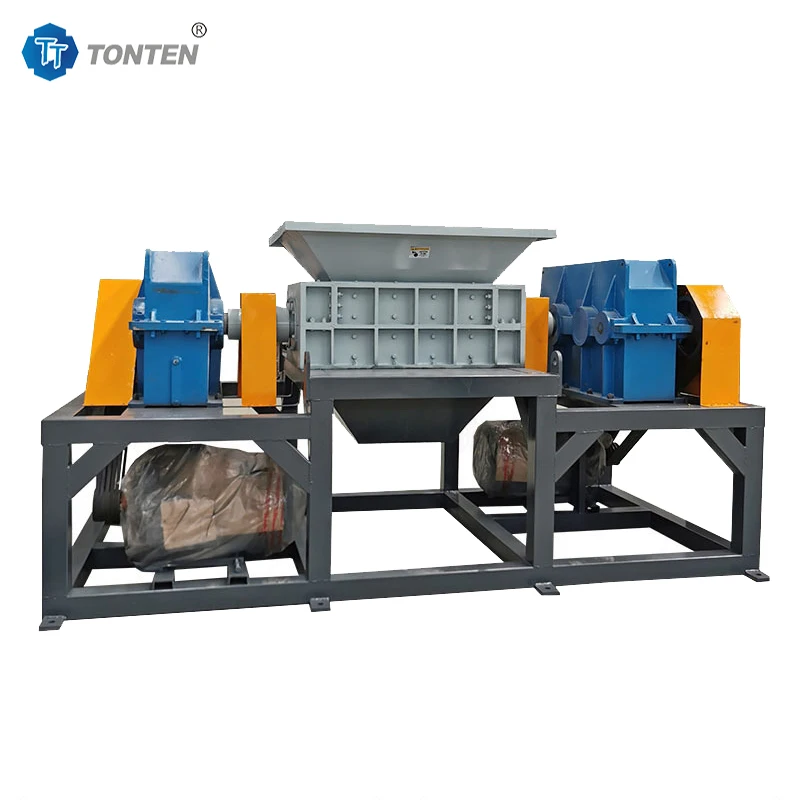

The first crusher adopts double-shaft shredding,

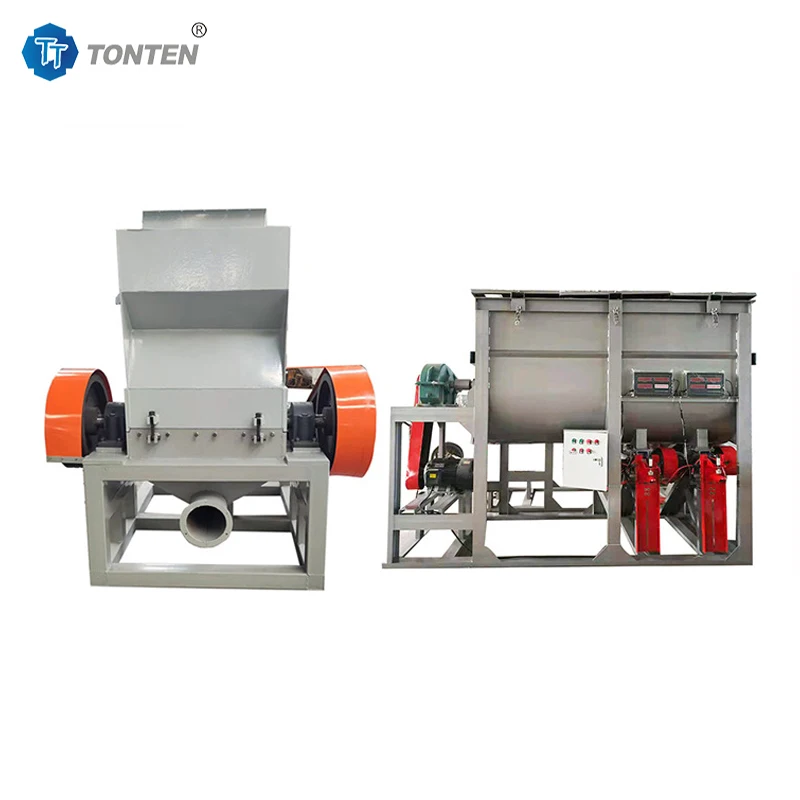

The second crusher adopts hammer crusher, and the third crusher adopts high-speed turbine crusher.
The material is pulverized into powder through three-stage pulverization, and then sorted by air separation equipment and electrostatic separation equipment.
The recovery rate of copper in waste circuit boards is over 98% through separation and sorting equipment.
The first crushing machine we choose the double shaft shredder,
And the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine.

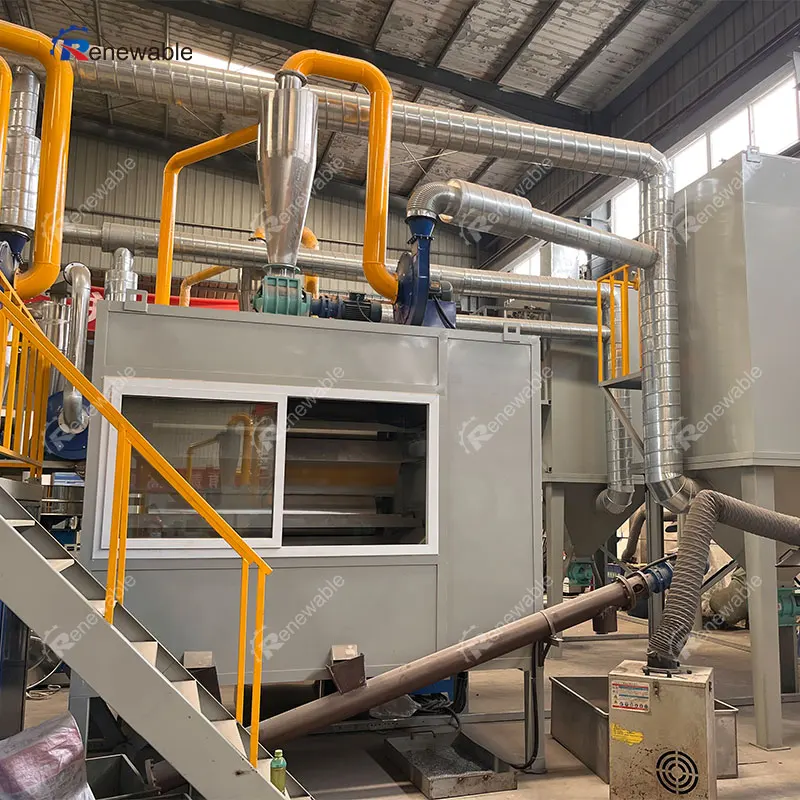

The waste material will be separated by the air separator and the electrostatic separator.
This production line has the advantages of unique structure,large output and power saving.
Several machines cooperate to work after once feeding of materials.
The whole production line are controlled by PLC.
This machine has good performance in mixed metal recycling and also prevent against secondary pollution.

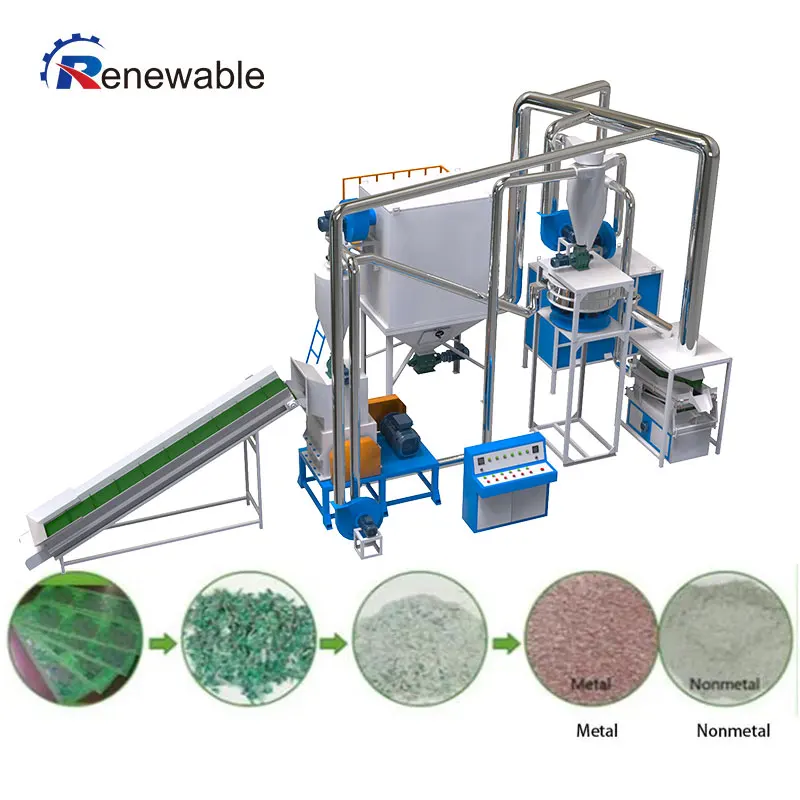

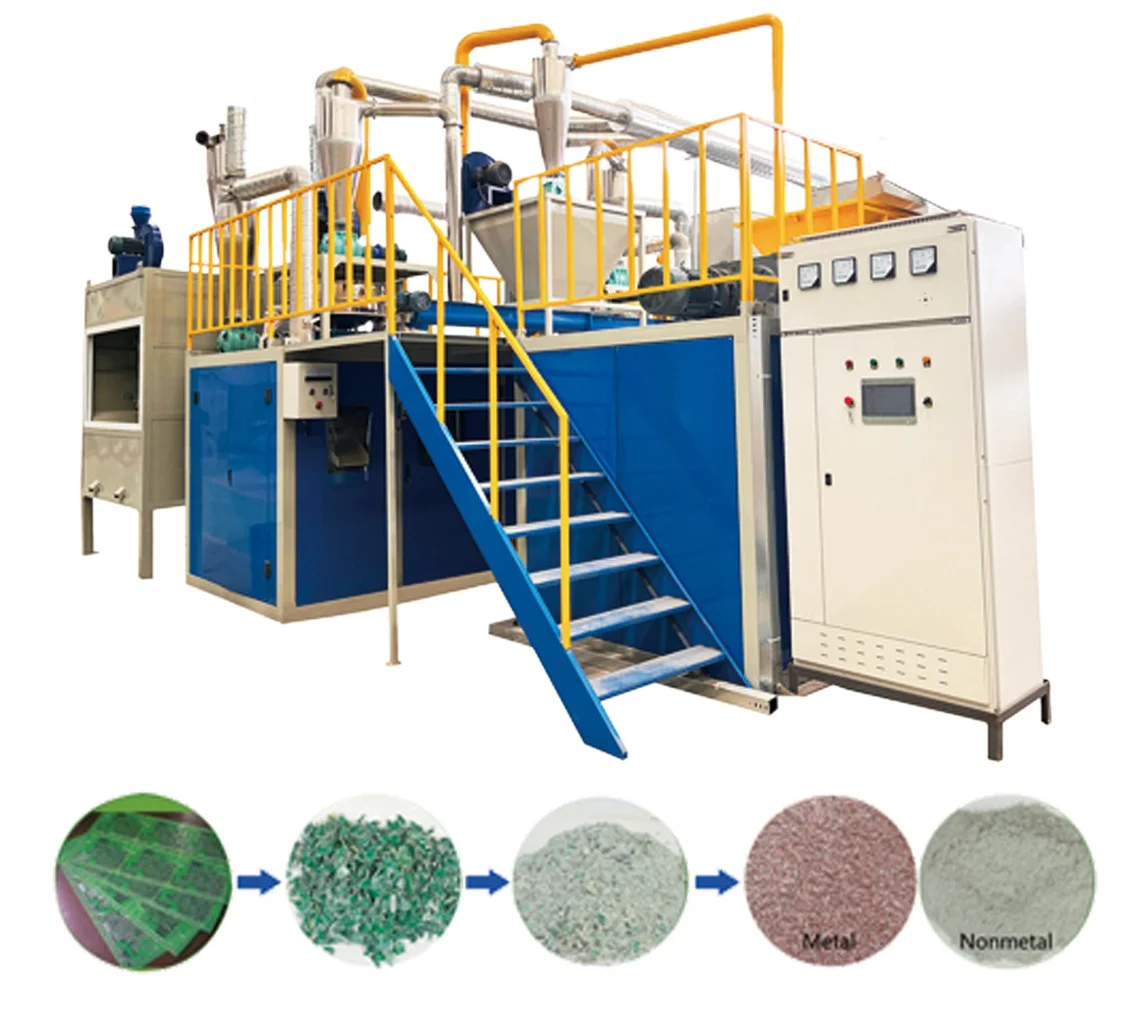

Final Products: Metal Powder And Resin Powder
E Waste Recycling Plant Features
1. Compact structure, reasonable layout, stable performance, low noise.
2. The recycling equipment of waste circuit board adopts two stage crushing, which can make the processing capacity reach 800kg per hour.
3. The whole production line adopts negative pressure feeding to effectively reduce dust overflow.
4. The sorting rate of airflow sorting equipment is up to 99%.
5. High voltage electrostatic separator makes sorting more fine and efficient, effectively control the loss of non-ferrous metal.
6. Equipped with magnetic separation function, iron can be separated from the material.
7. The waste circuit board recycling equipment adopts PLC to control the complete production line for uniform feeding and coordinated operation.
8. The grinding chamber adopts circulating water temperature control and noise reduction.
9. The return system makes crushing more efficient.
10. The efficiency of pulse dust removal equipment is as high as 99%, which effectively inhibits dust volatilizati
Technical Parameters
Model | Capacity | Power | Dimension |
RNB-PCB 300 | 200-300 Kg/H | 102 Kw | 20*5*5 m |
RNB-PCB 500 | 400-500 Kg/H | 134 Kw | 25*6*5 m |
RNB-PCB 800 | 600-800 Kg/H | 194 Kw | 30*6*5 m |
RNB-PCB 1000 | 800-1000 Kg/H | 238 Kw | 35*8*5 m |
Quality Assurance
Installation And After-Sales Service
Company Profile
Henan Renewable Energy Technology Co., Ltd
Renewable Energy is China's leading supplier of E-waste dismantling, crushing and sorting, comprehensive extraction of precious metals, waste aluminum and plastic sorting, PCB board recycling , solar PV panel recycling, waste lithium battery recycling and other new environmental protection equipment.
We have 30 sets (sets) of self-built comprehensive laboratories and international advanced experimental equipment and has obtained 6 invention patents and 20 utility model patents.
The company has passed a number of international certifications such as 1S09001 quality management system, 1S014001 environmental management system, ROHS and CE certification.
Since its foundation, it established strategic cooperation with agents to develop win-win partner relationship worldwide to provide a variety of high quality products to customers home and abroad; It has a vast inventory which will aid you in the quick deliveries, high quality and extremely competitive products.
Customer Visit
FAQ
1) Q: Which type should l use for my recycling plant?
A: In order to recommend the most suitable model, please let us know the material situation , including the composition ,size,handling capacity and expected separation result .
2) Q: How to make the payment?
A: We accept the payment by T/T or Western Union or Cash, L/C.For T/T,the customer can choose 100% in advance or 30% in advance,and pay the 70% balance before shipment.
3) Q: What is the lead time?
A:60 days after payment and production drawing confirmation.
4) Installation
A:Installation manual and a guide video will be provided. What's more, We can also send engineers to your site for instructing installation, debugging machine and training workers once you required.
5) Warranty
A:During the one year guarantee period, we change those damaged original components and parts free.
6) Technical Guidance all life
A:Just call us if any problem you encountered when the whole line in
operation, our technician will give you a solution within24 hours.
A: In order to recommend the most suitable model, please let us know the material situation , including the composition ,size,handling capacity and expected separation result .
2) Q: How to make the payment?
A: We accept the payment by T/T or Western Union or Cash, L/C.For T/T,the customer can choose 100% in advance or 30% in advance,and pay the 70% balance before shipment.
3) Q: What is the lead time?
A:60 days after payment and production drawing confirmation.
4) Installation
A:Installation manual and a guide video will be provided. What's more, We can also send engineers to your site for instructing installation, debugging machine and training workers once you required.
5) Warranty
A:During the one year guarantee period, we change those damaged original components and parts free.
6) Technical Guidance all life
A:Just call us if any problem you encountered when the whole line in
operation, our technician will give you a solution within24 hours.
